9-32 — REAR BODY; GUARD FRAME (#44544) — 45 parça

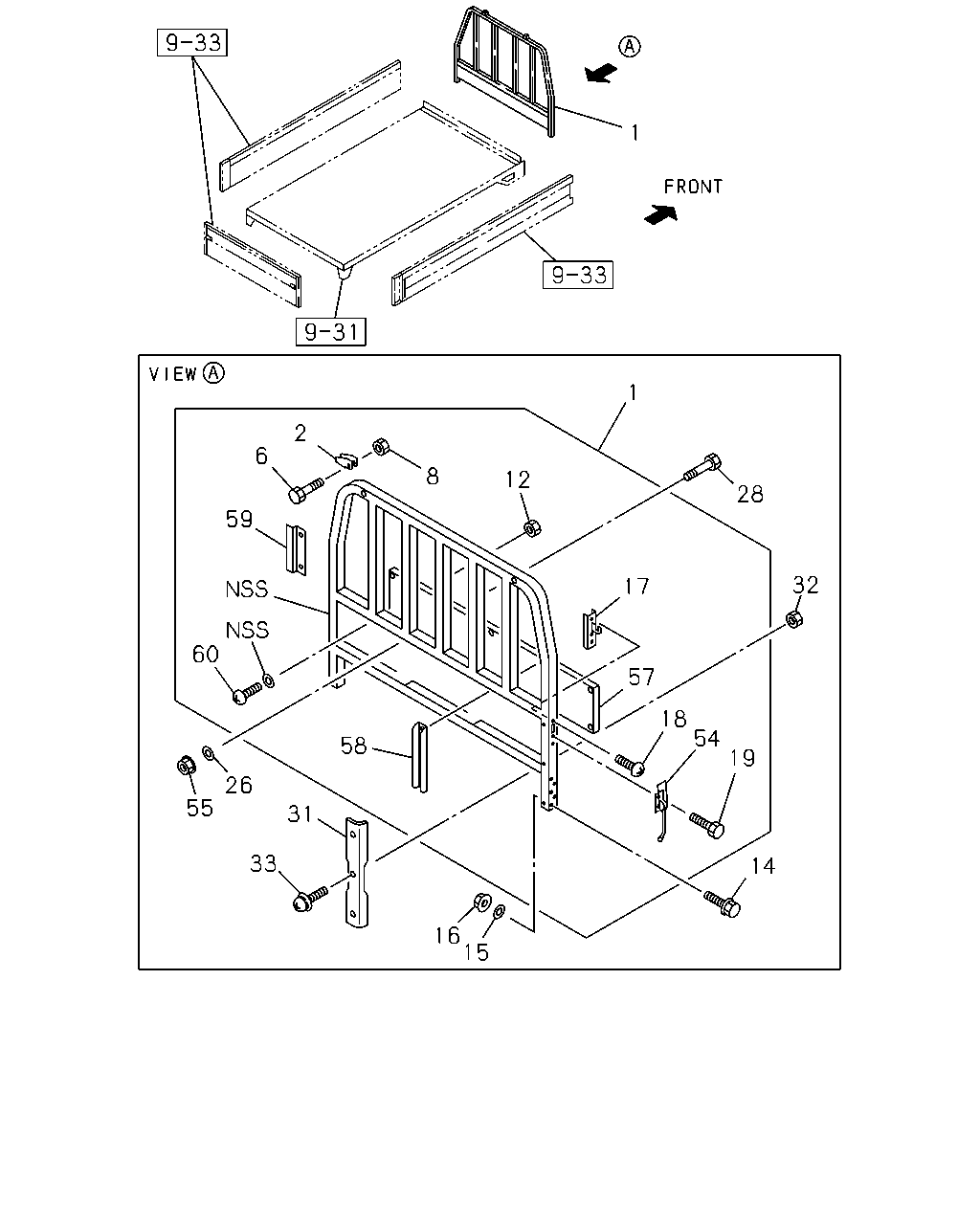

çizim 49227
1 1 2 6 8 12 28 59 32 17 60 57 18 54 58 19 26 55 31 33 14 16 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94196-111-0 01 1 9811-0007 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97590-477-1 01 1 0008- ● ●
2 17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97590-396-0 02 1 0008- ● ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97590-488-0 02 1 0008- ● ●
8 17.447 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M10 		8-97590-493-0 02 1 0008- ● ●
12 17.455 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 M8 FLANGE 		8-94193-939-0 05 1 9811- ●
12 17.455 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> 17.447 M8 FLANGE 		8-94193-939-0 05 1 9811- ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 FLANGE 		8-97065-440-0 12 1 9811-0002 ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 12 1 0003-0007 ● ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 		8-97233-077-0 08 1 0008- ● ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> 		8-97065-438-0 12 1 9811-0002 ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 12 1 9811-0007 ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 08 1 0008- ● ●
17 17.455 HOOK; GUARD FRAME
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94194-628-0 02 1 9811- ● ●
18 17.455 SCREW; HOOK TO GUARD FRAME
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X30 		8-94193-938-1 02 1 9811- ● ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X20 		8-94193-942-0 04 1 9811- ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> M8X20 		8-94193-942-0 04 1 9811- ●
26 17.455 WASHER; LK,GUARD FRAME TO BOLSTE
RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9811- ● ●
28 17.070 BOLT; MEMBER TO BOLSTER
RR BODY FLAT BED<RS6> 09.008 M8X100 		8-97090-620-0 02 1 9811- ● ●
31 17.455 PROTECTOR; GUARD FRAME
BODY COLOR ADRIATIC BLUE(730) RR BODY FLAT BED<RS6> PRIMER 		8-94192-023-2 02 1 9811-0007 ● ●
31 17.455 PROTECTOR; GUARD FRAME
BODY COLOR ARC WHITE(729) RR BODY FLAT BED<RS6> WHITE PRIMER 		8-94192-023-2 02 1 9811-0007 ● ●
31 17.455 PROTECTOR; GUARD FRAME
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> 		8-94192-023-2 02 1 9811- ● ●
32 17.455 NUT; PROTECTOR
RR BODY FLAT BED<RS6> M5 		8-97065-433-0 06 1 9811-0007 ● ●
33 17.455 SCREW; PROTECTOR
RR BODY FLAT BED<RS6> 		8-97065-434-0 06 1 9811-0007 ● ●
54 17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.490 		8-94193-936-0 02 1 9811- ●
54 17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> 17.490 		8-94193-936-0 02 1 9811- ●
55 17.070 NUT; MEMBER
RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9811- ● ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94194-466-0 01 1 9811-0211 ● ●
57 17.400 BOARD; HEADER
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97591-876-0 01 1 0212- ● ●
58 17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94195-457-0 02 1 9811-0007 ● ●
58 17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA 		8-97590-017-0 02 1 0008- ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA 		8-94194-454-0 01 1 9811-0007 ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-94194-454-0 01 1 9811-0007 ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> TAKADA 		8-94194-454-0 01 1 0008-0009 ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> TAKADA 		8-94194-454-0 01 1 0010- ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA 		8-94194-453-0 01 1 9811-0007 ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> TAKADA 		8-94194-453-0 01 1 9811-0007 ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> TAKADA 		8-94194-453-0 01 1 0008-0009 ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> TAKADA 		8-94194-453-0 01 1 0010- ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97590-024-0 01 1 0008- ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97590-023-0 01 1 0008- ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X35 		8-94193-941-0 05 1 9811-0007 ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X30 		8-94193-938-1 05 1 9811-0007 ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X30 		8-94193-938-1 05 1 0008- ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> M8X30 		8-94193-938-1 05 1 0008- ●
