1 |

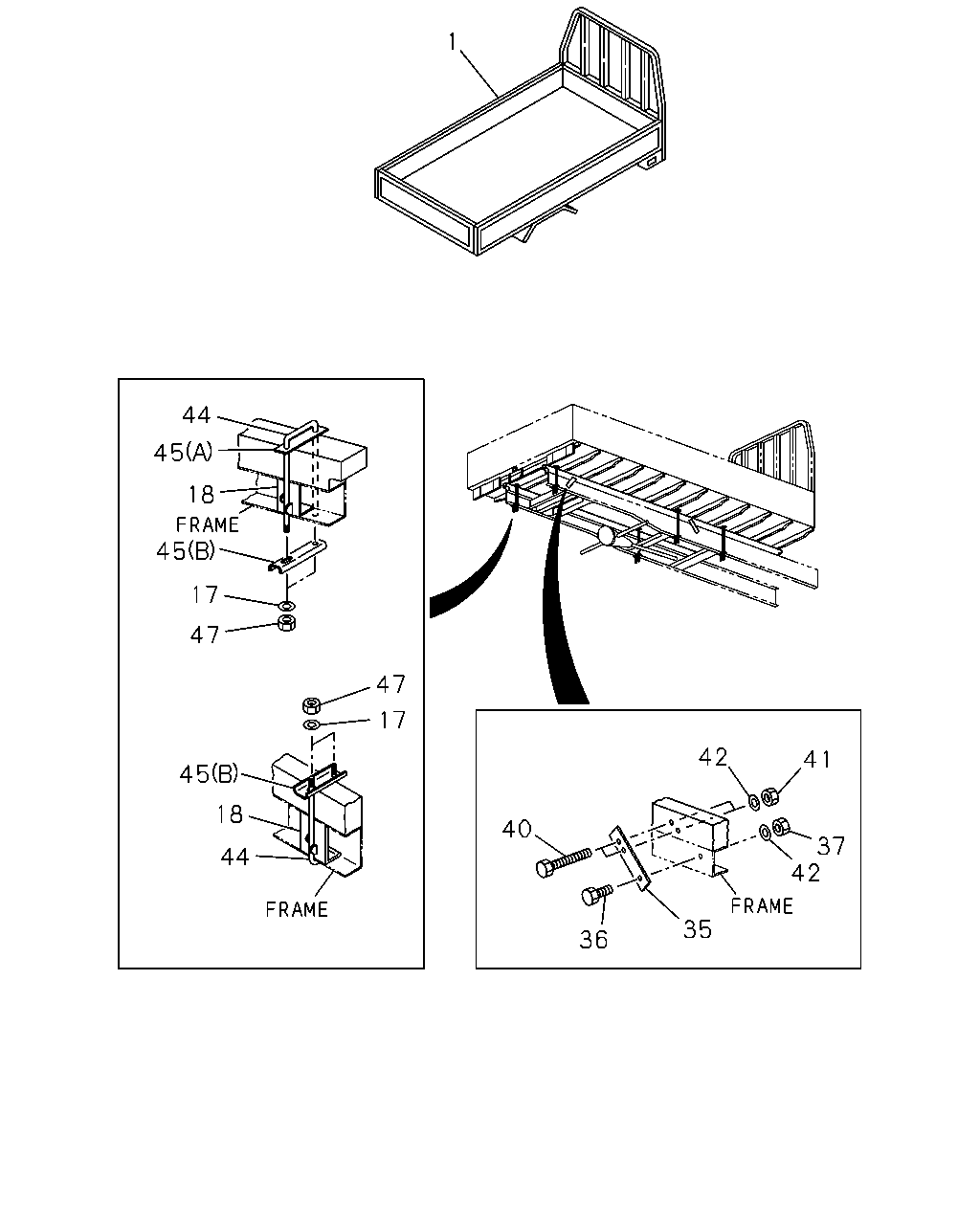

17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
CHINA EQUIPMENT(YT2)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
BLUE
|
8-97199-086-0 |
01 |
1 |
9811-9812 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2)
BLUE
|
8-97199-080-0 |
01 |
1 |
9811-9812 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
BLUE
|
8-97199-080-1 |
01 |
1 |
9901-9903 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
BLUE
|
8-97199-080-1 |
01 |
1 |
9904-0007 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
BLUE
|
8-97296-873-0 |
01 |
1 |
0008-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
BLUE
|
8-97296-873-1 |
01 |
1 |
0106- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
CHINA EQUIPMENT(YT2)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
WHITE
|
8-97199-084-0 |
01 |
1 |
9811-9812 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2)
WHITE
|
8-97199-078-0 |
01 |
1 |
9811-9812 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
WHITE
|
8-97199-078-1 |
01 |
1 |
9901-9903 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
WHITE
|
8-97199-078-1 |
01 |
1 |
9904-0007 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
WHITE
|
8-97296-871-0 |
01 |
1 |
0008-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
WHITE
|
8-97296-871-1 |
01 |
1 |
0106- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
CHINA EQUIPMENT(YT2)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
BLUE
|
8-97199-085-0 |
01 |
1 |
9811-9812 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2)
BLUE
|
8-97199-079-0 |
01 |
1 |
9811-9812 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
BLUE
|
8-97199-079-1 |
01 |
1 |
9901-9903 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
BLUE
|
8-97199-079-1 |
01 |
1 |
9904-0007 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
BLUE
|
8-97296-872-0 |
01 |
1 |
0008-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
BLUE
|
8-97296-872-1 |
01 |
1 |
0106- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR ADRIATIC BLUE(730)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
BLUE
|
8-97292-503-0 |
01 |
1 |
9904-0007 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR ADRIATIC BLUE(730)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
BLUE
|
8-97296-879-0 |
01 |
1 |
0008-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR ARC WHITE(729)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
WHITE
|
8-97292-501-0 |
01 |
1 |
9904-0007 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR ARC WHITE(729)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
WHITE
|
8-97296-877-0 |
01 |
1 |
0008-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR MARINE BLUE(890)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
BLUE
|
8-97292-502-0 |
01 |
1 |
9904-0007 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR MARINE BLUE(890)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
BLUE
|
8-97296-878-0 |
01 |
1 |
0008-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR POLAR SILVER MET(845)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
SILVER
|
8-97296-894-0 |
01 |
1 |
0009-0009 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH)
BODY COLOR POLAR SILVER MET(845)
TURBOCHARGER(K51)
RR BODY FLAT BED<RS6>
SILVER
|
8-97297-881-0 |
01 |
1 |
0010-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR POLAR SILVER MET(845)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
SILVER
|
8-97296-890-1 |
01 |
1 |
0009-0009 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
4HG1 ENG(RJH),4HF1 ENG(RLS)
BODY COLOR POLAR SILVER MET(845)
RR BODY FLAT BED<RS6>
EXC. TURBOCHARGER(K51)
SILVER
|
8-97297-879-0 |
01 |
1 |
0010-0105 |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845)
RR BODY FLAT BED<RS6>
SILVER
|
8-97297-879-1 |
01 |
1 |
0106- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
CHINA EQUIPMENT(YT2)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
,FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97199-089-0 |
01 |
1 |
9811-9812 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2),FRAME
STRAIGHT TYPE<7KJ>
BLUE
|
8-97199-083-0 |
01 |
1 |
9811-9812 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97199-083-1 |
01 |
1 |
9901-0007 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ADRIATIC BLUE(730)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97296-876-1 |
01 |
1 |
0008- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
CHINA EQUIPMENT(YT2)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
,FRAME STRAIGHT TYPE<7KJ>
WHITE
|
8-97199-087-0 |
01 |
1 |
9811-9812 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2),FRAME
STRAIGHT TYPE<7KJ>
WHITE
|
8-97199-081-0 |
01 |
1 |
9811-9812 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
WHITE
|
8-97199-081-1 |
01 |
1 |
9901-0007 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
WHITE
|
8-97296-874-1 |
01 |
1 |
0008- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
CHINA EQUIPMENT(YT2)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
,FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97199-088-0 |
01 |
1 |
9811-9812 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2),FRAME
STRAIGHT TYPE<7KJ>
BLUE
|
8-97199-082-0 |
01 |
1 |
9811-9812 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97199-082-1 |
01 |
1 |
9901-0007 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97296-875-1 |
01 |
1 |
0008- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
SILVER
|
8-97296-892-1 |
01 |
1 |
0009-0009 |
|
● |
| |
1 |
17.090 BODY ASM; REAR
BODY COLOR POLAR SILVER MET(845)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
SILVER
|
8-97297-880-1 |
01 |
1 |
0010- |
|
● |
| |
1 |

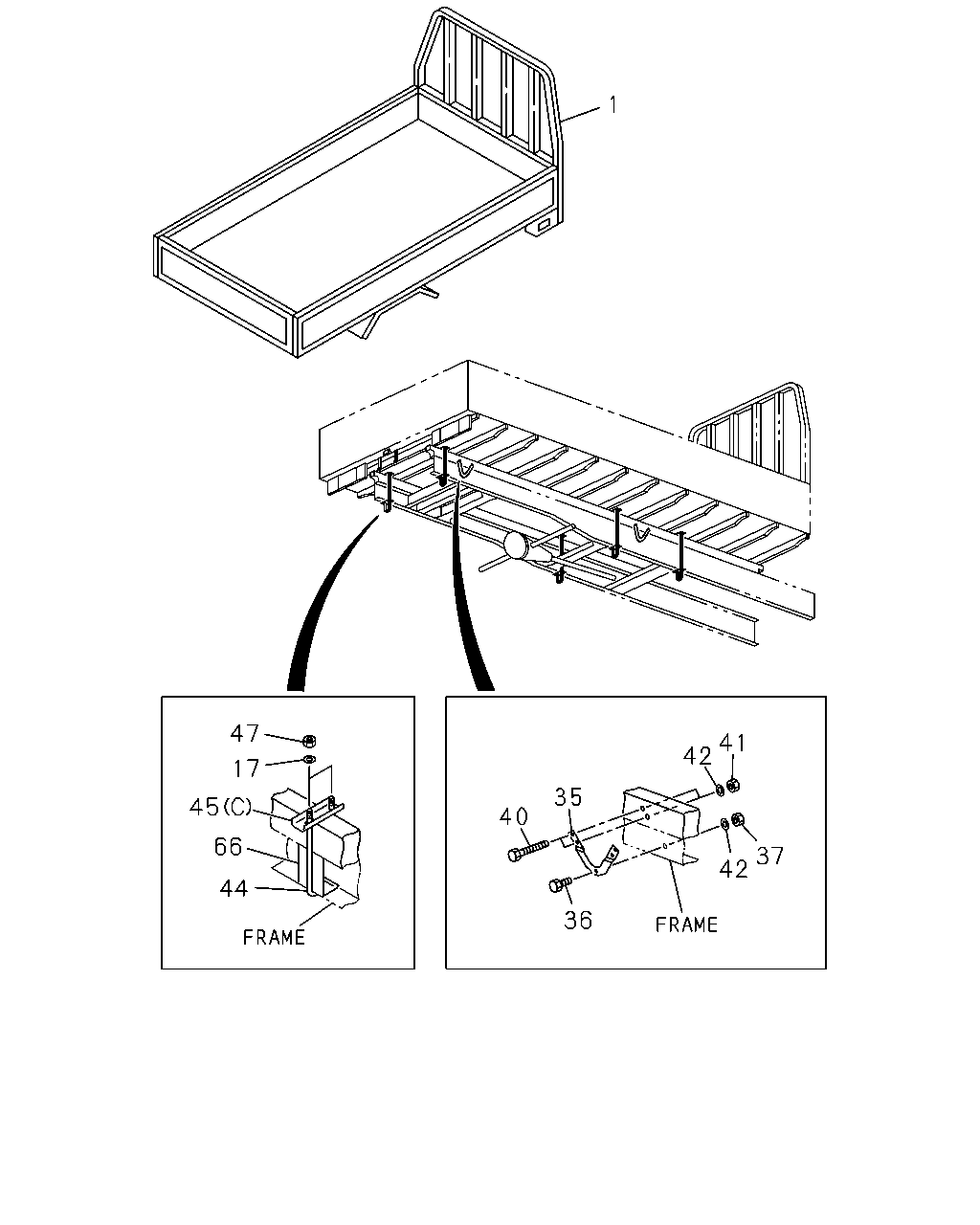

17.090 BODY ASM; REAR
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
|
8-94195-555-0 |
01 |
1 |
9811- |
|
● |
| |
17 |
17.447 WASHER; PL,U-BOLT
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
ID=15 OD=26
|
9-09164-514-0 |
06 |
1 |
9811- |
● |
● |
| |
17 |
17.447 WASHER; PL,U-BOLT
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
00.029
ID=15 OD=26
|
9-09164-514-0 |
16 |
1 |
9811- |
|
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2),FRAME
STRAIGHT TYPE<7KJ>
H=156.5
|
8-94440-232-1 |
02 |
1 |
9811- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
CHINA EQUIPMENT(YT2)
EXC. FRAME STRAIGHT TYPE<7KJ>
H=161 B=50 D=65
|
8-94132-122-1 |
04 |
1 |
9811- |
● |
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2),FRAME
STRAIGHT TYPE<7KJ>
H=161 B=50 D=65
|
8-94132-122-1 |
02 |
1 |
9811- |
● |
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
H=91 B=50 D=65
|
8-94132-123-1 |
02 |
1 |
9811- |
● |
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
EXC. CHINA EQUIPMENT(YT2),FRAME
STRAIGHT TYPE<7KJ>
H=152 B=50 D=60
|
8-94427-101-0 |
02 |
1 |
9811- |
|
● |
| |
35 |
17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=185
|
8-97145-453-0 |
04 |
1 |
9811- |
● |
● |
| |
35 |
17.447 STOPPER; RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
|
1-66901-493-0 |
04 |
1 |
9811- |
|
● |
| |
36 |
17.447 BOLT; FRAME
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
09.171
M10X30 W/LK WASHER
|
0-50041-030-0 |
04 |
1 |
9811- |
● |
● |
| |
36 |
17.447 BOLT; FRAME
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
03.613
M12X30 W/LK WASHER
|
0-50041-230-0 |
04 |
1 |
9811- |
|
● |
| |
37 |
17.447 NUT; STOPPER TO FRAME
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9811- |
● |
● |
| |
37 |
17.447 NUT; STOPPER TO FRAME
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
07.243
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
9811- |
|
● |
| |
40 |
17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
01.840
M8X70 FLANGE
|
0-28080-870-0 |
08 |
1 |
9811- |
● |
● |
| |
41 |
17.447 NUT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
03.023
M8 FLANGE
|
9-09130-408-0 |
08 |
1 |
9811- |
● |
● |
| |
42 |
17.447 WASHER; PL,STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
07.633
ID=8.4 OD=22
|
9-09164-708-0 |
08 |
1 |
9811- |
● |
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=272
|
5-51171-007-1 |
02 |
1 |
9811- |
● |
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
L=345
|
8-94317-633-0 |
04 |
1 |
9811- |
● |
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=385
|
1-66900-073-0 |
06 |
1 |
9811- |
|
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
L=335
|
1-66900-074-0 |
02 |
1 |
9811- |
|
● |
| |
45 |
17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=116 B=35
|
5-66900-203-0 |
06 |
1 |
9811- |
● |
● |
| |
45 |
17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=120 B=45
|
5-66900-204-3 |
06 |
1 |
9811- |
● |
● |
| |
45 |
17.447 PLATE; U-BOLT
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=135 B=50
|
9-61208-235-0 |
08 |
1 |
9811- |
|
● |
| |
47 |
17.447 NUT; U-BOLT
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
06.008
M14
|
9-09130-414-0 |
12 |
1 |
9811- |
● |
● |
| |
47 |
17.447 NUT; U-BOLT
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
06.008
M14
|
9-09130-414-0 |
16 |
1 |
9811- |
|
● |
