◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#44540) — 149 parça

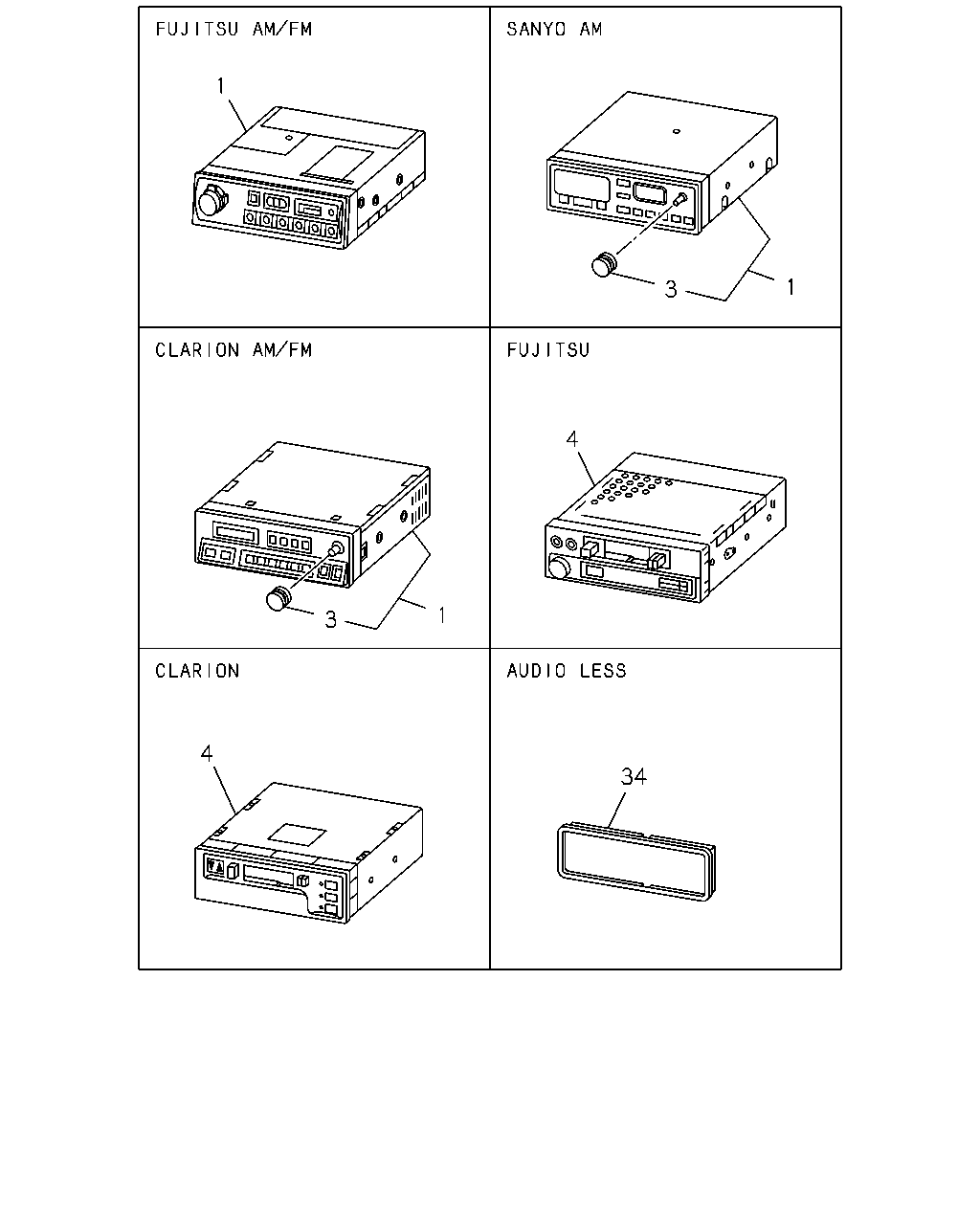

çizim 9724
1 1 3 4 1 3 4 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97120-649-0 01 1 9811-9911 ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97120-649-0 01 1 9811-9911 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 9912-0105 ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 9912-0105 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0106-0202 ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0106-0202 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0203- ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0203- ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 9811-0105 ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 9811-0105 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0106-0202 ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0106-0202 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0203- ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0203- ● ● ●
1 09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM 		8-97088-264-0 01 1 9811-0004 ● ● ●
1 09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM 		8-97241-543-0 01 1 0005- ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM 		8-97088-266-0 01 1 9811- ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION 		8-97093-559-0 01 1 9811-0105 ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION 		8-97093-559-0 01 1 0106-0202 ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION 		8-97093-559-0 01 1 0203- ● ● ● ● ●
3 09.649 ATTACH KIT; AM/FM RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO 		8-97093-557-0 01 1 9811- ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION 		8-97088-291-0 01 1 9811-0105 ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION 		8-97088-291-0 01 1 9811-0105 ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION 		8-97088-291-0 01 1 0106-0202 ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION 		8-97088-291-0 01 1 0106-0202 ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION 		8-97088-291-0 01 1 0203- ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION 		8-97088-291-0 01 1 0203- ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU 		8-97088-290-0 01 1 9811- ● ● ●
34 09.650 COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 9811-0105 ● ● ● ● ●
34 09.650 COVER; RADIO HOLE 8-97856-203-3 01 1 9811-0105 ●
34 09.650 COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 0106-0202 ● ● ● ●
34 09.650 COVER; RADIO HOLE 8-97856-203-3 01 1 0106-0202 ● ●
34 09.650 COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 0203- ● ● ● ● ●
34 09.650 COVER; RADIO HOLE 8-97856-203-3 01 1 0203- ●
çizim 45709
7 1 7 6 7 6 7 7 1 7 6 226 6 4 226
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97120-649-0 01 1 9811-9911 ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97120-649-0 01 1 9811-9911 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 9912-0105 ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 9912-0105 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0106-0202 ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0106-0202 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0203- ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0203- ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 9811-0105 ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 9811-0105 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0106-0202 ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0106-0202 ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0203- ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM 		8-97120-647-0 01 1 0203- ● ● ●
1 09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM 		8-97088-264-0 01 1 9811-0004 ● ● ●
1 09.650 RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> SANYO AM 		8-97241-543-0 01 1 0005- ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> FUJITSU AM/FM 		8-97088-266-0 01 1 9811- ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION 		8-97088-291-0 01 1 9811-0105 ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION 		8-97088-291-0 01 1 9811-0105 ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION 		8-97088-291-0 01 1 0106-0202 ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION 		8-97088-291-0 01 1 0106-0202 ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION 		8-97088-291-0 01 1 0203- ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> CLARION 		8-97088-291-0 01 1 0203- ● ● ●
4 09.650 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> FUJITSU 		8-97088-290-0 01 1 9811- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-615-2 01 1 9811-9908 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (A) 		8-97853-615-2 01 1 9909-9909 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A) 		8-97853-615-2 01 1 9909-9909 ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-615-2 01 1 9909-9909 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(A) 		8-97853-615-2 01 1 9909-9909 ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-615-2 01 1 9910-0105 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-615-2 01 1 0106- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-614-2 01 1 9811-9908 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (A) 		8-97853-614-2 01 1 9909-9909 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A) 		8-97853-614-2 01 1 9909-9909 ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-614-2 01 1 9909-9909 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(A) 		8-97853-614-2 01 1 9909-9909 ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-614-2 01 1 9910-0105 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A) 		8-97853-614-2 01 1 0106- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-104-1 01 1 9811-0105 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-104-1 01 1 0106- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-103-1 01 1 9811-0105 ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-103-1 01 1 0106- ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9811-9908 ● ● ● ● ●
7 09.650 SCREW; RADIO
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9909-9909 ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9909-9909 ● ●
7 09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9909-9909 ● ● ●
7 09.650 SCREW; RADIO
04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9909-9909 ●
7 09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9910-0105 ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0106- ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 08 1 9811-0105 ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 08 1 0106- ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9811-9908 ● ● ● ● ●
226 09.647 BOLT; BRKT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9909-9909 ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9909-9909 ● ●
226 09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9909-9909 ● ● ●
226 09.647 BOLT; BRKT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9909-9909 ●
226 09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9910-0105 ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0106- ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9811-0105 ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0106- ● ● ● ● ●
çizim 47159
222 116 222 171 222 5 117 48 221 221 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 09.647 HARNESS; EXT
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97131-327-0 02 1 9811- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97207-695-0 02 1 9811-9902 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97207-695-0 02 1 9811-9902 ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97223-098-0 02 1 9903-0105 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97223-098-0 02 1 9903-0105 ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97223-098-0 02 1 0106-0202 ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97223-098-0 02 1 0106-0202 ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97223-098-0 02 1 0203-0204 ● ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97223-098-0 02 1 0203-0204 ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97317-001-0 02 1 0205- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-0 02 1 0205- ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE> 		8-97207-696-0 02 1 9811-9901 ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE> 		8-97223-099-0 02 1 9902-0204 ● ● ●
48 09.650 SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE> 		8-97317-000-0 02 1 0205- ● ● ●
49 09.655 SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14 		8-94279-325-0 06 1 9811- ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-325-3 01 1 9811-0202 ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-325-3 01 1 0203- ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 0203- ●
116 16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-324-3 01 1 9811-0202 ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-324-3 01 1 0203- ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 0203- ●
117 16.165 SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14 		8-94279-325-0 06 1 9811-0202 ● ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14 		8-94279-325-0 06 1 0203- ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
16.067 M5X14 		8-94279-325-0 06 1 0203- ●
171 09.650 COVER; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-331-4 02 1 9811-0202 ● ● ● ● ● ●
171 09.650 COVER; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-331-4 02 1 0203- ● ● ● ● ●
171 09.650 COVER; SPEAKER 8-97852-331-4 02 1 0203- ●
221 16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A) 		8-97852-327-4 02 1 9811-0202 ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A) 		8-97852-327-4 02 1 0203- ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(A) 		8-97852-327-4 02 1 0203- ●
221 16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) 		8-97852-601-1 02 1 9811-0202 ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) 		8-97852-601-1 02 1 0203- ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(B) 		8-97852-601-1 02 1 0203- ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A) 		1-09987-144-0 02 1 9811-0202 ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A) 		1-09987-144-0 02 1 0203- ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
09.264 (A) 		1-09987-144-0 02 1 0203- ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9811-0202 ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0203- ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0203- ●
çizim 51117
233 92 269 92 80 224 80 101 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
80 09.645 ANTENNA
ANTENNA<U73> 		8-97210-547-0 01 1 9811-9904 ● ● ● ● ● ●
80 09.645 ANTENNA
ANTENNA<U73> 		8-97211-565-0 01 1 9905- ● ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 9811-0105 ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 0106-0202 ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 0203- ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-2 01 1 9811-0105 ● ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-2 01 1 0106-0202 ● ● ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-2 01 1 0203- ● ● ● ● ●
94 09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-1 01 1 9811- ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 04.342 ID=7 		5-09707-053-0 03 1 9811- ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97118-847-0 01 1 9811-9811 ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97213-766-0 01 1 9812- ● ● ● ● ● ●
233 09.647 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 9811- ● ● ● ● ● ●
233 09.647 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 9811- ● ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97108-184-0 01 1 9811-9904 ● ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97219-080-0 01 1 9905- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
