3-46 — AIR DRYER (#4454) — 93 parça

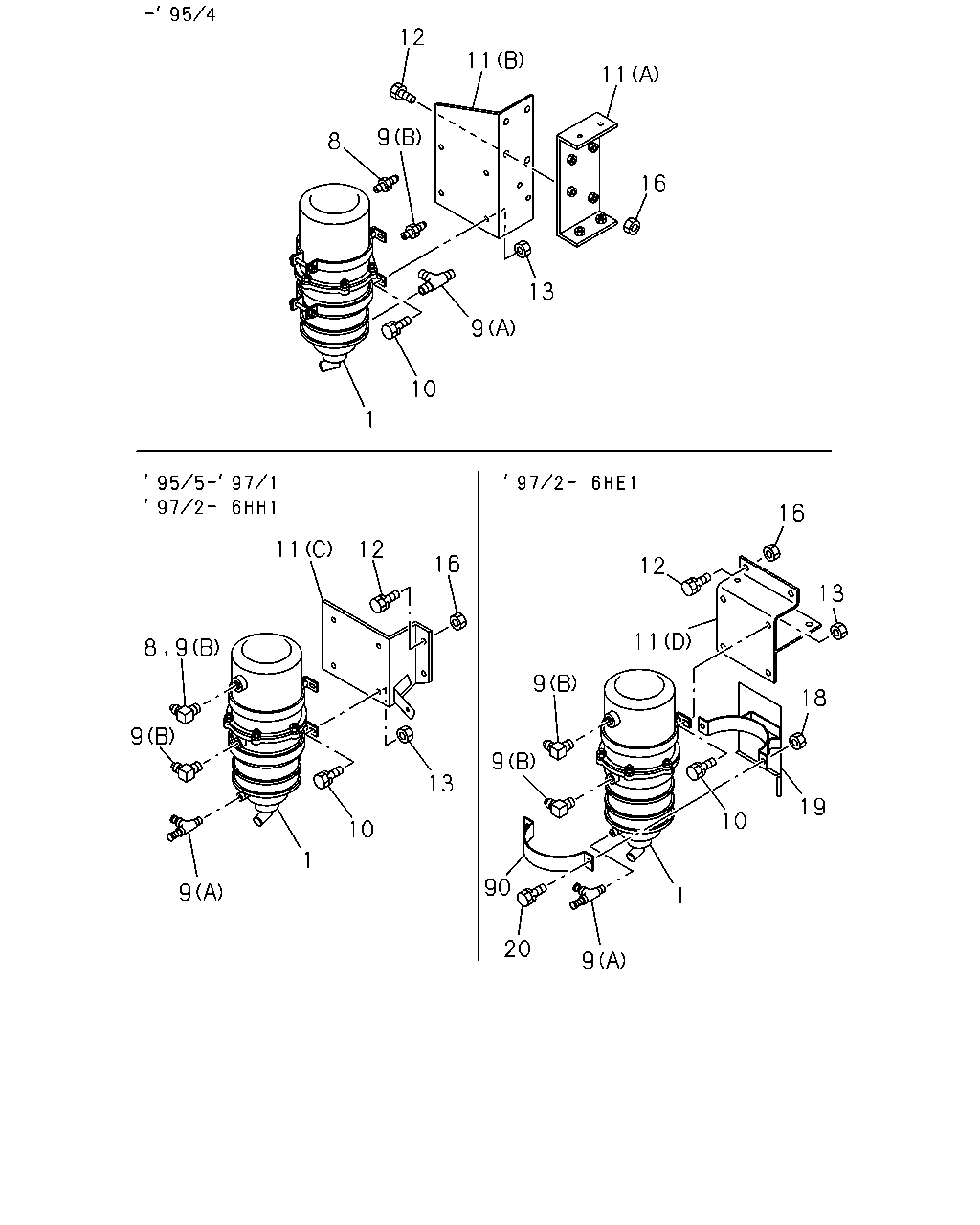

12 11 11 9 8 16 13 9 10 1 16 11 12 16 12 13 11 9 9 18 9 9 13 19 10 10 1 90 9 1 20 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-088-0	01	1	9101-9504	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-091-2	01	1	9505-	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9101-9302	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9701	●	●
8	CONNECTOR; OUT,AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9702-0607	●	●
8	CONNECTOR; OUT,AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-9302	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9504	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A)	1-09660-718-1	01	1	9505-9701	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7> (A)	1-09660-718-1	01	1	9702-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9101-9302	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9701	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9702-9708	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9709-9711	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9712-9809	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9810-0607	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9702-9709	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9710-	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9702-9708	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9709-9709	●	●
9	CONNECTOR; PIPE,AIR DRYER MT643 A/T ALLISON(PR7) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9709-9709		●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9710-9805	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9806-0607	●	●
9	CONNECTOR; PIPE,AIR DRYER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	0-92134-315-0	02	1	0608-	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 W/LK WASHER	0-50041-030-0	04	1	9101-9504	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 FLANGE	0-28081-030-0	04	1	9505-9606	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9607-0512	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-48195-053-0	01	1	9101-9504	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-48195-054-1	01	1	9101-9504	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7> (C)	1-48317-582-0	01	1	9505-9701	●	●
11	BRACKET; AIR DRYER 6HH1 STD ENG(65L) AIR DRYER<PS7> (C)	1-48317-582-0	01	1	9702-	●	●
11	BRACKET; AIR DRYER 6HE1 TCC ENG(76L) AIR DRYER<PS7> (D)	1-48317-758-2	01	1	9702-9709	●	●
11	BRACKET; AIR DRYER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) AIR DRYER<PS7> (D)	1-48317-758-2	01	1	9710-	●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X30 W/LK WASHER	0-50041-030-0	08	1	9101-9504	●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X30 FLANGE	0-28081-030-0	04	1	9505-9606	●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	9607-0512	●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9101-9606	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-0602	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
16	NUT; BRKT AIR DRYER<PS7> M10	9-09110-510-0	04	1	9101-9606	●	●
16	NUT; BRKT AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-0602	●	●
16	NUT; BRKT AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
18	NUT; PROTECTOR 6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	02	1	9709-9709	●	●
18	NUT; PROTECTOR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	02	1	9710-9805	●	●
18	NUT; PROTECTOR AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●
18	NUT; PROTECTOR AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
19	PROTECTOR; HEAT,AIR DRYER AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-399-0	01	1	9806-	●	●
19	PROTECTOR; HEAT,AIR DRYER 6HE1 TCC ENG(76L)	1-22119-399-0	01	1	9709-9709	●	●
19	PROTECTOR; HEAT,AIR DRYER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-22119-399-0	01	1	9710-9805	●	●
20	BOLT; PROTECTOR 6HE1 TCC ENG(76L) M8X25 FLANGE	0-28680-825-0	02	1	9709-9709	●	●
20	BOLT; PROTECTOR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X25 FLANGE	0-28680-825-0	02	1	9710-9805	●	●
20	BOLT; PROTECTOR AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X25 FLANGE	0-28680-825-0	02	1	9806-0512	●	●
20	BOLT; PROTECTOR AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
90	CLAMP; AIR DRYER 6HE1 TCC ENG(76L)	1-22133-261-0	01	1	9709-9709	●	●
90	CLAMP; AIR DRYER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-22133-261-0	01	1	9710-9805	●	●
90	CLAMP; AIR DRYER AIR DRYER<PS7> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-261-0	01	1	9806-	●	●

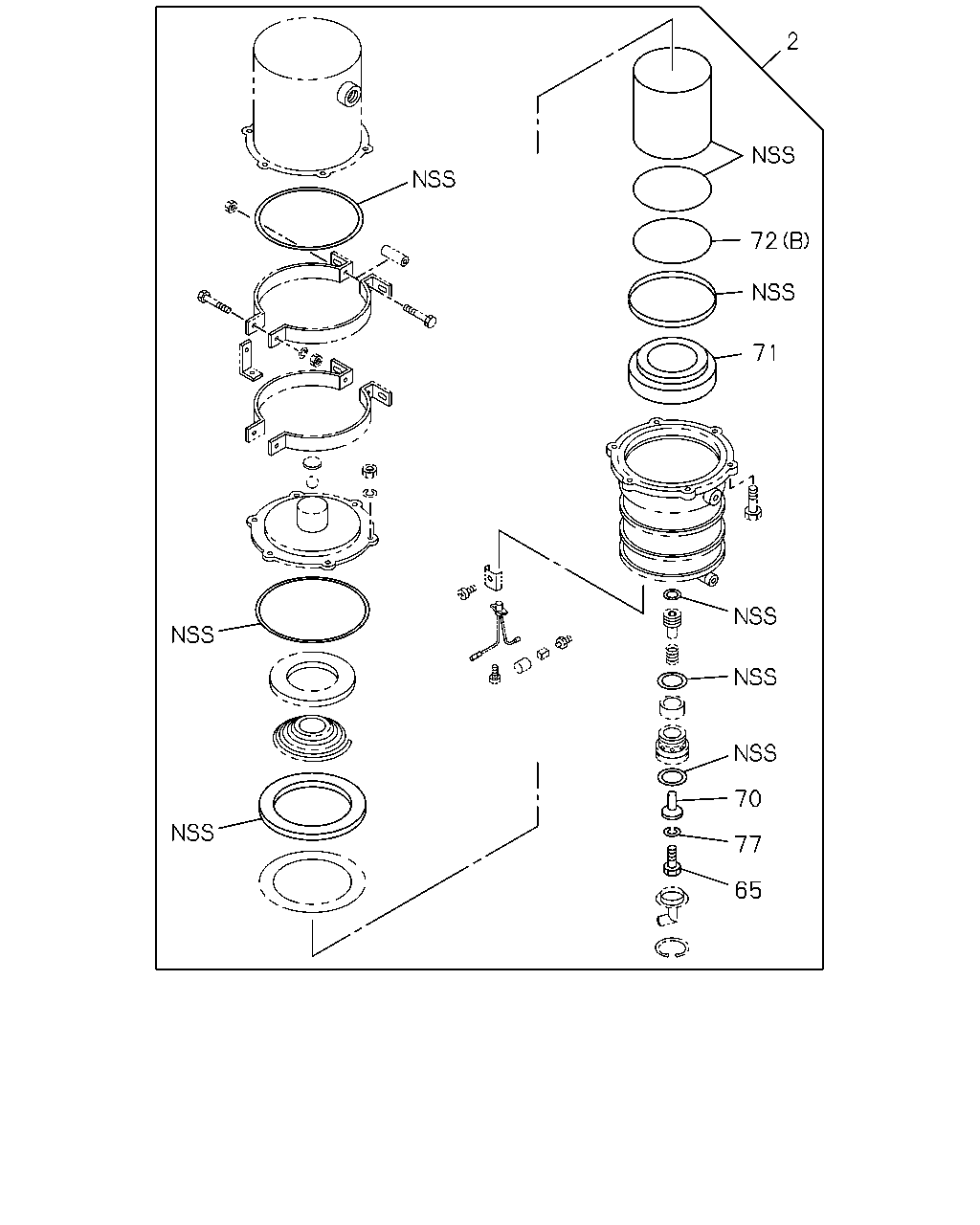

2 72 71 70 77 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-083-0	01	1	9101-1001	●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-229-0	01	1	1002-	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9101-1001	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9101-	●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-099-0	01	1	9101-	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (A)	1-48199-097-0	01	1	9101-	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (B)	1-48199-098-0	01	1	9101-	●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9101-1001	●	●

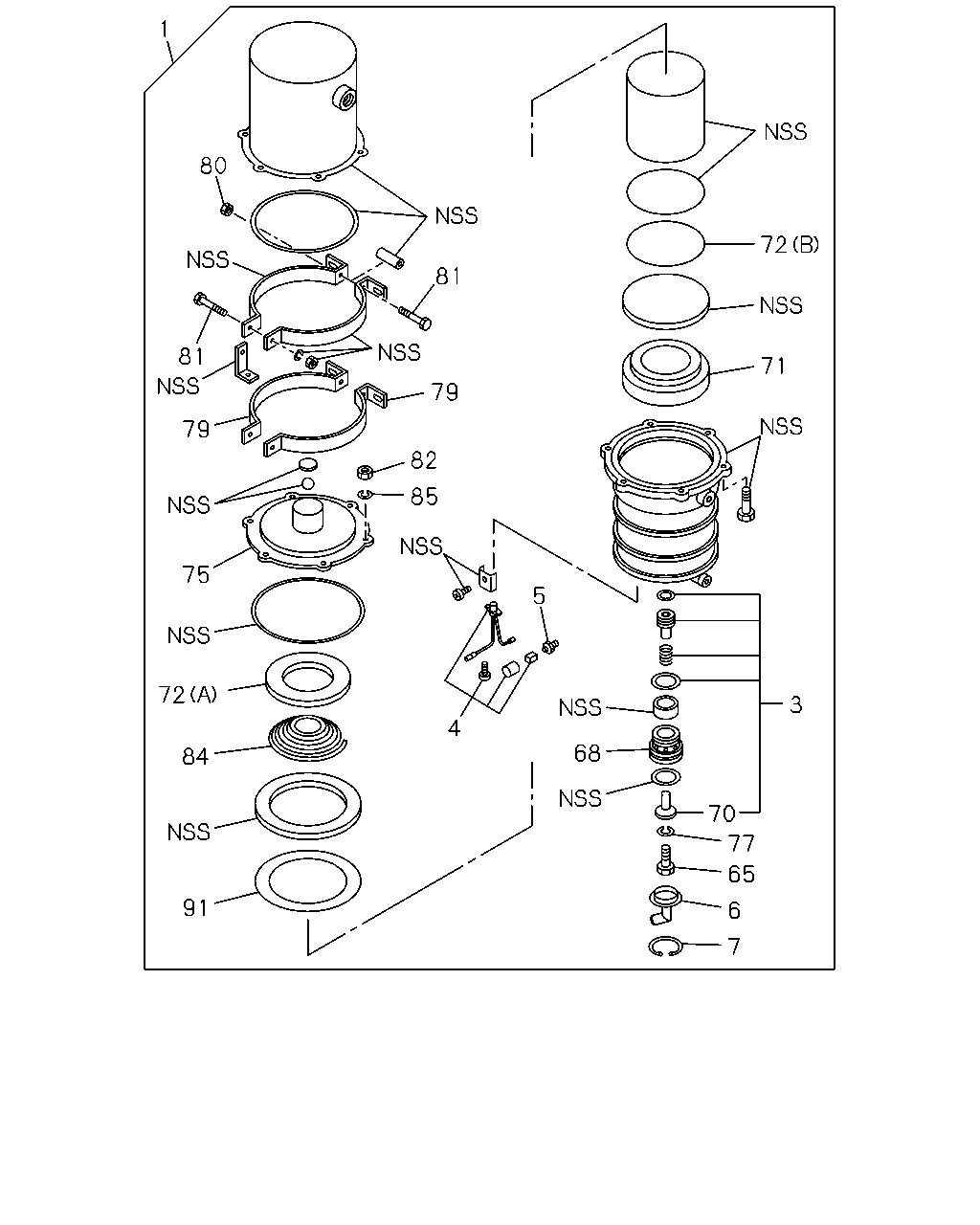

1 80 72 81 81 71 79 79 82 85 75 5 72 3 4 68 84 70 77 65 91 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-088-0	01	1	9101-9504	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-091-2	01	1	9505-	●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-084-0	01	1	9101-	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-085-0	01	1	9101-9504	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-121-0	01	1	9505-	●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-200-0	01	1	9101-	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-132-0	01	1	9101-	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-100-0	01	1	9101-	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9101-1001	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9101-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9101-	●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-099-0	01	1	9101-	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (A)	1-48199-097-0	01	1	9101-	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (B)	1-48199-098-0	01	1	9101-	●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-201-0	01	1	9101-	●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9101-1001	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-209-0	02	1	9101-	●	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-212-0	02	1	9101-	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-208-0	06	1	9101-	●	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-211-0	08	1	9101-1001	●	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-320-0	08	1	1002-	●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-092-0	01	1	9101-	●	●
85	WASHER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-024-0	08	1	9101-1001	●	●
91	GUIDE; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-091-0	01	1	9806-	●	●
