8-60 — HEATER UNIT; FRONT (#44533) — 96 parça

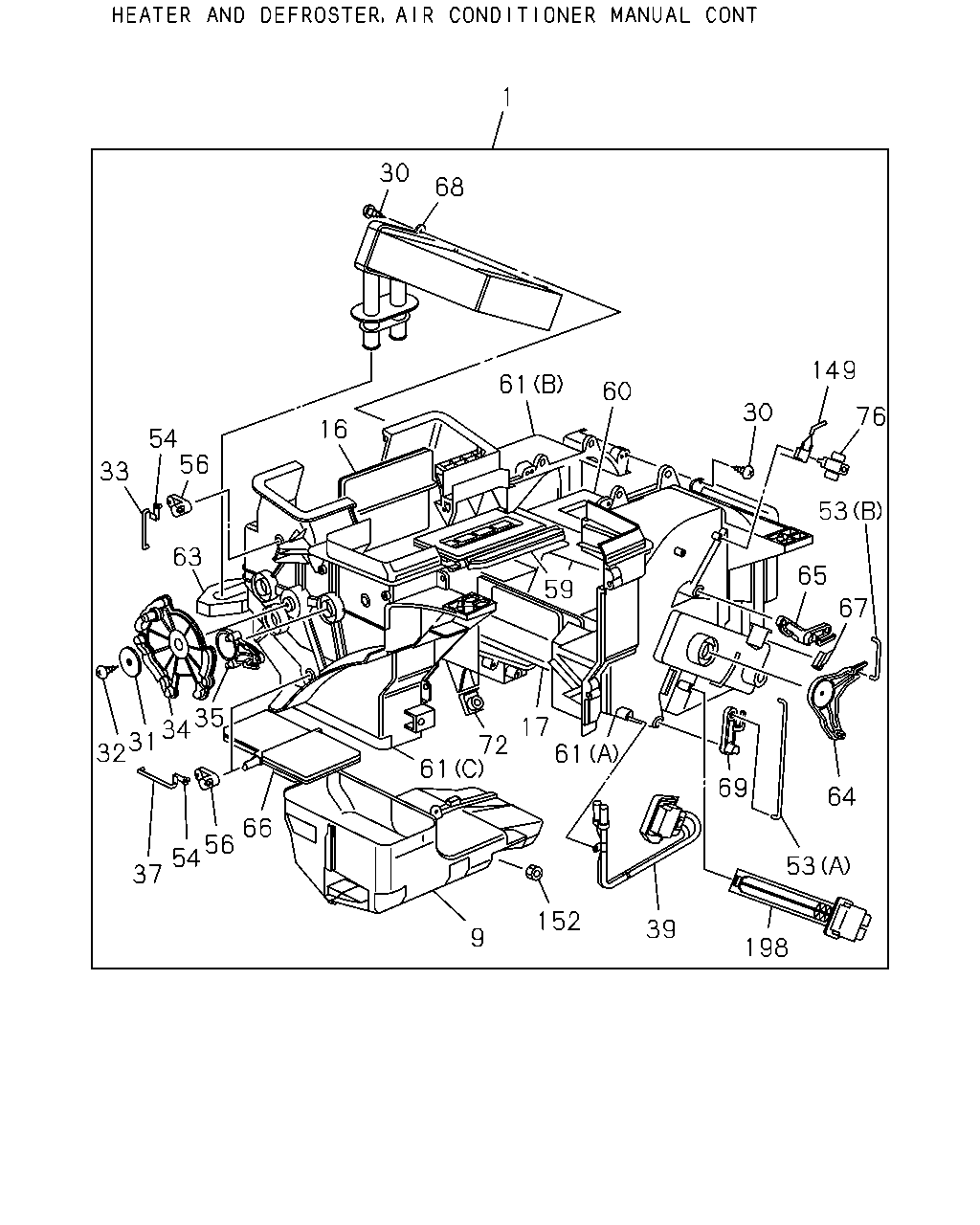

1 30 68 61 149 60 30 76 16 54 56 33 53 63 65 59 67 35 34 31 32 17 61 72 61 69 64 66 56 54 37 53 152 39 9 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97174-733-6	01	1	9811-	●	●	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9811-	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97188-843-5	01	1	9811-		●	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9811-	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9811-	●	●	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	9811-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	9811-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9811-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	15	1	9811-		●	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9811-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT 10.240 M5X20	9-09829-324-1	01	1	9811-	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.866	8-97087-566-0	02	1	0106-0108	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866	8-97087-566-0	02	1	0109-	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9811-0105	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866	8-97087-566-0	01	1	0106-0108	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.866	8-97087-566-0	01	1	0106-0108		●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866	8-97087-566-0	01	1	0109-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	9811-	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9811-	●	●	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9811-	●	●	●	●	●	●
39	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.857	8-97096-145-0	02	1	9811-		●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-566-0	01	1	9811-0105	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B)	8-97087-566-0	01	1	0106-0108		●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-567-1	01	1	9811-	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9811-	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9811-	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9811-	●	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	9811-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-4	01	1	9811-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-4	01	1	9811-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-4	01	1	9811-9811	●			●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97101-634-4	01	1	9811-9811		●	●		●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-4	01	1	9811-9811		●	●		●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-4	01	1	9812-	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97101-634-4	01	1	9812-		●	●	●	●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-4	01	1	9812-		●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97142-810-0	01	1	9811-		●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97131-580-0	01	1	9811-	●	●	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	9811-	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97101-672-0	01	1	9811-9910	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97200-276-0	01	1	9811-9910		●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97200-276-0	01	1	9911-	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9811-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9811-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9811-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-735-0	01	1	9811-9910	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97240-941-0	01	1	9911-0001	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97251-291-0	01	1	0002-0002	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97251-291-0	01	1	0003-0105	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97240-941-0	01	1	0003-0105		●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97240-941-0	01	1	0106-	●	●	●	●	●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	9811-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9811-	●	●	●	●	●	●
76	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97045-869-0	01	1	9811-		●	●	●	●	●
149	08.852 SWITCH ASM; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-582-0	01	1	9811-		●	●	●	●	●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9811-	●	●	●	●	●	●
198	08.845 HEATER; ELEC HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97087-581-0	01	1	9811-		●	●	●	●	●

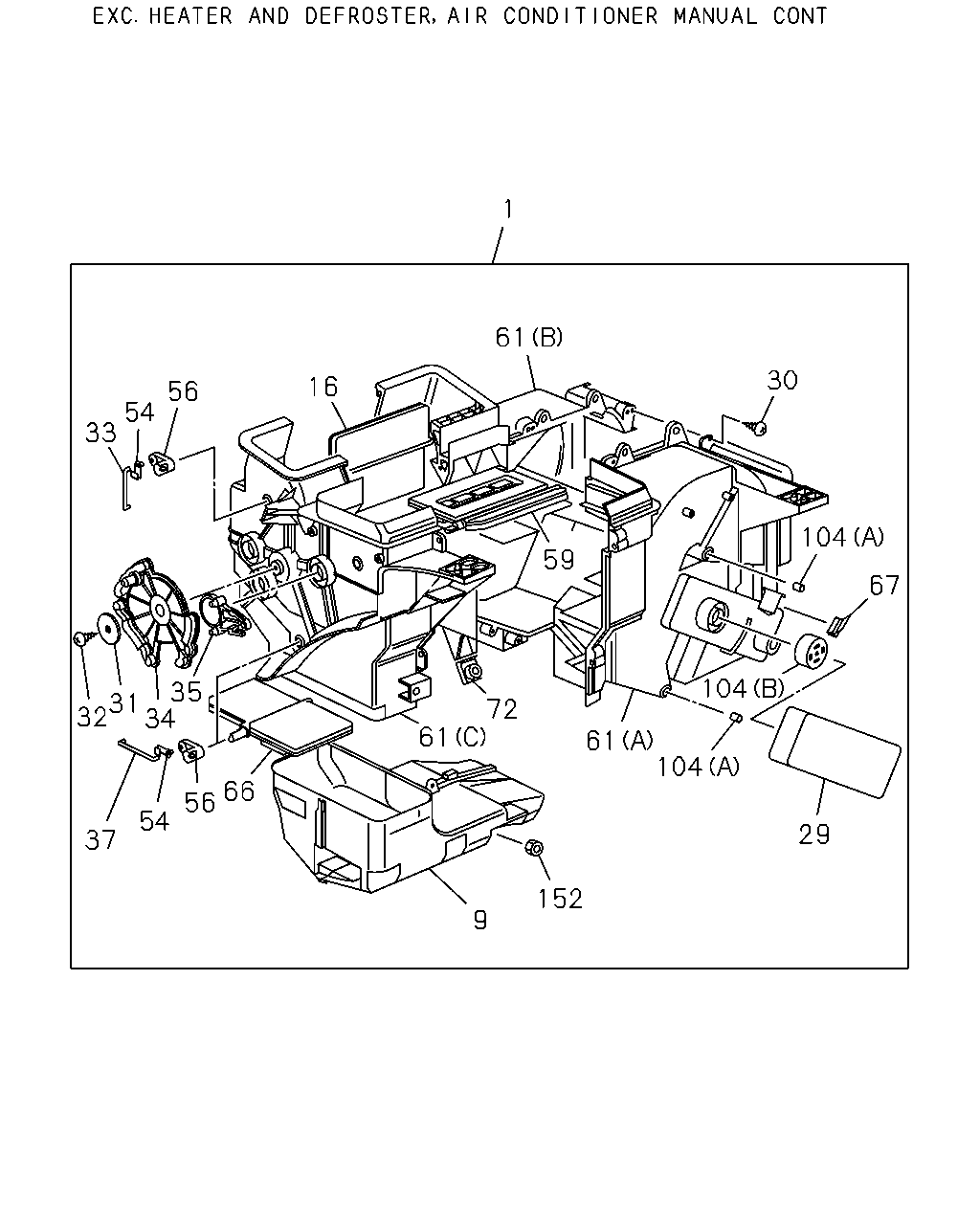

1 61 30 16 56 54 33 104 59 67 104 35 31 72 61 61 104 66 56 54 29 37 152 9 32 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX>	8-97174-733-6	01	1	9811-	●	●	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9811-	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX>	8-97188-843-5	01	1	9811-		●	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9811-	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9811-	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	9811-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	11	1	9811-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9811-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16	8-94324-850-0	15	1	9811-		●	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9811-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT 10.240 M5X20	9-09829-324-1	01	1	9811-	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.866	8-97087-566-0	02	1	0106-0108	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866	8-97087-566-0	02	1	0109-	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9811-0105	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866	8-97087-566-0	01	1	0106-0108	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.866	8-97087-566-0	01	1	0106-0108		●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866	8-97087-566-0	01	1	0109-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	9811-	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9811-	●	●	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9811-	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9811-	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9811-	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9811-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-4	01	1	9811-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-4	01	1	9811-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-4	01	1	9811-9811	●			●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97101-634-4	01	1	9811-9811		●	●		●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-4	01	1	9811-9811		●	●		●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-4	01	1	9812-	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A)	8-97101-634-4	01	1	9812-		●	●	●	●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-4	01	1	9812-		●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A)	8-97142-810-0	01	1	9811-		●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9811-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9811-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9811-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9811-	●	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A)	8-94328-657-0	04	1	9811-	●	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	9811-	●	●	●	●	●	●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9811-	●	●	●	●	●	●
