8-52 — PIPING; AIR CONDITIONING (#44532) — 16 parça

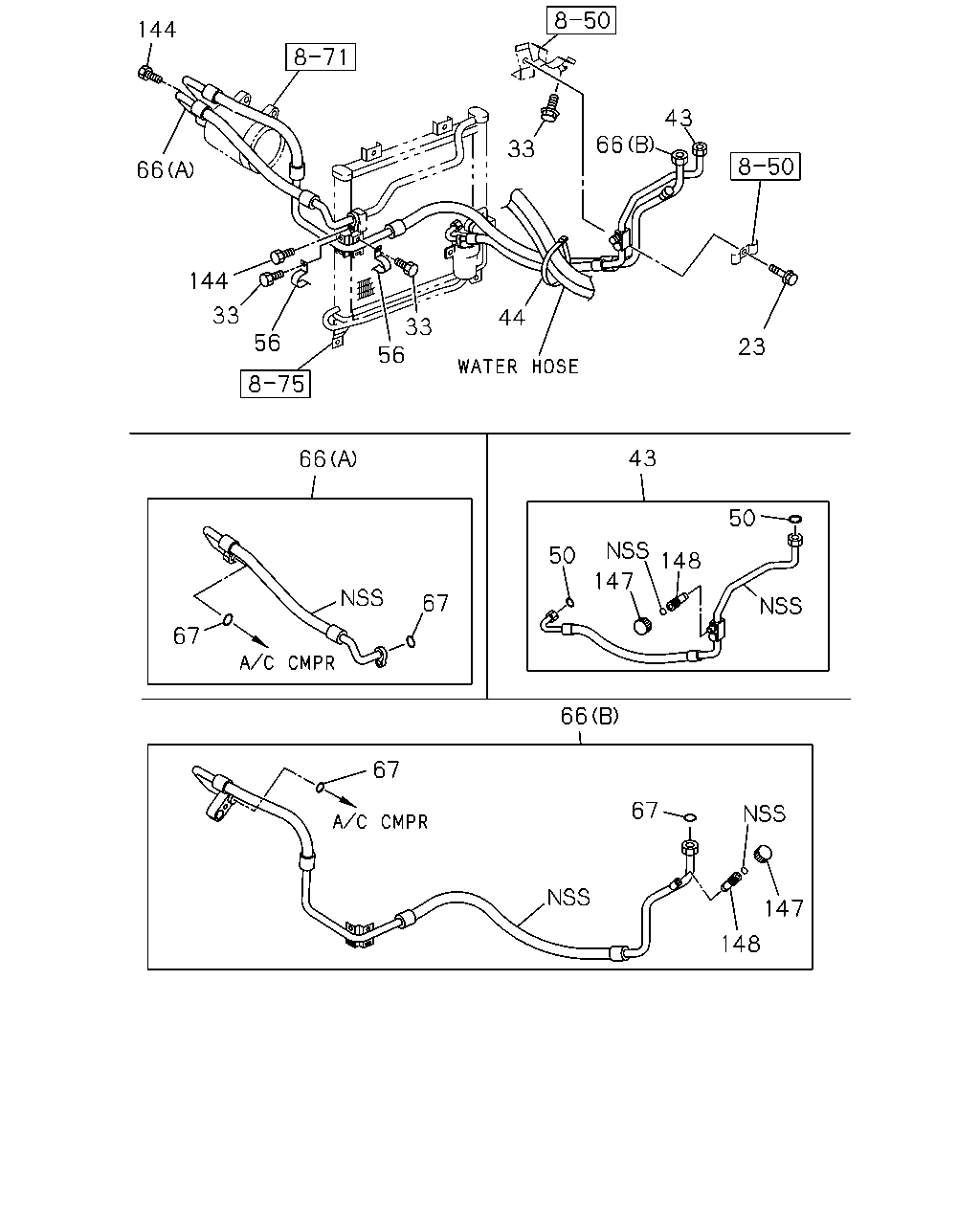

çizim 50980
144 43 66 33 66 144 33 44 33 56 56 23 43 66 50 50 148 147 67 67 66 67 67 147 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9811- ● ● ● ● ● ●
33 09.920 BOLT; CLIP
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9811- ● ● ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97100-862-2 01 1 9811- ● ● ● ●
44 09.242 CLIP; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250 		5-09707-030-1 04 1 9811- ● ● ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07 		8-94461-902-0 02 1 9811- ● ● ● ●
56 09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) 09.190 		8-97024-716-0 02 1 9811- ● ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97091-246-3 01 1 9811- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97103-576-3 01 1 9811- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9 		8-94113-330-0 01 1 9811- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8 		8-94113-331-0 01 1 9811- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=11.0 		8-94461-900-0 01 1 9811- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=14.8 		8-94461-901-0 01 1 9811- ● ● ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811- ● ● ● ● ● ●
147 09.242 CAP; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H 		8-97083-101-0 01 1 9811- ● ● ● ●
147 09.242 CAP; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L 		8-97083-102-0 01 1 9811- ● ● ● ●
148 09.262 VALVE; FLEX HOSE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 9811- ● ● ● ●
