◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#44530) — 266 parça

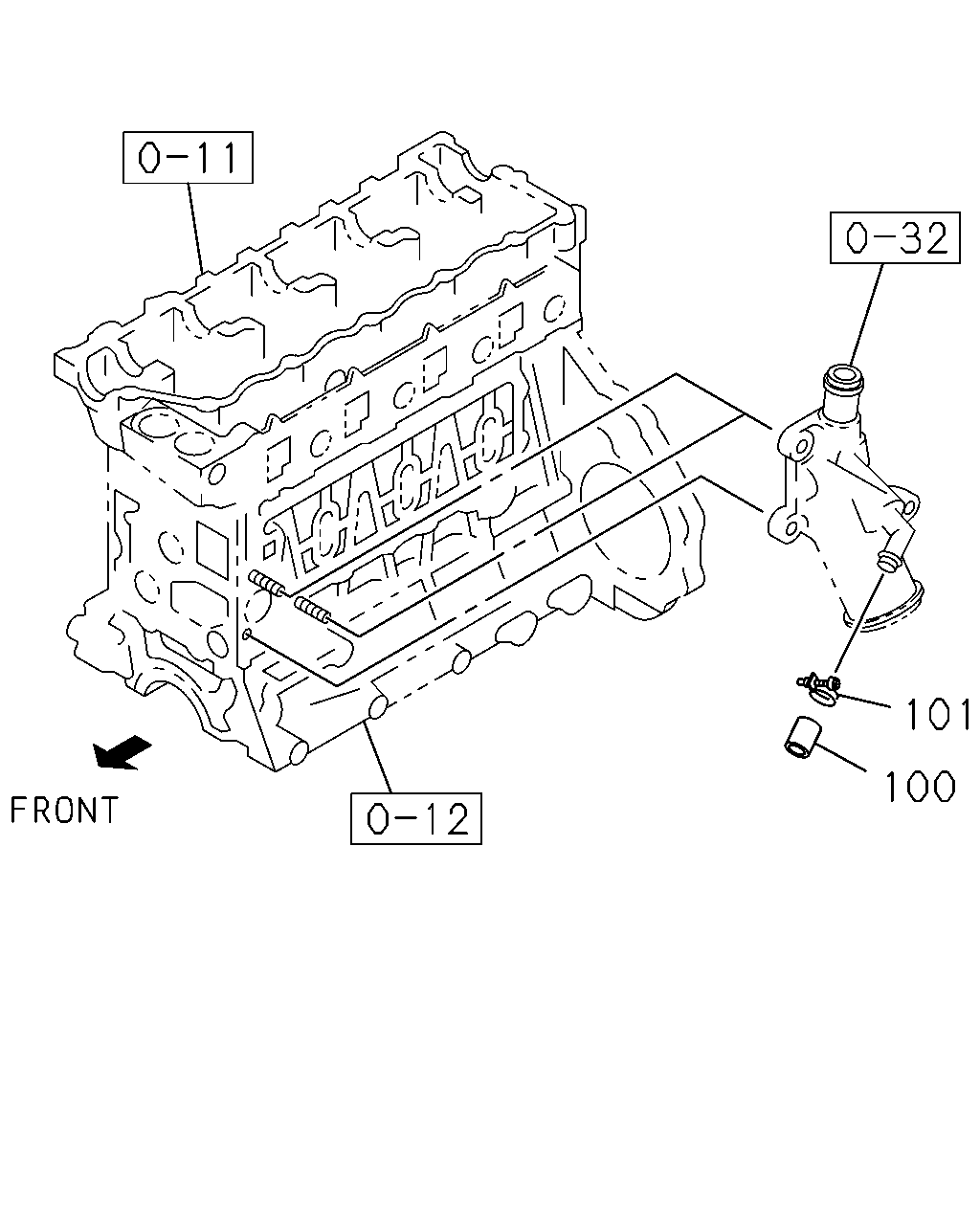

çizim 8252
101 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 01 1 9903-0003 ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 9903-0003 ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,VOLTAGE 24V<7AE> 01.166 		8-94107-793-0 01 1 9903-0003 ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0004-0011 ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0004-0011 ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0012-0112 ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0012-0112 ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0201-0202 ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0201-0202 ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0203- ● ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 		8-94107-793-0 01 1 0203- ● ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 01 1 9811-9902 ● ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL> 01.166 		8-94107-793-0 01 1 9811-9902 ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 9903-0202 ● ● ●
100 08.846 CAP; RUBBER,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 		8-94107-793-0 02 1 0203- ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 01 1 9903-0003 ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 9903-0003 ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,VOLTAGE 24V<7AE> 01.166 ID=25 		8-94233-115-0 01 1 9903-0003 ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0004-0011 ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0004-0011 ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0012-0112 ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0012-0112 ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0201-0202 ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0201-0202 ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0203- ● ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25 		8-94233-115-0 01 1 0203- ● ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 01 1 9811-9902 ● ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL> 01.166 ID=25 		8-94233-115-0 01 1 9811-9902 ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 9903-0202 ● ● ●
101 08.846 CLIP; CAP,WATER PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25 		8-94233-115-0 02 1 0203- ● ● ● ●
çizim 10518
48 27 27 9 48 13 35 48 13 35 48 73 35 35 73 35 11 11 9 35 35 9 26 63 26 121 121 35 26 35 13 26 63 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 08.846 PIPE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97329-768-0 01 1 0203- ●
9 08.846 PIPE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (B) 		8-97204-601-0 01 1 9811-9904 ●
9 08.846 PIPE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97205-279-1 01 1 9811-0105 ●
11 08.845 BOLT; HTR PIPE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
13 08.846 CLIP; HTR HOSE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 		8-94382-401-0 04 1 0203- ●
13 08.846 CLIP; HTR HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22 		8-94382-401-0 02 1 9811-0105 ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97356-191-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-97356-192-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-97356-193-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G) 		8-97356-194-0 01 1 0203- ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97216-354-0 01 1 9811-9901 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97239-076-0 01 1 9902-0105 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97216-355-0 01 1 9811-9901 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97239-077-0 01 1 9902-0105 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (C) L=220 SERVICED BY L=3000 		0-03266-300-0 01 1 0003-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-223-2 01 1 9811-0105 ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-223-2 01 1 9811-0105 ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-223-2 01 1 0106- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-223-2 01 1 0106- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97148-861-2 01 1 9811- ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97204-607-1 01 1 9811-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (C) 		8-97205-283-0 02 1 9811-9905 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97205-283-0 02 1 9906-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) (C) 		8-97205-283-0 02 1 0106-0106 ●
35 08.852 CLIP; WATER HOSE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-97191-097-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (E) L=350 		8-94152-256-0 01 1 9902-9904 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (E) L=350 		8-94152-256-1 01 1 9905-0105 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 (E) L=450 		1-09707-142-1 01 1 0106-0106 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 02 1 0004-0105 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ●
48 09.262 BOLT; CLIP FIX
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 00.206 M8X10 FLANGE 		0-28080-810-0 02 1 9811-9905 ●
63 08.846 HOSE; WATER
4JB1 ENG(RLF) L=220 SERVICED BY L=3000 		0-03266-300-0 01 1 0106-0106 ●
73 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) (A) ID=22 		8-94382-401-0 02 1 9811-9904 ●
73 08.846 CLIP; HTR HOSE
4JB1 ENG(RLF) (A) ID=22 		8-94382-401-0 02 1 9905-0105 ●
73 08.846 CLIP; HTR HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 01.166 (B) ID=25 		9-09915-642-2 02 1 9811-9904 ●
121 08.845 NUT; PIPE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE 		0-91150-208-0 02 1 9811-0105 ●

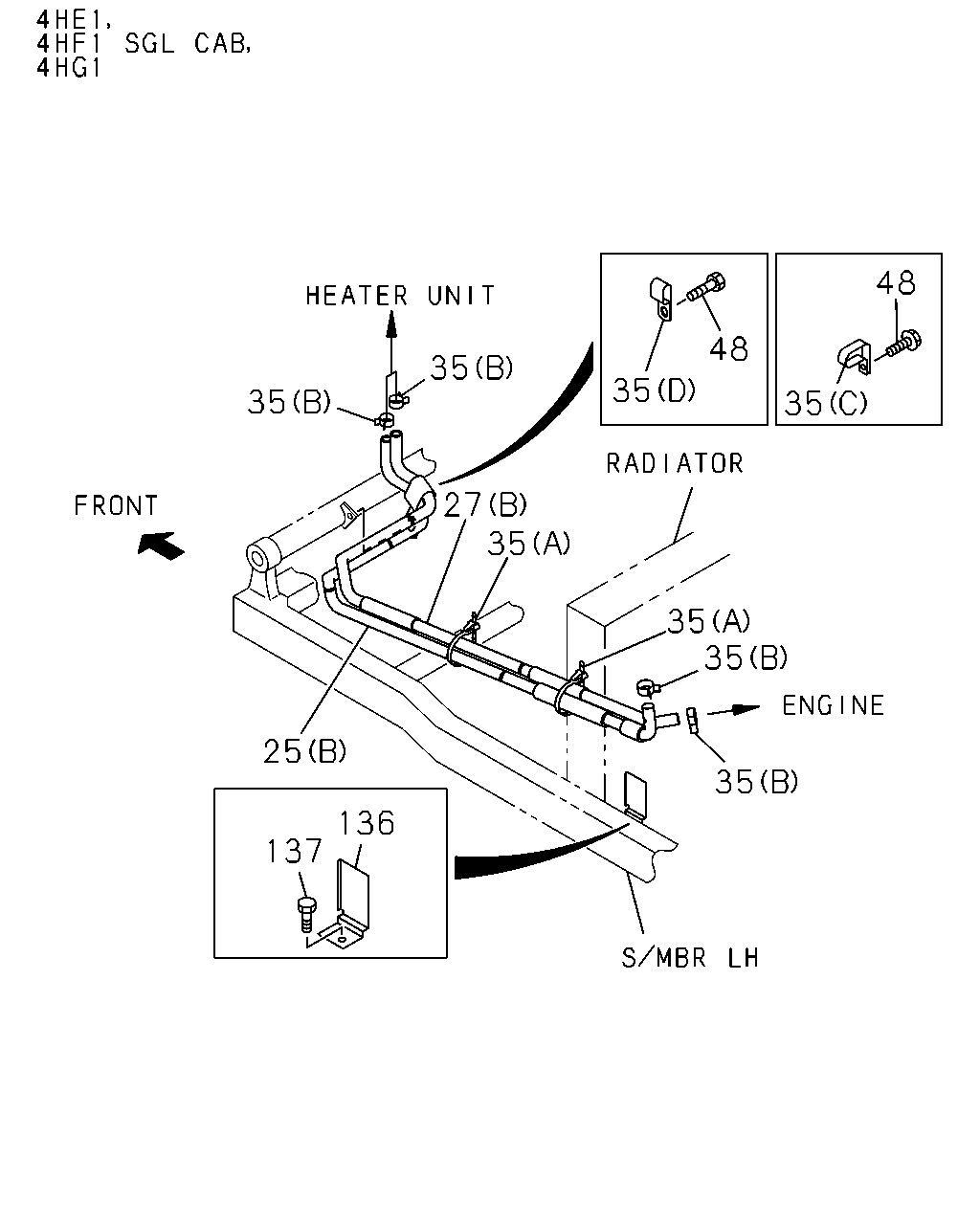

çizim 47228
48 48 35 35 35 35 27 35 35 35 25 35 136 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-224-1 01 1 9811-0105 ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-224-1 01 1 9811-0105 ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-224-1 01 1 0106- ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-224-1 01 1 0106- ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97148-860-3 01 1 9811- ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97204-606-1 01 1 9811-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-223-2 01 1 9811-0105 ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-223-2 01 1 9811-0105 ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-223-2 01 1 0106- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-223-2 01 1 0106- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97148-861-2 01 1 9811- ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97204-607-1 01 1 9811-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (C) 		8-97205-283-0 02 1 9811-9905 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97205-283-0 02 1 9906-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) (C) 		8-97205-283-0 02 1 0106-0106 ●
35 08.852 CLIP; WATER HOSE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-97191-097-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (E) L=350 		8-94152-256-0 01 1 9902-9904 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (E) L=350 		8-94152-256-1 01 1 9905-0105 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 (E) L=450 		1-09707-142-1 01 1 0106-0106 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 02 1 0004-0105 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ●
48 09.262 BOLT; CLIP FIX
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 00.206 M8X10 FLANGE 		0-28080-810-0 02 1 9811-9905 ●
136 08.846 GUIDE; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 		8-97183-818-2 01 1 9811- ● ● ● ● ● ●
137 08.846 BOLT; GUIDE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ● ● ● ● ●
çizim 47681
35 48 35 48 35 35 35 11 11 9 35 35 25 35 27 73 73 26 121 121 26 9 35 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 08.846 PIPE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97329-768-0 01 1 0203- ●
9 08.846 PIPE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (B) 		8-97204-601-0 01 1 9811-9904 ●
9 08.846 PIPE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97205-279-1 01 1 9811-0105 ●
11 08.845 BOLT; HTR PIPE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
13 08.846 CLIP; HTR HOSE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 		8-94382-401-0 04 1 0203- ●
13 08.846 CLIP; HTR HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ID=22 		8-94382-401-0 02 1 9811-0105 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-224-1 01 1 9811-0105 ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-224-1 01 1 9811-0105 ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-224-1 01 1 0106- ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-224-1 01 1 0106- ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97148-860-3 01 1 9811- ● ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97204-606-1 01 1 9811-0105 ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97356-191-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-97356-192-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-97356-193-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G) 		8-97356-194-0 01 1 0203- ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97216-354-0 01 1 9811-9901 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97239-076-0 01 1 9902-0105 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97216-355-0 01 1 9811-9901 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97239-077-0 01 1 9902-0105 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (C) L=220 SERVICED BY L=3000 		0-03266-300-0 01 1 0003-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-223-2 01 1 9811-0105 ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-223-2 01 1 9811-0105 ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97129-223-2 01 1 0106- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97129-223-2 01 1 0106- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97148-861-2 01 1 9811- ● ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97204-607-1 01 1 9811-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (C) 		8-97205-283-0 02 1 9811-9905 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97205-283-0 02 1 9906-0105 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1 ENG(RLF) (C) 		8-97205-283-0 02 1 0106-0106 ●
35 08.852 CLIP; WATER HOSE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-97191-097-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (E) L=350 		8-94152-256-0 01 1 9902-9904 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (E) L=350 		8-94152-256-1 01 1 9905-0105 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 (E) L=450 		1-09707-142-1 01 1 0106-0106 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 02 1 0004-0105 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ●
48 09.262 BOLT; CLIP FIX
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 00.206 M8X10 FLANGE 		0-28080-810-0 02 1 9811-9905 ●
73 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) EXC. ISRAEL EQUIPMENT(7LX) (A) ID=22 		8-94382-401-0 02 1 9811-9904 ●
73 08.846 CLIP; HTR HOSE
4JB1 ENG(RLF) (A) ID=22 		8-94382-401-0 02 1 9905-0105 ●
73 08.846 CLIP; HTR HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 01.166 (B) ID=25 		9-09915-642-2 02 1 9811-9904 ●
121 08.845 NUT; PIPE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE 		0-91150-208-0 02 1 9811-0105 ●

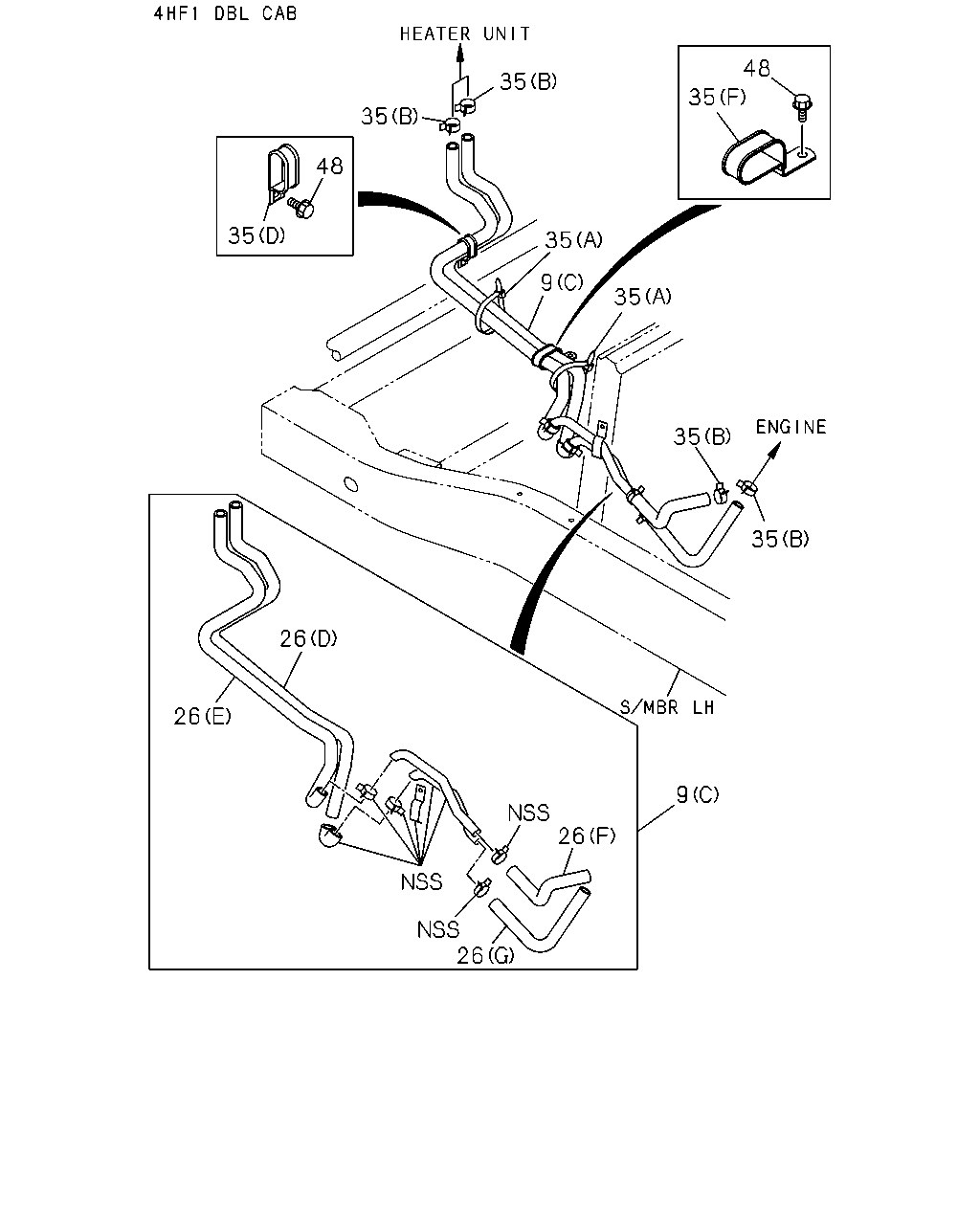

çizim 48184
48 35 35 35 48 35 35 9 35 35 35 26 26 9 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 08.846 PIPE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97329-768-0 01 1 0203- ●
9 08.846 PIPE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (B) 		8-97204-601-0 01 1 9811-9904 ●
9 08.846 PIPE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97205-279-1 01 1 9811-0105 ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97356-191-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-97356-192-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-97356-193-0 01 1 0203- ●
26 08.846 HOSE; HTR
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G) 		8-97356-194-0 01 1 0203- ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97216-354-0 01 1 9811-9901 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (A) 		8-97239-076-0 01 1 9902-0105 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97216-355-0 01 1 9811-9901 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) 		8-97239-077-0 01 1 9902-0105 ●
26 08.846 HOSE; HTR
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (C) L=220 SERVICED BY L=3000 		0-03266-300-0 01 1 0003-0105 ●
35 08.852 CLIP; WATER HOSE
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F) 		8-97191-097-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 9811-0105 ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0106-0202 ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) 		5-83574-006-0 01 1 0203- ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18 		9-83651-948-1 01 1 9811- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B) ID=22 		8-94382-401-0 04 1 9811-0003 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 04 1 0004-0105 ●
35 08.852 CLIP; WATER HOSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0106- ● ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (E) L=350 		8-94152-256-0 01 1 9902-9904 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (E) L=350 		8-94152-256-1 01 1 9905-0105 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.483 (E) L=450 		1-09707-142-1 01 1 0106-0106 ●
35 08.852 CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 08.846 (B) ID=22 		8-94382-401-0 02 1 0004-0105 ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0203- ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9811-0202 ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0203- ●
48 09.262 BOLT; CLIP FIX
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 00.206 M8X10 FLANGE 		0-28080-810-0 02 1 9811-9905 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
