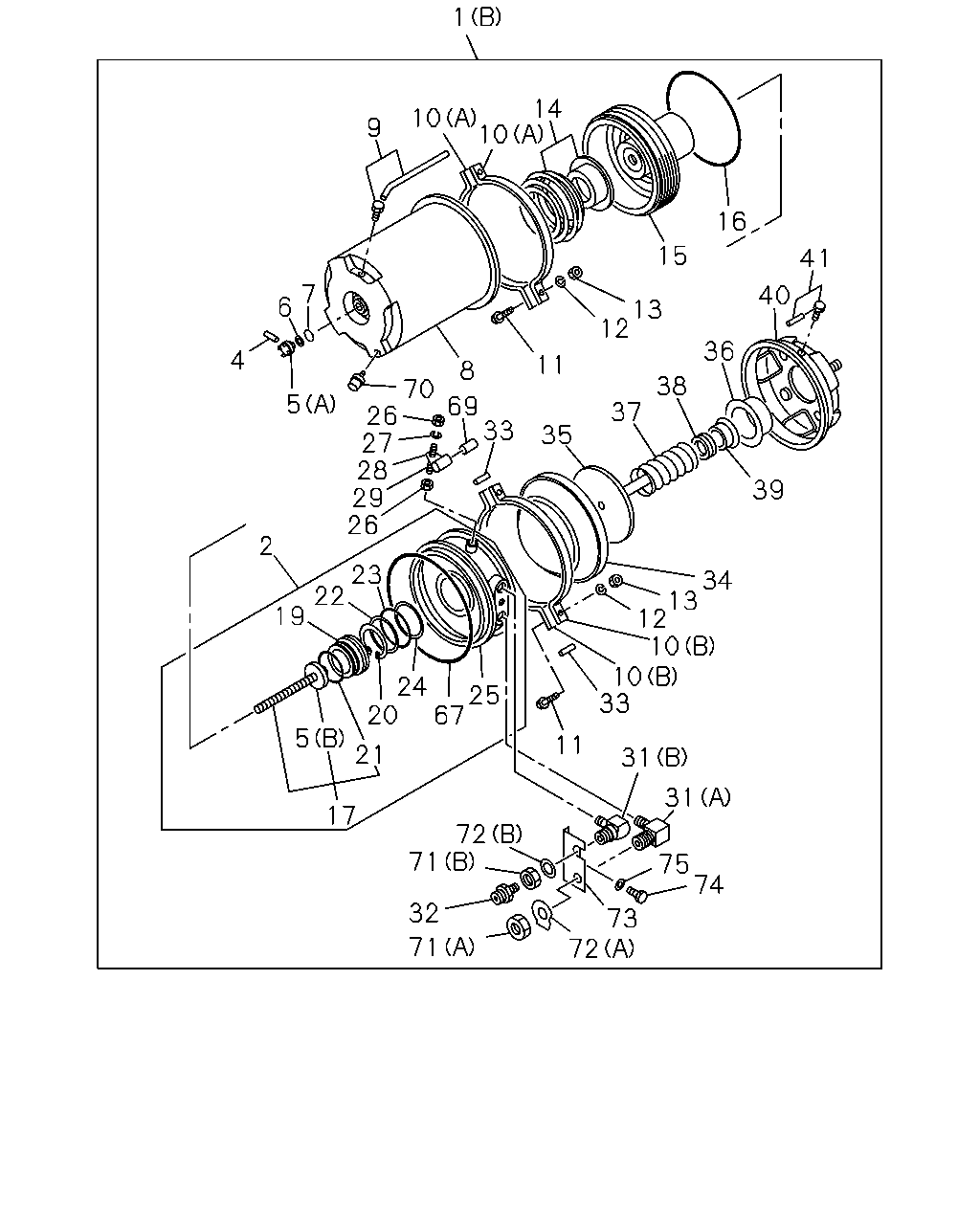

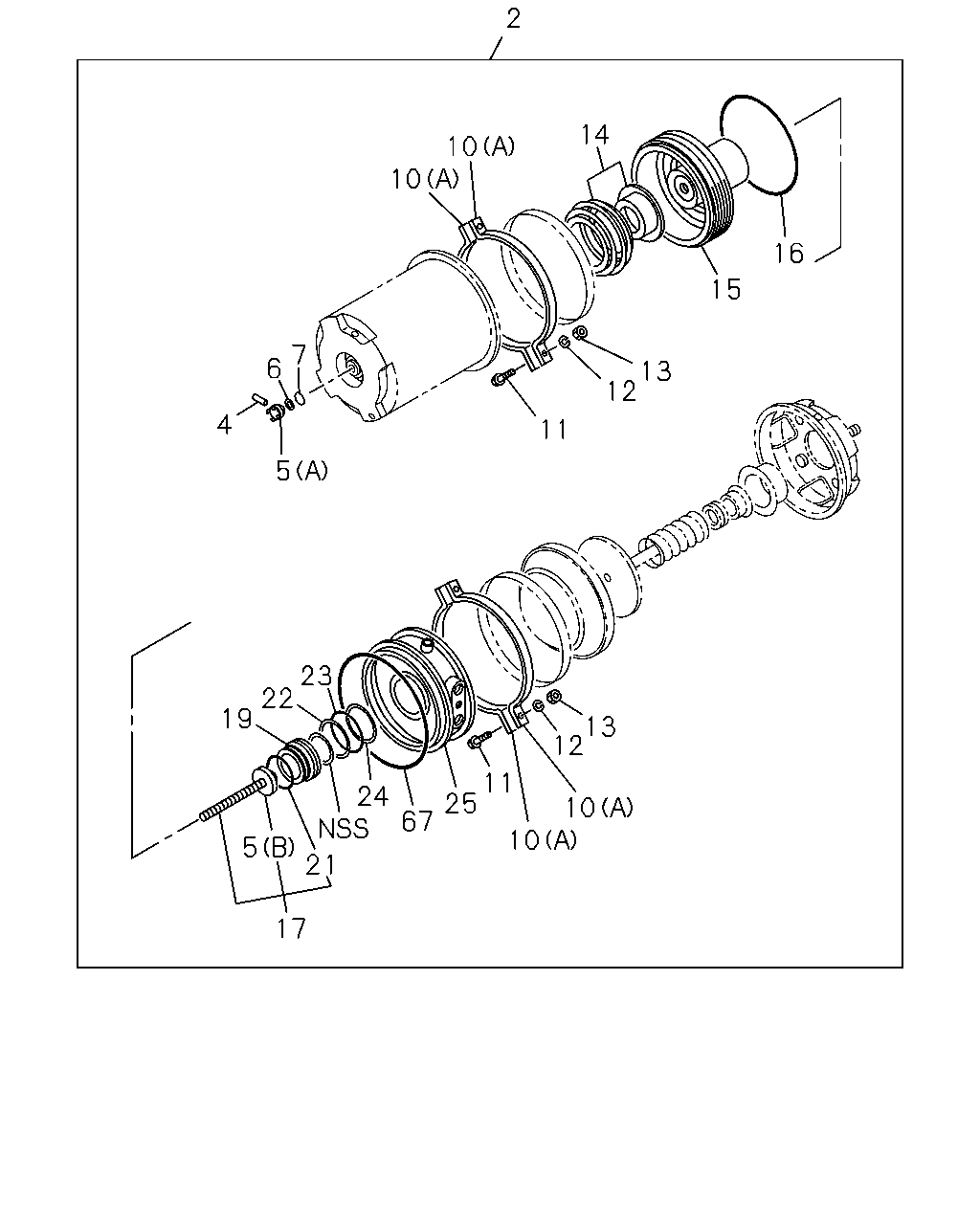

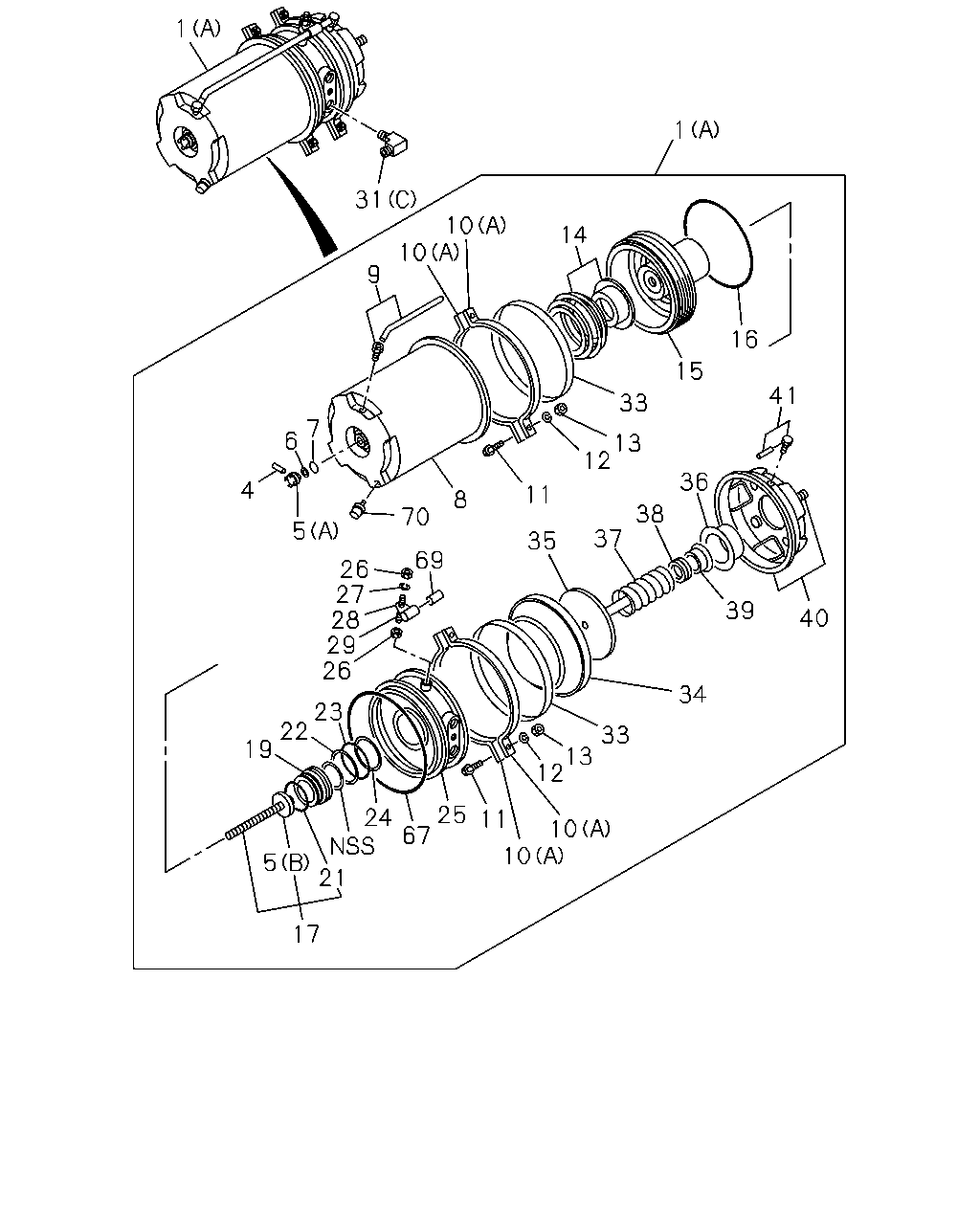

3-41 — REAR BRAKE POWER CHAMBER (#4453) — 552 parça

1 14 10 10 9 16 15 41 7 6 40 13 12 36 4 11 8 38 70 26 27 28 29 26 5 69 33 37 35 39 2 23 22 19 34 13 12 10 10 33 24 25 5 21 11 31 31 17 72 71 75 74 32 73 72 71 20 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-303-1	01	1	9101-9504	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-302-1	01	1	9101-9504	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-157-1	01	1	9505-9805	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-156-1	01	1	9505-9805	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-641-0	01	1	9806-0203	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-641-1	01	1	0204-	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-640-0	01	1	9806-0203	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-640-1	01	1	0204-	●	●
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-036-0	01	1	9101-9504	●	●
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-035-0	01	1	9101-9504	●	●
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-015-0	01	1	9505-0203	●	●
2	CHAMBER; EMERGENCY	1-48252-015-0	01	1	0204-	●	●
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-014-0	01	1	9505-0203	●	●
2	CHAMBER; EMERGENCY	1-48252-014-0	01	1	0204-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	9101-9812	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	02	1	9901-0203	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	02	1	9901-0203	●	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0204-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	04	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	9101-9812	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	01	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	01	1	9901-0203	●	●
5	NUT; SHELL (A)	1-48259-054-0	02	1	0204-	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	9101-9812	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	01	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	01	1	9901-0203	●	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	0204-	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	02	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	02	1	9901-0203	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-268-0	02	1	9101-9812	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	01	1	9901-0203	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	01	1	9901-0203	●	●
6	GASKET; SHELL	9-09920-268-0	02	1	0204-	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	02	1	9901-0203	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	9101-9812	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	01	1	9901-0203	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	01	1	9901-0203	●	●
7	GASKET	1-48259-055-0	02	1	0204-	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	02	1	9901-0203	●	●
8	SHELL; CYL,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-070-0	01	1	9101-0203	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-070-0	01	1	0204-	●	●
8	SHELL; CYL,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-069-0	01	1	9101-0203	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-069-0	01	1	0204-	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	9101-9812	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-076-0	01	1	9901-0203	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-076-0	01	1	9901-0203	●	●
9	PIPE ASM; SHELL	1-48259-076-0	02	1	0204-	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-076-0	02	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9101-9504	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	08	1	9505-9812	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	04	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	04	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	0204-	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9101-9504	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	08	1	9901-0203	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-035-0	08	1	9101-9805	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-092-0	08	1	9806-9812	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	04	1	9901-0203	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	04	1	9901-0203	●	●
11	BOLT; CLAMP RING	1-48259-092-0	08	1	0204-	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	08	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09150-510-0	08	1	9101-9504	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-046-0	08	1	9505-9805	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	08	1	9806-9812	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	04	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	04	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	08	1	0204-	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	08	1	9901-0203	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	08	1	9101-9805	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-83315-080-0	08	1	9806-9812	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	04	1	9901-0203	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	04	1	9901-0203	●	●
13	NUT; CLAMP RING	9-83315-080-0	08	1	0204-	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	08	1	9901-0203	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-037-0	02	1	9101-9812	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	01	1	9901-0203	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	01	1	9901-0203	●	●
14	SPRING & SEAT SET	1-48259-037-1	02	1	0204-	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	02	1	9901-0203	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	9101-9812	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	01	1	9901-0203	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	01	1	9901-0203	●	●
15	PISTON	1-48262-005-0	02	1	0204-	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	02	1	9901-0203	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	9101-9812	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	01	1	9901-0203	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	01	1	9901-0203	●	●
16	GASKET	1-48259-048-0	02	1	0204-	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	02	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	9101-9812	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	01	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	01	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0204-	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	02	1	9901-0203	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	9101-9812	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	01	1	9901-0203	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	01	1	9901-0203	●	●
19	COVER; PISTON	1-48269-011-0	02	1	0204-	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	02	1	9901-0203	●	●
20	RING; RET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	9101-9504	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-049-0	02	1	9101-9812	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	01	1	9901-0203	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	01	1	9901-0203	●	●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0204-	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	02	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	9101-9812	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	01	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	01	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0204-	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	02	1	9901-0203	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-047-0	02	1	9101-9812	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	01	1	9901-0203	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	01	1	9901-0203	●	●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0204-	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	02	1	9901-0203	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	9101-9812	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	01	1	9901-0203	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	01	1	9901-0203	●	●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0204-	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	02	1	9901-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-134-0	01	1	9101-9504	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-133-0	01	1	9101-9504	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-078-0	01	1	9505-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER	1-48259-078-0	01	1	0204-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-077-0	01	1	9505-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER	1-48259-077-0	01	1	0204-	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	9101-9812	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-058-0	02	1	9901-0203	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-058-0	02	1	9901-0203	●	●
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	0204-	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-058-0	04	1	9901-0203	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2	9-09150-508-0	02	1	9101-9504	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-057-0	02	1	9505-9805	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2	9-09150-508-0	02	1	9806-9812	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=8.2	9-09150-508-0	01	1	9901-0203	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=8.2	9-09150-508-0	01	1	9901-0203	●	●
27	WASHER; PRESSURE PLATE ID=8.2	9-09150-508-0	02	1	0204-	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> ID=8.2	9-09150-508-0	02	1	9901-0203	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	9101-9812	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-059-0	01	1	9901-0203	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-059-0	01	1	9901-0203	●	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	0204-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-059-0	02	1	9901-0203	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	9101-9812	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-050-0	01	1	9901-0203	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-050-0	01	1	9901-0203	●	●
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	0204-	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-050-0	02	1	9901-0203	●	●
31	CONNECTOR (C) M20 & PT1/4	9-09902-386-0	01	1	0207-0411	●	●
31	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8 & M27 ELBOW	1-09650-118-2	02	1	9101-9504	●	●
31	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-109-1	02	1	9101-9504	●	●
31	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9606-0203	●	●
31	CONNECTOR (C) M20 & PT3/8 ELBOW	1-09660-686-0	01	1	0204-0411	●	●
32	CONNECTOR; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09902-386-0	02	1	9101-9504	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-044-0	04	1	9101-9812	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-044-0	02	1	9901-0203	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-044-0	02	1	9901-0203	●	●
33	RETAINER; DIAPH	1-48259-044-0	04	1	0204-	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-044-0	04	1	9901-0203	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-011-0	02	1	9101-9504	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-010-0	02	1	9505-9805	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-056-0	02	1	9806-9812	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48252-056-0	01	1	9901-0203	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48252-056-0	01	1	9901-0203	●	●
34	DIAPHRAGM	1-48252-056-0	02	1	0204-	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48252-056-0	02	1	9901-0203	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9101-9504	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-010-0	02	1	9505-9812	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48253-010-0	01	1	9901-0203	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48253-010-0	01	1	9901-0203	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48253-010-0	02	1	0204-	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48253-010-0	02	1	9901-0203	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-043-0	02	1	9101-9812	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-043-0	01	1	9901-0203	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-043-0	01	1	9901-0203	●	●
36	RETAINER; SPR CHAMBER	1-48259-043-0	02	1	0204-	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-043-0	02	1	9901-0203	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9101-9805	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-016-0	02	1	9806-9812	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48255-016-0	01	1	9901-0203	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48255-016-0	01	1	9901-0203	●	●
37	SPRING; LWR,SPR CHAMBER	1-48255-016-0	02	1	0204-	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48255-016-0	02	1	9901-0203	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	9101-9812	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-066-0	01	1	9901-0203	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-066-0	01	1	9901-0203	●	●
38	COVER; ROD & PLATE	1-48259-066-0	02	1	0204-	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-066-0	02	1	9901-0203	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	9101-9812	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-065-0	01	1	9901-0203	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-065-0	01	1	9901-0203	●	●
39	COVER; ROD & PLATE	1-48259-065-0	02	1	0204-	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-065-0	02	1	9901-0203	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-082-1	01	1	9101-9504	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-081-1	01	1	9101-9504	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-068-1	01	1	9505-0203	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-068-1	01	1	0204-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-067-1	01	1	9505-0203	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-067-1	01	1	0204-	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	9101-9504	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-075-0	02	1	9505-9812	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-075-0	01	1	9901-0203	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-075-0	01	1	9901-0203	●	●
41	PIPE ASM; LWR COVER	1-48259-075-0	02	1	0204-	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-075-0	02	1	9901-0203	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	9101-9812	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	01	1	9901-0203	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	01	1	9901-0203	●	●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0204-	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	02	1	9901-0203	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	9101-9812	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-051-0	01	1	9901-0203	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-051-0	01	1	9901-0203	●	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	0204-	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-051-0	02	1	9901-0203	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-052-0	02	1	9101-9812	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-052-0	01	1	9901-0203	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-052-0	01	1	9901-0203	●	●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	02	1	0204-	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-052-0	02	1	9901-0203	●	●
71	NUT; CONN,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M27	9-09840-286-0	02	1	9101-9504	●	●
71	NUT; CONN,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	9101-9504	●	●
72	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48255-005-0	02	1	9101-9504	●	●
72	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21 TOOTH LK INT	9-09151-220-0	02	1	9101-9504	●	●
73	BRACKET; CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-696-1	02	1	9101-9504	●	●
74	BOLT; CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12	9-02050-812-0	02	1	9101-9504	●	●
75	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2	9-09150-508-0	02	1	9101-9504	●	●

1 1 31 10 10 14 9 16 15 41 33 7 6 13 12 36 4 11 8 38 70 5 37 35 69 26 27 28 29 26 39 40 34 23 22 19 33 13 12 24 25 67 11 10 10 5 21 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-303-1	01	1	9101-9504	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48250-302-1	01	1	9101-9504	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-157-1	01	1	9505-9805	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-156-1	01	1	9505-9805	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-641-0	01	1	9806-0203	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-641-1	01	1	0204-	●	●
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48250-640-0	01	1	9806-0203	●	●
1	CHAMBER ASM; SPRING (A)	1-48250-640-1	01	1	0204-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	9101-9812	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	02	1	9901-0203	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	02	1	9901-0203	●	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0204-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	04	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	9101-9812	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	01	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	01	1	9901-0203	●	●
5	NUT; SHELL (A)	1-48259-054-0	02	1	0204-	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	9101-9812	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	01	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	01	1	9901-0203	●	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	0204-	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	02	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	02	1	9901-0203	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-268-0	02	1	9101-9812	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	01	1	9901-0203	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	01	1	9901-0203	●	●
6	GASKET; SHELL	9-09920-268-0	02	1	0204-	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	02	1	9901-0203	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	9101-9812	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	01	1	9901-0203	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	01	1	9901-0203	●	●
7	GASKET	1-48259-055-0	02	1	0204-	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	02	1	9901-0203	●	●
8	SHELL; CYL,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-070-0	01	1	9101-0203	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-070-0	01	1	0204-	●	●
8	SHELL; CYL,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-069-0	01	1	9101-0203	●	●
8	SHELL; CYL,SPR CHAMBER	1-48259-069-0	01	1	0204-	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	9101-9812	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-076-0	01	1	9901-0203	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-076-0	01	1	9901-0203	●	●
9	PIPE ASM; SHELL	1-48259-076-0	02	1	0204-	●	●
9	PIPE ASM; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-076-0	02	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9101-9504	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	08	1	9505-9812	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	04	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	04	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	0204-	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9101-9504	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	08	1	9901-0203	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-035-0	08	1	9101-9805	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-092-0	08	1	9806-9812	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	04	1	9901-0203	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	04	1	9901-0203	●	●
11	BOLT; CLAMP RING	1-48259-092-0	08	1	0204-	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	08	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09150-510-0	08	1	9101-9504	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-046-0	08	1	9505-9805	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	08	1	9806-9812	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	04	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	04	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	08	1	0204-	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	08	1	9901-0203	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	08	1	9101-9805	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-83315-080-0	08	1	9806-9812	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	04	1	9901-0203	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	04	1	9901-0203	●	●
13	NUT; CLAMP RING	9-83315-080-0	08	1	0204-	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	08	1	9901-0203	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-037-0	02	1	9101-9812	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	01	1	9901-0203	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	01	1	9901-0203	●	●
14	SPRING & SEAT SET	1-48259-037-1	02	1	0204-	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	02	1	9901-0203	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	9101-9812	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	01	1	9901-0203	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	01	1	9901-0203	●	●
15	PISTON	1-48262-005-0	02	1	0204-	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	02	1	9901-0203	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	9101-9812	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	01	1	9901-0203	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	01	1	9901-0203	●	●
16	GASKET	1-48259-048-0	02	1	0204-	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	02	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	9101-9812	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	01	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	01	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0204-	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	02	1	9901-0203	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	9101-9812	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	01	1	9901-0203	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	01	1	9901-0203	●	●
19	COVER; PISTON	1-48269-011-0	02	1	0204-	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	02	1	9901-0203	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-049-0	02	1	9101-9812	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	01	1	9901-0203	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	01	1	9901-0203	●	●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0204-	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	02	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	9101-9812	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	01	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	01	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0204-	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	02	1	9901-0203	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-047-0	02	1	9101-9812	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	01	1	9901-0203	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	01	1	9901-0203	●	●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0204-	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	02	1	9901-0203	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	9101-9812	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	01	1	9901-0203	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	01	1	9901-0203	●	●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0204-	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	02	1	9901-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-134-0	01	1	9101-9504	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-133-0	01	1	9101-9504	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-078-0	01	1	9505-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER	1-48259-078-0	01	1	0204-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-077-0	01	1	9505-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER	1-48259-077-0	01	1	0204-	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	9101-9812	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-058-0	02	1	9901-0203	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-058-0	02	1	9901-0203	●	●
26	NUT; PRESSURE PLATE	1-48259-058-0	04	1	0204-	●	●
26	NUT; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-058-0	04	1	9901-0203	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2	9-09150-508-0	02	1	9101-9504	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-057-0	02	1	9505-9805	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2	9-09150-508-0	02	1	9806-9812	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=8.2	9-09150-508-0	01	1	9901-0203	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=8.2	9-09150-508-0	01	1	9901-0203	●	●
27	WASHER; PRESSURE PLATE ID=8.2	9-09150-508-0	02	1	0204-	●	●
27	WASHER; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> ID=8.2	9-09150-508-0	02	1	9901-0203	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	9101-9812	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-059-0	01	1	9901-0203	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-059-0	01	1	9901-0203	●	●
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	02	1	0204-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-059-0	02	1	9901-0203	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	9101-9812	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-050-0	01	1	9901-0203	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-050-0	01	1	9901-0203	●	●
29	STUD; PRESSURE PLATE	1-48259-050-0	02	1	0204-	●	●
29	STUD; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-050-0	02	1	9901-0203	●	●
31	CONNECTOR (C) M20 & PT1/4	9-09902-386-0	01	1	0207-0411	●	●
31	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8 & M27 ELBOW	1-09650-118-2	02	1	9101-9504	●	●
31	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-109-1	02	1	9101-9504	●	●
31	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9606-0203	●	●
31	CONNECTOR (C) M20 & PT3/8 ELBOW	1-09660-686-0	01	1	0204-0411	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-044-0	04	1	9101-9812	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-044-0	02	1	9901-0203	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-044-0	02	1	9901-0203	●	●
33	RETAINER; DIAPH	1-48259-044-0	04	1	0204-	●	●
33	RETAINER; DIAPH BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-044-0	04	1	9901-0203	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-011-0	02	1	9101-9504	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-010-0	02	1	9505-9805	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-056-0	02	1	9806-9812	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48252-056-0	01	1	9901-0203	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48252-056-0	01	1	9901-0203	●	●
34	DIAPHRAGM	1-48252-056-0	02	1	0204-	●	●
34	DIAPHRAGM BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48252-056-0	02	1	9901-0203	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9101-9504	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-010-0	02	1	9505-9812	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48253-010-0	01	1	9901-0203	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48253-010-0	01	1	9901-0203	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48253-010-0	02	1	0204-	●	●
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48253-010-0	02	1	9901-0203	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-043-0	02	1	9101-9812	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-043-0	01	1	9901-0203	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-043-0	01	1	9901-0203	●	●
36	RETAINER; SPR CHAMBER	1-48259-043-0	02	1	0204-	●	●
36	RETAINER; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-043-0	02	1	9901-0203	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9101-9805	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-016-0	02	1	9806-9812	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48255-016-0	01	1	9901-0203	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48255-016-0	01	1	9901-0203	●	●
37	SPRING; LWR,SPR CHAMBER	1-48255-016-0	02	1	0204-	●	●
37	SPRING; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48255-016-0	02	1	9901-0203	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	9101-9812	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-066-0	01	1	9901-0203	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-066-0	01	1	9901-0203	●	●
38	COVER; ROD & PLATE	1-48259-066-0	02	1	0204-	●	●
38	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-066-0	02	1	9901-0203	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	9101-9812	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-065-0	01	1	9901-0203	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-065-0	01	1	9901-0203	●	●
39	COVER; ROD & PLATE	1-48259-065-0	02	1	0204-	●	●
39	COVER; ROD & PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-065-0	02	1	9901-0203	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-082-1	01	1	9101-9504	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-081-1	01	1	9101-9504	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-068-1	01	1	9505-0203	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-068-1	01	1	0204-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-067-1	01	1	9505-0203	●	●
40	COVER ASM; LWR,SPR CHAMBER	1-48259-067-1	01	1	0204-	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	9101-9504	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-075-0	02	1	9505-9812	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-075-0	01	1	9901-0203	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-075-0	01	1	9901-0203	●	●
41	PIPE ASM; LWR COVER	1-48259-075-0	02	1	0204-	●	●
41	PIPE ASM; LWR COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-075-0	02	1	9901-0203	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	9101-9812	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	01	1	9901-0203	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	01	1	9901-0203	●	●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0204-	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	02	1	9901-0203	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	9101-9812	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-051-0	01	1	9901-0203	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-051-0	01	1	9901-0203	●	●
69	HOSE; PRESSURE PLATE	1-48259-051-0	02	1	0204-	●	●
69	HOSE; PRESSURE PLATE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-051-0	02	1	9901-0203	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-052-0	02	1	9101-9812	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-052-0	01	1	9901-0203	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-052-0	01	1	9901-0203	●	●
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	02	1	0204-	●	●
70	COVER; EXH,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-052-0	02	1	9901-0203	●	●

2 14 10 10 16 15 7 6 13 12 4 11 5 23 22 19 13 12 11 25 67 24 10 10 21 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-036-0	01	1	9101-9504	●	●
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-035-0	01	1	9101-9504	●	●
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-015-0	01	1	9505-0203	●	●
2	CHAMBER; EMERGENCY	1-48252-015-0	01	1	0204-	●	●
2	CHAMBER; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-014-0	01	1	9505-0203	●	●
2	CHAMBER; EMERGENCY	1-48252-014-0	01	1	0204-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	9101-9812	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	02	1	9901-0203	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	02	1	9901-0203	●	●
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	04	1	0204-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-056-0	04	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	9101-9812	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	01	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	01	1	9901-0203	●	●
5	NUT; SHELL (A)	1-48259-054-0	02	1	0204-	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	9101-9812	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	01	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	01	1	9901-0203	●	●
5	NUT; SHELL (B)	1-48259-074-0	02	1	0204-	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-054-0	02	1	9901-0203	●	●
5	NUT; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (B)	1-48259-074-0	02	1	9901-0203	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-268-0	02	1	9101-9812	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	01	1	9901-0203	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	01	1	9901-0203	●	●
6	GASKET; SHELL	9-09920-268-0	02	1	0204-	●	●
6	GASKET; SHELL BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	9-09920-268-0	02	1	9901-0203	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	9101-9812	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	01	1	9901-0203	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	01	1	9901-0203	●	●
7	GASKET	1-48259-055-0	02	1	0204-	●	●
7	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-055-0	02	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9101-9504	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	08	1	9505-9812	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	04	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	04	1	9901-0203	●	●
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	0204-	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9101-9504	●	●
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> (A)	1-48259-016-0	08	1	9901-0203	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-035-0	08	1	9101-9805	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-092-0	08	1	9806-9812	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	04	1	9901-0203	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	04	1	9901-0203	●	●
11	BOLT; CLAMP RING	1-48259-092-0	08	1	0204-	●	●
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-092-0	08	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09150-510-0	08	1	9101-9504	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-046-0	08	1	9505-9805	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	08	1	9806-9812	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	04	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	04	1	9901-0203	●	●
12	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	08	1	0204-	●	●
12	WASHER; LK,CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55> ID=10.2	9-09150-510-0	08	1	9901-0203	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	08	1	9101-9805	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-83315-080-0	08	1	9806-9812	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	04	1	9901-0203	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	04	1	9901-0203	●	●
13	NUT; CLAMP RING	9-83315-080-0	08	1	0204-	●	●
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	9-83315-080-0	08	1	9901-0203	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-037-0	02	1	9101-9812	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	01	1	9901-0203	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	01	1	9901-0203	●	●
14	SPRING & SEAT SET	1-48259-037-1	02	1	0204-	●	●
14	SPRING & SEAT SET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-037-0	02	1	9901-0203	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	9101-9812	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	01	1	9901-0203	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	01	1	9901-0203	●	●
15	PISTON	1-48262-005-0	02	1	0204-	●	●
15	PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48262-005-0	02	1	9901-0203	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	9101-9812	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	01	1	9901-0203	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	01	1	9901-0203	●	●
16	GASKET	1-48259-048-0	02	1	0204-	●	●
16	GASKET BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-048-0	02	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	9101-9812	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	01	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	01	1	9901-0203	●	●
17	BOLT ASM; EMERGENCY	1-48259-073-0	02	1	0204-	●	●
17	BOLT ASM; EMERGENCY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-073-0	02	1	9901-0203	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	9101-9812	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	01	1	9901-0203	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	01	1	9901-0203	●	●
19	COVER; PISTON	1-48269-011-0	02	1	0204-	●	●
19	COVER; PISTON BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48269-011-0	02	1	9901-0203	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-049-0	02	1	9101-9812	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	01	1	9901-0203	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	01	1	9901-0203	●	●
21	GASKET; SPR CHAMBER	1-48259-049-0	02	1	0204-	●	●
21	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-049-0	02	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	9101-9812	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	01	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	01	1	9901-0203	●	●
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	02	1	0204-	●	●
22	RING; BACKUP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-019-0	02	1	9901-0203	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-047-0	02	1	9101-9812	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	01	1	9901-0203	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	01	1	9901-0203	●	●
23	GASKET; SPR CHAMBER	1-48259-047-0	02	1	0204-	●	●
23	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-047-0	02	1	9901-0203	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	9101-9812	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	01	1	9901-0203	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	01	1	9901-0203	●	●
24	BEARING; SPR CHAMBER	1-48259-020-0	02	1	0204-	●	●
24	BEARING; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-020-0	02	1	9901-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-134-0	01	1	9101-9504	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-133-0	01	1	9101-9504	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-078-0	01	1	9505-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER	1-48259-078-0	01	1	0204-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-077-0	01	1	9505-0203	●	●
25	PLATE; PRESSURE,SPR CHAMBER	1-48259-077-0	01	1	0204-	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	9101-9812	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	01	1	9901-0203	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	01	1	9901-0203	●	●
67	GASKET; SPR CHAMBER	1-48259-053-0	02	1	0204-	●	●
67	GASKET; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HEAVY DUTY<J55>	1-48259-053-0	02	1	9901-0203	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
