Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#44528) — 158 parça

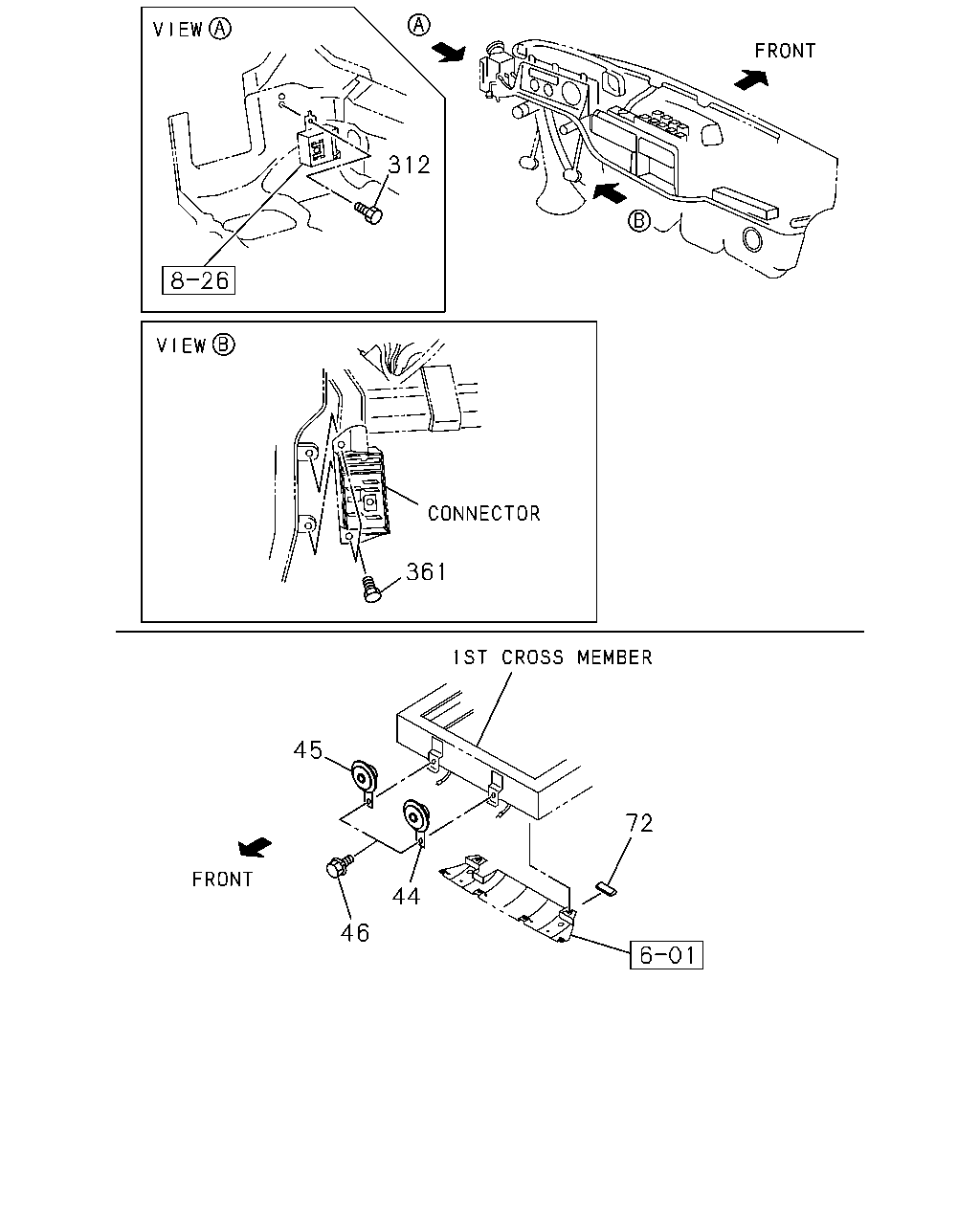

312 361 45 72 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	9811-9811	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9811-9811			●	●	●
44	02.810 HORN; HIGH NOTE	8-97109-363-0	01	1	9811-9811						●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05> VOLTAGE 24V<7AE>	8-97211-741-1	01	1	9812-	●	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	9905-	●	●				●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9905-			●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9811-9811			●	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05> EXC. VOLTAGE 24V<7AE>	8-97211-743-1	01	1	9812-			●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9905-			●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9811-9811	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>	8-97109-364-1	01	1	9812-9904	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9812-9904			●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9905-	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-0	01	1	9812-9904	●	●
45	02.810 HORN; LOW NOTE VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-0	01	1	9812-9904			●	●	●
45	02.810 HORN; LOW NOTE	8-97211-740-0	01	1	9812-9904						●
45	02.810 HORN; LOW NOTE VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN<6HG>, DUALHEAVY DUTY HORN<6KK>	8-97211-740-1	01	1	9905-	●	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9811-9811			●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9812-9904			●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9905-			●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>, VOLTAGE 24V<7AE>	8-97211-744-0	01	1	9812-9904			●	●	●
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>, DUALHEAVY DUTY HORN<6KK>,VOLTAGE 24V<7AE>	8-97211-744-1	01	1	9905-			●	●	●
46	02.812 BOLT; HORN TO BODY DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811						●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-9811						●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9812-9904	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9812-9904						●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9905-	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-9904	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9905-	●	●	●	●	●	●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	9902-	●	●	●	●	●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-9811	●		●	●	●
312	09.765 BOLT; BUZZER A/T 4 SPEED-AISIN(RNJ) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-9811			●	●	●
312	09.765 BOLT; BUZZER 4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-9811			●	●
312	09.765 BOLT; BUZZER ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-9811		●
312	09.765 BOLT; BUZZER FLOOR REMOTE SHIFT<M11> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-9811						●
312	09.765 BOLT; BUZZER A/T 4 SPEED-AISIN(RNJ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-9811						●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9812-0006	●		●	●	●
312	09.765 BOLT; BUZZER 4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9812-0006		●	●	●	●	●
312	09.765 BOLT; BUZZER A/T 4 SPEED-AISIN(RNJ) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9812-0006		●	●	●	●
312	09.765 BOLT; BUZZER 4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0007-0105	●	●	●	●	●	●
312	09.765 BOLT; BUZZER A/T 4 SPEED-AISIN(RNJ) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0007-0105	●	●	●	●	●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0007-0105	●	●	●	●	●	●
312	09.765 BOLT; BUZZER ISRAEL EQUIPMENT(7LX) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0106-0202			●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0106-0202			●	●
312	09.765 BOLT; BUZZER ISRAEL EQUIPMENT(7LX) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0106-0202					●
312	09.765 BOLT; BUZZER 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0106-0202		●				●
312	09.765 BOLT; BUZZER ISRAEL EQUIPMENT(7LX) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0203-			●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0203-			●	●
312	09.765 BOLT; BUZZER ISRAEL EQUIPMENT(7LX) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0203-					●	●
312	09.765 BOLT; BUZZER 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0203-		●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-	●	●	●	●	●	●

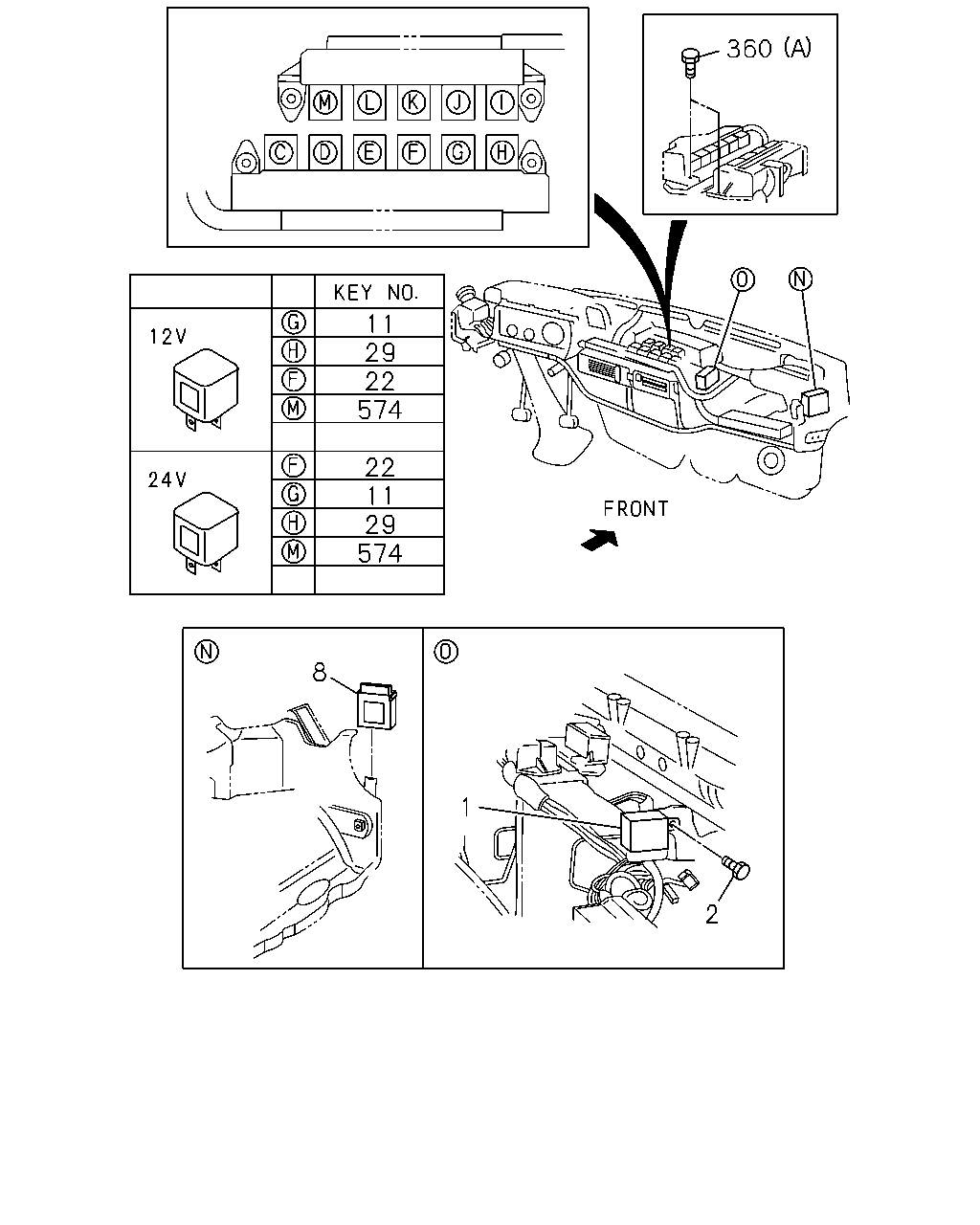

360 11 29 22 574 22 11 29 574 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.575 UNIT; FLASHER	8-97086-508-1	01	1	9811-0212	●	●				●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9811-0212			●	●	●
1	02.575 UNIT; FLASHER	8-97360-084-0	01	1	0301-	●	●				●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97360-084-0	01	1	0301-			●	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9811-0003			●	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97228-398-0	01	1	0004-			●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9811-	●	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	9811-	●	●				●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97184-233-0	01	1	9811-			●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-186-0	01	1	9811-			●	●	●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104	●	●				●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104			●	●	●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-	●	●				●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-			●	●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9811-			●	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104	●	●				●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104			●	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-	●	●				●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-			●	●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9811-			●	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104	●	●				●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104			●	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-	●	●				●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-			●	●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9811-			●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9811-0105	●		●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0106-			●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9811-9908	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9909-	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105			●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0106	●		●	●	●
360	02.483 BOLT; RELAY BOX 4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0106			●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0106		●				●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0202	●		●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0202		●				●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0203-	●		●	●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0203-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-0202	●		●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0203-	●		●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9811-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-0202	●		●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0203-	●		●	●	●	●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104	●
574	02.510 RELAY; CANCEL,BUZZER VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104			●	●	●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-0104		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105	●
574	02.510 RELAY; CANCEL,BUZZER VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105			●	●	●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105		●
574	02.510 RELAY; CANCEL,BUZZER VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-			●	●	●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9811-0108			●	●	●
574	02.510 RELAY; CANCEL,BUZZER 4HE1 ENG(RLY) VENEZUELA EQUIPMENT(S2L) EXC. HYDRO BRAKE BOOSTER<7QQ> 08.852 12V 20A	8-97060-926-1	01	1	0109-			●	●	●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	0109-			●	●	●

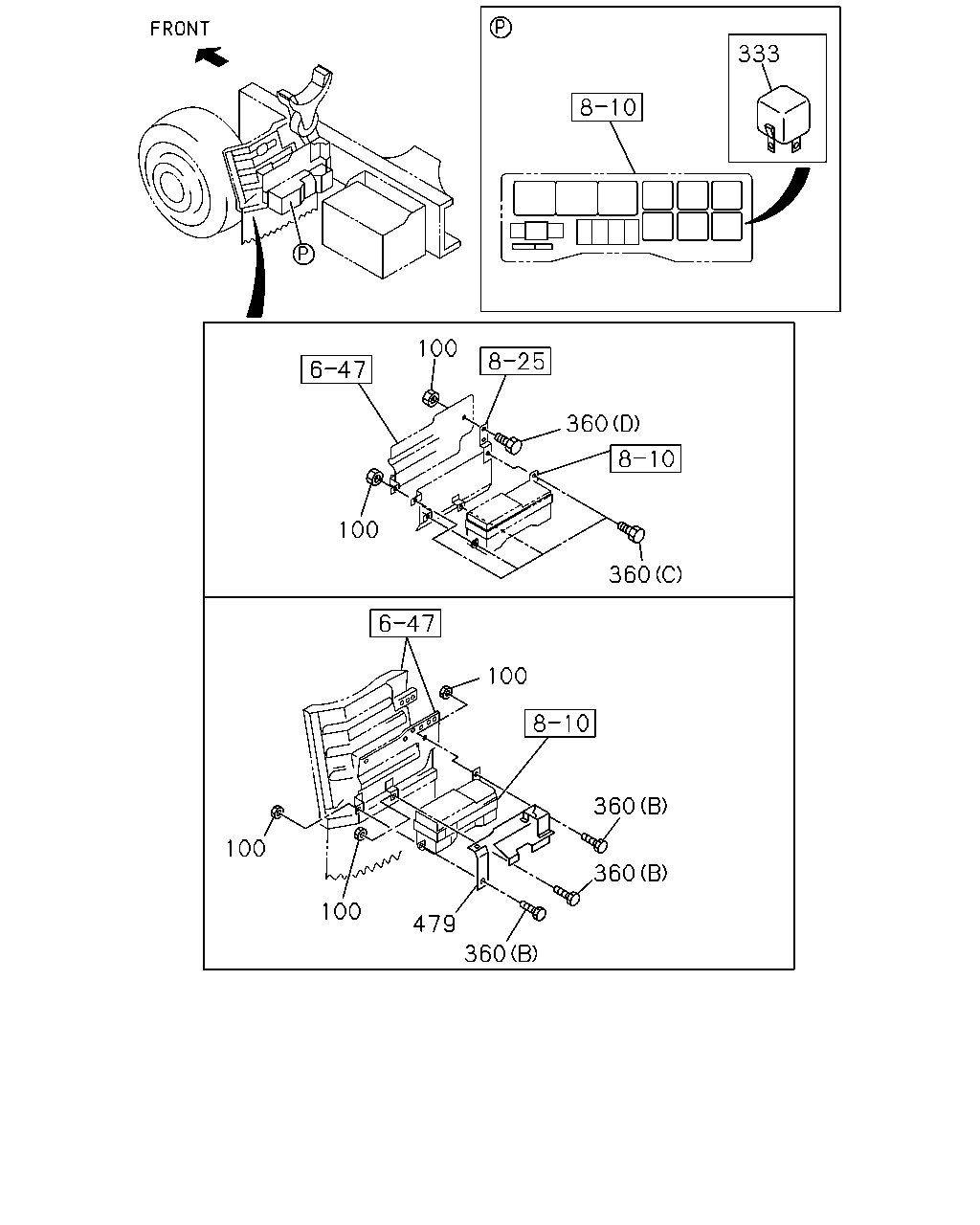

333 100 360 100 360 100 360 100 360 100 479 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0105	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0105	●		●	●	●
100	09.277 NUT; RELAY BOX COVER 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0105			●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-0202	●		●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-0202			●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-0202					●
100	09.277 NUT; RELAY BOX COVER 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-0202		●				●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	0203-	●		●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	0203-			●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	0203-					●
100	09.277 NUT; RELAY BOX COVER 07.633 M8 FLANGE	0-91150-108-0	03	1	0203-		●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0202	●		●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0203-	●		●	●	●	●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-9811			●	●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-9811		●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9811-9811						●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-0104			●	●	●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-0104		●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-0104						●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105			●	●	●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105		●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105						●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-0202			●	●	●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-0202		●				●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0203-			●	●	●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0203-		●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0203-						●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9811-9811			●	●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9812-			●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9811-0105	●		●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0106-			●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9811-9908	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9909-	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0105			●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0106	●		●	●	●
360	02.483 BOLT; RELAY BOX 4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0106			●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0106		●				●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0202	●		●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-0202		●				●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0203-	●		●	●	●	●
360	02.483 BOLT; RELAY BOX 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0203-		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-0202	●		●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0203-	●		●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9811-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-0202	●		●	●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0203-	●		●	●	●	●
479	09.277 PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97114-263-0	01	1	9811-9901	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
