◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#44527) — 84 parça

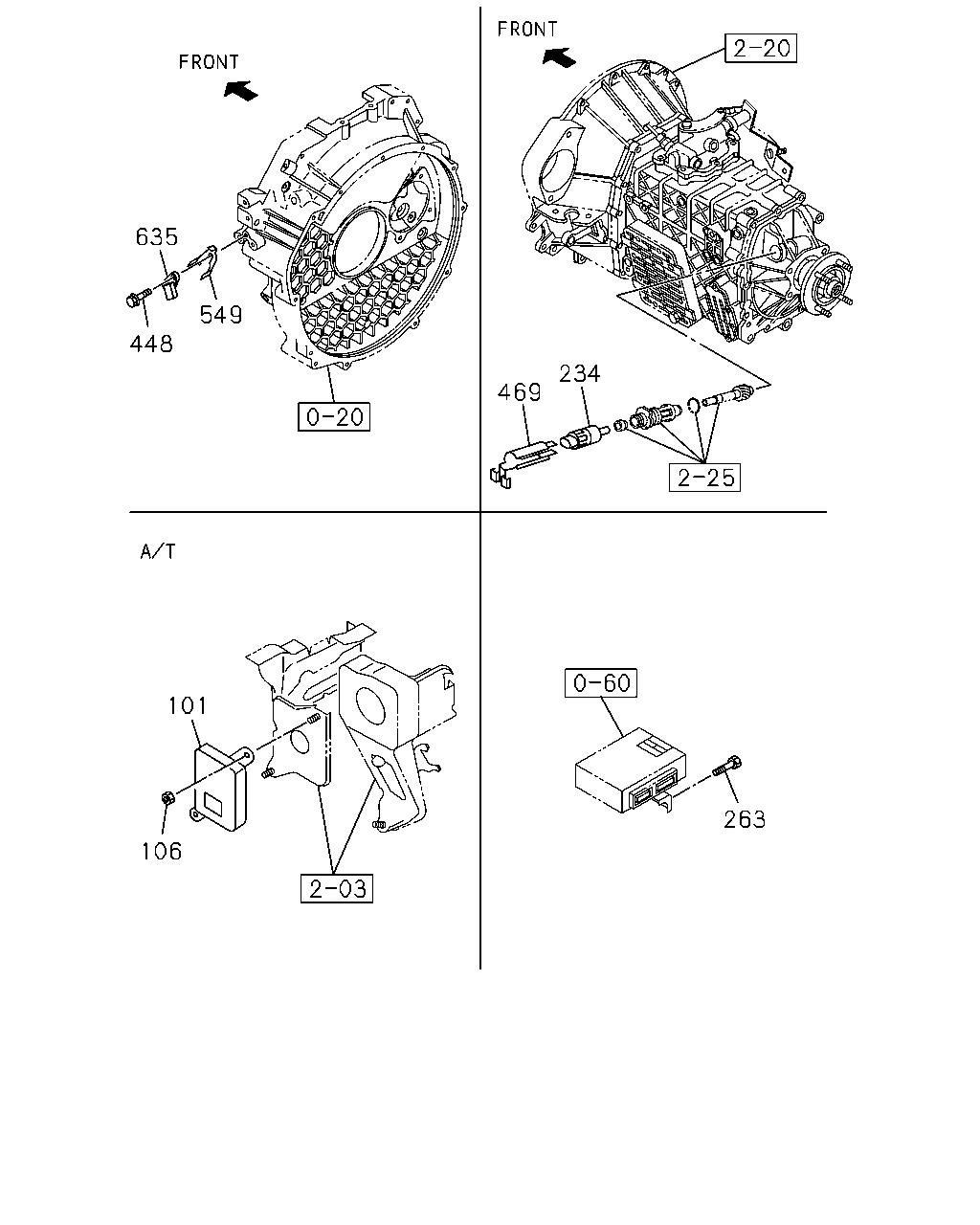

çizim 45906
635 549 448 234 469 101 263 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) ISRAEL EQUIPMENT(7LX) 		8-97205-033-1 01 1 9811- ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97206-041-1 01 1 9811-9912 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97248-485-0 01 1 0001-0106 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97311-878-0 01 1 0107-0108 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97323-553-0 01 1 0109- ● ● ●
106 04.115 NUT; ELEC CONT UNIT
A/T 4 SPEED-AISIN(RNJ) 04.594 M6 FLANGE 		0-91150-106-0 04 1 9811- ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9811-0006 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0007- ● ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811-0105 ● ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811-0105 ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106-0109 ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106-0109 ●
263 04.115 BOLT; CONT UNIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0110-0202 ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0110-0202 ● ● ● ●
263 04.115 BOLT; CONT UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0110-0202 ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0203- ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0203- ● ● ● ●
263 04.115 BOLT; CONT UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0203- ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9811- ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 9811-0006 ● ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0007- ● ● ● ● ● ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 09.743 		8-97161-633-2 01 1 9811- ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> YAZAKI 		8-97214-325-0 01 1 9811-9811 ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> YAZAKI 		8-97214-325-0 01 1 9812- ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) TURBOCHARGER(K51) YAZAKI 		8-97214-325-0 01 1 9812- ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 9811-9902 ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 9811-9902 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 9903-0105 ● ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) CALSONIC KANSEI 		8-97163-104-0 01 1 9903-0105 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 0106-0202 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) CALSONIC KANSEI 		8-97163-104-0 01 1 0106-0202 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 0203- ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) CALSONIC KANSEI 		8-97163-104-0 01 1 0203- ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0203- ●
çizim 46417
204 21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR 8-97064-970-1 01 1 9811-0108 ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 9811-0108 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0109- ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9811-0108 ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0109- ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9811- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 9811- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 9811- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9811- ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9811-9812 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9811-9812 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97136-694-0 01 1 9811-9812 ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97136-694-0 01 1 9811-9812 ● ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 9811-9812 ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 9811-9812 ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9901-0105 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9901-0105 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 9901-0105 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97136-694-0 01 1 9901-0105 ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0106-0202 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0106-0202 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97136-694-0 01 1 0106-0202 ● ● ● ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 0106-0202 ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0203- ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0203- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97136-694-0 01 1 0203- ● ● ● ● ●
21 09.744 COVER; HOLE
4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 0203- ● ● ● ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9811- ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 02.485 (B) 		8-94310-890-0 01 1 9811- ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9811-9811 ● ● ● ●
204 02.195 BUZZER; KEY REMIND
A/T 4 SPEED-AISIN(RNJ) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9811-9811 ● ● ●
204 02.195 BUZZER; KEY REMIND
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9811-9811 ● ●
204 02.195 BUZZER; KEY REMIND
ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 09.765 		8-97036-649-0 01 1 9811-9811 ●
204 02.195 BUZZER; KEY REMIND
FLOOR REMOTE SHIFT<M11> 09.765 		8-97036-649-0 01 1 9811-9811 ●
204 02.195 BUZZER; KEY REMIND
A/T 4 SPEED-AISIN(RNJ) 09.765 		8-97036-649-0 01 1 9811-9811 ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9812-0006 ● ● ● ●
204 02.195 BUZZER; KEY REMIND
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9812-0006 ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
A/T 4 SPEED-AISIN(RNJ) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9812-0006 ● ● ● ●
204 02.195 BUZZER; KEY REMIND
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 0007-0105 ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
A/T 4 SPEED-AISIN(RNJ) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 0007-0105 ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 0007-0105 ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
ISRAEL EQUIPMENT(7LX) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 0106-0202 ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 0106-0202 ● ●
204 02.195 BUZZER; KEY REMIND
ISRAEL EQUIPMENT(7LX) 09.765 		8-97036-649-0 01 1 0106-0202 ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0106-0202 ● ●
204 02.195 BUZZER; KEY REMIND
ISRAEL EQUIPMENT(7LX) EXC. SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 0203- ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 0203- ● ●
204 02.195 BUZZER; KEY REMIND
ISRAEL EQUIPMENT(7LX) 09.765 		8-97036-649-0 01 1 0203- ● ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0203- ●
