◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#44526) — 234 parça

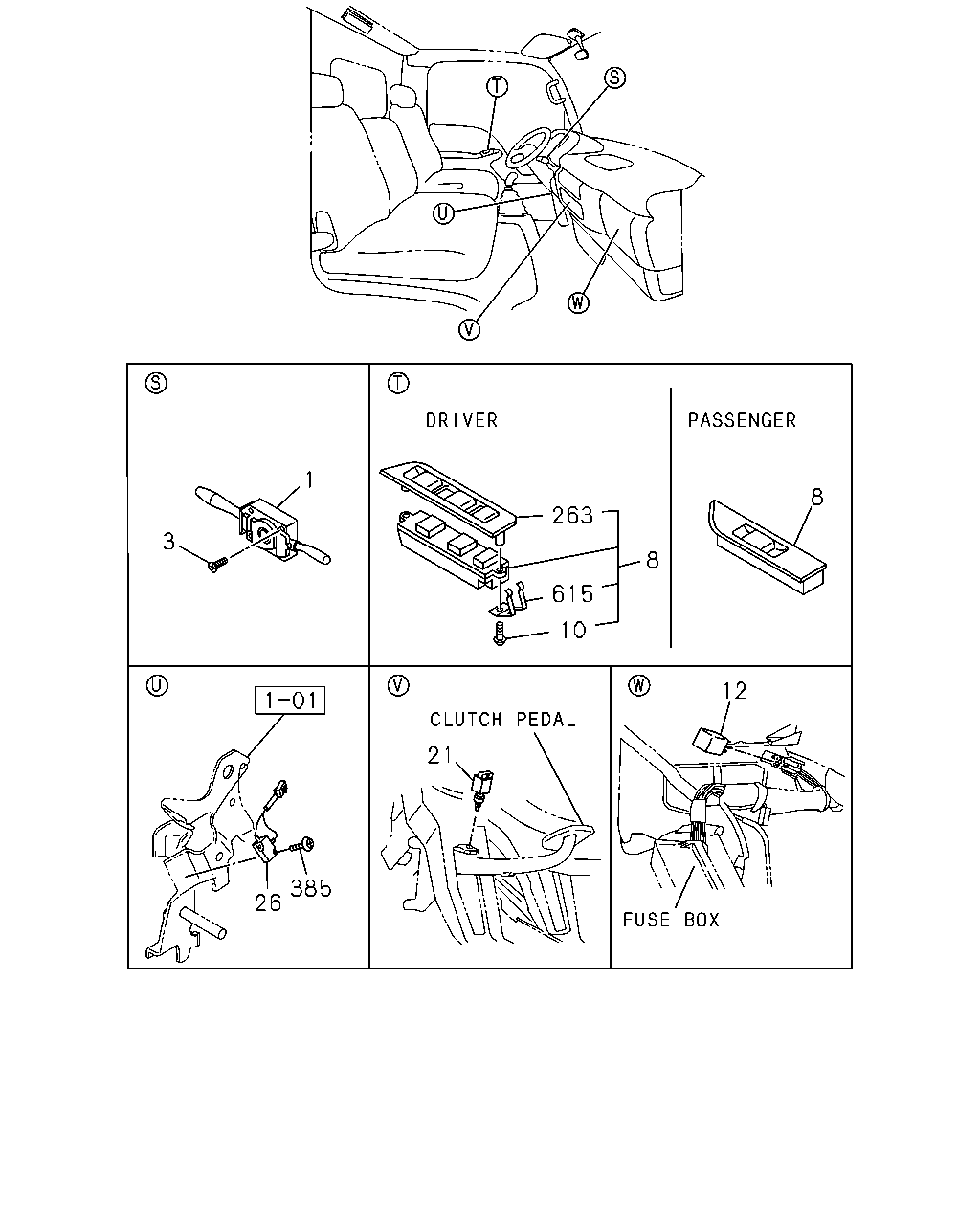

çizim 7451
1 8 263 3 8 615 10 12 21 385 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-891-2 01 1 0102- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97287-891-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-883-2 01 1 0102- ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97287-883-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97167-653-0 01 1 9811-9811 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-97167-653-0 01 1 9811-9811 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97167-653-0 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-97167-653-0 01 1 9812-0101 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-890-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. RR FOG LAMP<T79> 		8-97287-890-0 01 1 0102-0105 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-97287-890-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-890-2 01 1 0106-0202 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. RR FOG LAMP<T79> 		8-97287-890-2 01 1 0106-0202 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-890-2 01 1 0203- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. RR FOG LAMP<T79> 		8-97287-890-2 01 1 0203- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-97287-890-2 01 1 0203- ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9811-9811 ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97071-007-2 01 1 9811-9811 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97071-007-2 01 1 9812-0101 ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-882-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97287-882-0 01 1 0102-0105 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97287-882-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-882-2 01 1 0106-0202 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97287-882-2 01 1 0106-0202 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-882-2 01 1 0203- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97287-882-2 01 1 0203- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97287-882-2 01 1 0203- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97202-860-0 01 1 9811-9811 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97202-860-0 01 1 9811-9811 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97202-860-0 01 1 9812-0101 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97202-860-0 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97287-896-0 01 1 0102-0105 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97287-896-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-896-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97287-896-2 01 1 0106-0202 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-896-2 01 1 0106-0202 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97287-896-2 01 1 0203- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-896-2 01 1 0203- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97287-896-2 01 1 0203- ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97202-856-0 01 1 9811-9811 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97202-856-0 01 1 9811-9811 ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97202-856-0 01 1 9812-0101 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97202-856-0 01 1 9812-0101 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97287-894-0 01 1 0102-0105 ● ● ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97287-894-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-894-0 01 1 0102-0105 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97287-894-2 01 1 0106-0202 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-894-2 01 1 0106-0202 ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97287-894-2 01 1 0203- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-894-2 01 1 0203- ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-97287-894-2 01 1 0203- ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9811- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-727-0 01 1 9811-9901 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 9902- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-344-0 01 1 9811-9811 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-344-0 01 1 9811-9811 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97214-601-0 01 1 9812-9905 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97222-594-0 01 1 9906-0004 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97249-352-0 01 1 0005-0106 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-178-0 01 1 0107- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-345-0 01 1 9811-9811 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97214-602-0 01 1 9812-9905 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97222-595-0 01 1 9906-0004 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97249-353-0 01 1 0005-0106 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-179-0 01 1 0107- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9811- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9811- ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9811-0212 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0301- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL 8-97855-192-0 01 1 9811-0101 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0102- ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 9811- ● ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9811-0101 ● ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0102- ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9811- ● ● ● ● ● ●

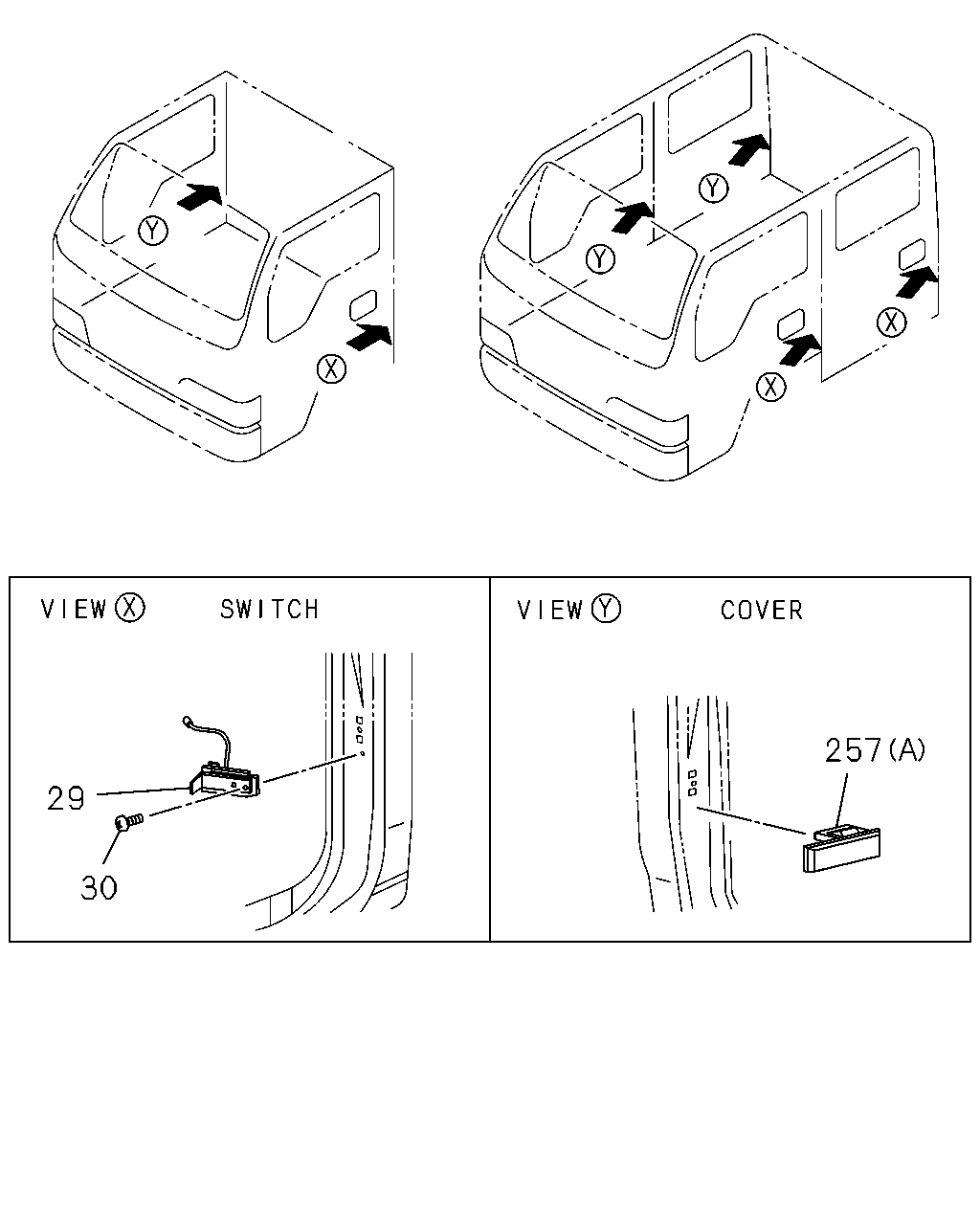

çizim 46494
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9811-0105 ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 0106-0109 ●
29 16.263 SWITCH; DOOR
EXC. ISRAEL EQUIPMENT(7LX) 		8-97855-032-2 01 1 0106-0109 ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0110- ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW<SDF> 		8-97855-032-3 01 1 0110- ● ● ●
29 16.263 SWITCH; DOOR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 		8-97855-032-2 02 1 0106-0109 ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 0106-0109 ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW<SDF> 		8-97855-032-2 02 1 0110-0202 ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 0110-0202 ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW<SDF> 		8-97855-032-3 02 1 0203- ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 0203- ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW<SDF> 		8-97855-032-3 02 1 0203- ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 9811-0105 ●
29 16.263 SWITCH; DOOR 8-97855-032-3 04 1 0106-0202 ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW<SDF> 		8-97855-032-3 04 1 0203- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9811-0105 ● ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0106-0109 ●
30 16.263 SCREW; DOOR SW
EXC. ISRAEL EQUIPMENT(7LX) M5X16 		8-94279-341-0 01 1 0106-0109 ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0110- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 01 1 0110- ● ● ●
30 16.263 SCREW; DOOR SW
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) M5X16 		8-94279-341-0 02 1 0106-0109 ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0106-0109 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 02 1 0110-0202 ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0110-0202 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 02 1 0203- ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0203- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 02 1 0203- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9811-0105 ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 0106-0202 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW<SDF> M5X16 		8-94279-341-0 04 1 0203- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 02 1 0203- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9811-0105 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0106-0109 ●
257 16.081 COVER; HOLE,SW
EXC. ISRAEL EQUIPMENT(7LX) 16.494 (A) 		8-94229-914-1 01 1 0106-0109 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0110- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 01 1 0110- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 9811- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9811-0105 ●

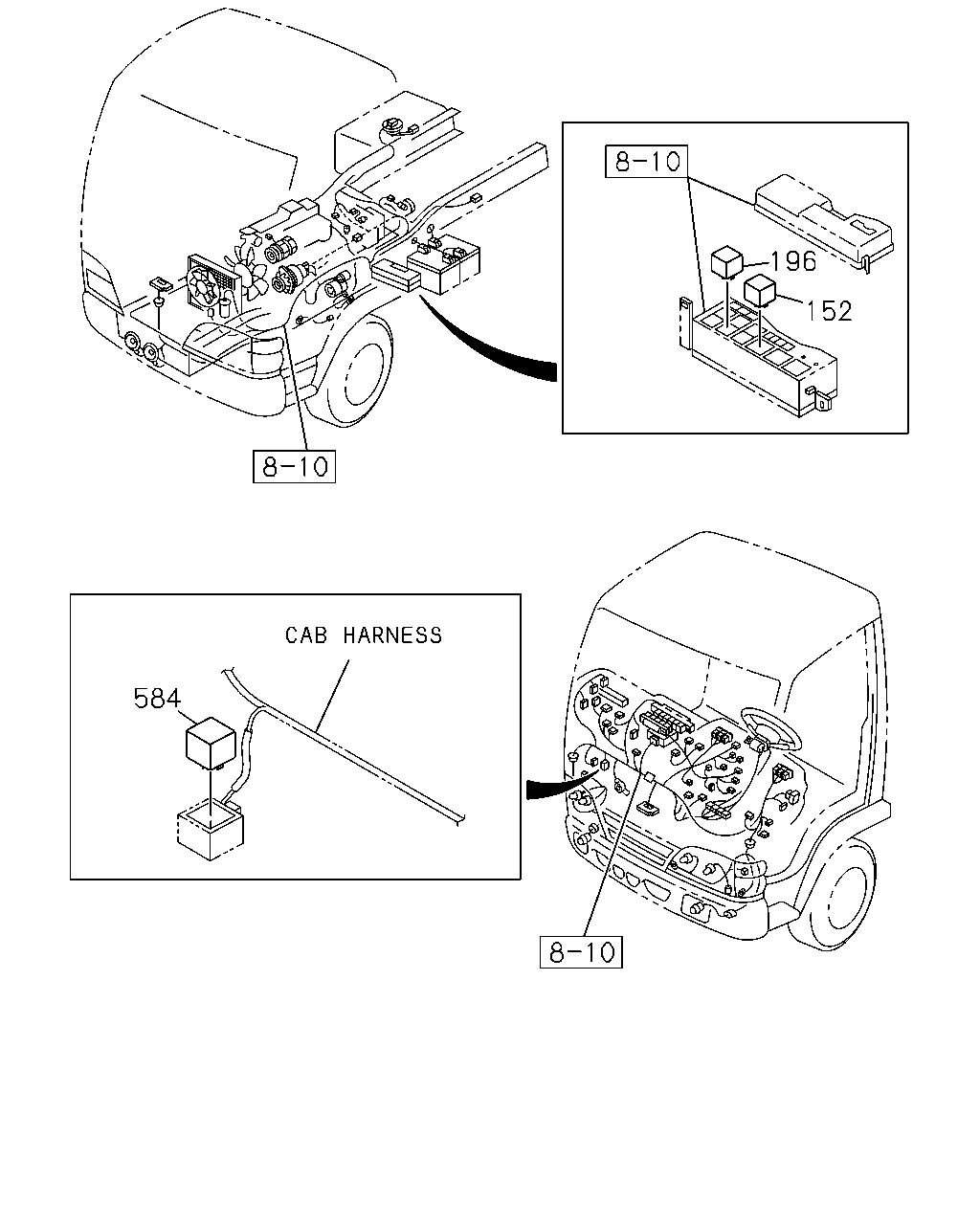

çizim 48183
196 152 584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
152 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 24V 50A 		8-97173-947-0 01 1 9811-9811 ● ● ● ●
152 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 24V 50A 		8-97173-947-0 01 1 9812- ● ● ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0006 ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0006 ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0007-0104 ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0007-0104 ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ●

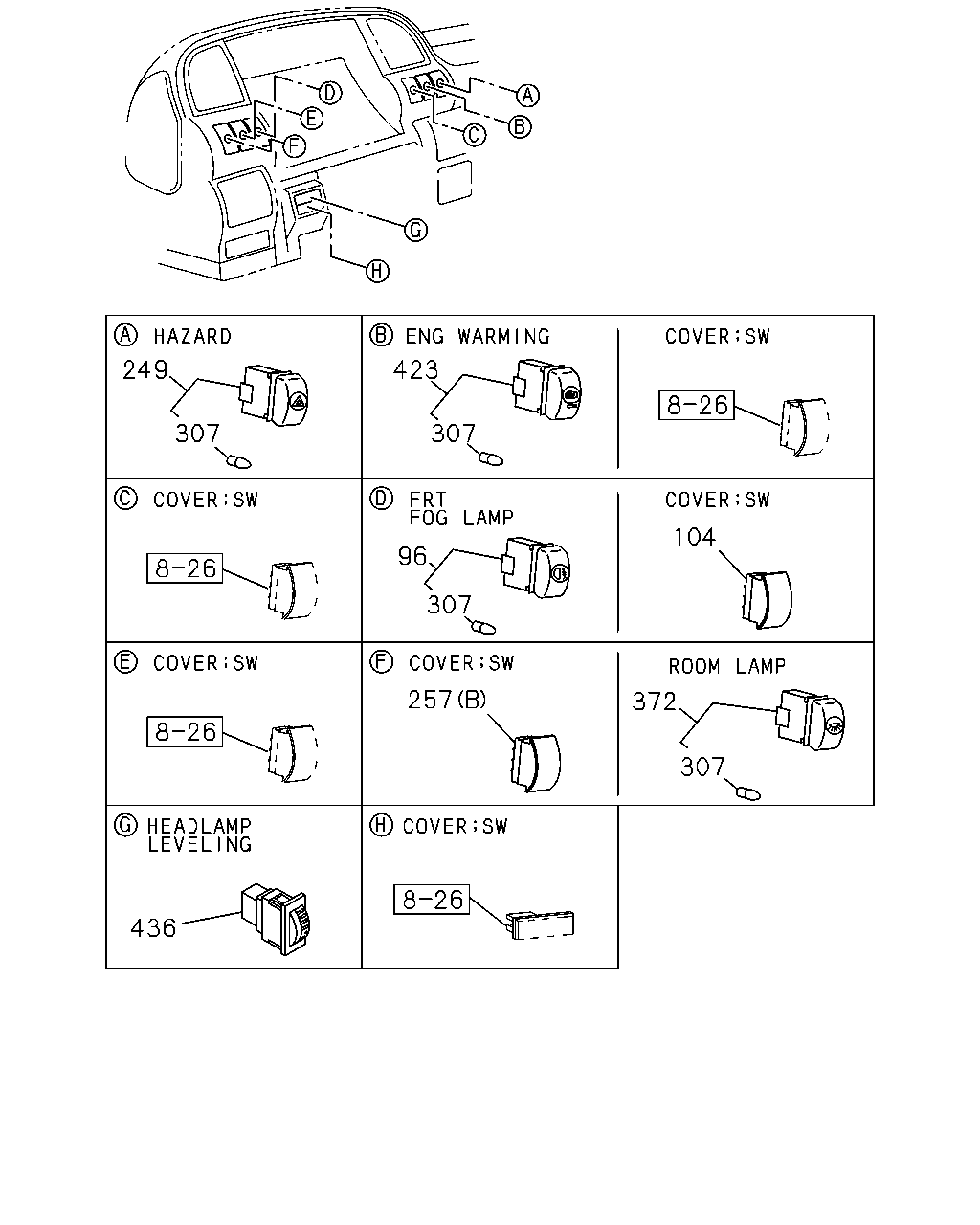

çizim 48891
249 423 307 307 104 96 307 257 372 307 436
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 9811- ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97170-441-0 01 1 9811- ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9811- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9811- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 9811- ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 9811- ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 9811- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 02 1 0203- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9811-0105 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0106-0109 ●
257 16.081 COVER; HOLE,SW
EXC. ISRAEL EQUIPMENT(7LX) 16.494 (A) 		8-94229-914-1 01 1 0106-0109 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0110- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW<SDF> 16.494 (A) 		8-94229-914-1 01 1 0110- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 9811- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9811-0105 ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 01 1 9811- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 9811- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 9811-9811 ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 9811-9811 ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 02 1 9811-9811 ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 9811-9811 ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 9812-9812 ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 02 1 9812-9812 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 9812-9812 ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 9812-9812 ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 02 1 9901-0105 ● ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 9901-0105 ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 9901-0105 ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 9901-0105 ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 02 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ●
307 08.991 BULB ASM; SW
4JB1 ENG(RLF) ISRAEL EQUIPMENT(7LX) 14V 60MA 		8-97116-329-0 01 1 9811-0105 ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 9811- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9811- ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9811- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 9811- ● ● ●
423 03.883 SWITCH; ENG WARMING
4JB1 ENG(RLF) ISRAEL EQUIPMENT(7LX) 		8-97140-965-0 01 1 9811-0105 ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 		8-97136-814-0 01 1 9811-9811 ● ●
423 03.883 SWITCH; ENG WARMING
ISRAEL EQUIPMENT(7LX) 		8-97136-814-0 01 1 9811-9811 ●
423 03.883 SWITCH; ENG WARMING 8-97136-814-0 01 1 9811-9811 ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 		8-97136-814-0 01 1 9812-9812 ● ● ●
423 03.883 SWITCH; ENG WARMING
ISRAEL EQUIPMENT(7LX) 		8-97136-814-0 01 1 9812-9812 ●
423 03.883 SWITCH; ENG WARMING 8-97136-814-0 01 1 9812-9812 ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) 		8-97136-814-0 01 1 9901- ● ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9811-0105 ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0106- ● ● ● ● ●

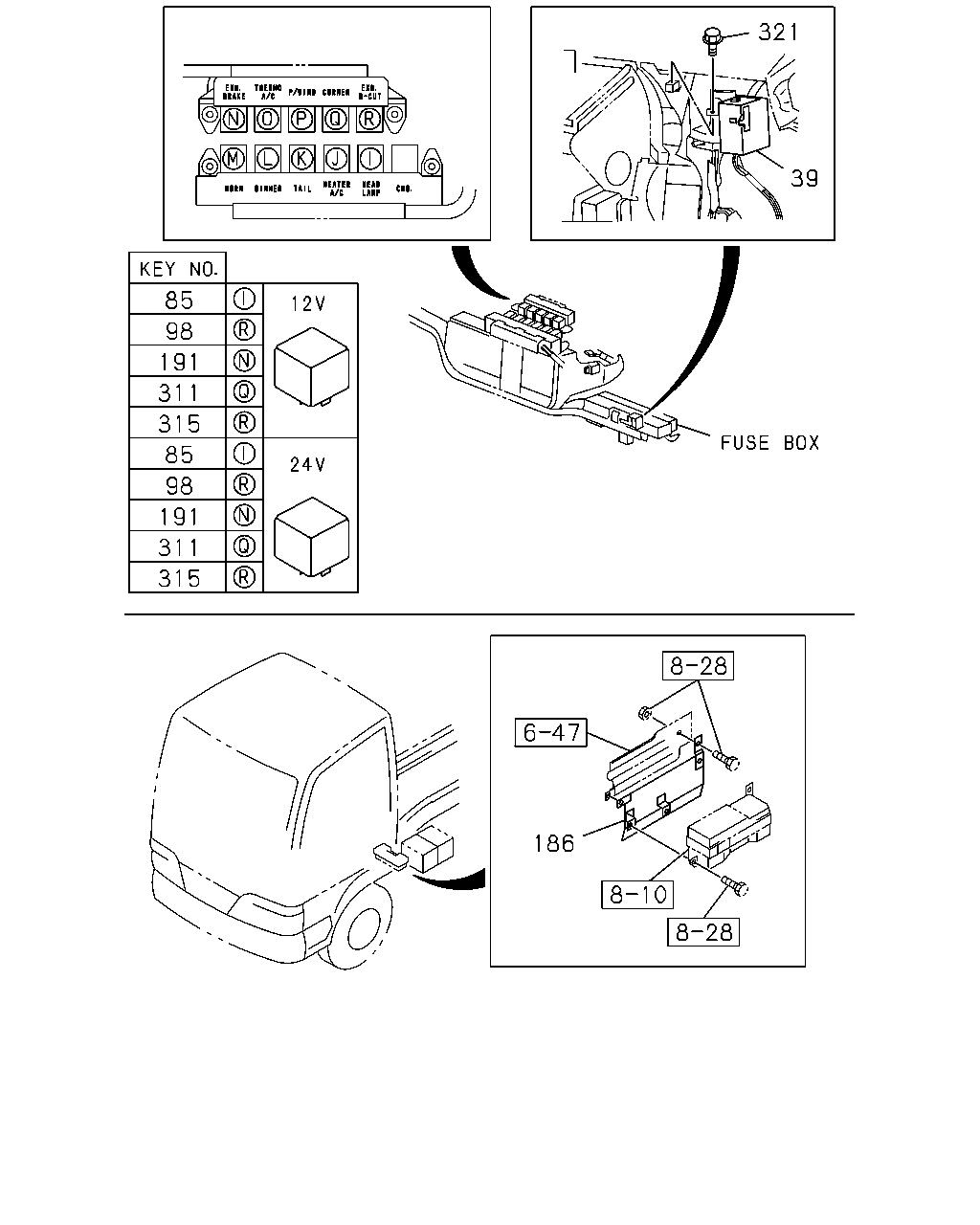

çizim 49186
321 39 85 98 191 311 315 85 98 191 311 315 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 9811- ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9811- ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9811-0212 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97359-591-0 01 1 0301- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0104 ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0104 ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-9811 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-9811 ●
98 02.485 RELAY; RR FOG LAMP
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-9811 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9812-0104 ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9812-0104 ●
98 02.485 RELAY; RR FOG LAMP
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9812-0104 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0105 ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0105 ●
98 02.485 RELAY; RR FOG LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0105 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0106-0202 ● ● ●
98 02.485 RELAY; RR FOG LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0106-0202 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0203- ● ● ●
98 02.485 RELAY; RR FOG LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0203- ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0203- ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811-9811 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9812- ● ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 		8-97088-652-1 01 1 9811-0105 ● ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 		8-97088-652-1 01 1 0106-0202 ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 		8-97088-652-1 01 1 0203- ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0101 ● ● ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0101 ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104 ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104 ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104 ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0105 ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0105 ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0105 ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0106- ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0106- ● ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811-0101 ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0102-0105 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0104 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0105 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0106- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0101 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0101 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104 ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9811-0101 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0102- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0102- ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
