◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#44523) — 844 parça

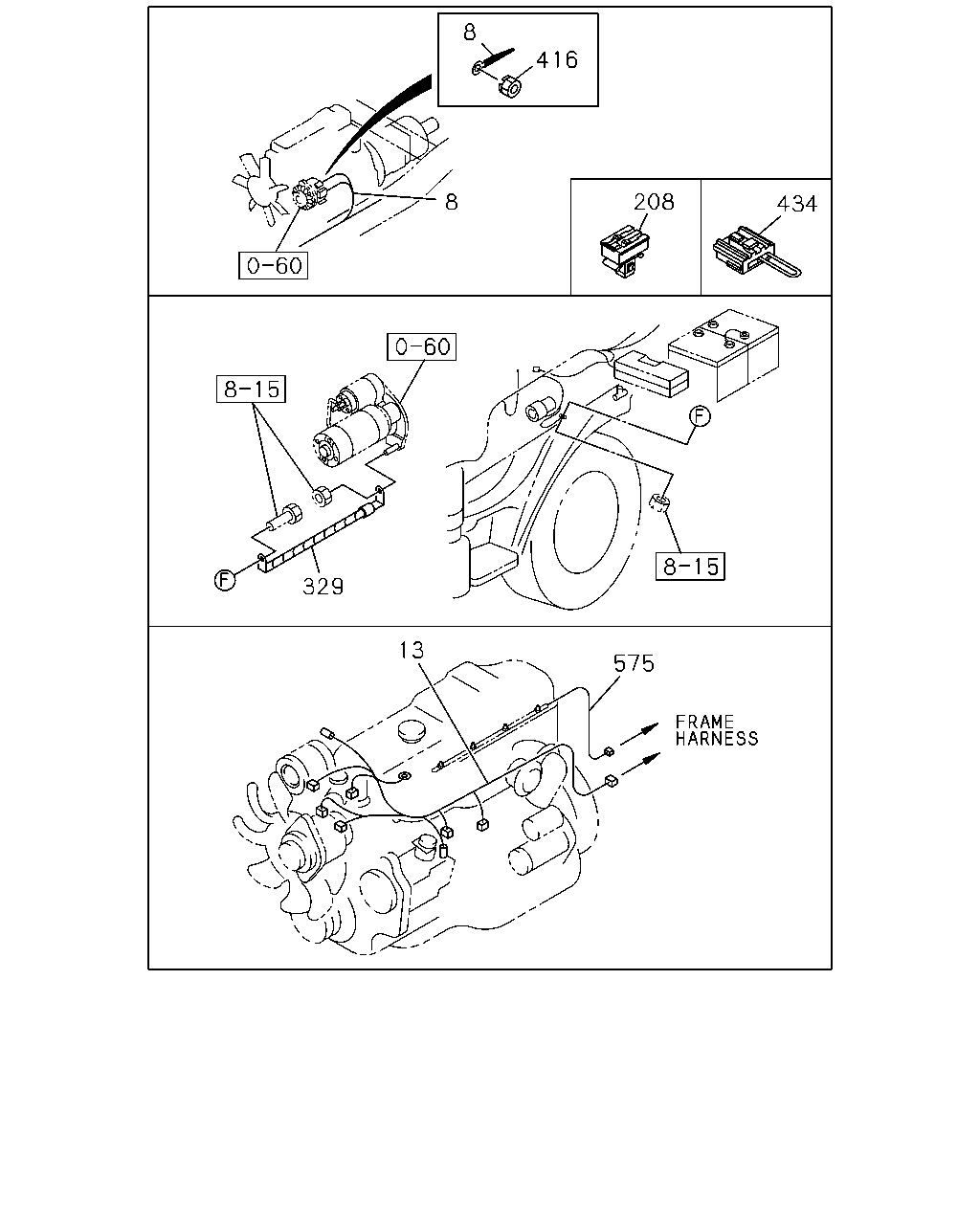

çizim 7445
8 416 208 8 434 329 13 575
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97222-932-0 01 1 9901-9910 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. TAIWAN EQUIPMENT(RWV) 		8-97222-932-0 01 1 9911-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX) 		8-97222-932-0 01 1 9911-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-0 01 1 0106-0202 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-0 01 1 0203-0204 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-610-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97260-981-1 01 1 0106-0202 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97260-981-1 01 1 0203- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-586-1 01 1 9811-0101 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97306-691-0 01 1 0102-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97261-001-0 01 1 0106-0107 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97261-001-1 01 1 0108- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-606-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97212-141-0 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-730-0 01 1 9904-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97260-973-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97217-621-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-965-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-608-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97217-608-1 01 1 9901-0004 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97217-608-2 01 1 0005-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97260-974-1 01 1 0106-0202 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97260-974-1 01 1 0203- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97206-217-0 01 1 9811-9902 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97225-918-1 01 1 9903-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-982-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> 		8-97263-476-0 01 1 0007-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97264-088-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97217-595-0 01 1 9811-0001 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97240-864-0 01 1 0002-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-021-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-577-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISRAEL EQUIPMENT(7LX) 		8-97261-028-0 01 1 0106-0106 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97217-593-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-015-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> 		8-97217-729-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>,VEHICLE CATEGORY NQR<7NQ> 		8-97260-969-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> CHINA EQUIPMENT(YT2) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97258-517-1 01 1 0005-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> CHINA EQUIPMENT(YT2) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97260-975-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-615-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-615-1 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-967-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97217-617-1 01 1 9811-9902 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-617-1 01 1 9903-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE>,VEHICLE CATEGORY NQR<7NQ> 		8-97260-968-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97211-023-1 01 1 9811-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97261-013-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-592-0 01 1 9811-0004 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97257-395-0 01 1 0005-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-017-0 01 1 0106-0107 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-731-1 01 1 0108-0112 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-731-1 01 1 0201- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-575-0 01 1 9811-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-513-2 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-583-1 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-019-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-585-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-516-2 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-587-1 01 1 9811-0101 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97306-692-0 01 1 0102-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-024-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-584-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) EXC. GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-607-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97212-142-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-731-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> EXC. GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97217-622-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-512-2 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> GENERATOR 24V80A(7YN) 		8-97307-512-2 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-512-2 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) 		8-97307-512-2 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-609-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97217-609-1 01 1 9901-0004 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97217-609-2 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97261-003-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-579-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-026-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97217-598-1 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-515-2 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) GENERATOR 24V80A(7YN) 		8-97307-515-2 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-515-2 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) 		8-97307-515-2 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-517-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) GENERATOR 24V80A(7YN) 		8-97307-517-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-025-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-027-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> 		8-97263-477-0 01 1 0007-0105 ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) 		8-97263-477-0 01 1 0007-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97264-089-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) EXC. GENERATOR 24V80A(7YN) 		8-97264-089-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97217-596-0 01 1 9811-0001 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97240-865-0 01 1 0002-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-018-0 01 1 0106-0107 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-732-1 01 1 0108-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-732-1 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-578-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97260-983-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97217-594-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-016-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97261-014-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> EXC. GENERATOR 24V80A(7YN) 		8-97261-014-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-514-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> GENERATOR 24V80A(7YN) 		8-97307-514-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-020-0 01 1 0106-0108 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B>,ENGINE POWER N-SPEC(7QV) 		8-97261-020-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97227-750-0 01 1 0012-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97289-012-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-616-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-616-1 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-985-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97225-594-0 01 1 9903-0011 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97225-594-0 01 1 0012-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97260-984-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97227-750-0 01 1 9904-0002 ●
8 02.480 HARNESS; FRAME,FRT
ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97217-576-0 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-576-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97217-576-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-022-0 01 1 0106-0108 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97261-022-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> ENGINE POWER N-SPEC(7QV) 		8-97321-033-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B> 		8-97321-032-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97316-729-1 01 1 0108- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97352-452-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-451-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97352-453-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0201-0202 ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-266-0 01 1 9811-0202 ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-266-0 01 1 0203- ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FAST GLOW SYSTEM<KM6>, TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 9811-0101 ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FAST GLOW SYSTEM<KM6>, TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 0102-0105 ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FAST GLOW SYSTEM<KM6>, TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97170-517-1 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97204-078-1 01 1 9811- ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97170-515-1 01 1 9811-0202 ● ● ● ●
13 02.525 HARNESS; ENG
4HG1 ENG(RJH),4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97170-515-1 01 1 0203- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 9811-0108 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 0109-0204 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97172-971-2 01 1 0205- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 9811-9903 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 9904-0101 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 0102-0105 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 0106-0202 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97170-519-1 01 1 0203- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97166-704-2 01 1 9811- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97204-098-0 01 1 9811-9812 ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) 		8-97218-750-0 01 1 9901-0105 ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) EXC. ENGINE POWER N-SPEC(7QV) 		8-97166-705-1 01 1 9811-0006 ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) EXC. ENGINE POWER N-SPEC(7QV) 		8-97166-705-1 01 1 0007-0105 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 		8-97166-705-1 01 1 0106-0204 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) EXC. ENGINE POWER N-SPEC(7QV) 		8-97166-705-1 01 1 0205- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97328-755-0 01 1 0208-0208 ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 		8-97356-988-0 01 1 0209- ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97328-756-0 01 1 0208-0208 ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 		8-97356-989-0 01 1 0209- ● ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) 		8-94459-973-1 01 1 9811- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97177-383-0 01 1 9811-9903 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97177-383-0 01 1 9811-9903 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97177-383-0 01 1 9904-0105 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97177-383-0 01 1 0106- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 9811-0202 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97065-249-1 01 1 0203- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 9811- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 9811-0105 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 0106-0202 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 0203- ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-97209-383-0 01 1 9811-0105 ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9811-0105 ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9811-0105 ● ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9811-0105 ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106-0107 ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106-0107 ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> GENERATOR 24V80A(7YN) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106-0107 ● ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106-0107 ●
416 02.559 NUT; TERMINAL
GENERATOR 24V80A(7YN) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106-0107 ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0108-0202 ● ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> GENERATOR 24V80A(7YN) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0108-0202 ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0108-0202 ● ● ●
416 02.559 NUT; TERMINAL
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0203- ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> GENERATOR 24V80A(7YN) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0203- ● ● ● ● ●
416 02.559 NUT; TERMINAL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0203- ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 9811-0105 ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 9811-0105 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0106-0108 ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0106-0108 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0109-0202 ● ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0109-0202 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0203- ● ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) 		8-97212-328-0 01 1 9903-0105 ●

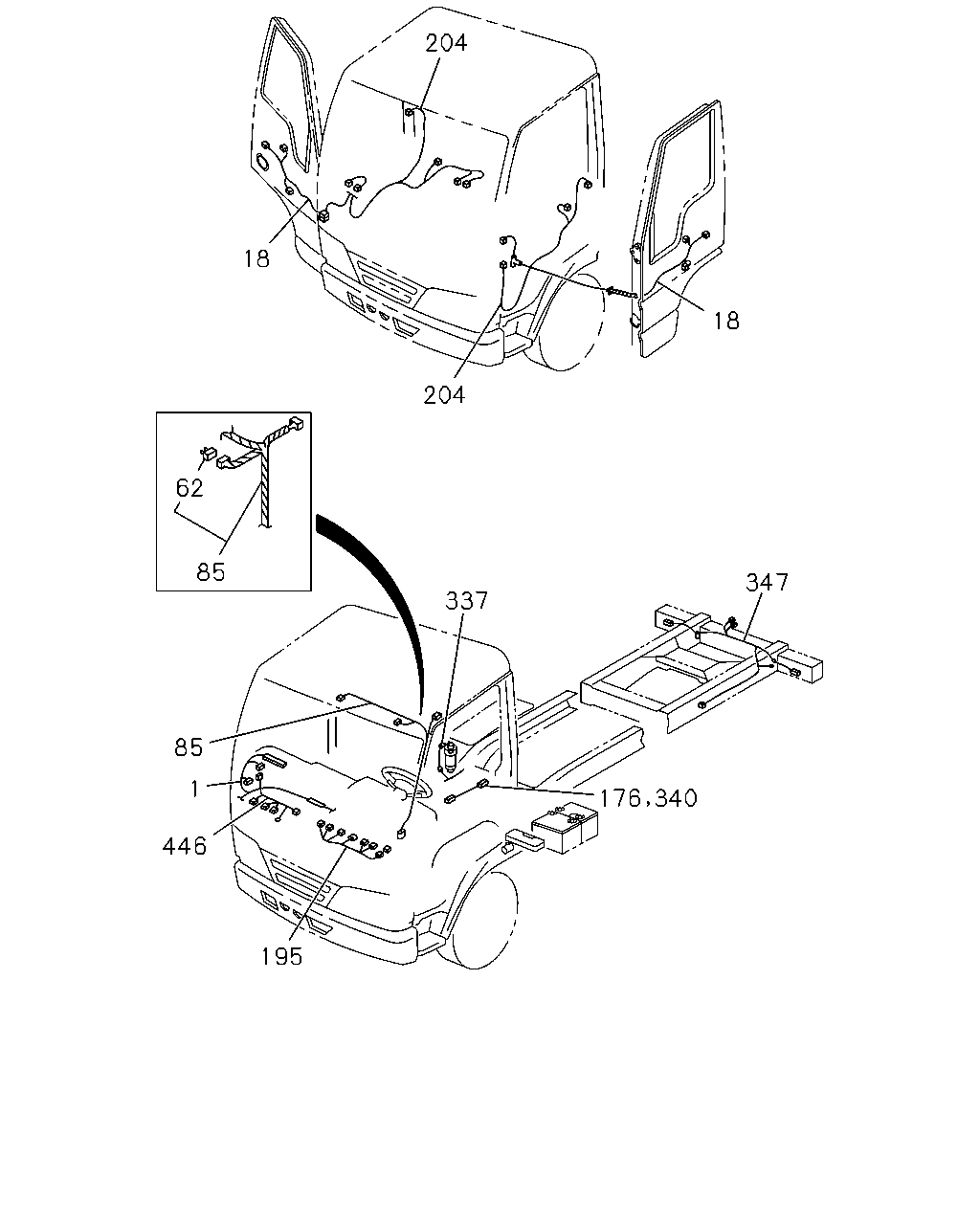

çizim 45671
204 18 18 204 62 85 347 337 85 1 446 195 176 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97328-757-1 01 1 0201- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97321-031-1 01 1 0109- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97316-893-0 01 1 0106- ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-189-0 01 1 9811-0004 ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CHINA EQUIPMENT(YT2) 		8-97217-189-0 01 1 0005-0101 ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CHINA EQUIPMENT(YT2) 		8-97307-391-2 01 1 0102-0202 ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CHINA EQUIPMENT(YT2) 		8-97307-391-2 01 1 0203- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-169-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-169-2 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-166-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-166-3 01 1 0106- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-170-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-170-3 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) BRAZIL EQUIPMENT(RWF) 		8-97217-180-2 01 1 9811- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF) 		8-97217-181-1 01 1 9811- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),ENGINE POWER N-SPEC(7QV) 		8-97185-314-0 01 1 9811-0004 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ENGINE P OWER N-SPEC(7QV) 		8-97185-314-2 01 1 0005-0202 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) FRAME STRAIGHT TYPE<7KJ> 		8-97185-314-2 01 1 0005-0202 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ENGINE P OWER N-SPEC(7QV) 		8-97185-314-2 01 1 0203- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) FRAME STRAIGHT TYPE<7KJ> 		8-97185-314-2 01 1 0203- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97185-307-0 01 1 9811-0105 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97185-307-1 01 1 0106-0202 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97185-307-1 01 1 0203- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97206-272-0 01 1 9811-9902 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97226-914-0 01 1 9903-9905 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97230-670-0 01 1 9906-0105 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) ENGINE POWER N-SPEC(7QV) 		8-97258-518-1 01 1 0005- ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97258-519-1 01 1 0005- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97217-179-1 01 1 9811- ● ● ●

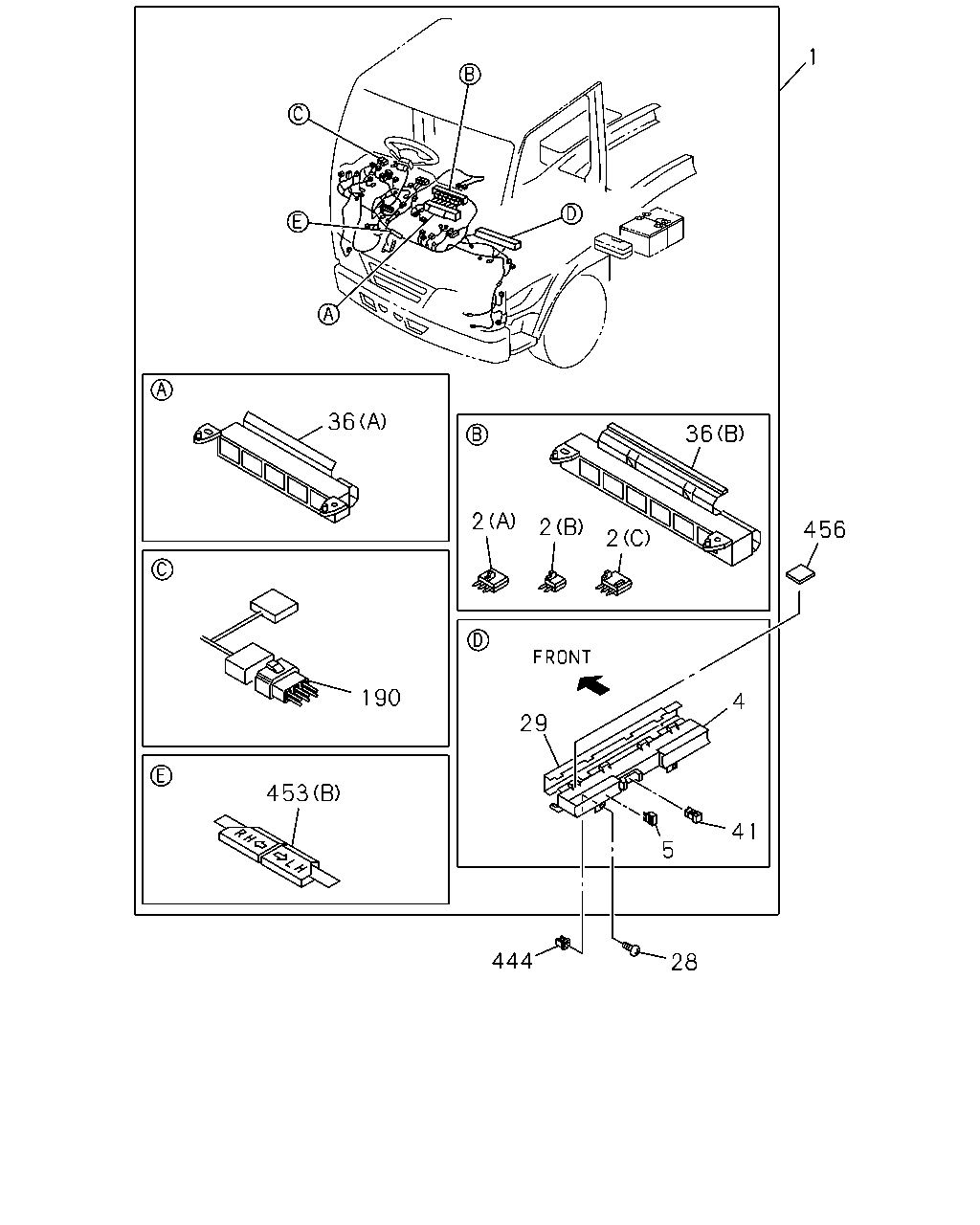

1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97263-475-0 01 1 0007-0105 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-AISIN(RNJ) 		8-97263-475-0 01 1 0007-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97316-894-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-AISIN(RNJ) 		8-97316-894-0 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97211-024-0 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) HYDRO BRAKE BOOSTER<7QQ> 		8-97316-891-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> 		8-97316-891-0 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 		8-97217-187-0 01 1 9811-0108 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-187-1 01 1 0109- ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> 		8-97217-193-2 01 1 9811- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-176-0 01 1 9811-9905 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97229-299-0 01 1 9906-0004 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97257-396-0 01 1 0005-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97316-892-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-171-1 01 1 9811-9811 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-171-1 01 1 9812-0105 ● ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> 		8-97316-890-0 01 1 0106-0202 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 		8-97316-890-0 01 1 0203- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-167-0 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97316-889-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-0 01 1 9811-9812 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-0 01 1 9901-9910 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-1 01 1 9911-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-1 01 1 9911-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-2 01 1 0106-0112 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION<7AF> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-3 01 1 0201-0202 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION<7AF> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-3 01 1 0203- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-168-1 01 1 9811-9812 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-168-1 01 1 9901-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-168-2 01 1 0106- ● ●

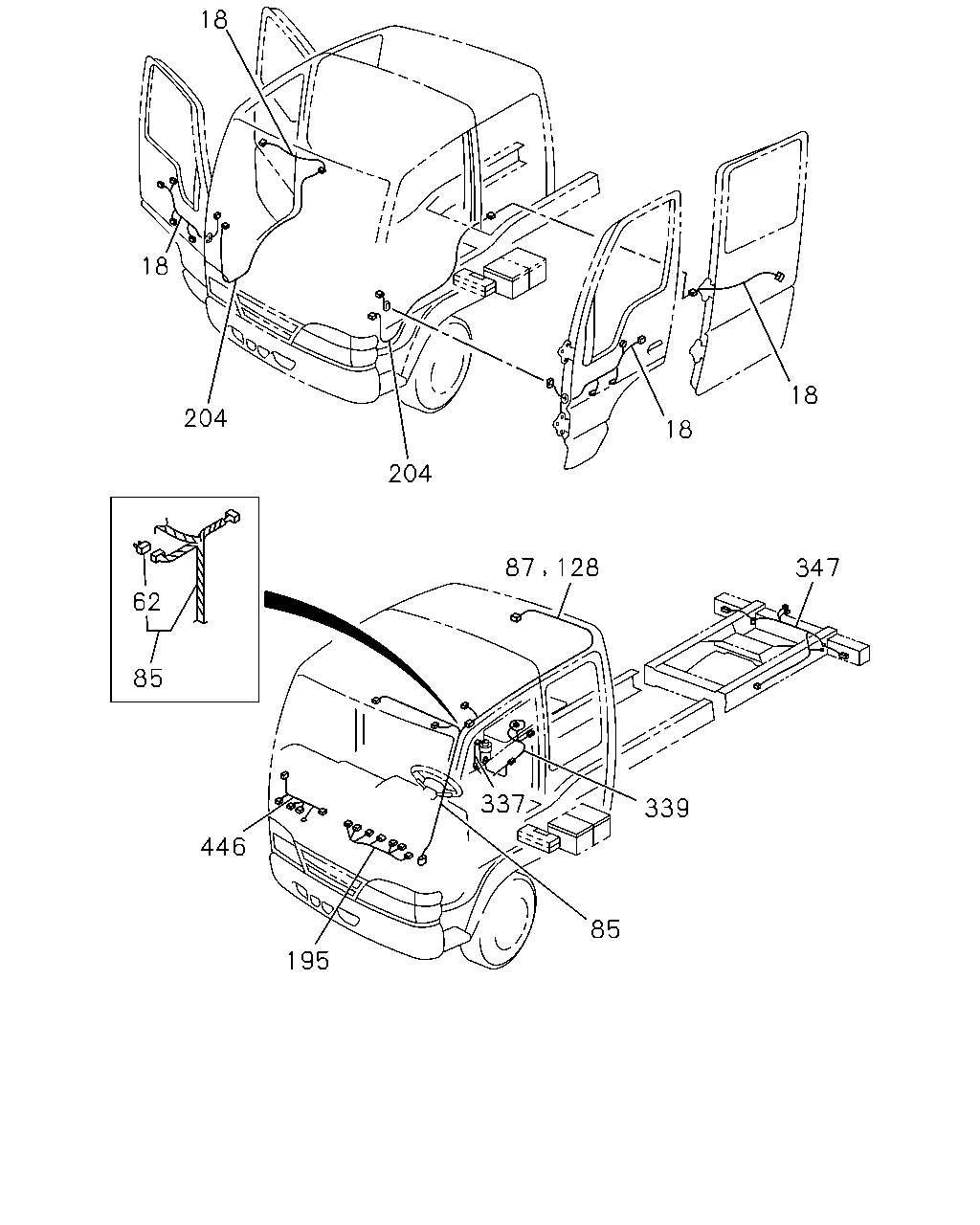

18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106-0202 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0203- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106-0202 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0203- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 9811- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
BRAZIL EQUIPMENT(RWF) 		8-97162-639-1 01 1 9811-0105 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
BRAZIL EQUIPMENT(RWF) 		8-97307-518-0 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. BRAZIL EQUIPMENT(RWF) 		8-97164-611-2 01 1 9811- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-2 01 1 9811- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9811-0105 ●
85 06.495 HARNESS; ROOM LAMP 8-97264-441-1 01 1 0106-0202 ●
85 06.495 HARNESS; ROOM LAMP
ISRAEL EQUIPMENT(7LX) 		8-97264-441-1 01 1 0203- ●
85 06.495 HARNESS; ROOM LAMP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97162-627-3 01 1 0203- ●
176 02.525 HARNESS; FUEL SEDIMENTER
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97308-963-0 01 1 0103-0105 ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9811-0105 ● ● ● ●
195 01.150 HARNESS; EXT
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9811-0105 ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 0106-0202 ● ● ● ●
195 01.150 HARNESS; EXT 8-97172-039-3 01 1 0106-0202 ●
195 01.150 HARNESS; EXT
EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 0106-0202 ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 0203- ● ● ● ● ●
195 01.150 HARNESS; EXT 8-97172-039-3 01 1 0203- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9811-0104 ● ● ● ●
195 01.150 HARNESS; EXT
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9811-0104 ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ● ● ●
195 01.150 HARNESS; EXT
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0106-0202 ● ● ● ●
195 01.150 HARNESS; EXT
EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0106-0202 ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0203- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 		8-97162-631-2 01 1 0106-0109 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-631-2 01 1 0106-0109 ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW<SDF> 		8-97162-631-2 01 1 0110- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-631-2 01 1 0110- ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 9811- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-1 01 1 9811-0006 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-2 01 1 0007- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-2 01 1 0007- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ●
204 02.559 HARNESS; CABLE,FLOOR
A/T 4 SPEED-AISIN(RNJ) 		8-97213-659-1 01 1 9811- ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 9811- ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0106-0202 ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97261-149-0 01 1 0106-0202 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0203- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97261-149-0 01 1 0203- ● ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 		8-97261-148-0 01 1 0106- ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-97261-148-0 01 1 0106- ● ● ●
340 02.525 HARNESS; CABLE,SEDIMENTER
MINI BUS CHASSIS<V4B> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94463-144-0 01 1 9811- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9811-9811 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 9812-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9812-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9812-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 0106-0202 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0106-0202 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0106-0202 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 0203- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0203- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0203- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-566-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9811-9811 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9812-0105 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9812-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0106-0202 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0106-0202 ● ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0203- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0203- ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9811-9811 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9812-0105 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9812-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0106-0202 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0106-0202 ● ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0203- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0203- ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97189-233-0 01 1 9811-9811 ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97189-233-0 01 1 9812-0101 ● ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97255-952-0 01 1 0102- ● ● ● ● ●

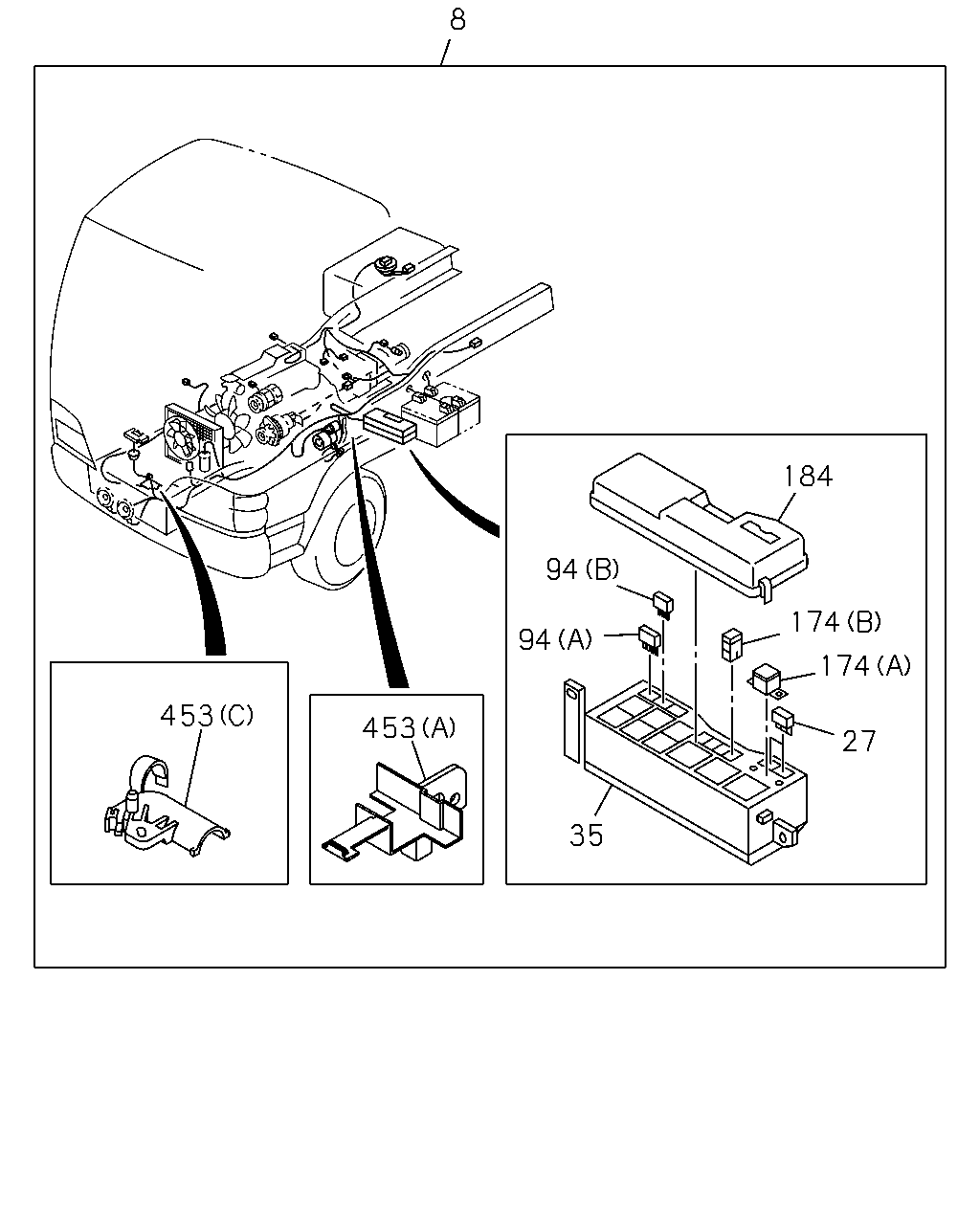

çizim 45707
8 184 94 174 94 174 453 453 27 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97222-932-0 01 1 9901-9910 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. TAIWAN EQUIPMENT(RWV) 		8-97222-932-0 01 1 9911-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX) 		8-97222-932-0 01 1 9911-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-0 01 1 0106-0202 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-0 01 1 0203-0204 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),VEHICLE CATEGORY NQR<7NQ> 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 		8-97261-000-1 01 1 0205- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) 		8-97217-610-2 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97260-981-1 01 1 0106-0202 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97260-981-1 01 1 0203- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-586-1 01 1 9811-0101 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97306-691-0 01 1 0102-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97261-001-0 01 1 0106-0107 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97261-001-1 01 1 0108- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-606-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97212-141-0 01 1 9811-9903 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-730-0 01 1 9904-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> DUMP CHASSIS(V4D) EXC. TURBOCHARGER(K51) 		8-97260-973-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97217-621-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-965-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-608-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 		8-97217-608-1 01 1 9901-0004 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97217-608-2 01 1 0005-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97260-974-1 01 1 0106-0202 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),DUMP CHASSIS(V4D),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97260-974-1 01 1 0203- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97206-217-0 01 1 9811-9902 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97225-918-1 01 1 9903-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-982-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> 		8-97263-476-0 01 1 0007-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97264-088-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97217-595-0 01 1 9811-0001 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97240-864-0 01 1 0002-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-021-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-577-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) ISRAEL EQUIPMENT(7LX) 		8-97261-028-0 01 1 0106-0106 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97217-593-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-015-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> 		8-97217-729-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>,VEHICLE CATEGORY NQR<7NQ> 		8-97260-969-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> CHINA EQUIPMENT(YT2) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97258-517-1 01 1 0005-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> CHINA EQUIPMENT(YT2) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97260-975-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-615-0 01 1 9811-9812 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-615-1 01 1 9901-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97260-967-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97217-617-1 01 1 9811-9902 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97217-617-1 01 1 9903-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE>,VEHICLE CATEGORY NQR<7NQ> 		8-97260-968-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97211-023-1 01 1 9811-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97261-013-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97217-592-0 01 1 9811-0004 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97257-395-0 01 1 0005-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-017-0 01 1 0106-0107 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-731-1 01 1 0108-0112 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-731-1 01 1 0201- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-575-0 01 1 9811-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-513-2 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-583-1 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-019-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-585-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-516-2 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-587-1 01 1 9811-0101 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97306-692-0 01 1 0102-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-024-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97217-584-1 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) EXC. GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. GENERATOR 24V80A(7YN) 		8-97261-023-1 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-607-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97212-142-0 01 1 9811-9903 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97227-731-0 01 1 9904-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> EXC. GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. VEHICLE CATEGORY NQR<7NQ>, GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. GENERATOR 24V80A(7YN) 		8-97260-999-1 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97217-622-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-512-2 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> GENERATOR 24V80A(7YN) 		8-97307-512-2 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-512-2 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) 		8-97307-512-2 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-609-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97217-609-1 01 1 9901-0004 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),CHINA EQUIPMENT(YT2),FRAME STRAIGHT TYPE<7KJ> 		8-97217-609-2 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97261-003-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-579-0 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-026-1 01 1 0106- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97217-598-1 01 1 9811-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-515-2 01 1 0106-0202 ● ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) GENERATOR 24V80A(7YN) 		8-97307-515-2 01 1 0106-0202 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97307-515-2 01 1 0203- ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) GENERATOR 24V80A(7YN) 		8-97307-515-2 01 1 0203- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-517-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) GENERATOR 24V80A(7YN) 		8-97307-517-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-025-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-027-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> 		8-97263-477-0 01 1 0007-0105 ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) 		8-97263-477-0 01 1 0007-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97264-089-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
A/T 4 SPEED-AISIN(RNJ) EXC. GENERATOR 24V80A(7YN) 		8-97264-089-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97217-596-0 01 1 9811-0001 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 		8-97240-865-0 01 1 0002-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-018-0 01 1 0106-0107 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-732-1 01 1 0108-0112 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97316-732-1 01 1 0201- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-578-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97260-983-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97217-594-0 01 1 9811-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF),CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-016-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> EXC. GENERATOR 24V80A(7YN) 		8-97261-014-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> EXC. GENERATOR 24V80A(7YN) 		8-97261-014-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) VEHICLE CATEGORY NQR<7NQ> GENERATOR 24V80A(7YN) 		8-97307-514-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
FLOOR REMOTE SHIFT<M11> GENERATOR 24V80A(7YN) 		8-97307-514-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B> 		8-97261-020-0 01 1 0106-0108 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. MINI BUS CHASSIS<V4B>,ENGINE POWER N-SPEC(7QV) 		8-97261-020-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97227-750-0 01 1 0012-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97289-012-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97217-616-0 01 1 9811-9812 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS<V4B> 		8-97217-616-1 01 1 9901-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. TURBOCHARGER(K51) 		8-97260-985-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97225-594-0 01 1 9903-0011 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97225-594-0 01 1 0012-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97260-984-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97227-750-0 01 1 9904-0002 ●
8 02.480 HARNESS; FRAME,FRT
ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97217-576-0 01 1 9811-9811 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97217-576-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97217-576-0 01 1 9812-0105 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97261-022-0 01 1 0106-0108 ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97261-022-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> ENGINE POWER N-SPEC(7QV) 		8-97321-033-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> ENGINE POWER N-SPEC(7QV) EXC. MINI BUS CHASSIS<V4B> 		8-97321-032-1 01 1 0109- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> GENERATOR 24V80A(7YN) EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97316-729-1 01 1 0108- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97352-452-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97352-451-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> 		8-97352-453-0 01 1 0208- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) VEHICLE CATEGORY NQR<7NQ> EXC. CHARGE AIR COOLER<6PL> 		8-97261-002-1 01 1 0201-0202 ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 9811- ● ● ● ● ● ●
27 08.965 FUSE UNIT
10A RED 		5-82516-002-0 AR 1 0005- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9811-0105 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97063-150-1 01 1 0106- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9904-9910 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9911-0002 ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) 		8-97063-150-1 01 1 9911-0002 ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH) EXC. MINI BUS CHASSIS<V4B> 		8-97063-150-1 01 1 9911-0002 ●
94 02.483 DIODE; FRAME HARNESS
(A) BLACK 4P-1.5A 		8-94381-730-0 AR 1 9811- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-0 AR 1 0102- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9811-0105 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97063-152-1 01 1 0106- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> (C) 		8-97093-668-1 01 1 0106-0112 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0106-0112 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
G.V.W. 7.5-8.0TON(RPY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97093-668-1 01 1 0106-0112 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> (C) 		8-97093-668-1 01 1 0201-0202 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0201-0202 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97093-668-1 01 1 0201-0202 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> (C) 		8-97093-668-1 01 1 0203- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0203- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97093-668-1 01 1 0203- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9811-0202 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97120-591-1 01 1 0203- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9904-0002 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (A) 		8-97120-591-1 01 1 9904-0002 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EXC. MINI BUS CHASSIS<V4B> (A) 		8-97120-591-1 01 1 9904-0002 ●
çizim 50119
1 36 36 2 2 456 2 190 4 29 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97328-757-1 01 1 0201- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97321-031-1 01 1 0109- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97316-893-0 01 1 0106- ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97217-189-0 01 1 9811-0004 ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CHINA EQUIPMENT(YT2) 		8-97217-189-0 01 1 0005-0101 ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CHINA EQUIPMENT(YT2) 		8-97307-391-2 01 1 0102-0202 ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CHINA EQUIPMENT(YT2) 		8-97307-391-2 01 1 0203- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-169-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BRAZIL EQUIPMENT(RWF) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-169-2 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-166-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-166-3 01 1 0106- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-170-1 01 1 9811-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-170-3 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) BRAZIL EQUIPMENT(RWF) 		8-97217-180-2 01 1 9811- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF) 		8-97217-181-1 01 1 9811- ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),ENGINE POWER N-SPEC(7QV) 		8-97185-314-0 01 1 9811-0004 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ENGINE P OWER N-SPEC(7QV) 		8-97185-314-2 01 1 0005-0202 ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) FRAME STRAIGHT TYPE<7KJ> 		8-97185-314-2 01 1 0005-0202 ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ENGINE P OWER N-SPEC(7QV) 		8-97185-314-2 01 1 0203- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) FRAME STRAIGHT TYPE<7KJ> 		8-97185-314-2 01 1 0203- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97185-307-0 01 1 9811-0105 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97185-307-1 01 1 0106-0202 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97185-307-1 01 1 0203- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97206-272-0 01 1 9811-9902 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97226-914-0 01 1 9903-9905 ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97230-670-0 01 1 9906-0105 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) ENGINE POWER N-SPEC(7QV) 		8-97258-518-1 01 1 0005- ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97258-519-1 01 1 0005- ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97217-179-1 01 1 9811- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97263-475-0 01 1 0007-0105 ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-AISIN(RNJ) 		8-97263-475-0 01 1 0007-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97316-894-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-AISIN(RNJ) 		8-97316-894-0 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97211-024-0 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) HYDRO BRAKE BOOSTER<7QQ> 		8-97316-891-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> 		8-97316-891-0 01 1 0106- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 		8-97217-187-0 01 1 9811-0108 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-187-1 01 1 0109- ● ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> 		8-97217-193-2 01 1 9811- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-176-0 01 1 9811-9905 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97229-299-0 01 1 9906-0004 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97257-396-0 01 1 0005-0105 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97316-892-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-171-1 01 1 9811-9811 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-171-1 01 1 9812-0105 ● ● ● ●
1 02.480 HARNESS; CAB
FLOOR REMOTE SHIFT<M11> 		8-97316-890-0 01 1 0106-0202 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) 		8-97316-890-0 01 1 0203- ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-167-0 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97316-889-0 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-0 01 1 9811-9812 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-0 01 1 9901-9910 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-1 01 1 9911-0105 ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-1 01 1 9911-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-2 01 1 0106-0112 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION<7AF> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-3 01 1 0201-0202 ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EURO2 SPECIFICATION<7AF> EXC. TAIWAN EQUIPMENT(RWV),ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-3 01 1 0203- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-168-1 01 1 9811-9812 ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-168-1 01 1 9901-0105 ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHILE EQUIPMENT(6KB) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-168-2 01 1 0106- ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 9811- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9811-9811 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 		8-97214-415-0 01 1 9811-9811 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97214-415-0 01 1 9811-9811 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 9811-9811 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97214-415-0 01 1 9811-9811 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9811-9811 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9812-9902 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97214-415-0 01 1 9812-9902 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 9812-9902 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97214-415-0 01 1 9812-9902 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9812-9902 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 9903-0004 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) BRAZIL EQUIPMENT(RWF) 		8-97214-415-0 01 1 9903-0004 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF) 		8-97214-415-0 01 1 9903-0004 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 9903-0004 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> 		8-97214-415-0 01 1 9903-0004 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97214-415-0 01 1 9903-0004 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0005-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97214-415-0 01 1 0005-0105 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0005-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 0005-0105 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97214-415-0 01 1 0005-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97214-415-0 01 1 0005-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 0106-0108 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0106-0108 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97214-415-0 01 1 0106-0108 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97214-415-0 01 1 0106-0108 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) ENGINE POWER N-SPEC(7QV) CHINA EQUIPMENT(YT2) 		8-97214-415-0 01 1 0106-0108 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0109- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 9811-9902 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97077-664-0 01 1 9811-9902 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97077-664-0 01 1 9811-9902 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 9903-0004 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),ENGINE POWER N-SPEC(7QV) 		8-97077-664-0 01 1 9903-0004 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0005-0105 ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97077-664-0 01 1 0005-0105 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 		8-97077-664-0 01 1 0005-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0106-0108 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF),ENGINE POWER N-SPEC(7QV) 		8-97077-664-0 01 1 0106-0108 ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9811- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97074-955-0 01 1 0005-0108 ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L),ISRAEL EQUIPMENT(7LX) (A) 		8-97087-640-1 01 1 0109-0110 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109-0110 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 0109-0110 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97087-640-1 01 1 0111-0112 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0111-0112 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 0111-0112 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97087-640-1 01 1 0201-0202 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0201-0202 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 0201-0202 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A) 		8-97087-640-1 01 1 0201-0202 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97087-640-1 01 1 0203- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0203- ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 0203- ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A) 		8-97087-640-1 01 1 0203- ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9811- ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF),TAIWAN EQUIPMENT(RWV),CHILE EQUIPMENT(6KB),ISRAEL EQ UIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 9811-0006 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> (A) 		8-97184-367-0 01 1 9811-0006 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97184-367-0 01 1 9811-0006 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 9811-0006 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 9811-0006 ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97184-367-0 01 1 9811-0006 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (A) 		8-97184-367-0 01 1 0007-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> (A) 		8-97184-367-0 01 1 0007-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> (A) 		8-97184-367-0 01 1 0007-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 0007-0105 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 0007-0105 ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97184-367-0 01 1 0007-0105 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0106-0106 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 0106-0106 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97184-367-0 01 1 0106-0106 ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 0106-0106 ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97184-367-0 01 1 0106-0106 ●
36 02.530 BOX; RELAY
G.V.W. 7.5-8.0TON(RPY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) (A) 		8-97184-367-0 01 1 0106-0108 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 0106-0108 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF) (A) 		8-97184-367-0 01 1 0106-0108 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> (A) 		8-97184-367-0 01 1 0106-0108 ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97184-367-0 01 1 0106-0108 ● ●
36 02.530 BOX; RELAY
G.V.W. 7.5-8.0TON(RPY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (A) 		8-97184-367-0 01 1 0109-0202 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> (A) 		8-97184-367-0 01 1 0109-0202 ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97184-367-0 01 1 0109-0202 ● ●
36 02.530 BOX; RELAY
G.V.W. 7.5-8.0TON(RPY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ISRAEL EQUIPMENT(7LX) (A) 		8-97184-367-0 01 1 0203- ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> (A) 		8-97184-367-0 01 1 0203- ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97184-367-0 01 1 0203- ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 9811-0004 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (A) 		8-97087-638-1 01 1 9811-0004 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF) (A) 		8-97087-638-1 01 1 9811-0004 ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) (A) 		8-97087-638-1 01 1 9811-0004 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0005-0105 ● ● ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF) (A) 		8-97087-638-1 01 1 0005-0105 ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) (A) 		8-97087-638-1 01 1 0005-0105 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (A) 		8-97087-638-1 01 1 0005-0105 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0106-0108 ● ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),BRAZIL EQUIPMENT(RWF) (A) 		8-97087-638-1 01 1 0106-0108 ● ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) (A) 		8-97087-638-1 01 1 0106-0108 ● ● ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (A) 		8-97087-638-1 01 1 0106-0108 ● ● ●
36 02.530 BOX; RELAY
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CHINA EQUIPMENT(YT2) (A) 		8-97087-638-1 01 1 0109-0110 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> (A) 		8-97184-368-0 01 1 9811-0108 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A) 		8-97184-368-0 01 1 9811-0108 ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A) 		8-97184-368-0 01 1 0109-0112 ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9811-9902 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		5-82690-411-0 01 1 9903-0101 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 0102-0105 ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) 		5-82690-411-0 01 1 0102-0105 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 0102-0105 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		5-82690-411-0 01 1 0102-0105 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		5-82690-411-0 01 1 0102-0105 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 0102-0105 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-82690-411-0 01 1 0106-0108 ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
G.V.W. 7.5-8.0TON(RPY) 		5-82690-411-0 01 1 0106-0108 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HG1 ENG(RJH),4HF1 ENG(RLS) CHINA EQUIPMENT(YT2) FRAME STRAIGHT TYPE<7KJ> 		5-82690-411-0 01 1 0106-0108 ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 0109-0109 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		5-82690-411-0 01 1 0109-0109 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		5-82690-411-0 01 1 0109-0112 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-94363-367-0 01 1 9811-0105 ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 		8-94363-367-0 01 1 0106-0108 ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> (C) 		8-97093-668-1 01 1 0106-0112 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0106-0112 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
G.V.W. 7.5-8.0TON(RPY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97093-668-1 01 1 0106-0112 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> (C) 		8-97093-668-1 01 1 0201-0202 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0201-0202 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97093-668-1 01 1 0201-0202 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> (C) 		8-97093-668-1 01 1 0203- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS) (C) 		8-97093-668-1 01 1 0203- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> VENEZUELA EQUIPMENT(S2L) VEHICLE CATEGORY NQR<7NQ> (C) 		8-97093-668-1 01 1 0203- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9811-0202 ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97120-591-1 01 1 0203- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 9904-0002 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (A) 		8-97120-591-1 01 1 9904-0002 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) EXC. MINI BUS CHASSIS<V4B> (A) 		8-97120-591-1 01 1 9904-0002 ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9811- ● ● ● ● ● ●
çizim 50606
18 18 18 204 18 204 87 128 347 62 85 337 339 446 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 9811-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0106-0202 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-571-0 01 1 0203- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-571-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97105-572-1 01 1 9811-9904 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 9905-0105 ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0106-0202 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0106-0202 ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR 		8-97226-671-0 01 1 0203- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR 		8-97226-671-0 01 1 0203- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-142-1 01 1 9811- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97226-669-0 01 1 9905- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
BRAZIL EQUIPMENT(RWF) 		8-97162-639-1 01 1 9811-0105 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
BRAZIL EQUIPMENT(RWF) 		8-97307-518-0 01 1 0106- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. BRAZIL EQUIPMENT(RWF) 		8-97164-611-2 01 1 9811- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-611-2 01 1 9811- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-627-2 01 1 9811-0105 ●
85 06.495 HARNESS; ROOM LAMP 8-97264-441-1 01 1 0106-0202 ●
85 06.495 HARNESS; ROOM LAMP
ISRAEL EQUIPMENT(7LX) 		8-97264-441-1 01 1 0203- ●
85 06.495 HARNESS; ROOM LAMP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97162-627-3 01 1 0203- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9811-0105 ●
87 02.480 HARNESS; EXT,ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW<SDF> 		8-97075-747-0 01 1 0203- ●
128 02.480 HARNESS; BODY,RR 8-97300-349-0 01 1 0106-0202 ●
128 02.480 HARNESS; BODY,RR
ROOM LAMP W/ALL DOORS SW<SDF> 		8-97300-349-0 01 1 0203- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9811-0105 ● ● ● ●
195 01.150 HARNESS; EXT
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 9811-0105 ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 0106-0202 ● ● ● ●
195 01.150 HARNESS; EXT 8-97172-039-3 01 1 0106-0202 ●
195 01.150 HARNESS; EXT
EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 0106-0202 ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97172-039-3 01 1 0203- ● ● ● ● ●
195 01.150 HARNESS; EXT 8-97172-039-3 01 1 0203- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9811-0104 ● ● ● ●
195 01.150 HARNESS; EXT
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97171-205-3 01 1 9811-0104 ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ● ● ●
195 01.150 HARNESS; EXT
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0105-0105 ● ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0106-0202 ● ● ● ●
195 01.150 HARNESS; EXT
EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0106-0202 ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97306-681-0 01 1 0203- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 		8-97162-631-2 01 1 0106-0109 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-631-2 01 1 0106-0109 ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW<SDF> 		8-97162-631-2 01 1 0110- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-631-2 01 1 0110- ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 9811- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-1 01 1 9811-0006 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-2 01 1 0007- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
A/T 4 SPEED-AISIN(RNJ) 		8-97162-630-2 01 1 0007- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 9811- ●
204 02.559 HARNESS; CABLE,FLOOR
A/T 4 SPEED-AISIN(RNJ) 		8-97213-659-1 01 1 9811- ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-626-4 01 1 9811- ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-94470-821-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0106-0202 ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97261-149-0 01 1 0106-0202 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0203- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97261-149-0 01 1 0203- ● ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-94310-644-0 01 1 9811-0105 ● ● ●
337 02.530 HARNESS; EXT,HTR
MINI BUS CHASSIS<V4B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 		8-97261-148-0 01 1 0106- ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 		8-97261-148-0 01 1 0106- ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9811-0202 ●
339 02.530 HARNESS; EXT,FUEL
4HF1 ENG(RLS),4HE1 ENG(RLY) 02.480 		8-94318-759-0 01 1 0203- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9811-9811 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 9812-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9812-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 9812-0105 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 0106-0202 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0106-0202 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0106-0202 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DUMP CHASSIS(V4D) 		8-97213-568-0 01 1 0203- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6>,ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0203- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-568-0 01 1 0203- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. ISRAEL EQUIPMENT(7LX) 		8-97213-566-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9811-9811 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9812-0105 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 9812-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0106-0202 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0106-0202 ● ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0203- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-658-0 01 1 0203- ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9811-9811 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9811-9811 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9812-0105 ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 9812-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0106-0202 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0106-0202 ● ●
347 02.480 HARNESS; CABLE,RR BODY
ISRAEL EQUIPMENT(7LX) EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0203- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97213-657-0 01 1 0203- ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97189-233-0 01 1 9811-9811 ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97189-233-0 01 1 9812-0101 ● ● ● ● ●
446 02.480 HARNESS; EXT,CERAMIC HEATER
CERAMIC HEATER<6YX> 		8-97255-952-0 01 1 0102- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
