Isuzu WW
▶
TRUCKS
▶
NPR
▶
50815 - NPR/NQR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

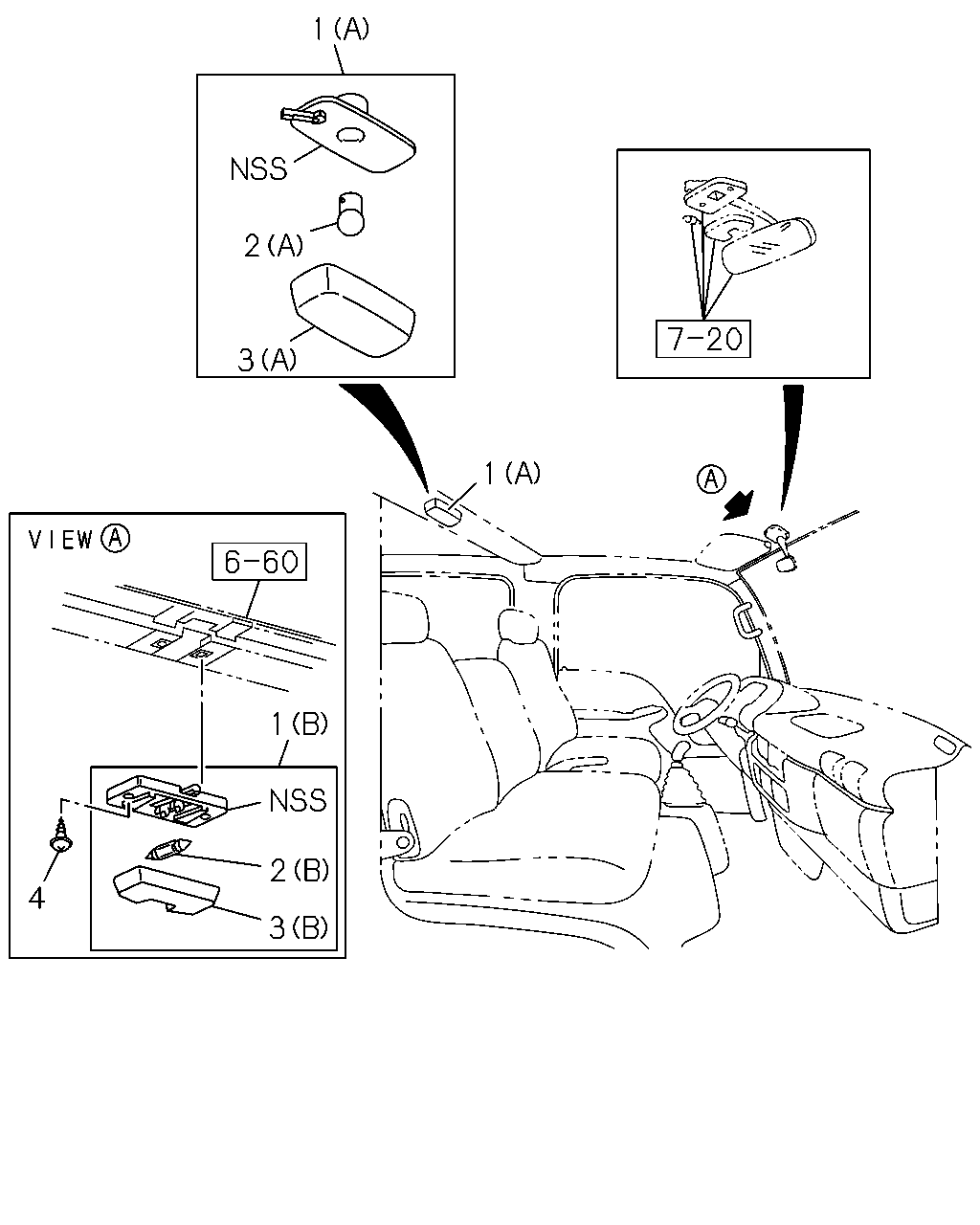

8-05 — INTERIOR LAMP
(#44522) — 14 parça
1
2
3
1
1
2
4
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.494 LAMP ASM; ROOM
EXC. ROOM LAMP W/ALL DOORS SW<SDF> (A) 24V 12W
8-97080-775-0
01
1
0203-
1
16.494 LAMP ASM; ROOM
(A) 24V 12W
8-97080-775-0
01
1
9811-0105
1
16.494 LAMP ASM; ROOM
(B) 24V 10W LIGHT GRAY
8-97898-451-0
01
1
0106-0202
1
16.494 LAMP ASM; ROOM
ROOM LAMP W/ALL DOORS SW<SDF> (B) 24V 10W LIGHT GRAY
8-97898-451-0
01
1
0203-
2
08.991 BULB; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW<SDF> (A) 24V 12W
9-82691-302-0
01
1
0203-
2
08.991 BULB; ROOM LAMP
(A) 24V 12W
9-82691-302-0
01
1
9811-0105
2
08.991 BULB; ROOM LAMP
(B) 24V 10W
5-82194-030-0
01
1
0106-0202
2
08.991 BULB; ROOM LAMP
ROOM LAMP W/ALL DOORS SW<SDF> (B) 24V 10W
5-82194-030-0
01
1
0203-
3
16.495 LENS; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW<SDF> (A)
5-82145-002-0
01
1
0203-
3
16.495 LENS; ROOM LAMP
(A)
5-82145-002-0
01
1
9811-0105
3
16.495 LENS; ROOM LAMP
16.068 (B)
5-73117-108-0
01
1
0106-0202
3
16.495 LENS; ROOM LAMP
ROOM LAMP W/ALL DOORS SW<SDF> 16.068 (B)
5-73117-108-0
01
1
0203-
4
16.495 SCREW; ROOM LAMP
03.671 M5X20
5-09981-059-0
02
1
0106-0202
4
16.495 SCREW; ROOM LAMP
ROOM LAMP W/ALL DOORS SW<SDF> 03.671 M5X20
5-09981-059-0
02
1
0203-
