3-40 — FRONT BRAKE POWER CHAMBER (#4452) — 73 parça

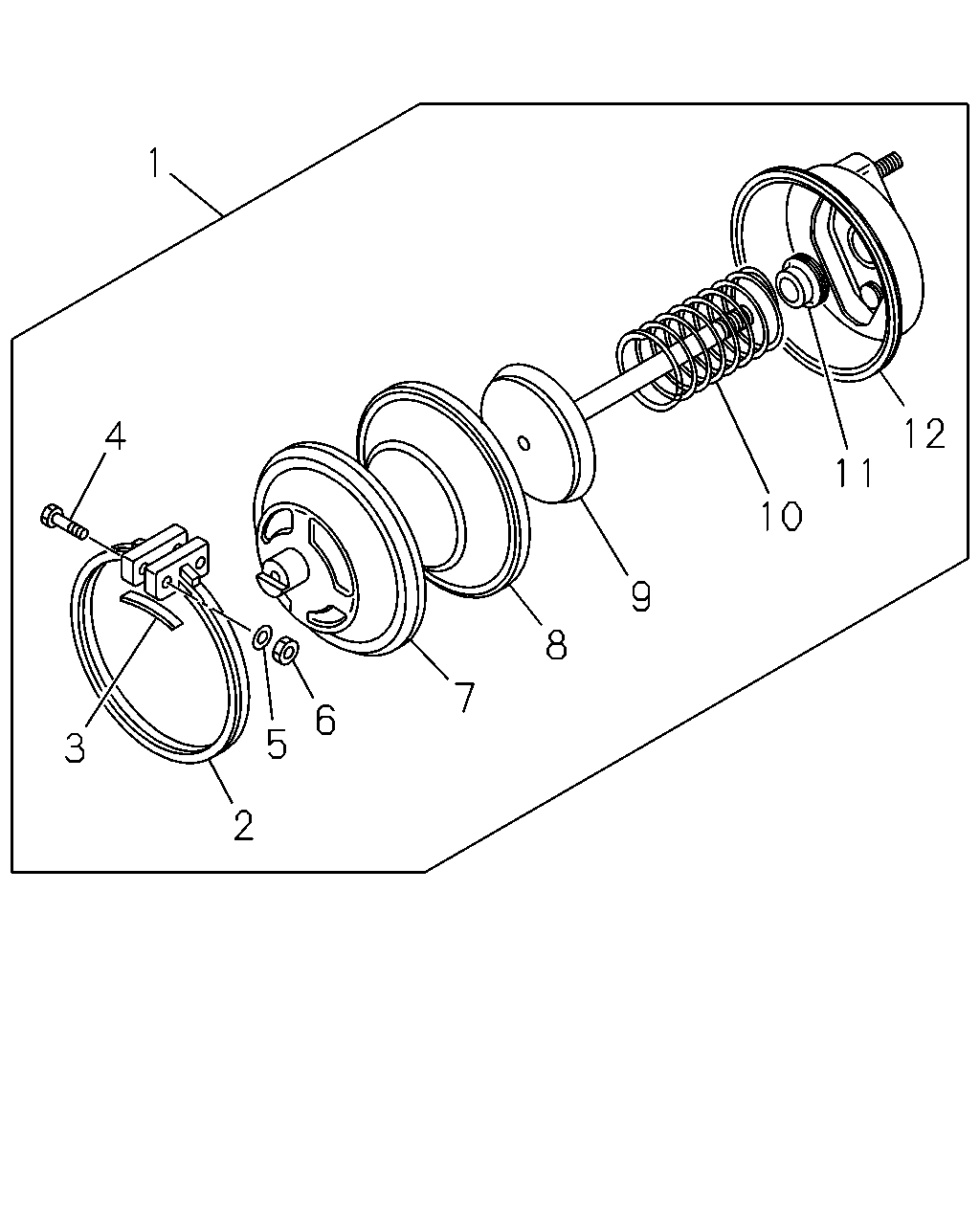

çizim 37973
1 12 4 11 10 9 8 7 6 5 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> 		1-48250-338-0 01 1 9811-0203 ●
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> 		1-48250-524-0 01 1 9811-0203 ●
1 CHAMBER ASM; POWER,FRT BRK
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48250-062-1 02 1 9101-9504 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-338-0 02 1 9505-9802 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48250-338-0 02 1 9803-9810 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU>,AUSTRALIA EQUIPMENT<RR3> 		1-48250-338-0 02 1 9811-9812 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU>,BRK LINING D2161 NONASBESTOS<BFG>,AUSTRALIA EQUIPMENT<RR3> 		1-48250-338-0 02 1 9901-0203 ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-338-0 02 1 0204-0204 ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-062-2 02 1 0205- ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48250-490-0 02 1 9803-9805 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48250-639-0 02 1 9806-0203 ● ●
2 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 9101-9808 ● ●
2 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48259-001-0 02 1 9809-9810 ● ●
2 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48259-001-0 02 1 9809-9810 ● ●
2 RING; CLAMP,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 9811-0203 ● ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 0204- ● ●
3 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-016-0 02 1 9101-9504 ● ●
3 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 04 1 9505-9808 ● ●
3 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		9-48259-016-0 04 1 9809-9810 ● ●
3 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		9-48259-016-0 04 1 9809-9810 ● ●
3 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> 		9-48259-016-0 03 1 9811-0203 ●
3 RETAINER; DIAPH
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3> 		9-48259-016-0 04 1 9811-0203 ● ●
3 RETAINER; DIAPH 9-48259-016-0 02 1 0204- ● ●
4 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-002-0 04 1 9101-9808 ● ●
4 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48259-002-0 04 1 9809-9810 ● ●
4 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48259-002-0 04 1 9809-9810 ● ●
4 BOLT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-002-0 04 1 9811-0203 ● ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 0204- ● ●
5 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 04 1 9101-9808 ● ●
5 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> ID=10.2 		9-09150-510-0 04 1 9809-9810 ● ●
5 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> ID=10.2 		9-09150-510-0 04 1 9809-9810 ● ●
5 WASHER; LK,CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 04 1 9811-0203 ● ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0204- ● ●
6 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-010-0 04 1 9101-9808 ● ●
6 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> M10 		9-09110-010-0 04 1 9809-9810 ● ●
6 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> M10 		9-09110-010-0 04 1 9809-9810 ● ●
6 NUT; CLAMP RING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-010-0 04 1 9811-0203 ● ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 0204- ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> 		1-48251-039-0 01 1 9811-0203 ●
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> 		1-48251-007-0 01 1 9811-0203 ●
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-002-0 02 1 9101-9504 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-039-0 02 1 9505-9808 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48251-039-0 02 1 9809-9810 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48251-039-0 02 1 9809-9810 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3> 		1-48251-039-0 02 1 9811-0203 ● ●
7 COVER ASM; UPR,SPR CHAMBER 1-48251-039-0 02 1 0204- ● ●
8 DIAPHRAGM; SPR CHAMBER
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48252-006-0 02 1 9101-9504 ● ●
8 DIAPHRAGM; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-006-0 02 1 9505-9805 ● ●
8 DIAPHRAGM; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48252-006-0 02 1 9806-0203 ● ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 0204-0204 ● ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-054-0 02 1 0205- ● ●
8 DIAPHRAGM; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48252-054-0 02 1 9806-0203 ● ●
9 PISTON; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-001-0 02 1 9101-9802 ● ●
9 PISTON; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48253-001-0 02 1 9803-0203 ● ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 0204- ● ●
9 PISTON; SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48253-040-0 02 1 9803-0203 ● ●
10 SPRING; PISTON,SPR CHAMBER
EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48255-001-0 02 1 9101-9504 ● ●
10 SPRING; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-001-0 02 1 9505-9805 ● ●
10 SPRING; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48255-001-0 02 1 9806-0203 ● ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 0204- ● ●
10 SPRING; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJUSTER BRAKE<BCU> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48255-015-0 02 1 9806-0203 ● ●
11 SEAL; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-025-0 02 1 9101-9808 ● ●
11 SEAL; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48252-025-0 02 1 9809-9810 ● ●
11 SEAL; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48252-025-0 02 1 9809-9810 ● ●
11 SEAL; PISTON,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-025-0 02 1 9811-0203 ● ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 0204- ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> 		1-48251-019-0 01 1 9811-0203 ●
12 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT<RR3> 		1-48251-018-0 01 1 9811-0203 ●
12 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-019-0 02 1 9101-9808 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRK LINING D2129 NON ASBESTOS<BCL> EXC. INTERNATIONAL STD ISO<B3V>,AUSTRALIA EQUIPMENT<RR3> 		1-48251-019-0 02 1 9809-9810 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO ADJUSTER BRAKE<BCU> 		1-48251-019-0 02 1 9809-9810 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT<RR3> 		1-48251-019-0 02 1 9811-0203 ● ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-019-0 02 1 0204- ● ●
