7-60 — SEAT BELT (#44519) — 164 parça

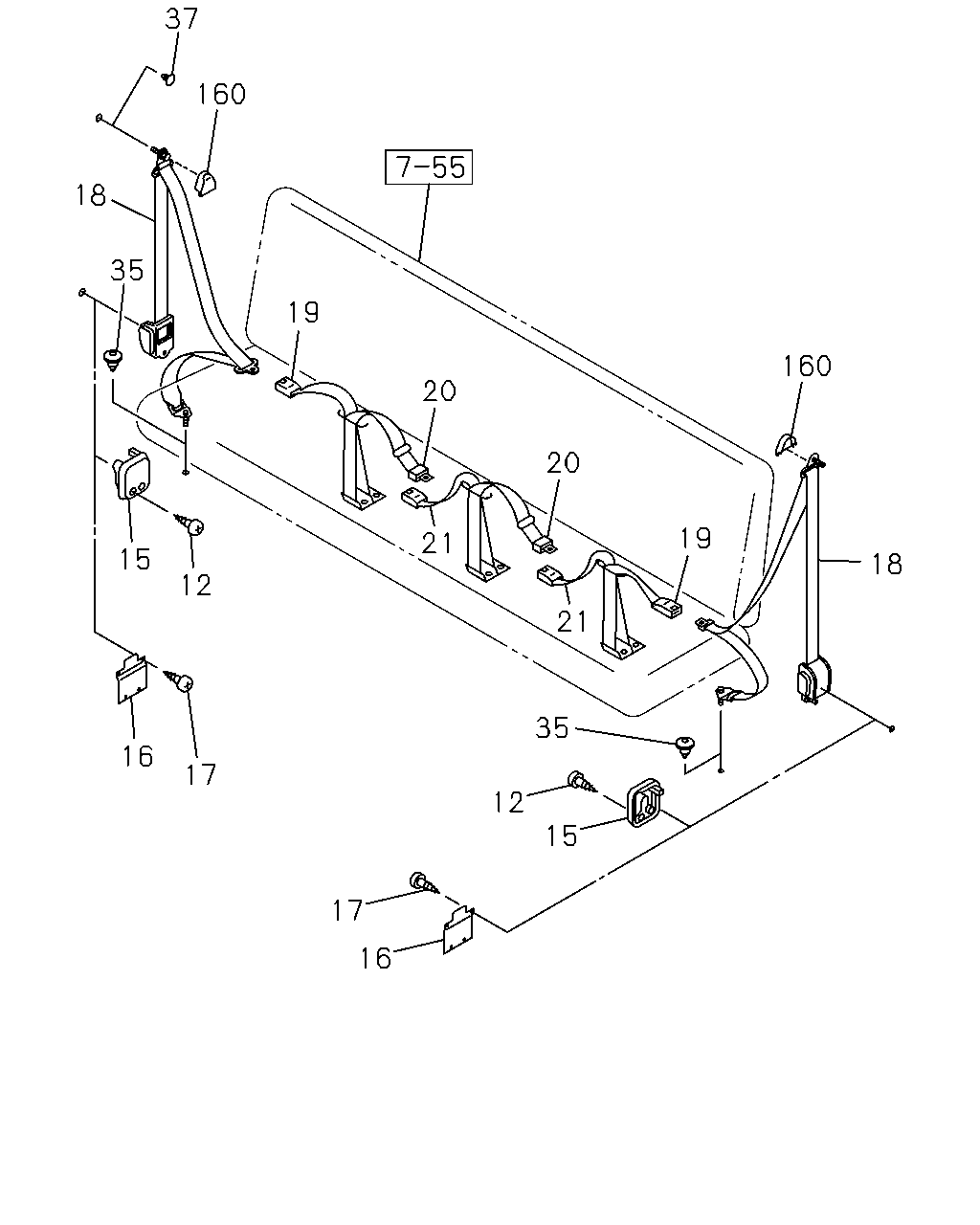

çizim 50239
37 160 18 35 19 160 20 20 19 21 15 18 12 21 35 16 17 12 15 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
16.584 M6X13 		5-09981-074-0 04 1 9811-0202 ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 0203- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
DARK GRAY 		8-94351-619-3 02 1 9811-0202 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 0203- ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 		8-97854-868-1 02 1 0203- ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 16.584 M6X13 		5-09981-074-0 08 1 0203- ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97868-451-0 02 1 0004-0105 ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97297-895-0 02 1 0106-0202 ●
18 16.714 BELT; SEAT,RR
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97297-895-0 02 1 0203- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
DARK GRAY 		8-97292-506-0 02 1 0004-0202 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97292-506-0 02 1 0203- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97292-508-0 01 1 0004-0202 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97292-508-0 01 1 0203- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97292-507-0 01 1 0004-0202 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97292-507-0 01 1 0203- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97199-107-0 01 1 0004-0202 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97199-107-0 01 1 0203- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97199-108-0 01 1 0004-0202 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97199-108-0 01 1 0203- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9811-0105 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0106-0202 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0203- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9811-0105 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0106-0202 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0203- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 06 1 9811-0003 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) OD=22 		9-61168-535-0 06 1 0203- ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9811-0003 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9811-0003 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0004-0105 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0106-0202 ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0203- ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) L=18.5 		8-94279-726-0 02 1 0203- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 01 1 9811-0003 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 01 1 9811-0003 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0004-0105 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004-0105 ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004-0105 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0106-0202 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106-0202 ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106-0202 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0203- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0203- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0203- ●

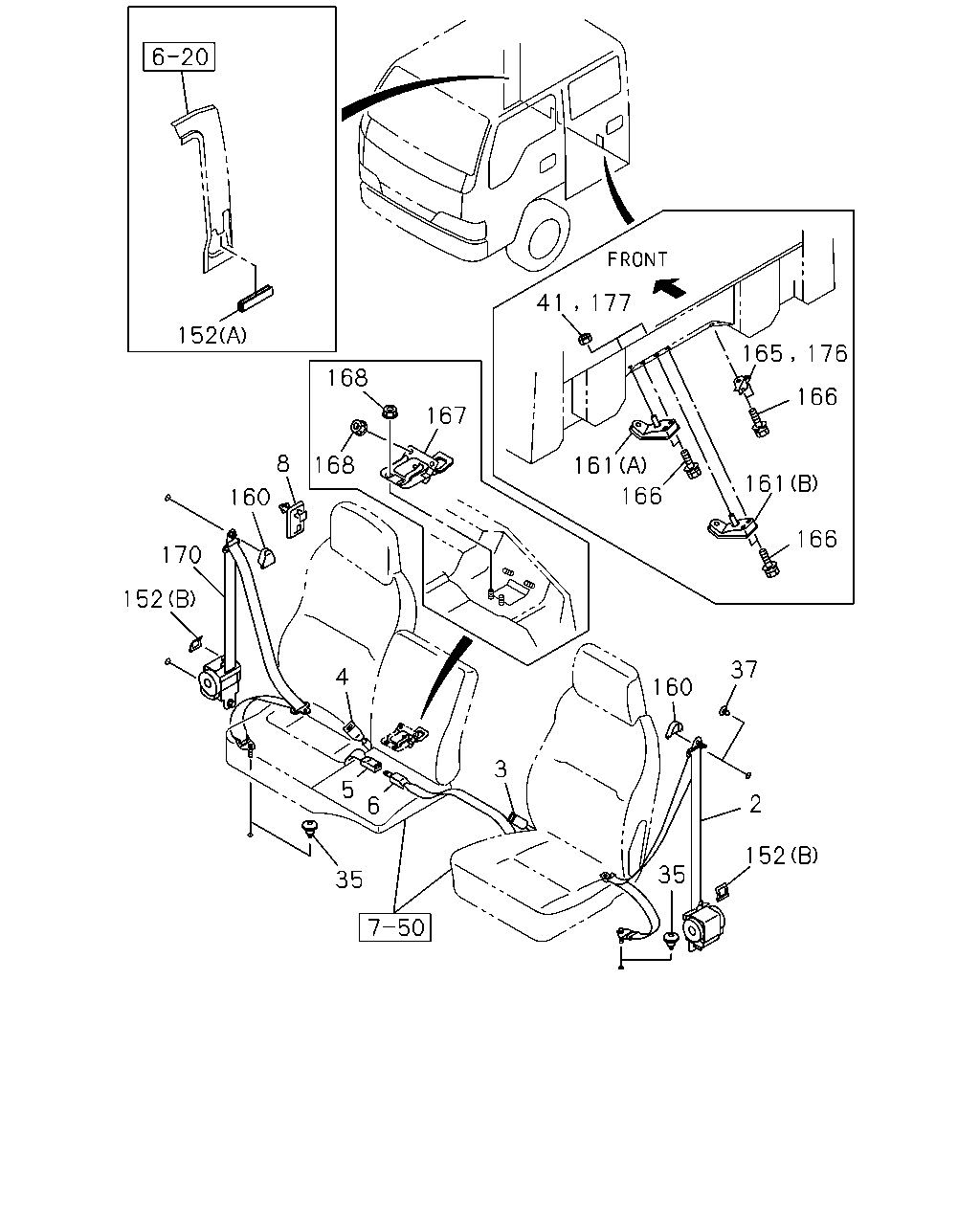

çizim 52957
177 41 165 176 168 166 167 8 168 161 161 166 160 166 170 152 37 4 160 3 5 2 6 152 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9811-0004 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0005-0105 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0106-0202 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0203- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97868-459-0 01 1 9811-0105 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97868-459-0 01 1 9811-0105 ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-747-0 01 1 0106-0202 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97296-747-0 01 1 0106-0202 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-747-0 01 1 0203- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97199-101-0 01 1 9811-0004 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97199-101-0 01 1 0005-0105 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> CHINA EQUIPMENT(YT2) DARK GRAY 		8-97296-254-0 01 1 0005-0105 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-254-0 01 1 0106-0202 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-254-0 01 1 0203- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2),TURKISH EQUIPMENT(S6S) DARK GRAY 		8-97868-361-2 01 1 9811- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97868-364-0 01 1 9811-0105 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97868-364-0 01 1 0106-0202 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97868-364-0 01 1 0203- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97854-891-1 01 1 9811-0105 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97854-891-1 01 1 9811-0105 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97854-891-1 01 1 0106-0202 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97854-891-1 01 1 0106-0202 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97854-891-1 01 1 0203- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97199-045-0 01 1 9811-0105 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97199-045-0 01 1 0106-0202 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97199-045-0 01 1 0203- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-479-0 01 1 9811-0105 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-479-0 01 1 0106-0202 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97868-479-0 01 1 0203- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97868-525-0 01 1 9811-0105 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97868-525-0 01 1 9811-0105 ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97297-894-0 01 1 0106-0202 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97297-894-0 01 1 0106-0202 ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97297-894-0 01 1 0203- ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97890-431-1 01 1 9811-0105 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97890-431-1 01 1 9811-0105 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97198-782-0 01 1 9811-0105 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-782-0 01 1 0106-0202 ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97198-782-0 01 1 0106-0202 ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97198-782-0 01 1 0203- ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97198-782-0 01 1 0203- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97868-488-0 01 1 9811-0105 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97868-488-0 01 1 9811-0105 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-650-0 01 1 0106-0202 ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97296-650-0 01 1 0106-0202 ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-650-0 01 1 0203- ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97198-783-0 01 1 9811-0105 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97198-783-0 01 1 0106-0202 ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97198-783-0 01 1 0203- ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 9811-0105 ● ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 0106-0202 ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> 		8-94276-268-1 02 1 0203- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 9811-0105 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0106-0202 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & ASSIST 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0203- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 9811-0105 ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0106-0202 ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0203- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 06 1 9811-0003 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) OD=22 		9-61168-535-0 06 1 0203- ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9811-0003 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9811-0003 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0004-0105 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0106-0202 ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & ASSIST 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0203- ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) L=18.5 		8-94279-726-0 02 1 0203- ●
41 05.545 NUT; BRKT,ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0202- ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9811-0011 ● ● ● ● ●
152 16.714 PROTECTOR
16.570 (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9811-0011 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012-0105 ● ● ● ● ●
152 16.714 PROTECTOR
(B) 		8-97287-563-0 02 1 0012-0105 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0106-0202 ● ● ● ●
152 16.714 PROTECTOR
(B) 		8-97287-563-0 02 1 0106-0202 ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0203- ● ● ● ● ●
152 16.714 PROTECTOR
(B) 		8-97287-563-0 02 1 0203- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 01 1 9811-0003 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 01 1 9811-0003 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0004-0105 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004-0105 ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004-0105 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0106-0202 ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106-0202 ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0106-0202 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0203- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0203- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0203- ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) CENTER 		8-97850-427-1 01 1 9811- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 9811- ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-286-5 01 1 0202- ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 9811-0201 ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97869-416-0 01 1 0202- ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0202- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0202- ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0202- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9811-0201 ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0202- ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-0 01 1 9811-0201 ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97869-412-1 01 1 0202- ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 0202- ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9811-0201 ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.854 M8 FLANGE 		5-09440-005-0 04 1 0202- ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0202- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> DARK GRAY 		8-97868-467-1 01 1 9811-0004 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0005-0105 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0106-0202 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & ASSIST 2 POINT<AS6> EXC. CHINA EQUIPMENT(YT2) DARK GRAY 		8-97868-467-1 01 1 0203- ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97868-451-0 01 1 9811-0105 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97868-451-0 01 1 9811-0105 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-648-0 01 1 0106-0202 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97296-648-0 01 1 0106-0202 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97296-648-0 01 1 0203- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97198-780-1 01 1 9811-0004 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97198-780-1 01 1 0005-0105 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> CHINA EQUIPMENT(YT2) DARK GRAY 		8-97294-526-0 01 1 0005-0105 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97294-526-0 01 1 0106-0202 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97294-526-0 01 1 0203- ● ● ● ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
SAUDI ARABIA EQUIPMENT(EU2) 		1-79998-900-0 01 1 0202- ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811-0201 ● ● ● ● ● ●
177 16.714 NUT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0202- ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
