7-50 — FRONT SEAT (#44517) — 296 parça
çizim 47639
1 17 99 2 18 19 12 24 228 13 15 69 382 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-342-3 01 1 9811-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-342-3 01 1 9811-0105 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-342-3 01 1 0106-0106 ● ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-342-3 01 1 0106-0106 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-342-5 01 1 0107- ● ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-342-5 01 1 0107- ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-329-2 01 1 9811-0102 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-329-2 01 1 0103-0105 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-329-2 01 1 0106-0106 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-329-5 01 1 0107- ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-3 01 1 9811-0002 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-3 01 1 9811-0002 ●
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-3 01 1 0003-0106 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-5 01 1 0107-0202 ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-325-5 01 1 0203- ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>, ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-325-5 01 1 0203- ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-2 01 1 9811-0002 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-346-2 01 1 9811-0002 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-2 01 1 0003-0102 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-2 01 1 0103-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-346-2 01 1 0103-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-2 01 1 0106-0106 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-346-5 01 1 0107-0202 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-346-5 01 1 0203-0203 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-346-5 01 1 0203-0203 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-346-5 01 1 0204- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-346-5 01 1 0204- ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-217-0 01 1 9811-9811 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-217-0 01 1 9811-9811 ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-217-0 01 1 9812-9909 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-217-0 01 1 9812-9909 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-665-1 01 1 9910-0002 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97293-665-1 01 1 9910-0002 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-665-1 01 1 0003-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-665-1 01 1 0106-0106 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-665-4 01 1 0107-0203 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-665-4 01 1 0204- ● ● ● ●
1 16.720 BACK ASM; SEAT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-225-0 01 1 9811-9811 ● ● ●
1 16.720 BACK ASM; SEAT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-225-0 01 1 9812-9909 ● ● ● ●
1 16.720 BACK ASM; SEAT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-663-1 01 1 9910-0002 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97298-781-3 01 1 0204- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-343-3 01 1 9811-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-343-3 01 1 9811-0105 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-343-3 01 1 0106-0106 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-343-3 01 1 0106-0106 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-343-4 01 1 0107- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-343-4 01 1 0107- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-330-2 01 1 9811-0102 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-330-2 01 1 0103-0105 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-330-2 01 1 0106-0106 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-330-4 01 1 0107- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-3 01 1 9811-0002 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-3 01 1 9811-0002 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-3 01 1 0003-0106 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-4 01 1 0107-0202 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-327-4 01 1 0203- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>, ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-327-4 01 1 0203- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-2 01 1 9811-0002 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-347-2 01 1 9811-0002 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-2 01 1 0003-0102 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-2 01 1 0103-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-347-2 01 1 0103-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-2 01 1 0106-0106 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-347-4 01 1 0107-0202 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-347-4 01 1 0203-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-347-4 01 1 0203-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-347-4 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-347-4 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-218-0 01 1 9811-9811 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-218-0 01 1 9811-9811 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-218-0 01 1 9812-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-218-0 01 1 9812-9909 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-666-1 01 1 9910-0002 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97293-666-1 01 1 9910-0002 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-666-1 01 1 0003-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-666-1 01 1 0106-0106 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-666-3 01 1 0107-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-666-3 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-226-0 01 1 9811-9811 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-226-0 01 1 9812-9909 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-664-1 01 1 9910-0002 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97298-782-2 01 1 0204- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-344-4 01 1 9811-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-344-4 01 1 9811-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-344-4 01 1 0106-0106 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-344-4 01 1 0106-0106 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-344-5 01 1 0107- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-344-5 01 1 0107- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-331-3 01 1 9811-0102 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-331-3 01 1 0103-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-331-3 01 1 0106-0106 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-331-5 01 1 0107- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 9811-0002 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 9811-0002 ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-2 01 1 0003-0106 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-3 01 1 0107-0202 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-326-3 01 1 0203- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>, ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-326-3 01 1 0203- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-1 01 1 9811-0002 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-1 01 1 9811-0002 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-2 01 1 0003-0102 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-2 01 1 0103-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-348-2 01 1 0103-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-2 01 1 0106-0106 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-4 01 1 0107-0202 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-348-4 01 1 0203-0203 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-348-4 01 1 0203-0203 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-348-4 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-348-4 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-219-1 01 1 9811-9811 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-219-1 01 1 9811-9811 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-219-1 01 1 9812-0002 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-219-1 01 1 9812-0002 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-219-2 01 1 0003-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-219-2 01 1 0106-0106 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-219-4 01 1 0107-0203 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-219-4 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-227-1 01 1 9811-9811 ● ● ●
12 16.670 CUSHION; SEAT,FRT
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-227-1 01 1 9812-0002 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97293-589-3 01 1 0204- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-345-4 01 1 9811-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-345-4 01 1 9811-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-345-4 01 1 0106-0106 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-345-4 01 1 0106-0106 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-345-5 01 1 0107- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-345-5 01 1 0107- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-332-3 01 1 9811-0102 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-332-3 01 1 0103-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX),SEAT FRT, LONG SIZE<7UG> DARK GRAY 		8-97869-332-3 01 1 0106-0106 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-332-5 01 1 0107- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 9811-0002 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 9811-0002 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-2 01 1 0003-0106 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-3 01 1 0107-0202 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> DARK GRAY 		8-97869-328-3 01 1 0203- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>, ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-328-3 01 1 0203- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 9811-0002 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-1 01 1 9811-0002 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 0003-0102 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 0103-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-349-1 01 1 0103-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 0106-0106 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-3 01 1 0107-0202 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-349-3 01 1 0203-0203 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-349-3 01 1 0203-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-349-3 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-349-3 01 1 0204- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-220-1 01 1 9811-9811 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-220-1 01 1 9811-9811 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-220-1 01 1 9812-0002 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-220-1 01 1 9812-0002 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-220-2 01 1 0003-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-220-2 01 1 0106-0106 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-220-4 01 1 0107-0203 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-220-4 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-228-1 01 1 9811-9811 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-228-1 01 1 9812-0002 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97293-590-3 01 1 0204- ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-0 01 1 9811-0002 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-0 01 1 9811-0002 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-1 01 1 0003-0102 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> 		8-97854-665-1 01 1 0103-0105 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> 		8-97262-070-1 01 1 0103-0105 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97262-070-1 01 1 0103-0105 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0106-0106 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0107-0202 ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0203- ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) 		8-97262-070-1 01 1 0203- ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0007- ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 9811- ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811- ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 9811- ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 9811-0002 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 9811-0002 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ>,ISRAEL EQUIPMENT(7LX) 		8-97854-947-2 01 1 9811-0002 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-947-2 01 1 9811-0002 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 0003-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 0003-0105 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 0106-0106 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-947-2 01 1 0106-0106 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97854-947-3 01 1 0107-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT FRT,LONG SIZE<7UG> 		8-97854-947-3 01 1 0107-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97854-947-3 01 1 0204- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
BRAZIL EQUIPMENT(RWF) MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT FRT,LONG SIZE<7UG> 		8-97854-947-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 9811-9811 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 9811-9811 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97854-670-2 01 1 9811-9811 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> 		8-97854-670-2 01 1 9811-9811 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 9811-9811 ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. MANUAL TILT CAB<RWZ> 		8-97854-670-2 01 1 9812-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 9812-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97854-670-2 01 1 9812-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. MANUAL TILT CAB<RWZ> 		8-97854-670-2 01 1 0106-0106 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. BRAZIL EQUIPMENT(RWF),SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-2 01 1 0106-0106 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97854-670-2 01 1 0106-0106 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> 		8-97854-670-3 01 1 0107-0202 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-3 01 1 0107-0202 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0107-0202 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> 		8-97854-670-3 01 1 0203-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-3 01 1 0203-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0203-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-3 01 1 0203-0203 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) 		8-97854-670-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,BRAZIL EQUIPMENT(RWF) ,ISRAEL EQUIPMENT(7LX),SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT CLOTH<7FL> 		8-97854-670-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ>, SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,SEAT CLOTH<7FL>, ISRAEL EQUIPMENT(7LX) 		8-97854-670-3 01 1 0204- ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,ISRAEL EQUIPMENT(7LX) ,SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0204- ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 9811- ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0007- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811- ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9811- ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 02 1 9811- ● ● ● ● ● ●

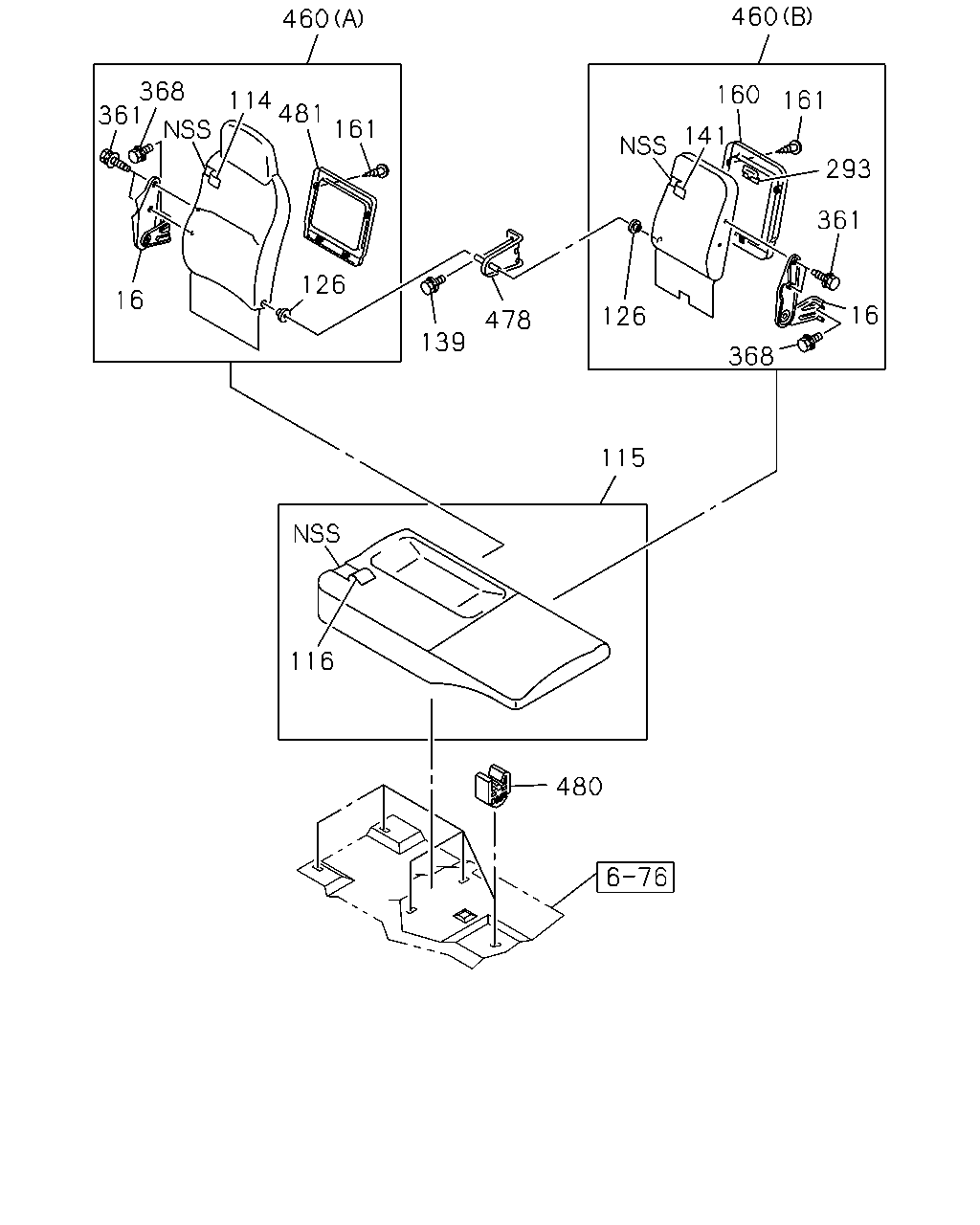

çizim 51003
460 460 368 361 160 161 114 481 161 141 293 361 126 16 16 126 478 139 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9811- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9811- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-356-1 01 1 9811-9909 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-356-1 01 1 9910-9910 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-356-1 01 1 9910-9910 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-356-3 01 1 9911-0105 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-356-3 01 1 9911-0105 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-356-5 01 1 0106-0202 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-356-5 01 1 0106-0202 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-356-5 01 1 0203- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-355-2 01 1 9811-9909 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-355-2 01 1 9910-9910 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-355-2 01 1 9910-9910 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-355-4 01 1 9911-0105 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-355-4 01 1 9911-0105 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-355-5 01 1 0106-0202 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-355-5 01 1 0106-0202 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97869-355-5 01 1 0203- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
ISRAEL EQUIPMENT(7LX) SEAT CLOTH<7FL> DARK GRAY 		8-97293-671-0 01 1 9910-9910 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
ISRAEL EQUIPMENT(7LX) SEAT CLOTH<7FL> DARK GRAY 		8-97293-671-2 01 1 9911-0105 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
ISRAEL EQUIPMENT(7LX) SEAT CLOTH<7FL> DARK GRAY 		8-97293-671-4 01 1 0106- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-670-0 01 1 9910-9910 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-670-2 01 1 9911-0105 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97293-670-3 01 1 0106- ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-481-4 01 1 9811-0201 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97868-481-4 01 1 0202- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-481-4 01 1 0202- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-478-4 01 1 9811-0201 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SAUDI ARABIA EQUIPMENT(EU2), SEATCLOTH<7FL> DARK GRAY 		8-97868-478-4 01 1 0202- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-478-4 01 1 0202- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SAUDI ARABIA EQUIPMENT(EU2) SEAT CLOTH<7FL> DARK GRAY 		8-97393-670-0 01 1 0202- ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SAUDI ARABIA EQUIPMENT(EU2) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97393-671-0 01 1 0202- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-365-3 01 1 9811-0201 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97869-365-3 01 1 0202- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-365-3 01 1 0202- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-364-3 01 1 9811-0201 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SAUDI ARABIA EQUIPMENT(EU2), SEATCLOTH<7FL> DARK GRAY 		8-97869-364-3 01 1 0202- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-364-3 01 1 0202- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SAUDI ARABIA EQUIPMENT(EU2) SEAT CLOTH<7FL> DARK GRAY 		8-97393-672-0 01 1 0202- ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SAUDI ARABIA EQUIPMENT(EU2) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97393-673-0 01 1 0202- ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 9811-9909 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9910- ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9811- ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-362-5 01 1 9811- ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-360-4 01 1 9811- ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9811-0202 ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97393-932-0 01 1 0203- ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 08 1 9811-9909 ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9910- ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9811-0202 ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 9811-9909 ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9910- ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9811-9909 ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9910- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-466-1 01 1 9811-9909 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-466-1 01 1 9910-9910 ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-466-1 01 1 9910-9910 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-466-3 01 1 9911-0105 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-466-3 01 1 9911-0105 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-466-5 01 1 0106-0202 ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-466-5 01 1 0106-0202 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-466-5 01 1 0203- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-476-6 01 1 9811- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-464-2 01 1 9811-9909 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-464-2 01 1 9910-9910 ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-464-2 01 1 9910-9910 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-464-4 01 1 9911-0105 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-464-4 01 1 9911-0105 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-464-5 01 1 0106-0202 ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-464-5 01 1 0106-0202 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,ISRAEL EQUIPMENT(7LX) (A) DARK GRAY 		8-97868-464-5 01 1 0203- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97868-473-5 01 1 9811- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
ISRAEL EQUIPMENT(7LX) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-647-0 01 1 9910-9910 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
ISRAEL EQUIPMENT(7LX) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-647-2 01 1 9911-0105 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
ISRAEL EQUIPMENT(7LX) SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-647-4 01 1 0106- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-646-0 01 1 9910-9910 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-646-2 01 1 9911-0105 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
ISRAEL EQUIPMENT(7LX) EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97293-646-3 01 1 0106- ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-185-0 01 1 9811- ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9811- ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
