7-41 — UNDER COVER; INSTRUMENT (#44513) — 11 parça

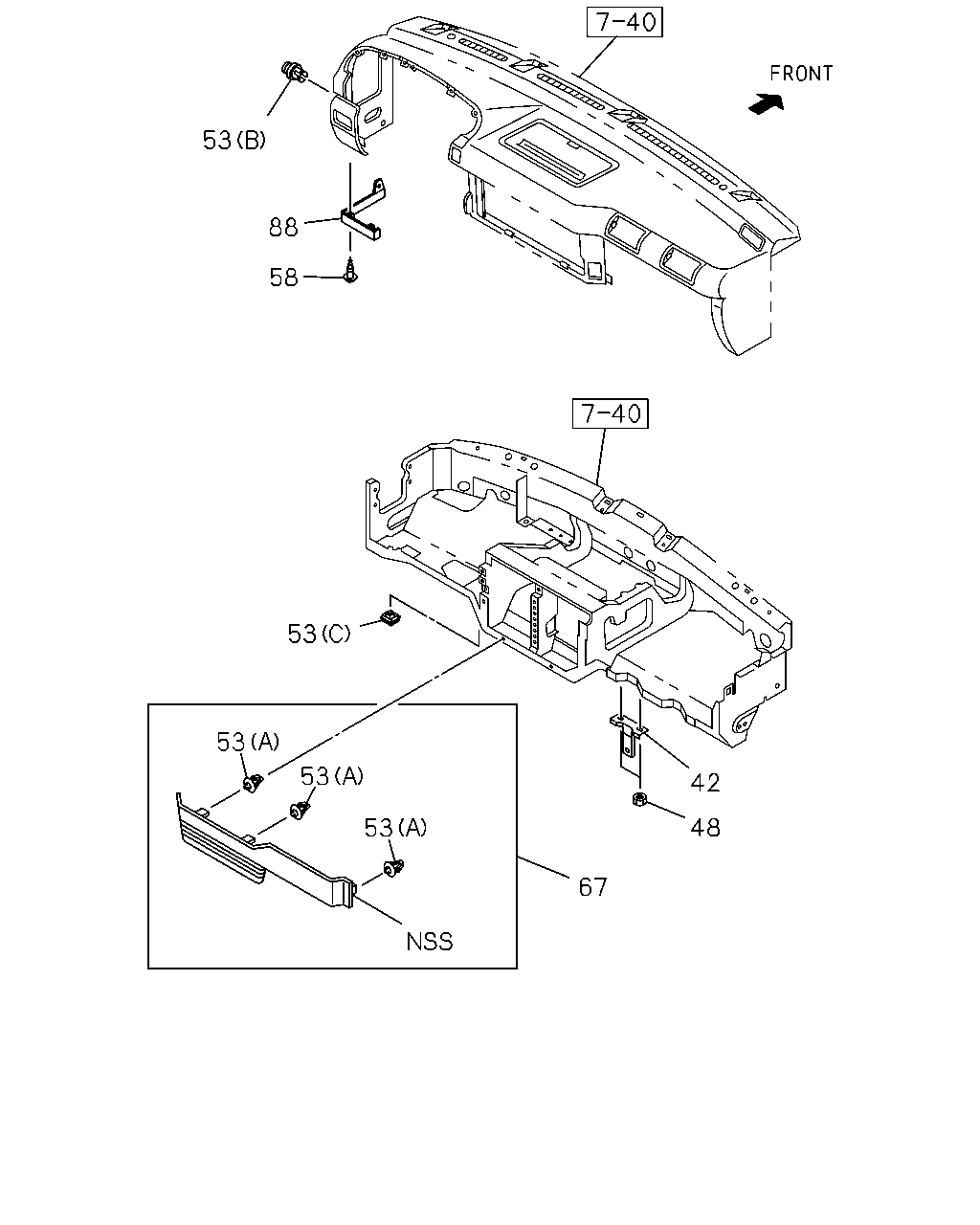

çizim 50941
53 88 58 53 53 53 42 48 53 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
42 16.110 BRACKET; UNDER COVER 8-97853-724-2 01 1 9811-9901 ● ● ● ● ● ●
42 16.110 BRACKET; UNDER COVER 8-97217-299-0 01 1 9902- ● ● ● ● ● ●
48 16.081 NUT; UNDER COVER
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
DUMP CHASSIS(V4D) 16.800 (B) BLACK 		8-94493-404-0 01 1 9811- ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (B) DARK GRAY 		8-97857-542-0 01 1 9811- ●
53 16.085 CLIP; UNDER COVER
06.521 (B) DARK GRAY 		8-97857-542-0 01 1 9811- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 04 1 9811- ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(C) 		8-97853-249-5 03 1 9811- ● ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97857-188-2 01 1 9811- ● ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97857-539-1 01 1 9811- ● ● ● ● ● ●
