7-40 — INSTRUMENT PANEL AND BOX (#44512) — 108 parça

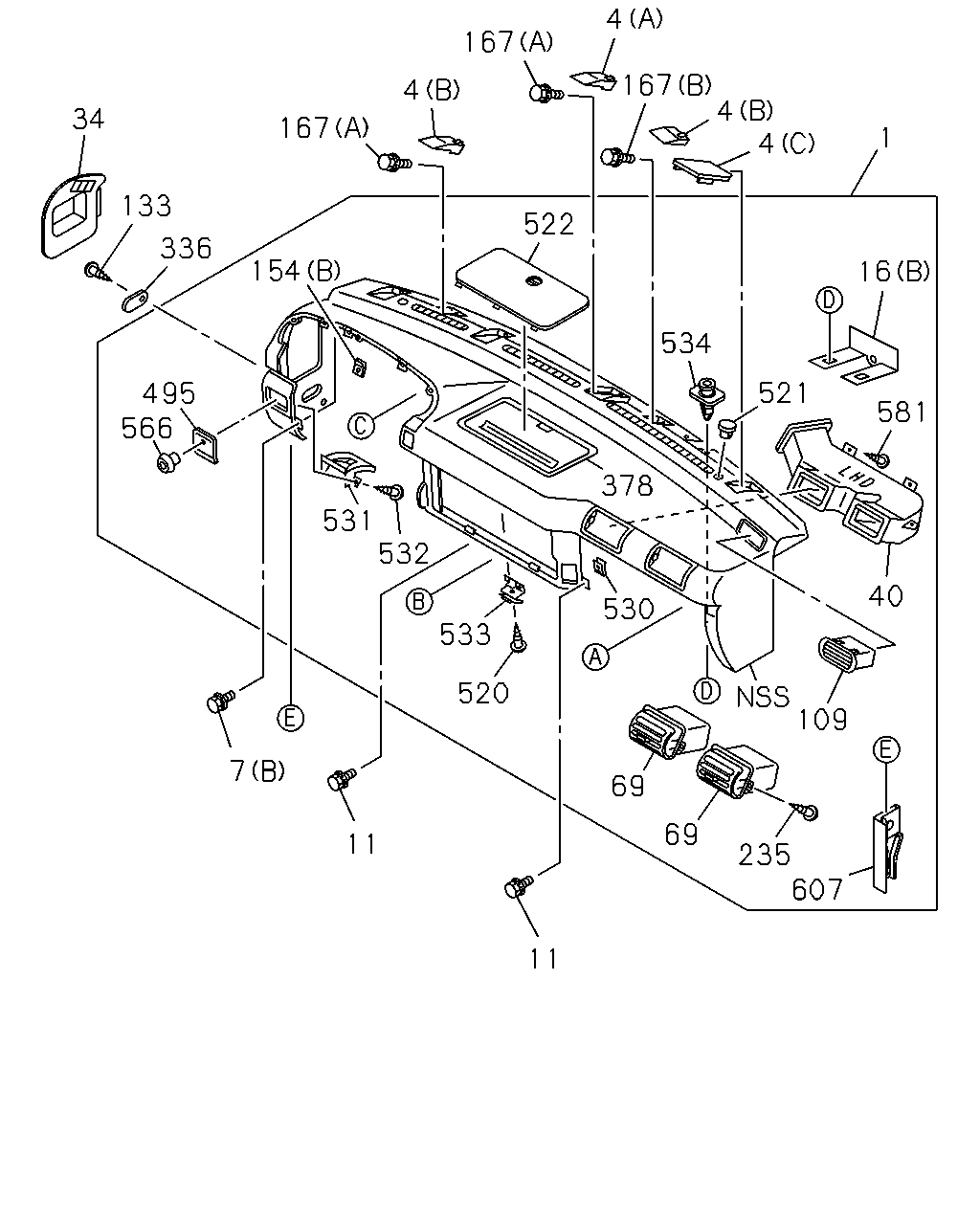

çizim 8832
4 167 167 4 4 4 34 167 1 133 522 336 154 16 534 521 495 566 581 378 531 532 40 530 533 520 109 7 69 69 11 235 607 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK GRAY 		8-97195-962-1 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 9811- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9811- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 9811-0106 ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0107- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9811- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9811-0202 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0203- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9811- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9811- ● ● ● ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97857-499-5 01 1 9811- ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97069-825-0 01 1 9811-0007 ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-699-0 01 1 0008- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9811- ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97857-530-0 01 1 9811- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9811- ● ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902- ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9811- ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9811- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9811- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 9811- ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9811-9811 ● ●
495 09.743 BEZEL; SW
EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9811-9811 ● ● ● ●
495 09.743 BEZEL; SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9811-9811 ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9812- ●
495 09.743 BEZEL; SW
EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9812- ● ● ● ● ●
495 09.743 BEZEL; SW
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9812- ● ● ● ● ●
495 09.743 BEZEL; SW
PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-411-1 01 1 9811-9811 ● ● ● ●
495 09.743 BEZEL; SW
PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-411-1 01 1 9812- ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9811- ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 9811- ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9811- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 9811- ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9811- ● ● ● ● ● ●
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9811- ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9811-9811 ● ●
566 16.085 PLUG; HOLE
EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9811-9811 ● ● ● ●
566 16.085 PLUG; HOLE
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9811-9811 ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9812- ●
566 16.085 PLUG; HOLE
EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9812- ● ● ● ● ●
566 16.085 PLUG; HOLE
PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9812- ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ● ● ● ●
607 16.085 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 9811- ● ● ● ● ● ●

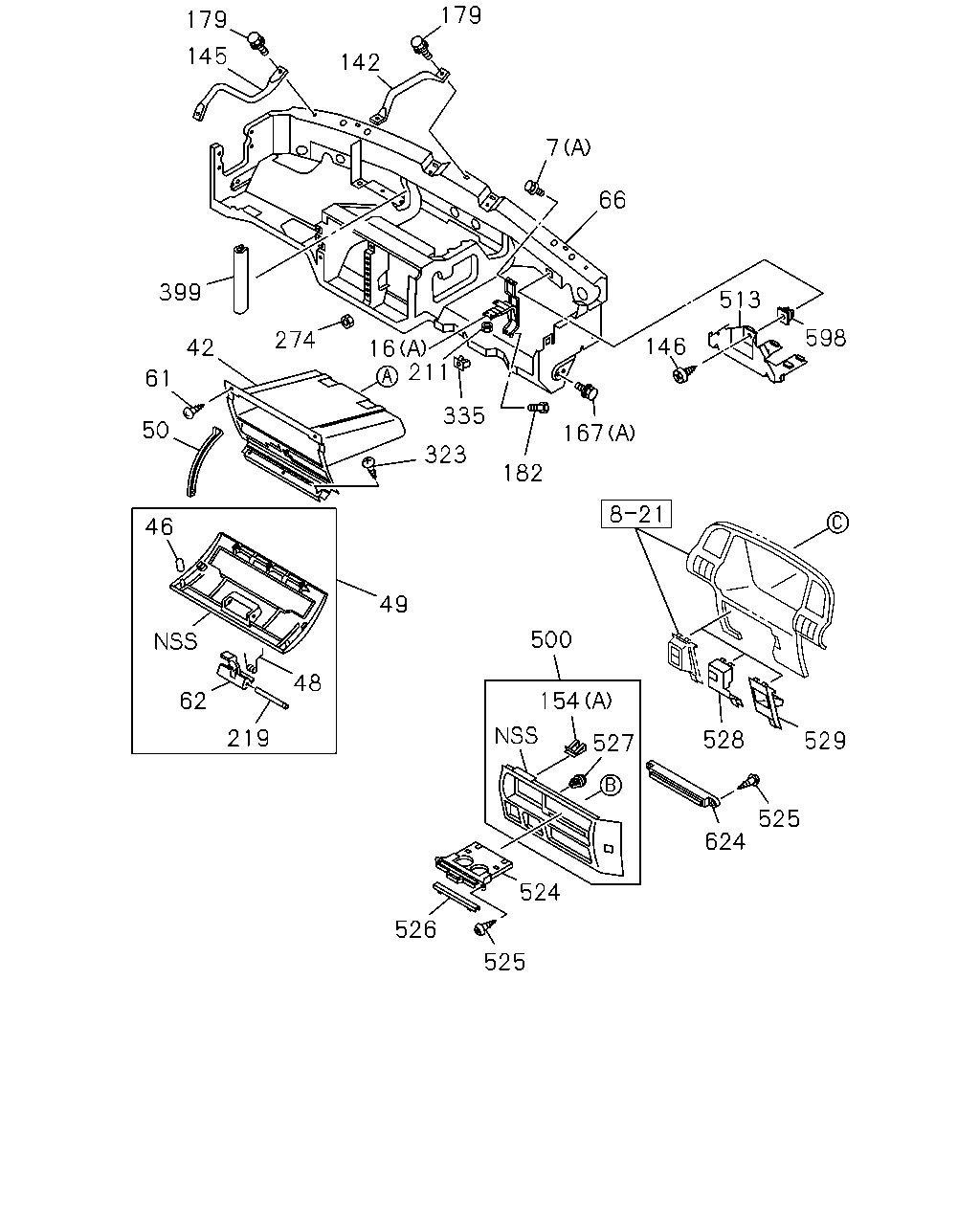

çizim 10576
179 179 145 142 7 66 399 513 598 274 146 42 16 211 61 335 50 167 323 182 46 49 500 48 62 154 219 528 529 527 525 624 524 526 525
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9811- ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 9811-0106 ● ● ● ● ● ●
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0107- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9811-0202 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0203- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9811- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9811- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 9811- ● ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9811-0208 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9811- ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97857-496-4 01 1 9811- ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9811- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9811- ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9811- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97859-931-6 01 1 9811-0006 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-465-3 01 1 0007- ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97856-460-2 01 1 9811- ● ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97856-461-3 01 1 9811- ● ● ● ● ● ●
146 16.100 SCREW; TAP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811- ● ● ● ● ● ●
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902- ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9811- ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9811- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9811- ● ● ● ● ● ●
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9811- ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9811- ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
399 16.085 FINISHER; HARNESS
03.885 L=50 		8-94270-377-1 01 1 9811- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-902-5 01 1 9811-0105 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-902-6 01 1 0106-0202 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-902-6 01 1 0203- ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-501-7 01 1 9811-0105 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97857-501-7 01 1 9811-0105 ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-501-8 01 1 0106-0202 ● ● ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97857-501-8 01 1 0106-0202 ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-501-8 01 1 0203- ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97857-501-8 01 1 0203- ●
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97859-391-2 01 1 9811- ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 9811- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9811-9904 ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9905-0105 ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9905-0105 ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 0106-0202 ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 0106-0202 ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 0203- ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 0203- ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9811- ● ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97868-448-0 01 1 9811- ● ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66), ADJUST HEADLAMP<6RC> BLACK 		8-97867-543-5 01 1 9811- ● ● ● ● ● ●
598 09.262 GROMMET; SCREW
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9811- ● ● ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9811- ● ● ● ● ● ●
