Sayfa 7-20 - Isuzu EPC

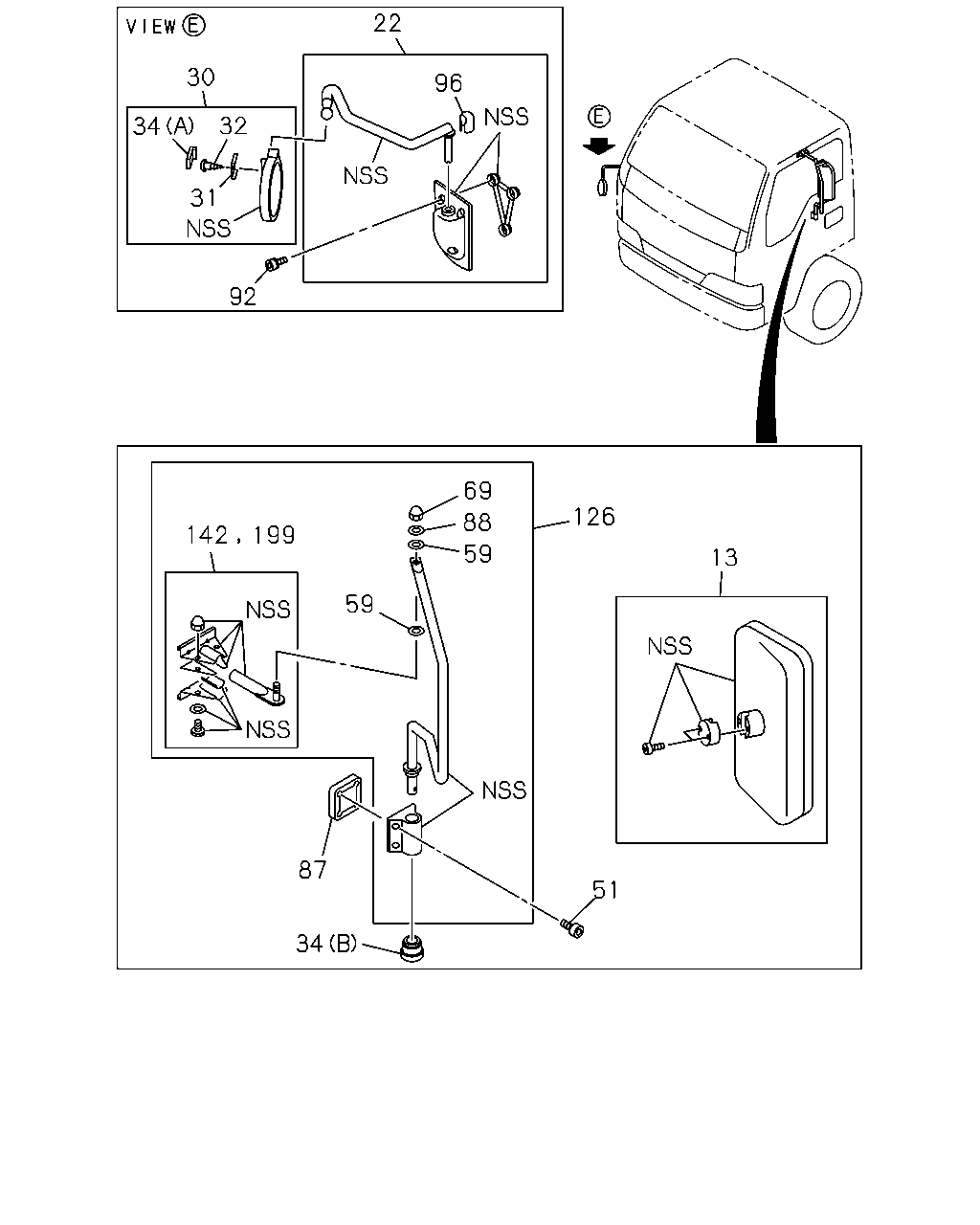

7-20 — MIRROR AND MIRROR STAY (#44510) — 148 parça

22 30 96 32 34 31 92 69 126 88 199 142 59 13 59 87 51 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	16.068 MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(EU2),TURKISH EQUIPMENT(S6S) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97867-880-0	02	1	9811-	●	●	●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S)	8-97094-318-0	02	1	9811-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97866-940-0	01	1	9811-0105	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97866-940-0	01	1	0106-0202	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97866-940-0	01	1	0203-	●	●	●	●		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>	8-97898-943-0	01	1	0005-0105	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>	8-97898-943-0	01	1	0106-0202	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>	8-97898-943-0	01	1	0203-	●	●	●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-269-7	01	1	9811-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-558-7	01	1	9811-	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	9811-0004	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	0005-0105	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	0106-0202	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	0203-	●	●	●	●		●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	9811-0004	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	0005-0105	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	0106-0202	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	0203-	●	●	●	●		●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	9811-0004	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	0005-0105	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	0106-0202	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	0203-	●	●	●	●		●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	9811-0004	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	0005-0105	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	0106-0202	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	0203-	●	●	●	●		●
34	16.069 CAP; MIRROR CHINA EQUIPMENT(YT2) (B)	8-97868-151-1	02	1	0005-0107		●	●
34	16.069 CAP; MIRROR CHINA EQUIPMENT(YT2) (B)	8-97995-718-0	02	1	0108-		●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-327-0	08	1	9811-	●	●	●	●	●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.6	8-94279-073-0	04	1	9811-	●	●	●	●	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M10 CAP NUT	1-09984-134-0	02	1	9811-	●	●	●	●	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94272-677-0	02	1	9811-	●	●	●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9811-	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9811-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	9811-0004	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	9811-0004	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0005-0105	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0005-0105	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0005-0105	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0106-0202	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0106-0202	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0106-0202	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0203-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0203-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0203-	●	●	●	●		●
126	16.069 STAY ASM; MIRROR SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S) DOOR MIRROR<6VE>	8-97859-277-1	01	1	9811-	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97859-277-1	01	1	9811-		●	●	●	●	●
126	16.069 STAY ASM; MIRROR SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S) DOOR MIRROR<6VE>	8-97859-276-1	01	1	9811-	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR WIDE ANGLE<7QF>	8-97859-276-1	01	1	9811-		●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),CHINA EQUIPMENT(YT2)	8-97856-638-3	01	1	9811-	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),CHINA EQUIPMENT(YT2)	8-97856-637-3	01	1	9811-	●	●	●	●	●	●
126	16.069 STAY ASM; MIRROR CHINA EQUIPMENT(YT2) DOOR MIRROR<6VE>	8-97856-939-3	01	1	9811-		●	●
126	16.069 STAY ASM; MIRROR CHINA EQUIPMENT(YT2) DOOR MIRROR<6VE>	8-97856-938-3	01	1	9811-		●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-622-2	02	1	0103-	●	●	●	●	●	●
199	16.069 SUPPORT; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-622-2	02	1	9811-0102	●	●	●	●	●	●

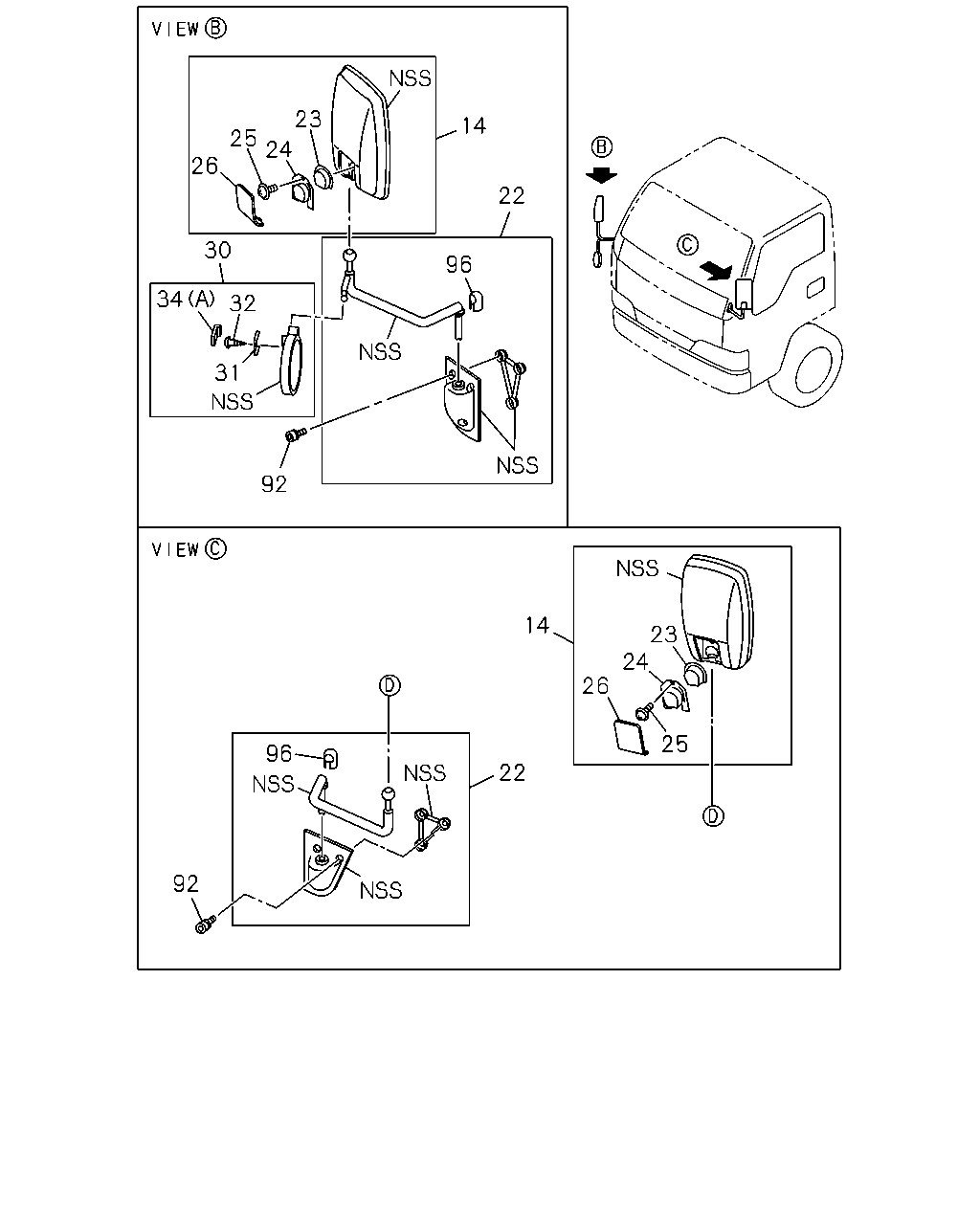

23 14 25 24 26 22 30 96 34 32 31 92 14 23 24 26 25 96 22 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	9811-	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-543-3	01	1	9811-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97866-940-0	01	1	9811-0105	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97866-940-0	01	1	0106-0202	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97866-940-0	01	1	0203-	●	●	●	●		●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>	8-97898-943-0	01	1	0005-0105	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>	8-97898-943-0	01	1	0106-0202	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> DOOR MIRROR<6VE>	8-97898-943-0	01	1	0203-	●	●	●	●		●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-269-7	01	1	9811-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97856-558-7	01	1	9811-	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	9811-	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.0	8-94262-545-0	01	1	9811-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	9811-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=1.6	8-94262-546-1	01	1	9811-	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	9811-	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M6X30	8-94279-365-0	01	1	9811-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.3	8-94262-547-2	01	1	9811-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> T=2.3	8-94262-547-2	01	1	9811-	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	9811-0004	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	0005-0105	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	0106-0202	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-625-2	01	1	0203-	●	●	●	●		●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	9811-0004	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	0005-0105	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	0106-0202	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF>	8-94262-631-0	01	1	0203-	●	●	●	●		●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	9811-0004	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	0005-0105	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	0106-0202	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> M5X18	8-94279-372-0	02	1	0203-	●	●	●	●		●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	9811-0004	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	0005-0105	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	0106-0202	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> EXC. DOOR MIRROR WIDE ANGLE<7QF> (A)	8-94262-629-0	01	1	0203-	●	●	●	●		●
34	16.069 CAP; MIRROR CHINA EQUIPMENT(YT2) (B)	8-97868-151-1	02	1	0005-0107		●	●
34	16.069 CAP; MIRROR CHINA EQUIPMENT(YT2) (B)	8-97995-718-0	02	1	0108-		●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9811-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	9811-0004	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	9811-0004	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0005-0105	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0005-0105	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0005-0105	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0106-0202	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0106-0202	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0106-0202	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0203-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> OD=40	8-97853-206-2	01	1	0203-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY UNDER MIRROR<RR9> DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0203-	●	●	●	●		●

90 92 19 4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-347-2	01	1	9811-0105	●	●	●	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-347-2	01	1	0106-0202	●	●	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-347-2	01	1	0203-0208	●	●	●	●		●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> EXC. ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-633-1	01	1	0209-	●	●	●	●		●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-351-2	01	1	9811-0105	●	●	●	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-351-2	01	1	0106-0202	●	●	●	●
1	16.068 MIRROR; ROOM VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-351-2	01	1	0203-	●	●	●	●		●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-353-2	01	1	9811-9811		●	●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97868-353-2	01	1	9812-		●	●	●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-352-2	01	1	9811-9811		●	●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-352-2	01	1	9812-		●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-346-2	01	1	9811-9811		●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-346-2	01	1	9812-0208		●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-663-1	01	1	0209-		●	●	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-348-2	01	1	9811-9811		●	●	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-348-2	01	1	9812-0105		●	●	●
1	16.068 MIRROR; ROOM EXC. VOLTAGE 24V<7AE>,TRAY ROOF HEAD<7EJ>,ISRAEL EQUIPMENT(7LX) DARK GRAY	8-97868-348-2	01	1	0106-		●	●	●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-469-1	01	1	9811-9811		●	●		●	●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-469-1	01	1	9812-		●	●	●	●	●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-468-1	01	1	9811-9811		●	●		●	●
1	16.068 MIRROR; ROOM ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-468-1	01	1	9812-		●	●	●	●	●
2	16.069 SCREW; MIRROR TO BODY 03.671 M5X20	5-09981-059-0	02	1	9811-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35	8-97867-849-0	01	1	9811-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26	8-97853-263-1	01	1	9811-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	9811-	●	●	●	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40	8-94273-036-3	01	1	9811-	●	●	●	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 16.588	8-94279-039-0	01	1	9811-	●	●	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	02	1	9811-0004	●	●	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	01	1	0005-0105	●	●	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. UNDER MIRROR<RR9> 16.588	8-97857-925-0	01	1	0005-0105	●	●	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	01	1	0106-0202	●	●	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. UNDER MIRROR<RR9> 16.588	8-97857-925-0	01	1	0106-0202	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97857-925-0	01	1	0203-	●	●	●	●	●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. UNDER MIRROR<RR9> 16.588	8-97857-925-0	01	1	0203-	●	●	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97868-528-0	01	1	9811-	●	●	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 16.588	8-97868-527-0	01	1	9811-0004	●	●	●	●	●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. UNDER MIRROR<RR9> 16.588	8-97868-527-0	01	1	0005-	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9811-	●	●	●	●	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	9811-	●	●	●	●	●	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	9811-	●				●	●
159	08.991 BULB; ROOM LAMP VOLTAGE 24V<7AE> 24V 10W	5-82194-030-0	01	1	9811-		●	●	●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W	5-82194-015-0	01	1	9811-9907		●	●	●
159	08.991 BULB; ROOM LAMP EXC. VOLTAGE 24V<7AE> 12V 10W	8-97128-771-0	01	1	9908-		●	●	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0209-	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ> EXC. ISRAEL EQUIPMENT(7LX)	8-97856-532-0	01	1	0209-		●	●	●		●
