3-34 — BRAKE VALVE; AIR (#4451) — 167 parça

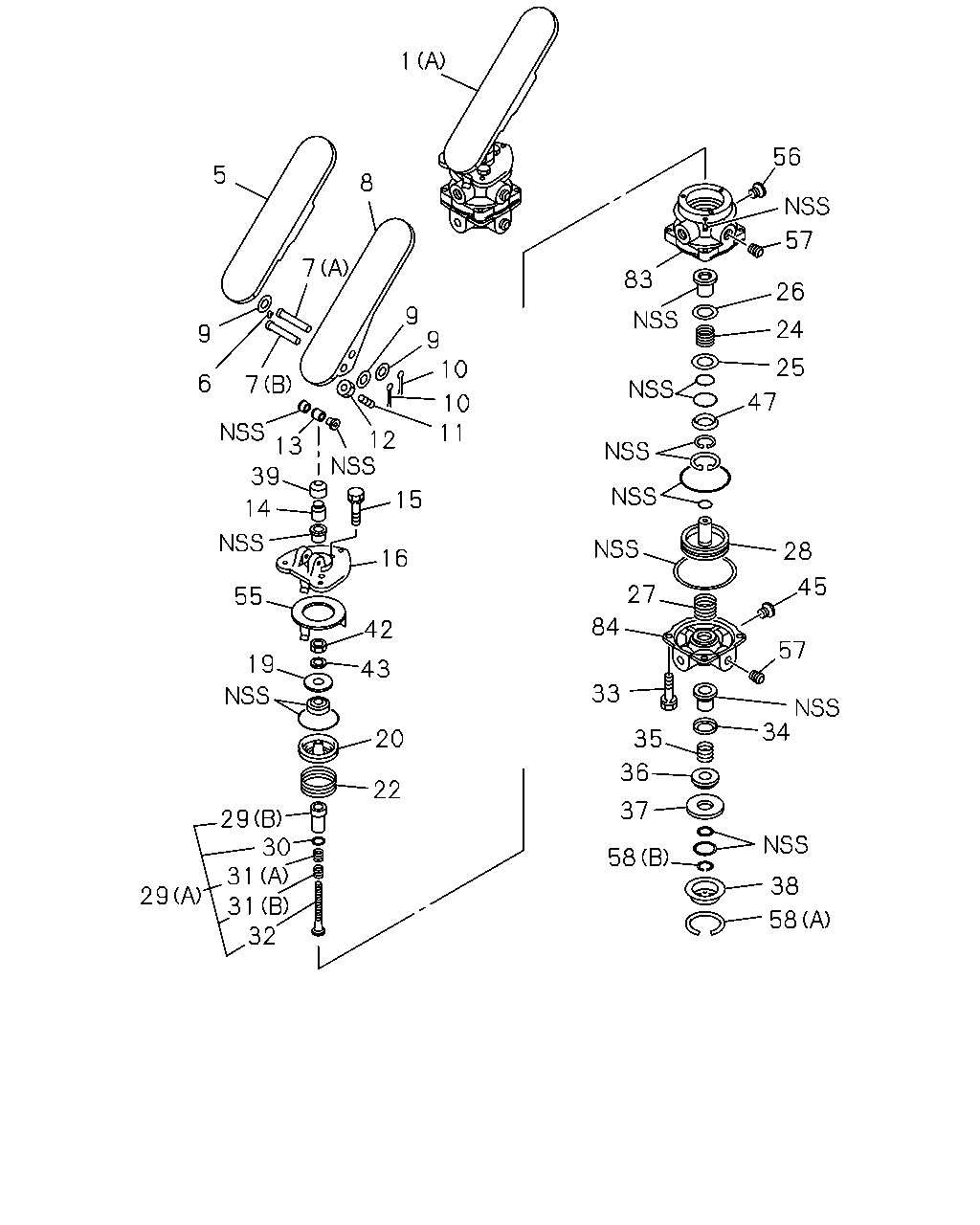

çizim 4553
1 56 5 8 57 7 83 26 9 9 10 24 9 25 6 7 47 10 11 12 13 39 15 14 28 16 45 27 55 84 42 57 19 43 33 34 20 35 36 22 37 29 30 31 31 32 58 38 29 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK
(B) 		1-48100-711-1 01 1 9505-9603 ● ●
1 VALVE; BRK
(B) 		1-48100-773-0 01 1 9604-0101 ● ●
1 VALVE; BRK
(B) 		1-48100-843-0 01 1 0102-1211 ● ●
1 VALVE; BRK
(B) 		8-98222-792-0 01 1 1212- ● ●
1 VALVE; BRK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-48100-599-2 01 1 9101-9504 ● ●
1 VALVE; BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) JIDOSHAKIKI 		1-48100-465-3 01 1 9101-9504 ● ●
1 VALVE; BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) NABCO 		1-48100-466-0 01 1 9101-9504 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-201-0 01 1 9101-9504 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 9505-0101 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0102- ● ●
6 PIN; PEDAL,SIDE,BRK VLV 1-48119-103-0 01 1 9101-9504 ● ●
7 PIN; PEDAL,BRK VLV
(A) 		1-48119-098-0 01 1 9101-9504 ● ●
7 PIN; PEDAL,BRK VLV
(B) 		1-48119-102-0 01 1 9101-9504 ● ●
7 PIN; PEDAL,BRK VLV
(C) 		1-48119-244-0 02 1 9505-0101 ● ●
7 PIN; PEDAL,BRK VLV
(C) 		1-48119-431-0 02 1 0102- ● ●
8 PEDAL; BRK VLV 1-48119-200-0 01 1 9101-9504 ● ●
8 PEDAL; BRK VLV 1-48119-332-0 01 1 9505-0101 ● ●
8 PEDAL; BRK VLV 1-48119-429-0 01 1 0102- ● ●
9 WASHER; PIN,BRK VLV
ID=10.5 		9-09164-510-0 03 1 9101-9504 ● ●
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9505-0101 ● ●
10 PIN; SPLIT,BRK VLV
OD=2.8 L=18 		9-08113-018-0 03 1 9101-9504 ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 9101-9504 ● ●
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 9505-0101 ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0102- ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9101- ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-031-0 01 1 9101-9504 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9505-0101 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0102- ● ●
14 PLUNGER; BRK VLV 1-48119-203-0 01 1 9101-9504 ● ●
14 PLUNGER; BRK VLV 1-48119-334-0 01 1 9505-9506 ● ●
14 PLUNGER; BRK VLV 1-48119-362-0 01 1 9507-9603 ● ●
14 PLUNGER; BRK VLV 1-48119-383-0 01 1 9604-0101 ● ●
14 PLUNGER; BRK VLV 1-48119-561-0 01 1 0102- ● ●
15 BOLT; PLATE,BRK VLV 1-48129-039-0 03 1 9101-9504 ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9505- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-202-0 01 1 9101-9307 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9308-0101 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0102- ● ●
19 SEAT; SPRING,BRK VLV 1-48123-017-0 01 1 9101-9504 ● ●
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 9505- ● ●
20 PISTON; UPR,BRK VLV 1-48119-092-0 01 1 9101-9504 ● ●
20 PISTON; UPR,BRK VLV 1-48119-336-0 01 1 9505-9603 ● ●
20 PISTON; UPR,BRK VLV 1-48119-381-0 01 1 9604-0101 ● ●
20 PISTON; UPR,BRK VLV 1-48119-560-0 01 1 0102- ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-002-0 01 1 9101-9504 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9505-9603 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 9604- ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9101- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9101-9504 ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9505- ● ●
26 RETAINER; VLV,BRK VLV 1-48129-139-0 01 1 9101-9504 ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9505- ● ●
27 SPRING; PISTON,LWR,BRK VLV
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-48123-055-0 01 1 9101-9504 ● ●
27 SPRING; PISTON,LWR,BRK VLV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48123-021-0 01 1 9101-9504 ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9101-0101 ● ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0102- ● ●
29 SLEEVE; VLV,BRK VLV
(A) 		1-48121-012-0 01 1 9101-9504 ● ●
29 SLEEVE; VLV,BRK VLV
(B) 		1-48129-083-1 01 1 9101- ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9101- ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9101- ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9101- ● ●
32 SCREW; BRK VLV 1-48129-081-1 01 1 9101-9504 ● ●
33 BOLT; BODY,BRK VLV 1-48119-212-0 04 1 9101-9504 ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9505- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-076-0 01 1 9101-9504 ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9505- ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9101- ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-143-0 01 1 9101-9504 ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9101- ● ●
38 COVER; EXH,BRK VLV 1-48119-093-0 01 1 9101-9504 ● ●
39 BOOT; PLUNGER,BRK VLV 1-48119-101-0 01 1 9101-9504 ● ●
42 NUT; SPR SEAT,BRK VLV 1-48129-069-0 01 1 9101-9504 ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48149-002-0 01 1 9101-9504 ● ●
45 CONNECTOR; UPR,BRK VLV 1-48119-025-0 01 1 9101-9307 ● ●
47 RETAINER; GASKET,BRK VLV 1-48129-072-0 01 1 9101-9504 ● ●
55 RETAINER; PLATE,BRK VLV 1-48119-026-0 01 1 9101-9504 ● ●
56 CONNECTOR; BODY,BRK VLV 1-48119-025-0 01 1 9101-9307 ● ●
57 PLUG; BODY,BRK VLV 1-48119-094-0 02 1 9101-9504 ● ●
58 RING; RET,EXH,BRK VLV
(B) 		1-48129-078-0 01 1 9101-9504 ● ●
58 RING; RET,EXH,BRK VLV
(A) 		9-19519-006-0 01 1 9101-9504 ● ●
83 BODY ASM; UPR,BRK VLV 1-48111-024-0 01 1 9101-9504 ● ●
84 BODY ASM; LWR,BRK VLV 1-48129-113-0 01 1 9101-9504 ● ●

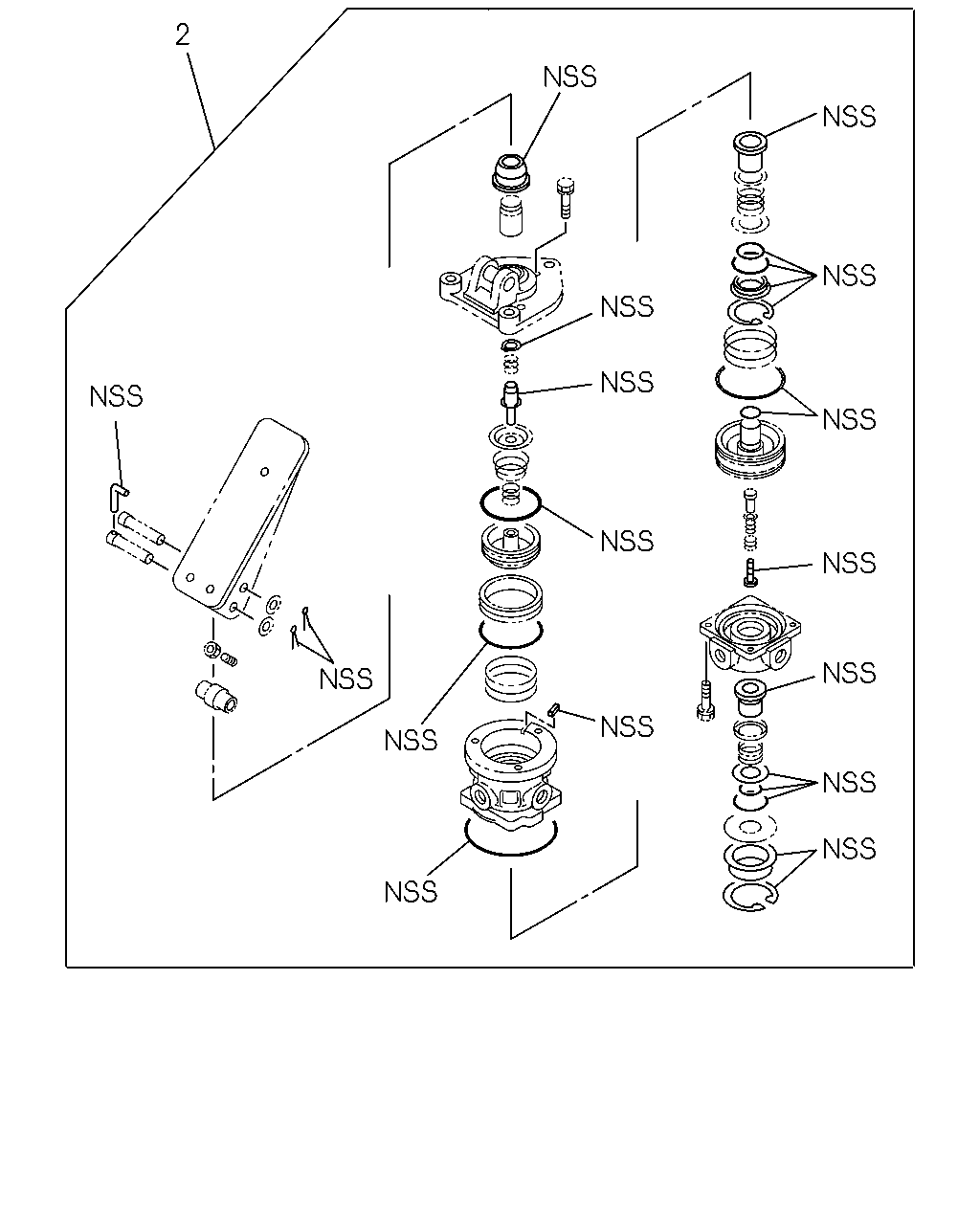

çizim 5577
2 10 6 10 58 38 58
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-48119-307-0 01 1 9101-9504 ● ●
2 REPAIR KIT; BRK VLV 1-85576-147-0 01 1 9505-9603 ● ●
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 9604-0101 ● ●
2 REPAIR KIT; BRK VLV 1-85576-285-0 01 1 0102-1211 ● ●
2 REPAIR KIT; BRK VLV 8-98222-819-0 01 1 1212- ● ●
6 PIN; PEDAL,SIDE,BRK VLV 1-48119-103-0 01 1 9101-9504 ● ●
10 PIN; SPLIT,BRK VLV
OD=2.8 L=18 		9-08113-018-0 03 1 9101-9504 ● ●
38 COVER; EXH,BRK VLV 1-48119-093-0 01 1 9101-9504 ● ●
58 RING; RET,EXH,BRK VLV
(B) 		1-48129-078-0 01 1 9101-9504 ● ●
58 RING; RET,EXH,BRK VLV
(A) 		9-19519-006-0 01 1 9101-9504 ● ●
çizim 6377
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-48119-307-0 01 1 9101-9504 ● ●
2 REPAIR KIT; BRK VLV 1-85576-147-0 01 1 9505-9603 ● ●
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 9604-0101 ● ●
2 REPAIR KIT; BRK VLV 1-85576-285-0 01 1 0102-1211 ● ●
2 REPAIR KIT; BRK VLV 8-98222-819-0 01 1 1212- ● ●

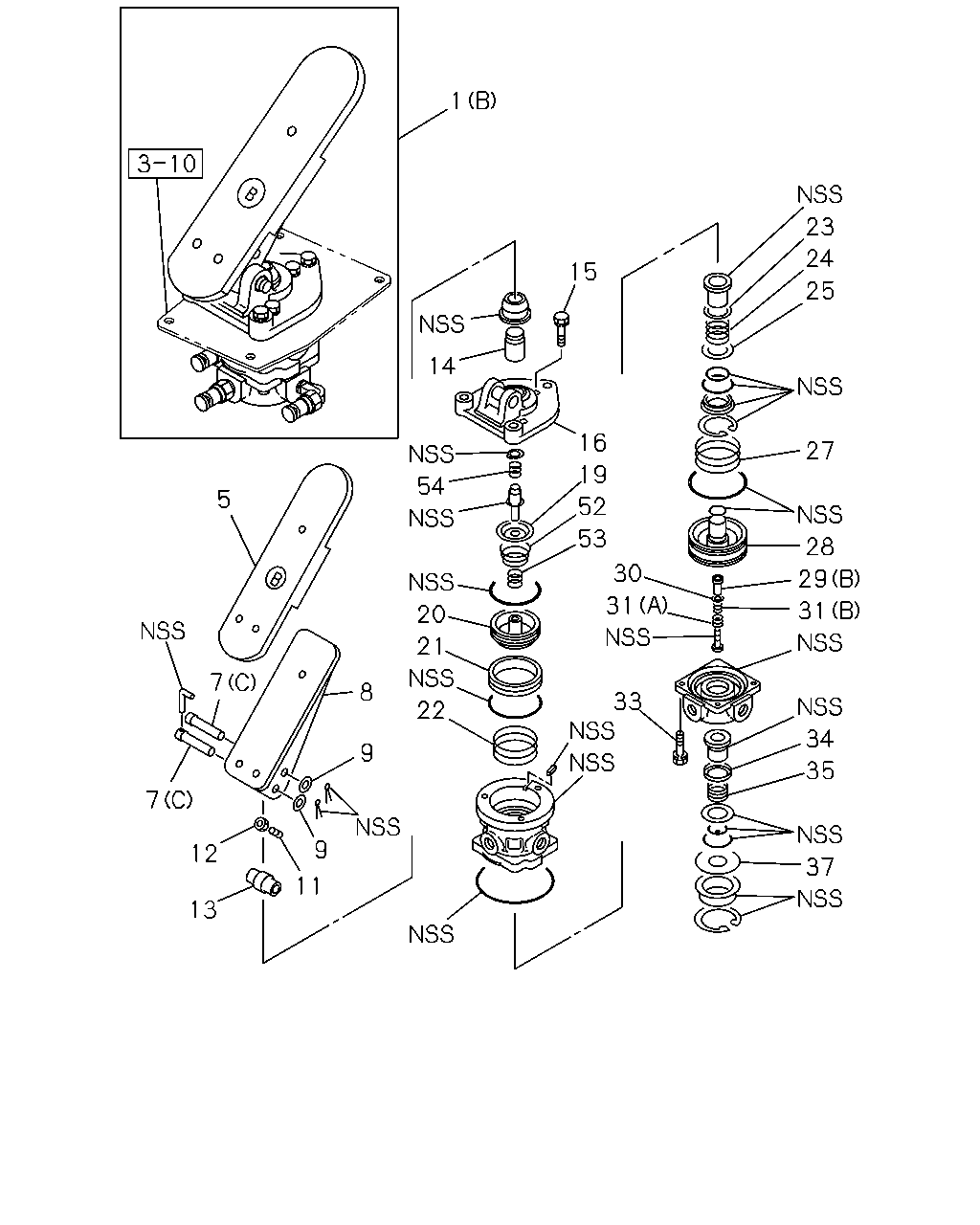

çizim 37057
1 23 24 15 25 14 16 27 19 54 5 52 53 28 30 29 31 31 20 21 7 8 33 22 34 9 35 7 9 12 37 11 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK
(B) 		1-48100-711-1 01 1 9505-9603 ● ●
1 VALVE; BRK
(B) 		1-48100-773-0 01 1 9604-0101 ● ●
1 VALVE; BRK
(B) 		1-48100-843-0 01 1 0102-1211 ● ●
1 VALVE; BRK
(B) 		8-98222-792-0 01 1 1212- ● ●
1 VALVE; BRK
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-48100-599-2 01 1 9101-9504 ● ●
1 VALVE; BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) JIDOSHAKIKI 		1-48100-465-3 01 1 9101-9504 ● ●
1 VALVE; BRK
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) NABCO 		1-48100-466-0 01 1 9101-9504 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-201-0 01 1 9101-9504 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 9505-0101 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0102- ● ●
7 PIN; PEDAL,BRK VLV
(A) 		1-48119-098-0 01 1 9101-9504 ● ●
7 PIN; PEDAL,BRK VLV
(B) 		1-48119-102-0 01 1 9101-9504 ● ●
7 PIN; PEDAL,BRK VLV
(C) 		1-48119-244-0 02 1 9505-0101 ● ●
7 PIN; PEDAL,BRK VLV
(C) 		1-48119-431-0 02 1 0102- ● ●
8 PEDAL; BRK VLV 1-48119-200-0 01 1 9101-9504 ● ●
8 PEDAL; BRK VLV 1-48119-332-0 01 1 9505-0101 ● ●
8 PEDAL; BRK VLV 1-48119-429-0 01 1 0102- ● ●
9 WASHER; PIN,BRK VLV
ID=10.5 		9-09164-510-0 03 1 9101-9504 ● ●
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 9505-0101 ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 9101-9504 ● ●
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 9505-0101 ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0102- ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9101- ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-031-0 01 1 9101-9504 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 9505-0101 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0102- ● ●
14 PLUNGER; BRK VLV 1-48119-203-0 01 1 9101-9504 ● ●
14 PLUNGER; BRK VLV 1-48119-334-0 01 1 9505-9506 ● ●
14 PLUNGER; BRK VLV 1-48119-362-0 01 1 9507-9603 ● ●
14 PLUNGER; BRK VLV 1-48119-383-0 01 1 9604-0101 ● ●
14 PLUNGER; BRK VLV 1-48119-561-0 01 1 0102- ● ●
15 BOLT; PLATE,BRK VLV 1-48129-039-0 03 1 9101-9504 ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 9505- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-202-0 01 1 9101-9307 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9308-0101 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0102- ● ●
19 SEAT; SPRING,BRK VLV 1-48123-017-0 01 1 9101-9504 ● ●
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 9505- ● ●
20 PISTON; UPR,BRK VLV 1-48119-092-0 01 1 9101-9504 ● ●
20 PISTON; UPR,BRK VLV 1-48119-336-0 01 1 9505-9603 ● ●
20 PISTON; UPR,BRK VLV 1-48119-381-0 01 1 9604-0101 ● ●
20 PISTON; UPR,BRK VLV 1-48119-560-0 01 1 0102- ● ●
21 BUSHING; UPR BODY 1-48119-293-0 01 1 9505-9603 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-002-0 01 1 9101-9504 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 9505-9603 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 9604- ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 9505- ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9101- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9101-9504 ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 9505- ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 9505- ● ●
27 SPRING; PISTON,LWR,BRK VLV
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-48123-055-0 01 1 9101-9504 ● ●
27 SPRING; PISTON,LWR,BRK VLV
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48123-021-0 01 1 9101-9504 ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9101-0101 ● ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0102- ● ●
29 SLEEVE; VLV,BRK VLV
(A) 		1-48121-012-0 01 1 9101-9504 ● ●
29 SLEEVE; VLV,BRK VLV
(B) 		1-48129-083-1 01 1 9101- ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9101- ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9101- ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9101- ● ●
33 BOLT; BODY,BRK VLV 1-48119-212-0 04 1 9101-9504 ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 9505- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-076-0 01 1 9101-9504 ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 9505- ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9101- ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9101- ● ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-040-0 01 1 9505-9603 ● ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-074-0 01 1 9604- ● ●
53 SPRING; PISTON,INNER,BRK VLV 1-48123-068-0 01 1 9505- ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 9505- ● ●
