7-10 — CAUTION PLATE AND LABEL (#44509) — 115 parça
çizim 10489
35 35 9 7 135 96 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 9811-9811 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 9811-9811 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 9812-0105 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 9812-0105 ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0106- ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 9811-9811 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 9811-9811 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 9812-0105 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 9812-0105 ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUH),(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0106- ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97201-735-0 01 1 9811- ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97215-747-0 01 1 9811-0105 ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97215-747-0 01 1 0106-0108 ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97215-747-0 01 1 0109- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 9811-9906 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 9907-0202 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0203- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 9811-9906 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 9907-0202 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0203- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 9811-9906 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 9907-0202 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0203- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-102-0 01 1 9907-0105 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-102-0 01 1 0106-0108 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-102-0 01 1 0109- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-938-0 01 1 9901-0105 ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-944-0 01 1 9901-0105 ●
9 08.808 PLATE; NAME,SPD RANGE
4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-936-0 01 1 9901-0105 ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MBP6P(RNC) TURBOCHARGER(K51) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97229-100-0 01 1 9907-0105 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MBP6P(RNC) TURBOCHARGER(K51) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97229-100-0 01 1 0106- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ENGINE POWER N-SPEC(7QV) 		8-97229-101-0 01 1 9907-0207 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ENGINE POWER N-SPEC(7QV) 		8-97229-101-0 01 1 0208- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9811- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9811- ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9811- ● ● ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) 		8-97092-930-0 01 1 9811-9812 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97092-930-0 01 1 9901-9905 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97066-479-0 01 1 9906-0105 ●
135 08.808 PLATE; CAUTION,ENGINE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) 		8-97109-187-0 01 1 9811- ● ● ●

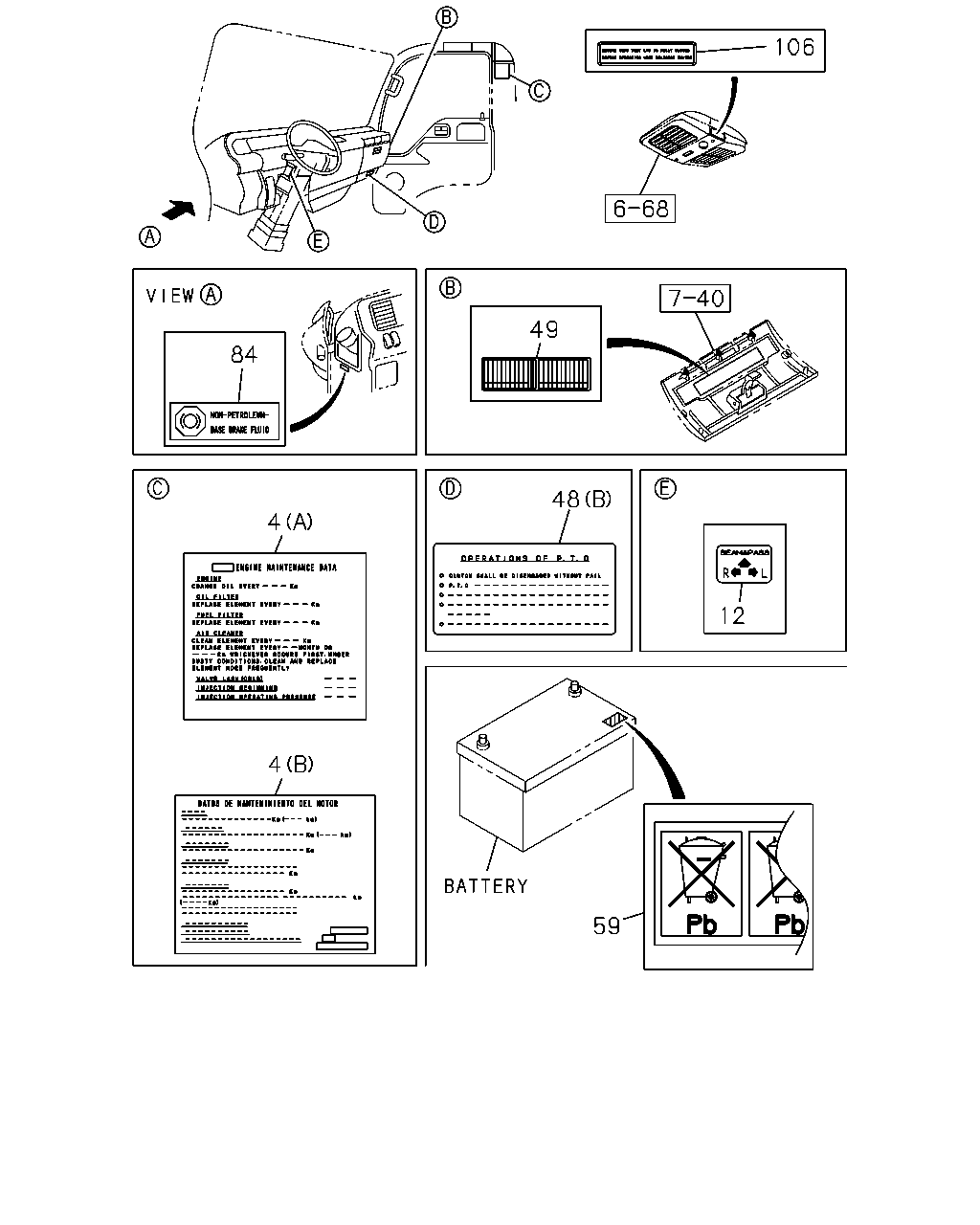

çizim 46418
106 49 84 48 4 12 4 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) (B) 		8-97215-749-0 01 1 9811-0109 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) CAUTION SPANISH<YN1> (B) 		8-97215-749-0 01 1 0110-0110 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) (B) 		8-97215-749-0 01 1 0111- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> EXC. TAIWAN EQUIPMENT(RWV),ENGINE POWER N-SPEC(7QV) (B) 		8-97189-399-0 01 1 9811- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> (A) 		8-97215-748-0 01 1 9811- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV) EXC. CAUTION SPANISH<YN1>,ENGINE POWER N-SPEC(7QV) (A) 		8-97189-400-0 01 1 9811- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. TAIWAN EQUIPMENT(RWV),CAUTION SPANISH<YN1>,ENGINE POWER N-SPEC(7QV) (A) 		8-97189-398-0 01 1 9811- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (A) 		8-97189-403-0 01 1 9811-0105 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (A) 		8-97189-403-0 01 1 9811-0105 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (A) 		8-97189-403-0 01 1 0106-0202 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (A) 		8-97189-403-0 01 1 0203- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> EXC. TURBOCHARGER(K51) (B) 		8-97189-402-1 01 1 9811- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) CAUTION SPANISH<YN1> (B) 		8-97211-906-0 01 1 9811-9902 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) CAUTION SPANISH<YN1> EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97211-906-0 01 1 9903- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 9811-9902 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. COLOMBIA EQUIPMENT(X74),CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 9903- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 9811- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> (B) 		8-97189-406-0 01 1 9811-0112 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97189-406-0 01 1 0201- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97189-404-0 01 1 9811-0105 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97189-404-0 01 1 0106-0202 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97189-404-0 01 1 0203- ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97189-405-0 01 1 9811-0112 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>, CAUTIONSPANISH<YN1> (A) 		8-97189-405-0 01 1 0201- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER(K51) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> (B) 		8-97218-381-0 01 1 9906-9906 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER(K51) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> (B) 		8-97231-257-0 01 1 9906-0105 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A) 		8-97205-917-0 01 1 9811-9905 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97205-917-0 01 1 9906-9906 ●
4 00.004 LABEL; ENG MAINTENANCE
4JB1 ENG(RLF) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97231-256-0 01 1 9906-0105 ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) COLOMBIA EQUIPMENT(X74) EXC. CAUTION SPANISH<YN1> (A) 		8-97226-451-0 01 1 9903-0105 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) COLOMBIA EQUIPMENT(X74) EXC. CAUTION SPANISH<YN1> (A) 		8-97226-451-0 01 1 0106- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) COLOMBIA EQUIPMENT(X74) CAUTION SPANISH<YN1> (B) 		8-97226-452-0 01 1 9903-0105 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) COLOMBIA EQUIPMENT(X74) CAUTION SPANISH<YN1> (B) 		8-97226-452-0 01 1 0106- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> (B) 		8-97260-875-0 01 1 0201- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97260-874-0 01 1 0201- ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 9811- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 9811- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 9811- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 9811- ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 		8-97215-898-0 01 1 9811- ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97182-191-0 01 1 9811-0105 ● ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97182-191-0 01 1 0106-0202 ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> 		8-97182-191-0 01 1 0203- ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4JB1 ENG(RLF) 		8-97182-190-0 01 1 9811-0105 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 		8-97203-577-0 01 1 9811- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
ISRAEL EQUIPMENT(7LX) 10 PER 1 SHEET 		8-97116-760-0 02 1 9811-9811 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 9811-9811 ●
59 08.808 PLATE; CAUTION,BATTERY
ISRAEL EQUIPMENT(7LX) 10 PER 1 SHEET 		8-97116-760-0 02 1 9812-0105 ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 9812-0105 ●
59 08.808 PLATE; CAUTION,BATTERY
ISRAEL EQUIPMENT(7LX) 10 PER 1 SHEET 		8-97116-760-0 02 1 0106-0202 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 0106-0202 ● ●
59 08.808 PLATE; CAUTION,BATTERY
ISRAEL EQUIPMENT(7LX) 10 PER 1 SHEET 		8-97116-760-0 02 1 0203- ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 0203- ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 9811-9811 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 9811-9811 ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 9812-0105 ● ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 9812-0105 ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 0106-0202 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 0106-0202 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 0203- ● ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 0203- ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97856-820-0 01 1 9811- ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-94273-602-0 01 1 9811- ● ● ● ● ● ●

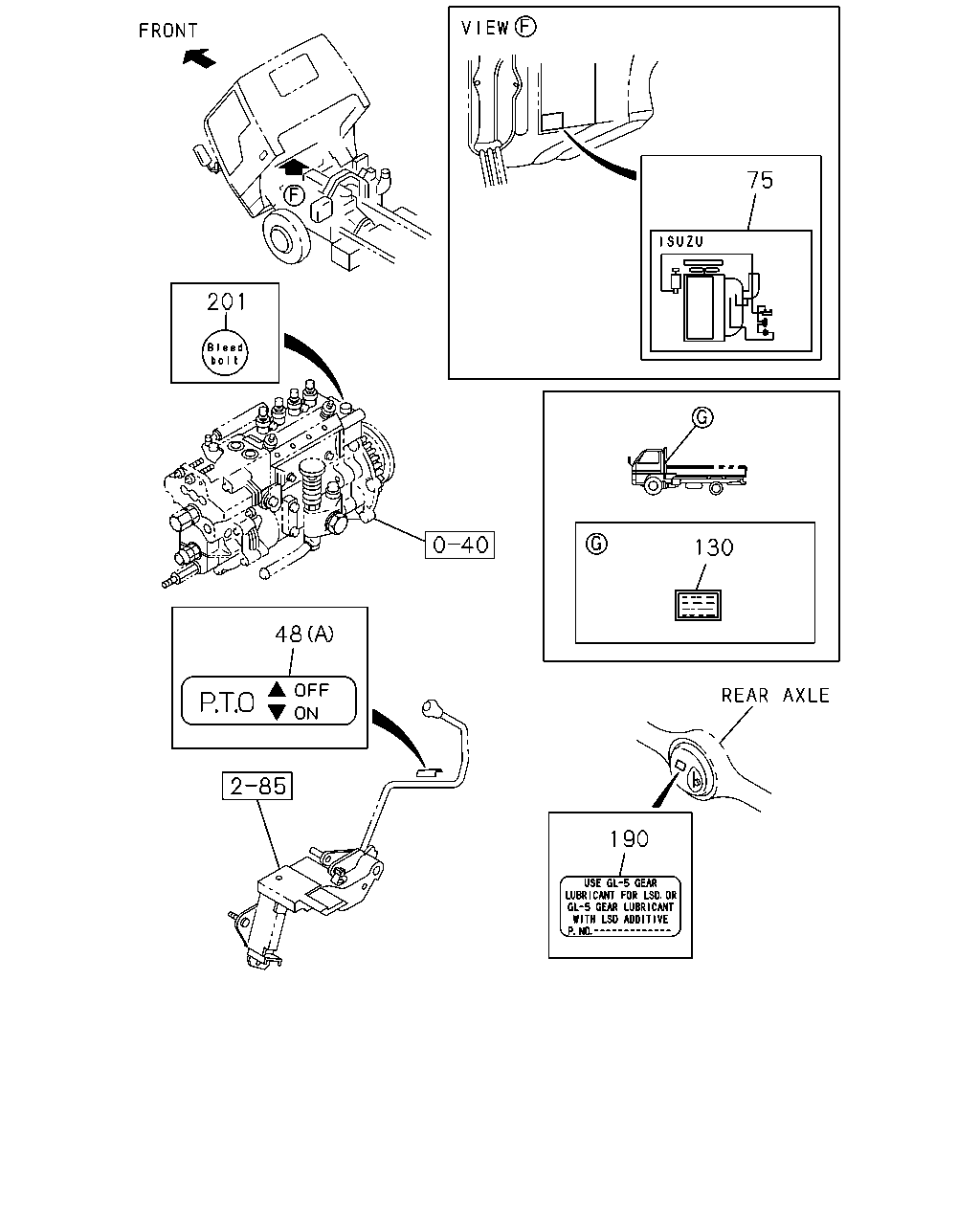

çizim 48248
75 201 130 48 190
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 9811- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 9811- ● ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 9811- ● ● ● ● ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 		8-97183-915-1 01 1 9811- ● ● ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE (890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94192-480-0 02 1 9811- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 9909-0105 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEARRATIO 41/7(R41) DISC BRAKE FRT<J52> LIMITED SLIP DIFF<6LV> BRK WHL LK CONT LSPV<6PH> 		8-97200-740-0 01 1 9909-0105 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> LIMITED SLIP DIFF<6LV> BRK WHL LK CONT LSPV<6PH> 		8-97200-740-0 01 1 0106-0106 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 0106-0106 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 0111-0202 ● ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 0203- ● ● ● ●
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97192-288-0 01 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
