◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#44506) — 8 parça

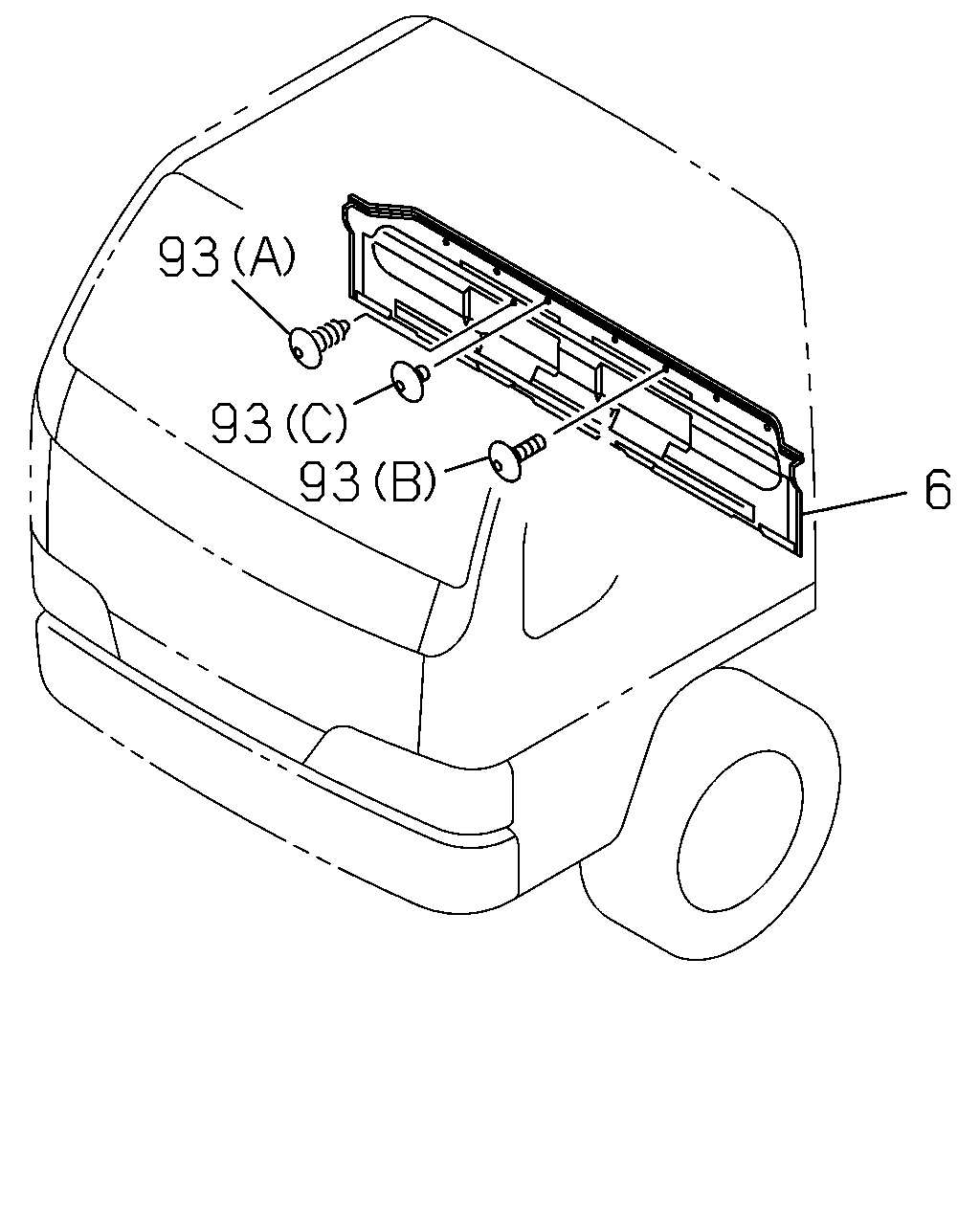

çizim 10490
93 93 93 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> DARK GRAY 		8-97857-037-3 01 1 9811-9811 ● ● ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> DARK GRAY 		8-97857-037-3 01 1 9812- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) DARK GRAY 		8-97857-054-0 07 1 9811-9811 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) DARK GRAY 		8-97857-054-0 07 1 9812- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (C) ID=7X14 		8-97857-564-0 02 1 9811-9811 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (C) ID=7X14 		8-97857-564-0 02 1 9812- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) DARK GRAY 		8-97866-675-0 02 1 9811-9811 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) DARK GRAY 		8-97866-675-0 02 1 9812- ● ● ● ●
