◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#44504) — 234 parça

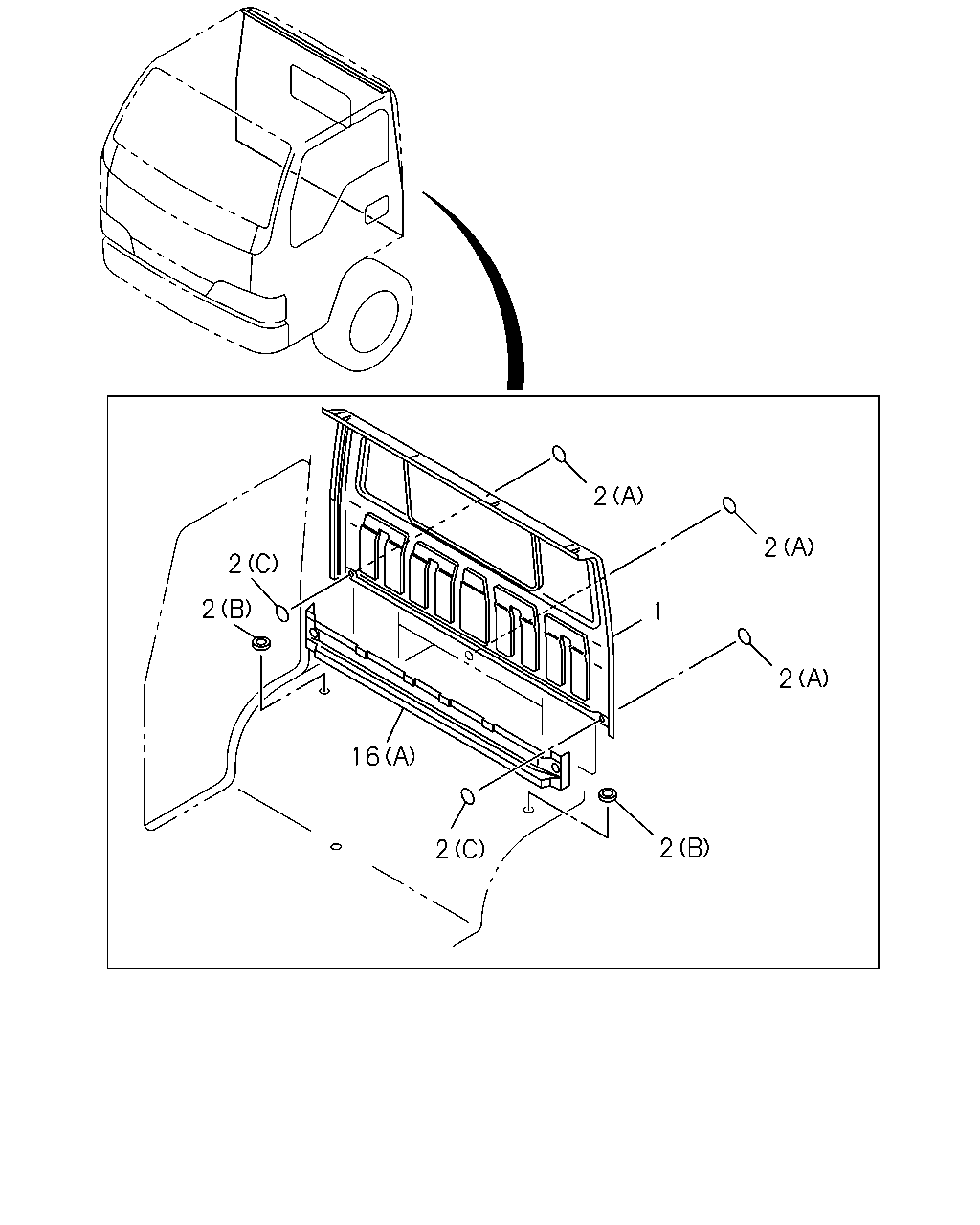

çizim 9545
2 2 2 2 1 2 16 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 9811-0202 ●
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 0203- ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) 		8-97851-267-6 01 1 0203- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9811-0202 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97859-127-0 01 1 0203- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0202- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0202- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9811-0201 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK 		1-76798-019-0 05 1 0202- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9811- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9811-9811 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9811-9811 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9811-9811 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9811-9811 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9811- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9811-9811 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9811-9811 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 9811-0202 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 0203- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (B) 		8-97851-415-1 01 1 0203- ●

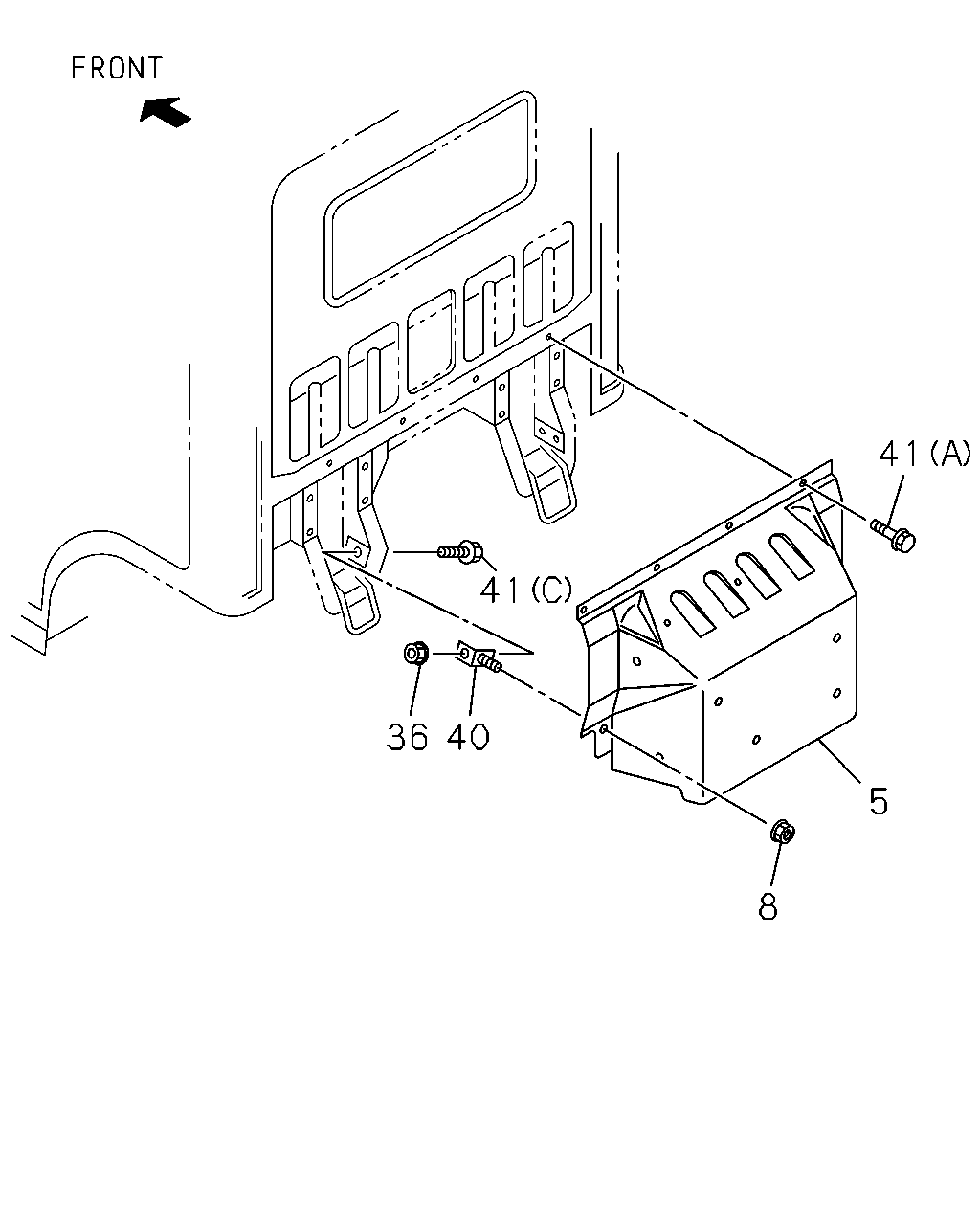

çizim 9727
41 41 36 40 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 9811-9811 ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 9811-9811 ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 9812-0105 ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 9812-0105 ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 0106-0108 ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 0106-0108 ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 0109- ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97205-589-3 01 1 0109- ● ● ●
5 16.587 PANEL; CAB BACK
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97205-590-4 01 1 9811-0105 ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97264-171-0 01 1 0007-0105 ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97287-996-0 01 1 0106-0108 ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97287-996-0 01 1 0109- ● ● ●
5 16.587 PANEL; CAB BACK
A/T 4 SPEED-AISIN(RNJ) 		8-97287-996-0 01 1 0109- ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97180-930-4 01 1 9811-9811 ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97180-930-4 01 1 9812-0006 ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97180-930-4 01 1 0007-0105 ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HYDRO BRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC(7QV) 		8-97180-930-4 01 1 0007-0105 ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97287-554-0 01 1 0106-0108 ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HYDRO BRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC(7QV) 		8-97287-554-0 01 1 0106-0108 ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HYDRO BRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC(7QV) 		8-97287-554-0 01 1 0109- ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ENGINE POWER N-SPEC(7QV) 		8-97287-554-0 01 1 0109- ● ● ●
5 16.587 PANEL; CAB BACK
FLOOR REMOTE SHIFT<M11> 		8-97287-554-0 01 1 0109- ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0203- ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-0105 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-0105 ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-0105 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0106 ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0106 ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0106 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0108 ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0108 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0109- ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0109- ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9902-0105 ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9902-0105 ●
36 16.587 NUT; BRKT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-0105 ● ● ● ●
36 16.587 NUT; BRKT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0108 ● ● ●
36 16.587 NUT; BRKT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0109- ● ● ● ●
40 16.587 BRACKET; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97083-313-2 02 1 9812-0105 ● ● ● ●
40 16.587 BRACKET; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97083-313-2 02 1 0106-0108 ● ● ●
40 16.587 BRACKET; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97083-313-2 02 1 0109-0109 ● ● ● ●
40 16.587 BRACKET; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97322-264-0 02 1 0110- ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9811-9811 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9811-9811 ● ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9811-9811 ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-0105 ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0106-0108 ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0106-0108 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0109- ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0109- ● ● ● ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9811-0105 ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 04 1 0106-0106 ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9811-9811 ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-9812 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0108 ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0108 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0109-0202 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0109-0202 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0203- ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0203- ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0203- ●

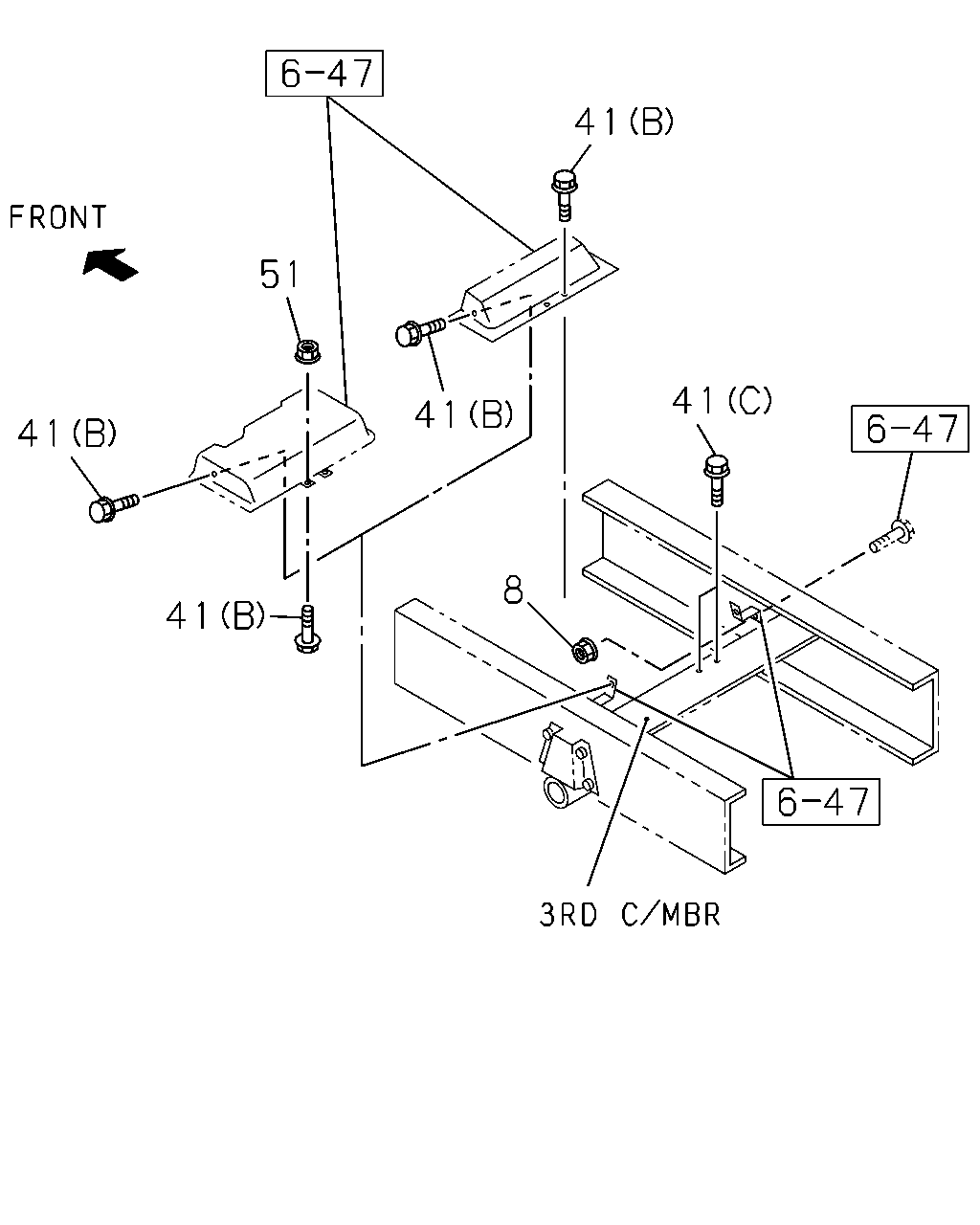

çizim 10614
41 51 41 41 41 8 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0203- ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9901 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-0105 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-0105 ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902-0105 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0106 ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0106 ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0106 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0108 ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0108 ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0109- ● ● ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0109- ● ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9902-0105 ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9902-0105 ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9811-9811 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9811-9811 ● ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9811-9811 ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-0105 ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0106-0108 ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0106-0108 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0109- ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0109- ● ● ● ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9811-0105 ●
41 16.587 BOLT
4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 04 1 0106-0106 ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9811-9811 ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-9812 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 9812-0105 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0108 ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0108 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0109-0202 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0109-0202 ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0203- ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0203- ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 02 1 0203- ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9811 ● ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-0202 ● ● ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0203- ● ● ●
51 16.587 NUT; PANEL
07.633 M8 FLANGE 		0-91150-108-0 02 1 0203- ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0203- ●

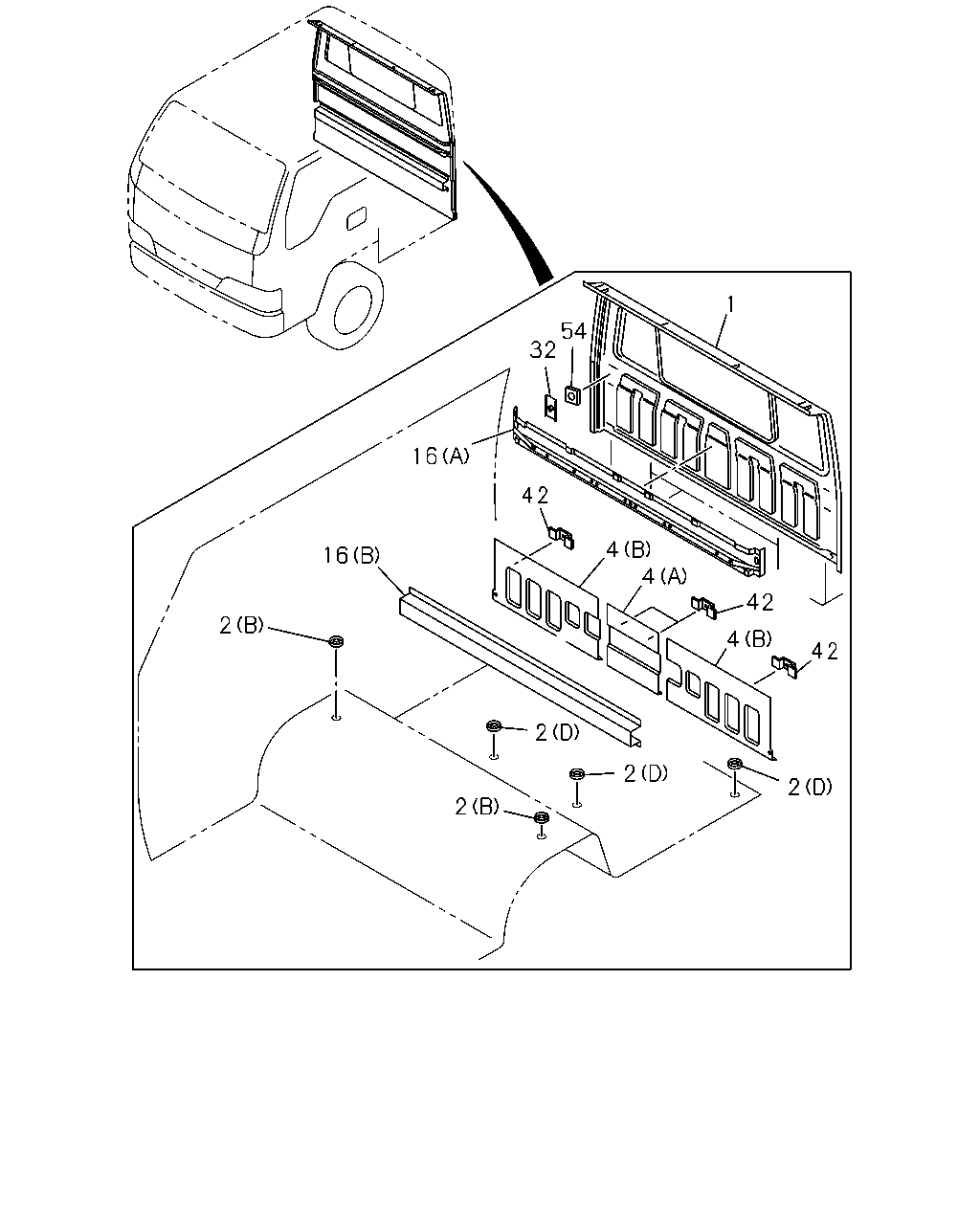

çizim 48931
1 54 32 16 2 4 4 16 42 2 4 2 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 9811-0202 ●
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 0203- ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) 		8-97851-267-6 01 1 0203- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9811-0202 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97859-127-0 01 1 0203- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0202- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0202- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9811-0201 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK 		1-76798-019-0 05 1 0202- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9811- ●
4 16.575 PANEL; CAB BACK LWR
4HF1 ENG(RLS) (B) 		8-97851-292-5 01 1 0203- ●
4 16.575 PANEL; CAB BACK LWR
(A) 		8-97851-268-3 01 1 9811-0202 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-268-3 01 1 0203- ●
4 16.575 PANEL; CAB BACK LWR
4HF1 ENG(RLS) (A) 		8-97851-268-3 01 1 0203- ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97851-293-5 01 1 9811-0202 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-293-5 01 1 0203- ●
4 16.575 PANEL; CAB BACK LWR
4HF1 ENG(RLS) (B) 		8-97851-293-5 01 1 0203- ●
4 16.575 PANEL; CAB BACK LWR
(B) 		8-97892-520-1 01 1 9811-0202 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-520-1 01 1 0203- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9811-9811 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9811-9811 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9811-9811 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9811-9811 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>,AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) BRAZIL EQUIPMENT(RWF) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> BRAZIL EQUIPMENT(RWF) EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9811- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9811-9811 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9811-9811 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. BRAZIL EQUIPMENT(RWF),CHARGE AIRCOOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,BRAZIL EQUIPMENT(RWF),CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 9811-0202 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 0203- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) (B) 		8-97851-415-1 01 1 0203- ●
32 16.587 PATCH; AIR INT DUCT 8-97892-522-1 01 1 9811-0202 ●
32 16.587 PATCH; AIR INT DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-522-1 01 1 0203- ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 04 1 9811-0202 ●
42 16.587 BRACKET; HEAT PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.588 		8-94265-170-1 04 1 0203- ●
42 16.587 BRACKET; HEAT PROTECTOR
4HF1 ENG(RLS) 16.588 		8-94265-170-1 04 1 0203- ●
54 16.587 SEAL; STUD
16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9901-0202 ●
54 16.587 SEAL; STUD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0203- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
