Isuzu WW
▶
TRUCKS
▶
NPR
▶
50815 - NPR/NQR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

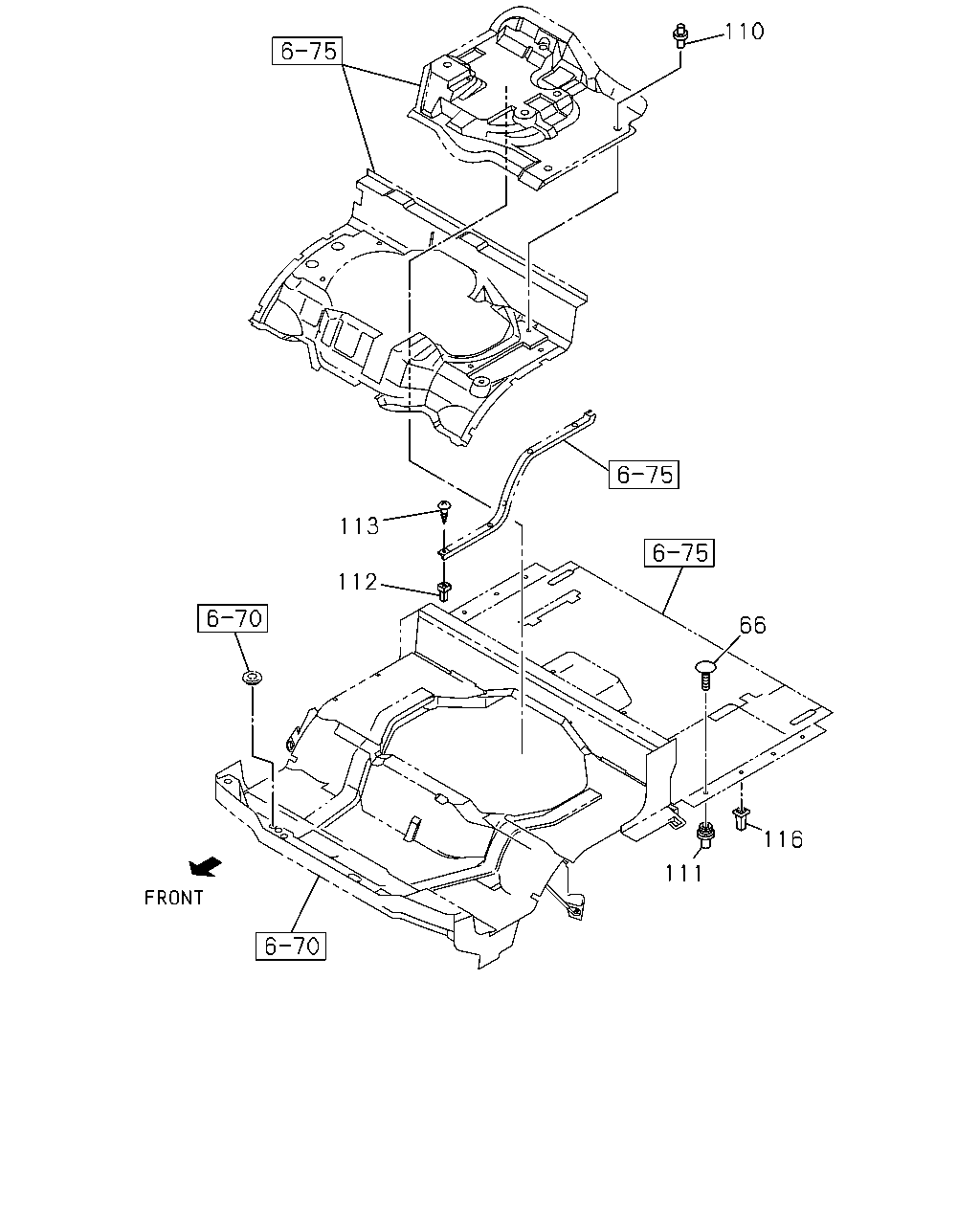

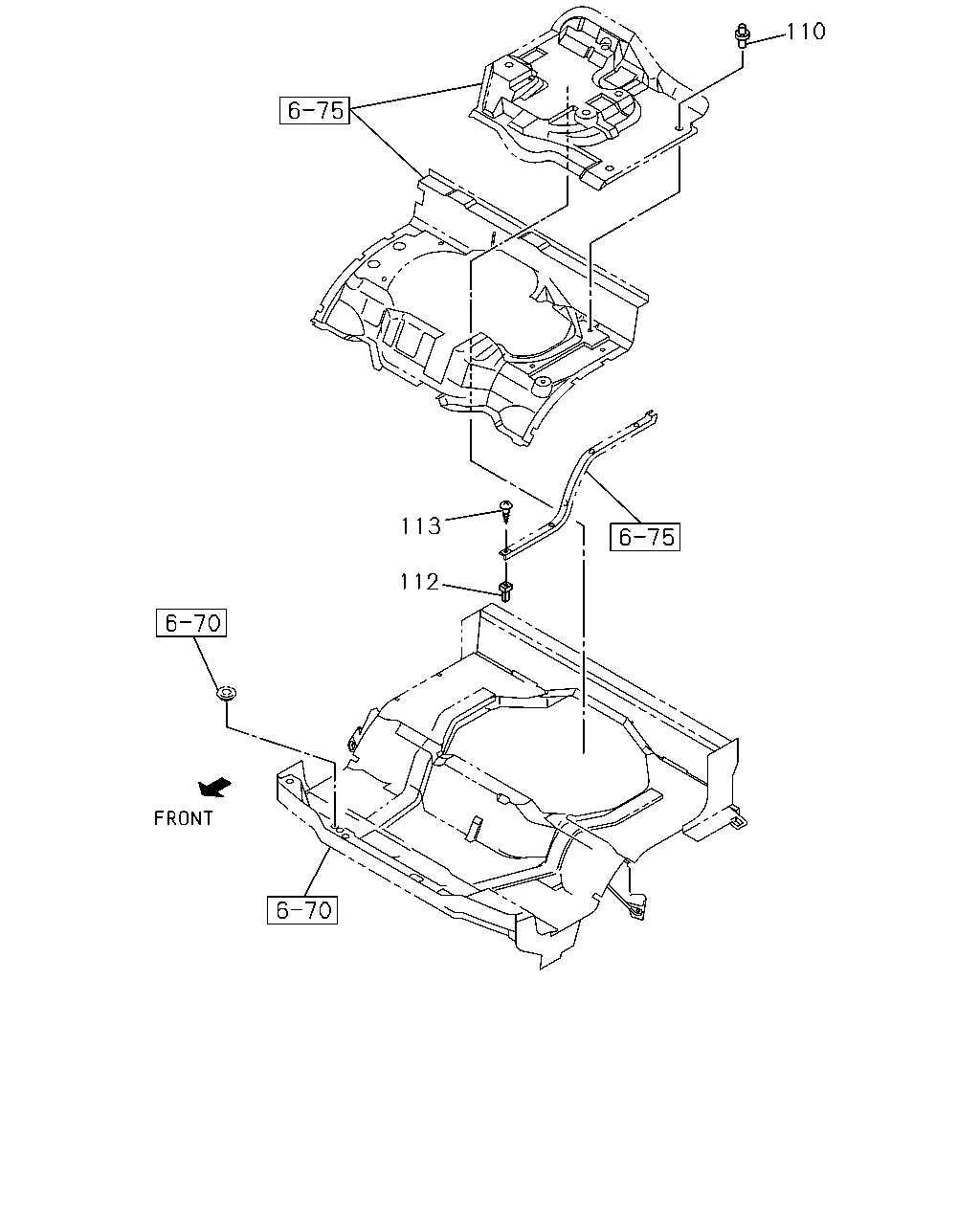

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#44503) — 26 parça
Tümü
A - NPC6WF
B - NPC6SC
C - NPC6SF
D - NPC6SK
E - NPC6SN
F - NPC6SS
◀
[678A] DBL CAB (17 parça)
[678A] SGL CAB (9 parça)
▶
110
113
112
66
116
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
66
16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY
8-97867-158-0
04
1
9811-
●
110
16.802 FASTENER; FLOOR MAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
13
1
0202-0211
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
13
1
0202-0211
●
●
110
16.802 FASTENER; FLOOR MAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
11
1
0212-
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
11
1
0212-
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
13
1
9811-0201
●
●
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
12
1
0202-0211
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
10
1
0212-
●
●
●
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HF1 ENG(RLS) 16.802 BLACK
8-94279-089-0
12
1
0203-0206
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK
8-94279-089-0
15
1
0207-
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK
8-94279-089-0
15
1
0207-
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK
8-94279-089-0
12
1
9811-9901
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK
8-94279-089-0
15
1
9902-0202
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK
8-94279-089-0
15
1
0203-0206
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
10
1
9811-
●
●
●
●
●
●
113
16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER
0-74110-514-0
10
1
9811-
●
●
●
●
●
●
116
16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
9811-
●
110
113
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
110
16.802 FASTENER; FLOOR MAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
13
1
0202-0211
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
13
1
0202-0211
●
●
110
16.802 FASTENER; FLOOR MAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
11
1
0212-
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
11
1
0212-
●
●
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
13
1
9811-0201
●
●
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
12
1
0202-0211
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
SAUDI ARABIA EQUIPMENT(EU2) BLACK
8-94279-089-0
10
1
0212-
●
●
●
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
10
1
9811-
●
●
●
●
●
●
113
16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER
0-74110-514-0
10
1
9811-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
