0-50B — OIL COOLER AND OIL FILTER (#445) — 218 parça

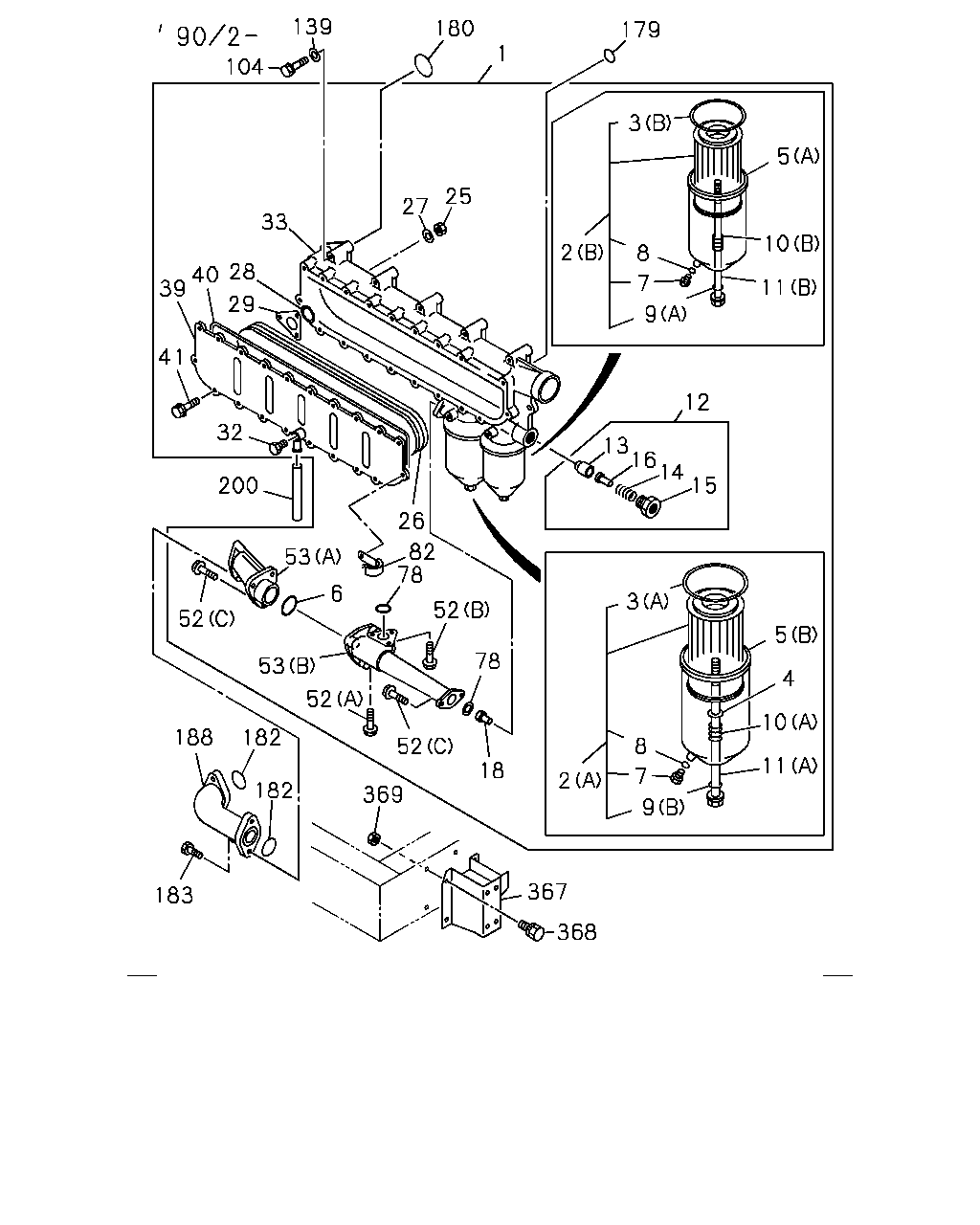

104 139 180 179 3 5 1 10 11 2 25 27 8 9 7 33 28 40 39 29 41 32 200 12 13 15 14 16 26 53 82 78 6 52 52 53 78 52 52 18 182 188 182 183 369 367 368 3 5 4 10 11 9 8 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL	1-13200-678-2	01	1	8712-9001	●
1	FILTER & COOLER ASM; OIL	1-13200-772-7	01	1	9002-9306		●
1	FILTER & COOLER ASM; OIL	1-13200-922-3	01	1	9307-		●
2	ELEMENT; OIL FILTER (A)	1-13240-056-0	01	1	8712-9001	●
2	ELEMENT; OIL FILTER (B)	1-87810-313-2	01	1	8712-9001	●
2	ELEMENT; OIL FILTER (B) TOKYO ROKI	1-13240-116-0	01	1	9002-		●
2	ELEMENT; OIL FILTER (A)	1-13240-117-1	01	1	9002-9108		●
2	ELEMENT; OIL FILTER (A)	1-13240-173-0	01	1	9109-9202		●
2	ELEMENT; OIL FILTER (A)	1-13240-179-0	01	1	9203-9310		●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-187-0	01	1	9311-		●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-200-0	01	1	9501-		●
3	GASKET	1-09623-348-0	01	1	8712-9001	●
3	GASKET (B)	1-13213-010-0	01	1	9002-		●
3	GASKET (A)	1-13213-011-2	01	1	9002-		●
4	WASHER; ELEMENT	1-13219-057-0	01	1	8712-9001	●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9002-		●
5	CASE; OIL FILTER	1-13211-104-0	01	1	8712-9001	●
5	CASE; OIL FILTER (A)	1-13211-197-0	01	1	9002-9004		●
5	CASE; OIL FILTER (A)	1-13211-198-3	01	1	9005-		●
5	CASE; OIL FILTER (B)	1-13211-199-0	01	1	9002-9004		●
5	CASE; OIL FILTER (B)	1-13211-200-3	01	1	9005-		●
6	GASKET; VLV CASE (A)	1-09623-283-0	01	1	8712-9001	●
6	GASKET; VLV CASE (B)	1-09623-419-0	01	1	8712-9001	●
6	GASKET; VLV CASE (C)	1-09623-420-0	01	1	8712-9001	●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9002-		●
7	PLUG; CENTER BOLT	9-99202-314-0	01	1	8712-9001	●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9002-		●
8	GASKET; PLUG ID=14.2	9-09571-414-0	01	1	8712-9001	●
8	GASKET; PLUG ID=11.8	9-09923-579-0	02	1	9002-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-499-0	01	1	9002-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-500-0	01	1	9002-		●
10	SPRING; ELEMENT	1-09580-387-0	01	1	8712-9001	●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9002-		●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9002-		●
11	BOLT; CENTER	1-13231-057-0	01	1	8712-9001	●
11	BOLT; CENTER (B)	1-13231-071-0	01	1	9002-		●
11	BOLT; CENTER (A)	1-13231-072-0	01	1	9002-		●
12	VALVE ASM; BYPASS	1-13260-056-0	01	1	9002-9306		●
12	VALVE ASM; BYPASS	1-13200-875-0	01	1	9307-		●
13	VALVE; RELIEF	9-13262-010-0	01	1	9002-		●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	8712-9001	●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9002-		●
15	PLUG; RELIEF VLV	1-13265-017-0	01	1	9002-9412		●
15	PLUG; RELIEF VLV	1-13265-024-0	01	1	9501-		●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	8712-	●	●
18	VALVE ASM; OIL COOLER	1-21740-004-0	01	1	8712-9001	●
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9002-		●
25	NUT; CORE TO BODY M10	9-09110-410-0	06	1	8712-	●	●
26	CORE ASM; OIL COOLER	1-21491-038-0	01	1	9002-		●
27	WASHER; PL,CORE TO BODY	9-09100-510-0	06	1	9307-		●
28	GASKET; CORE TO BODY	1-09623-560-0	02	1	9002-		●
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	9002-		●
32	PLUG; DRAIN	1-13219-151-0	01	1	9002-		●
33	HOUSING ASM; COOLER	1-21721-053-2	01	1	8712-9001	●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9002-		●
39	COVER; OIL COOLER	1-21721-050-0	01	1	8712-9001	●
39	COVER; OIL COOLER	1-21722-029-0	01	1	9002-9306		●
39	COVER; OIL COOLER	1-21722-027-0	01	1	9307-		●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-358-0	01	1	8712-9001	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9002-		●
41	BOLT; COVER FIX M8X25 W/LK&PL WASHER	9-01960-825-0	20	1	8712-9001	●
41	BOLT; COVER FIX	1-13219-260-0	20	1	9002-9306		●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9307-		●
52	BOLT; OIL INL PIPE & VLV CASE M10X35	9-01056-035-0	08	1	8712-9001	●
52	BOLT; OIL INL PIPE & VLV CASE M10X70	9-01056-070-0	01	1	8712-9001	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9002-		●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9002-		●
52	BOLT; OIL INL PIPE & VLV CASE (C)	9-02050-830-0	05	1	9002-		●
53	PIPE; OIL INL	1-21726-042-0	01	1	8712-9001	●
53	PIPE; OIL INL (A)	1-13219-273-0	01	1	9002-9306		●
53	PIPE; OIL INL (B)	1-13219-274-1	01	1	9002-9306		●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9307-		●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9307-		●
78	GASKET; PIPE	1-13219-257-0	02	1	9002-		●
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	9002-		●
104	BOLT; OIL COOLER M10X65	9-01656-065-0	06	1	8712-9001	●
104	BOLT; OIL COOLER M10X85	9-01656-085-0	01	1	8712-9001	●
104	BOLT; OIL COOLER M10X60 FLANGE	8-94399-708-1	07	1	9002-9105		●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	07	1	9106-9412		●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9501-		●
104	BOLT; OIL COOLER M10X90 FLANGE	0-28181-090-0	05	1	9501-		●
139	WASHER ID=10.2	9-09150-510-0	02	1	8712-	●	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	8712-	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-196-0	01	1	8712-9001	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9002-		●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	8712-	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X25	9-02940-825-0	04	1	8712-9001	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28020-822-0	04	1	9002-9005		●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9006-		●
188	PIPE; BYPASS	1-13312-082-0	01	1	8712-	●	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	02	1	8712-9001	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-		●
367	BRACKET; PARTIAL FILTER	1-47475-256-7	01	1	8712-	●	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	9-01911-035-0	08	1	8712-9001	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002		●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-		●
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	8712-	●	●

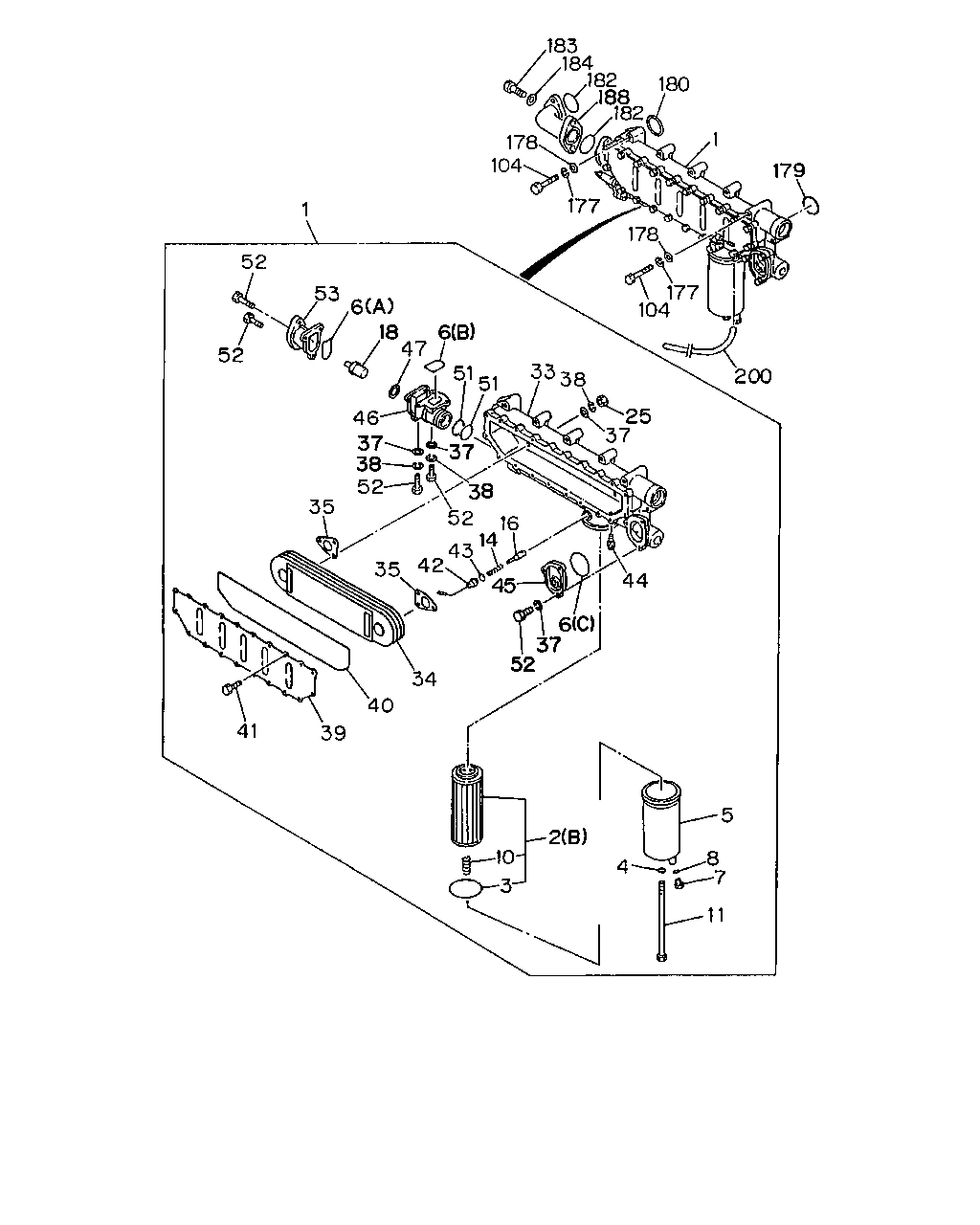

1 52 183 179 180 184 182 188 182 1 178 104 178 177 177 104 200 53 52 6 18 6 47 51 51 46 33 37 37 35 52 38 38 25 37 38 52 16 14 43 42 35 44 6 37 45 52 34 40 39 41 10 3 5 8 4 7 11 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL	1-13200-678-2	01	1	8712-9001	●
1	FILTER & COOLER ASM; OIL	1-13200-772-7	01	1	9002-9306		●
1	FILTER & COOLER ASM; OIL	1-13200-922-3	01	1	9307-		●
2	ELEMENT; OIL FILTER (A)	1-13240-056-0	01	1	8712-9001	●
2	ELEMENT; OIL FILTER (B)	1-87810-313-2	01	1	8712-9001	●
2	ELEMENT; OIL FILTER (B) TOKYO ROKI	1-13240-116-0	01	1	9002-		●
2	ELEMENT; OIL FILTER (A)	1-13240-117-1	01	1	9002-9108		●
2	ELEMENT; OIL FILTER (A)	1-13240-173-0	01	1	9109-9202		●
2	ELEMENT; OIL FILTER (A)	1-13240-179-0	01	1	9203-9310		●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-187-0	01	1	9311-		●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-200-0	01	1	9501-		●
3	GASKET	1-09623-348-0	01	1	8712-9001	●
3	GASKET (B)	1-13213-010-0	01	1	9002-		●
3	GASKET (A)	1-13213-011-2	01	1	9002-		●
4	WASHER; ELEMENT	1-13219-057-0	01	1	8712-9001	●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9002-		●
5	CASE; OIL FILTER	1-13211-104-0	01	1	8712-9001	●
5	CASE; OIL FILTER (A)	1-13211-197-0	01	1	9002-9004		●
5	CASE; OIL FILTER (A)	1-13211-198-3	01	1	9005-		●
5	CASE; OIL FILTER (B)	1-13211-199-0	01	1	9002-9004		●
5	CASE; OIL FILTER (B)	1-13211-200-3	01	1	9005-		●
6	GASKET; VLV CASE (A)	1-09623-283-0	01	1	8712-9001	●
6	GASKET; VLV CASE (B)	1-09623-419-0	01	1	8712-9001	●
6	GASKET; VLV CASE (C)	1-09623-420-0	01	1	8712-9001	●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9002-		●
7	PLUG; CENTER BOLT	9-99202-314-0	01	1	8712-9001	●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9002-		●
8	GASKET; PLUG ID=14.2	9-09571-414-0	01	1	8712-9001	●
8	GASKET; PLUG ID=11.8	9-09923-579-0	02	1	9002-		●
10	SPRING; ELEMENT	1-09580-387-0	01	1	8712-9001	●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9002-		●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9002-		●
11	BOLT; CENTER	1-13231-057-0	01	1	8712-9001	●
11	BOLT; CENTER (B)	1-13231-071-0	01	1	9002-		●
11	BOLT; CENTER (A)	1-13231-072-0	01	1	9002-		●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	8712-9001	●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9002-		●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	8712-	●	●
18	VALVE ASM; OIL COOLER	1-21740-004-0	01	1	8712-9001	●
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9002-		●
25	NUT; CORE TO BODY M10	9-09110-410-0	06	1	8712-	●	●
33	HOUSING ASM; COOLER	1-21721-053-2	01	1	8712-9001	●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9002-		●
34	CORE ASM; OIL COOLER	1-21723-032-0	01	1	8712-9001	●
35	GASKET; ELEMENT TO COOLER	1-21729-072-0	02	1	8712-9001	●
37	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	15	1	8712-9001	●
38	WASHER; LK,OIL COOLER	9-09150-510-0	15	1	8712-9001	●
39	COVER; OIL COOLER	1-21721-050-0	01	1	8712-9001	●
39	COVER; OIL COOLER	1-21722-029-0	01	1	9002-9306		●
39	COVER; OIL COOLER	1-21722-027-0	01	1	9307-		●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-358-0	01	1	8712-9001	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9002-		●
41	BOLT; COVER FIX M8X25 W/LK&PL WASHER	9-01960-825-0	20	1	8712-9001	●
41	BOLT; COVER FIX	1-13219-260-0	20	1	9002-9306		●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9307-		●
42	CHAMBER ASM; SWITCH,FILTER	1-13260-055-1	01	1	8712-9001	●
43	GASKET; SWITCH CHAMBER	1-09630-114-0	01	1	8712-9001	●
44	COCK ASM; WATER DRAIN	1-09680-044-1	01	1	8712-9001	●
45	COVER; OIL PORT	1-21722-021-0	01	1	8712-9001	●
46	CASE; THERMO VLV	1-21726-041-0	01	1	8712-9001	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	8712-9001	●
51	GASKET; VLV CASE	1-09623-196-0	02	1	8712-9001	●
52	BOLT; OIL INL PIPE & VLV CASE M10X35	9-01056-035-0	08	1	8712-9001	●
52	BOLT; OIL INL PIPE & VLV CASE M10X70	9-01056-070-0	01	1	8712-9001	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9002-		●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9002-		●
52	BOLT; OIL INL PIPE & VLV CASE (C)	9-02050-830-0	05	1	9002-		●
53	PIPE; OIL INL	1-21726-042-0	01	1	8712-9001	●
53	PIPE; OIL INL (A)	1-13219-273-0	01	1	9002-9306		●
53	PIPE; OIL INL (B)	1-13219-274-1	01	1	9002-9306		●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9307-		●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9307-		●
104	BOLT; OIL COOLER M10X65	9-01656-065-0	06	1	8712-9001	●
104	BOLT; OIL COOLER M10X85	9-01656-085-0	01	1	8712-9001	●
104	BOLT; OIL COOLER M10X60 FLANGE	8-94399-708-1	07	1	9002-9105		●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	07	1	9106-9412		●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9501-		●
104	BOLT; OIL COOLER M10X90 FLANGE	0-28181-090-0	05	1	9501-		●
177	WASHER; LK,FILLER ID=10.2	9-09150-510-0	07	1	8712-9001	●
178	WASHER; PL,FILLER ID=10.5 OD=18	9-09160-510-0	07	1	8712-9001	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	8712-	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-196-0	01	1	8712-9001	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9002-		●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	8712-	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X25	9-02940-825-0	04	1	8712-9001	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28020-822-0	04	1	9002-9005		●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9006-		●
184	WASHER; PL,CONNECTOR	5-09503-135-0	04	1	8712-9001	●
188	PIPE; BYPASS	1-13312-082-0	01	1	8712-	●	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	02	1	8712-9001	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-		●

449 134 131 135 130 136 133 132 2 130 145 132 368 367 140 140 362 139 361 452 359 138 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (A)	1-13240-056-0	01	1	8712-9001	●
2	ELEMENT; OIL FILTER (B)	1-87810-313-2	01	1	8712-9001	●
2	ELEMENT; OIL FILTER (B) TOKYO ROKI	1-13240-116-0	01	1	9002-		●
2	ELEMENT; OIL FILTER (A)	1-13240-117-1	01	1	9002-9108		●
2	ELEMENT; OIL FILTER (A)	1-13240-173-0	01	1	9109-9202		●
2	ELEMENT; OIL FILTER (A)	1-13240-179-0	01	1	9203-9310		●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-187-0	01	1	9311-		●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-200-0	01	1	9501-		●
130	GASKET; PARTIAL OIL FILTER ID=9.8	1-09623-055-0	02	1	8712-9001	●
131	GASKET; PARTIAL OIL FILTER	1-13213-006-0	01	1	8712-9001	●
132	PLUG; PARTIAL OIL FILTER M10	1-09000-105-0	02	1	8712-9001	●
133	COVER; PARTIAL OIL FILTER	1-13212-034-0	01	1	8712-9001	●
134	CLAMP; PARTIAL OIL FILTER	1-13219-010-0	01	1	8712-9001	●
135	WASHER; PARTIAL OIL FILTER ID=10.5	9-09164-510-0	01	1	8712-9001	●
136	BOLT; PARTIAL OIL FILTER	1-09029-021-0	01	1	8712-9001	●
138	NUT M10	9-09110-410-0	02	1	8712-9001	●
139	WASHER ID=10.2	9-09150-510-0	02	1	8712-	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER (A)	1-09650-179-0	01	1	8712-9001	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER (B)	1-09650-180-0	01	1	8712-9001	●
145	PLUG; FILTER	1-09605-024-0	02	1	8712-9001	●
359	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	9-01911-030-0	04	1	8712-9001	●
361	BOLT; PARTIAL OIL FILTER M10X40 W/LK&PL WASHER	9-01971-040-0	02	1	8712-9001	●
362	NUT; OIL FILTER M10	9-09110-410-0	04	1	8712-9001	●
367	BRACKET; PARTIAL FILTER	1-47475-256-7	01	1	8712-	●	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	9-01911-035-0	08	1	8712-9001	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002		●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-		●
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	8712-	●	●
449	FILTER ASM; OIL PARTIAL	1-13200-560-1	01	1	8712-9001	●
452	BRACKET; PARTIAL OIL FILTER	1-13219-131-4	01	1	8712-9001	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
