Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#44493) — 60 parça

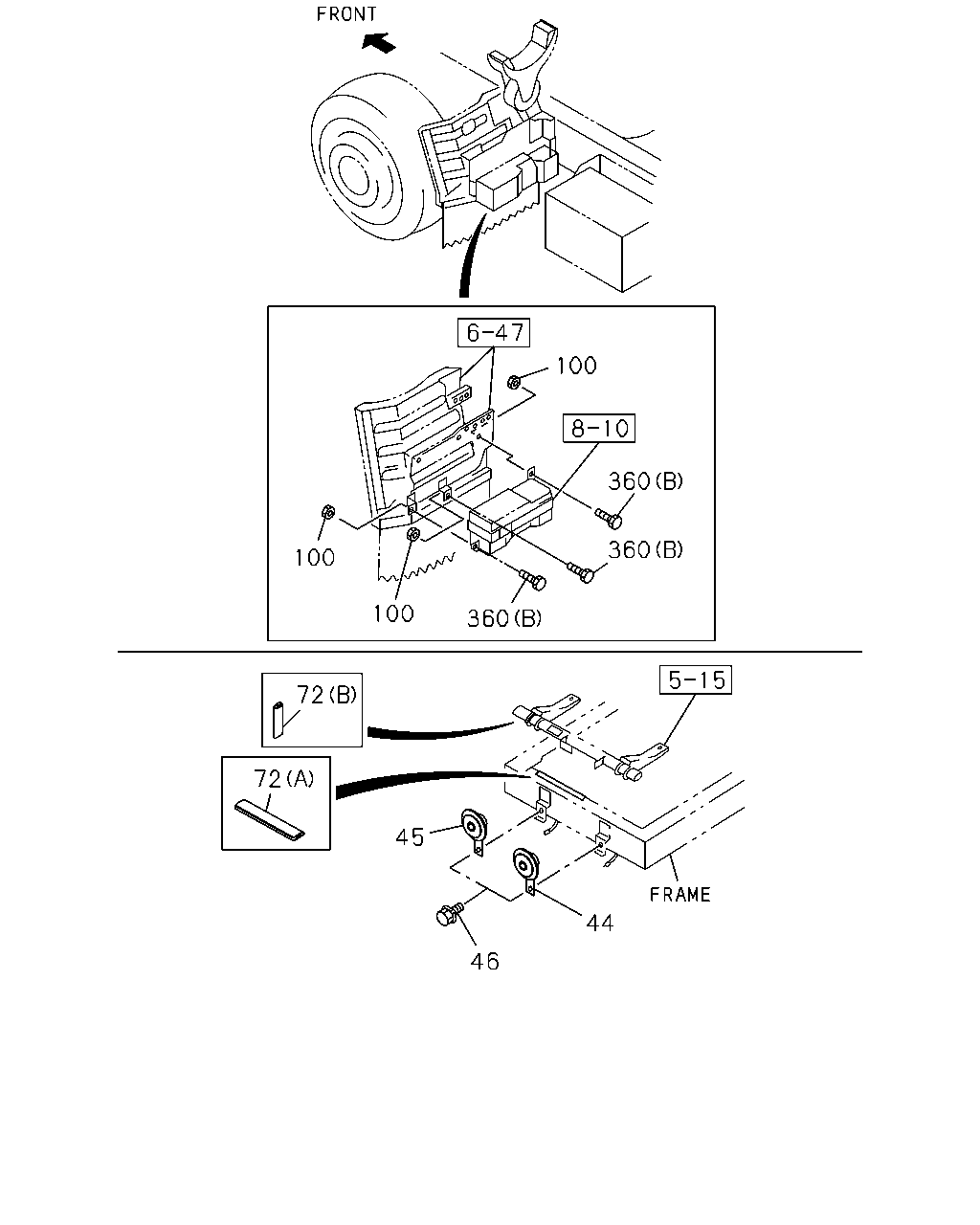

100 360 360 100 100 360 72 72 45 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> THA	8-97910-356-0	01	1	0508-	●	●	●
45	HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> THA	8-97910-357-0	01	1	0508-	●	●	●
46	BOLT; HORN TO BODY DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0508-	●	●	●
46	BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0508-	●	●	●
72	PROTECTOR; RELAY PTO TRANSMISSION SIDE<V66> (A) L=65	8-94235-856-0	01	1	0508-	●	●	●
72	PROTECTOR; RELAY PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200	8-97096-423-0	01	1	0508-0509	●
72	PROTECTOR; RELAY PTO TRANSMISSION SIDE<V66> (B) L=200	8-97096-423-0	01	1	0508-0509		●
72	PROTECTOR; RELAY PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=200	8-97096-423-0	01	1	0510-	●	●
72	PROTECTOR; RELAY 4HK1-TCS ENG<RJS> PTO TRANSMISSION SIDE<V66> (B) L=200	8-97096-423-0	01	1	0510-	●		●
100	NUT; RELAY BOX COVER 4HG1-T ENG<RDP> EXC. TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	02	1	0508-	●
100	NUT; RELAY BOX COVER 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	02	1	0508-		●
100	NUT; RELAY BOX COVER 4HE1-TCS ENG<RDS> M8 FLANGE	0-91150-108-0	03	1	0508-0509	●		●
100	NUT; RELAY BOX COVER 4HG1-T ENG<RDP> TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	03	1	0508-0509	●
100	NUT; RELAY BOX COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M8 FLANGE	0-91150-108-0	03	1	0510-	●		●
100	NUT; RELAY BOX COVER 4HG1-T ENG<RDP> TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	03	1	0510-	●
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER THA	8-94139-963-0	02	1	0508-1210	●	●	●
360	BOLT; RELAY BOX (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●	●
360	BOLT; RELAY BOX 4HE1-TCS ENG<RDS> (B) M8X25 FLANGE	0-28680-825-0	03	1	0508-0508	●		●
360	BOLT; RELAY BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B) M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●	●	●
360	BOLT; RELAY BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●	●
360	BOLT; RELAY BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE	0-28680-825-0	04	1	0508-0509	●	●	●
360	BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE	0-28680-825-0	03	1	0510-0510	●		●
360	BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> (B) M8X20 FLANGE	0-28080-820-0	03	1	0510-0611	●		●
360	BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> (B) M8X20 FLANGE THA	0-28050-820-0	03	1	0612-	●		●
360	BOLT; RELAY BOX 4HE1-TCS ENG<RDS> (B) M8X25 FLANGE	0-28680-825-0	03	1	0508-0509	●		●
360	BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE	0-28680-825-0	04	1	0510-0611	●		●
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	04	1	0510-0611		●
360	BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE THA	0-28650-825-0	04	1	0612-	●		●
360	BOLT; RELAY BOX (B) M8X25 FLANGE THA	0-28650-825-0	04	1	0612-		●
584	SENSOR; PRESSURE 4HK1-TCS ENG<RJS>	8-09350-899-1	01	1	0510-0810	●		●
584	SENSOR; PRESSURE 4HK1-TCS ENG<RJS>	8-28180-175-0	01	1	0811-	●		●

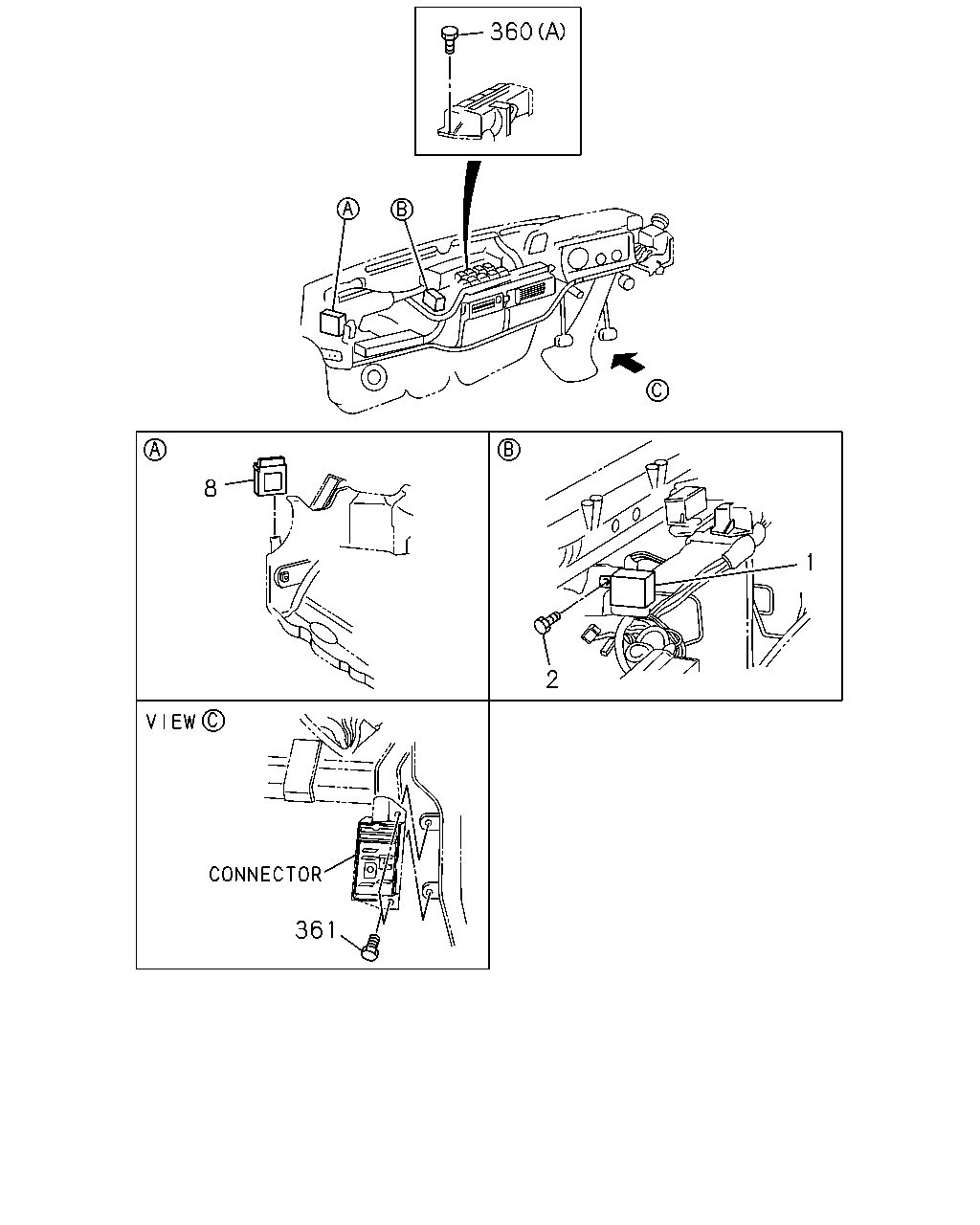

360 8 1 2 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	UNIT; FLASHER	8-97360-084-1	01	1	0508-	●	●	●
2	BOLT; FLASHER UNIT M6X16 W/LK&PL WASHER THA	8-94139-963-0	01	1	0508-1210	●	●	●
2	BOLT; FLASHER UNIT M6X19.5 W/LK&PL WASHER	8-97360-226-0	01	1	1211-	●	●	●
8	RELAY; WIPER INTERMITTENT WIPER<C13>	8-97363-983-0	01	1	0508-	●	●	●
360	BOLT; RELAY BOX (A) M6X16 W/LK&PL WASHER THA	8-94139-963-0	02	1	0508-1210	●	●	●
360	BOLT; RELAY BOX (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●	●
360	BOLT; RELAY BOX 4HE1-TCS ENG<RDS> (B) M8X25 FLANGE	0-28680-825-0	03	1	0508-0508	●		●
360	BOLT; RELAY BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B) M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●	●	●
360	BOLT; RELAY BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●	●
360	BOLT; RELAY BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE	0-28680-825-0	04	1	0508-0509	●	●	●
360	BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE	0-28680-825-0	03	1	0510-0510	●		●
360	BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> (B) M8X20 FLANGE	0-28080-820-0	03	1	0510-0611	●		●
360	BOLT; RELAY BOX TIRE SIZE 8.25-16<7QP> (B) M8X20 FLANGE THA	0-28050-820-0	03	1	0612-	●		●
360	BOLT; RELAY BOX 4HE1-TCS ENG<RDS> (B) M8X25 FLANGE	0-28680-825-0	03	1	0508-0509	●		●
360	BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE	0-28680-825-0	04	1	0510-0611	●		●
360	BOLT; RELAY BOX (B) M8X25 FLANGE	0-28680-825-0	04	1	0510-0611		●
360	BOLT; RELAY BOX EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE THA	0-28650-825-0	04	1	0612-	●		●
360	BOLT; RELAY BOX (B) M8X25 FLANGE THA	0-28650-825-0	04	1	0612-		●
361	BOLT; CONNECTOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0508-1210	●	●	●
361	BOLT; CONNECTOR M6X19.5 W/LK&PL WASHER	8-97360-226-0	03	1	1211-	●	●	●
584	SENSOR; PRESSURE 4HK1-TCS ENG<RJS>	8-09350-899-1	01	1	0510-0810	●		●
584	SENSOR; PRESSURE 4HK1-TCS ENG<RJS>	8-28180-175-0	01	1	0811-	●		●

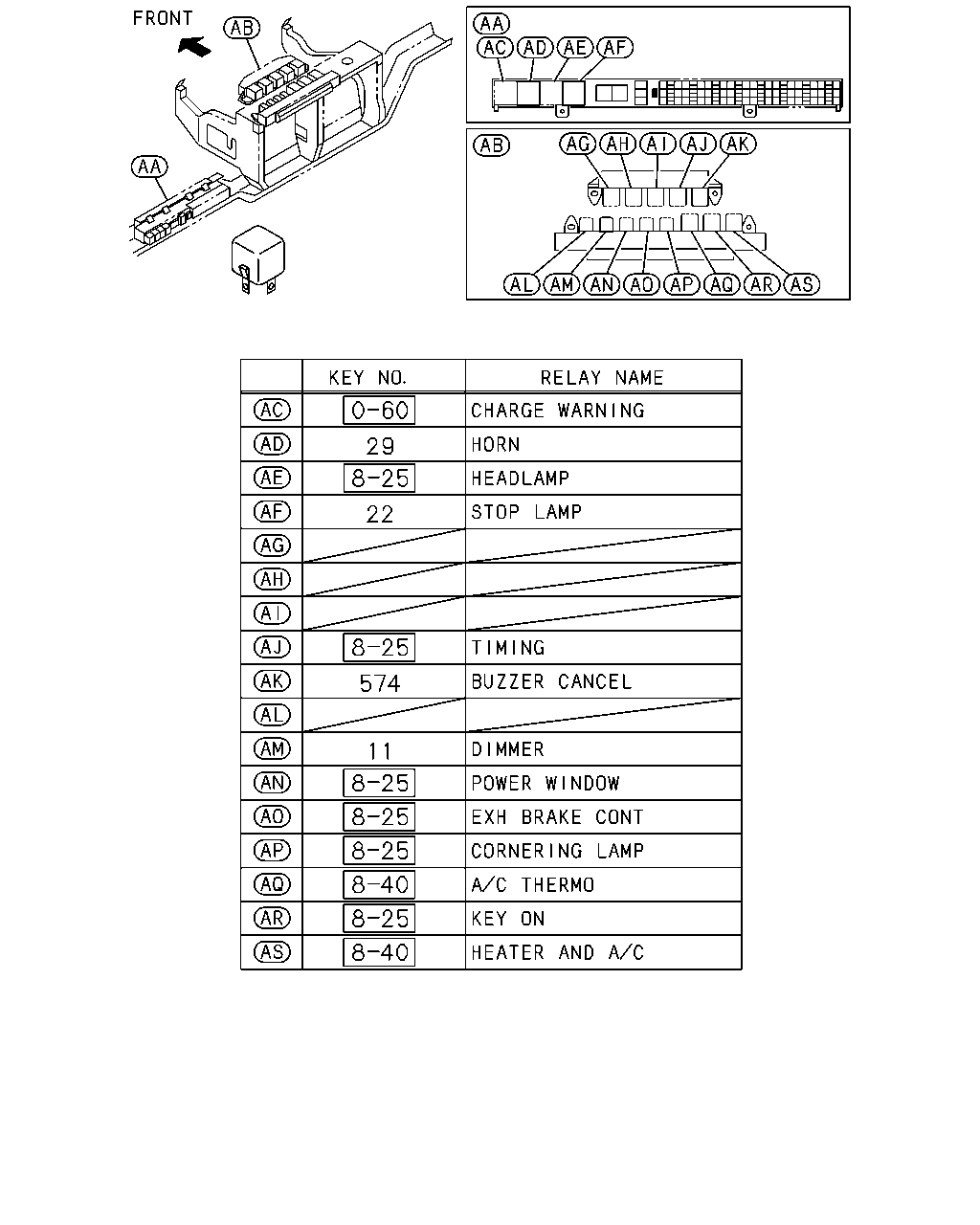

29 22 574 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	RELAY; DIMMER 24V 10A MATSUSHITA	8-97173-035-1	01	1	0508-	●	●	●
22	RELAY; STOP LAMP 24V 10A MATSUSHITA	8-97173-035-1	01	1	0508-	●	●	●
29	RELAY; HORN 24V 10A MATSUSHITA	8-97173-035-1	01	1	0508-	●	●	●
574	RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0508-	●
574	RELAY; CANCEL,BUZZER 24V 10A MATSUSHITA	8-97173-035-1	01	1	0508-			●
584	SENSOR; PRESSURE 4HK1-TCS ENG<RJS>	8-09350-899-1	01	1	0510-0810	●		●
584	SENSOR; PRESSURE 4HK1-TCS ENG<RJS>	8-28180-175-0	01	1	0811-	●		●
