8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#44492) — 17 parça

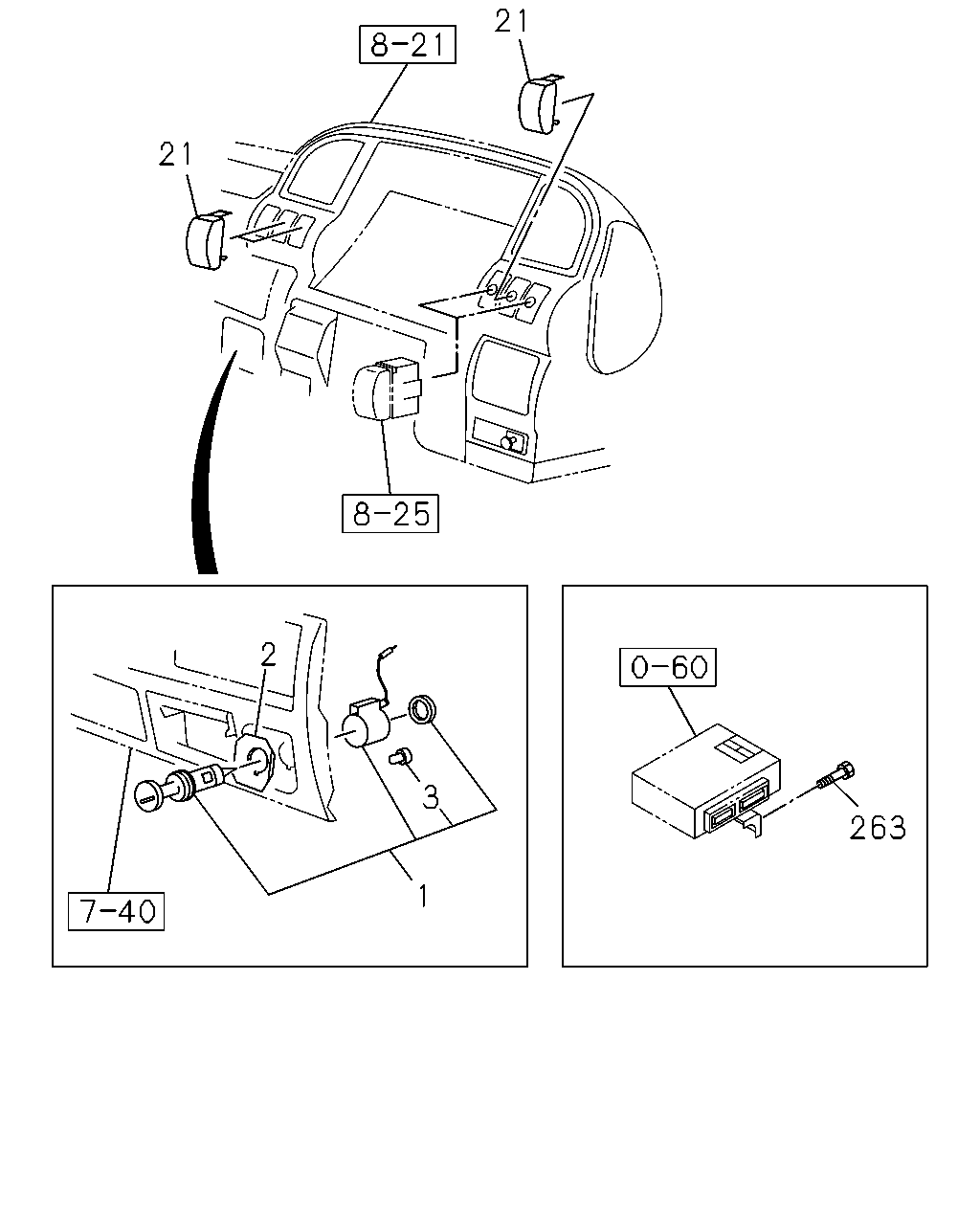

çizim 119153
21 21 2 3 263 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0508- ● ● ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0508-0706 ● ● ●
2 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0508- ● ● ●
21 COVER; HOLE
FLOOR REMOTE SHIFT<M11> 		8-97136-694-0 01 1 0508- ●
21 COVER; HOLE 8-97136-694-0 01 1 0508- ● ●
21 COVER; HOLE 8-97136-694-0 02 1 0508- ● ● ●
263 BOLT; CONT UNIT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M6X20 		0-28280-620-0 02 1 0508-0512 ● ● ●
263 BOLT; CONT UNIT
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M6X20 FLANGE 		0-28250-620-0 02 1 0601- ● ● ●

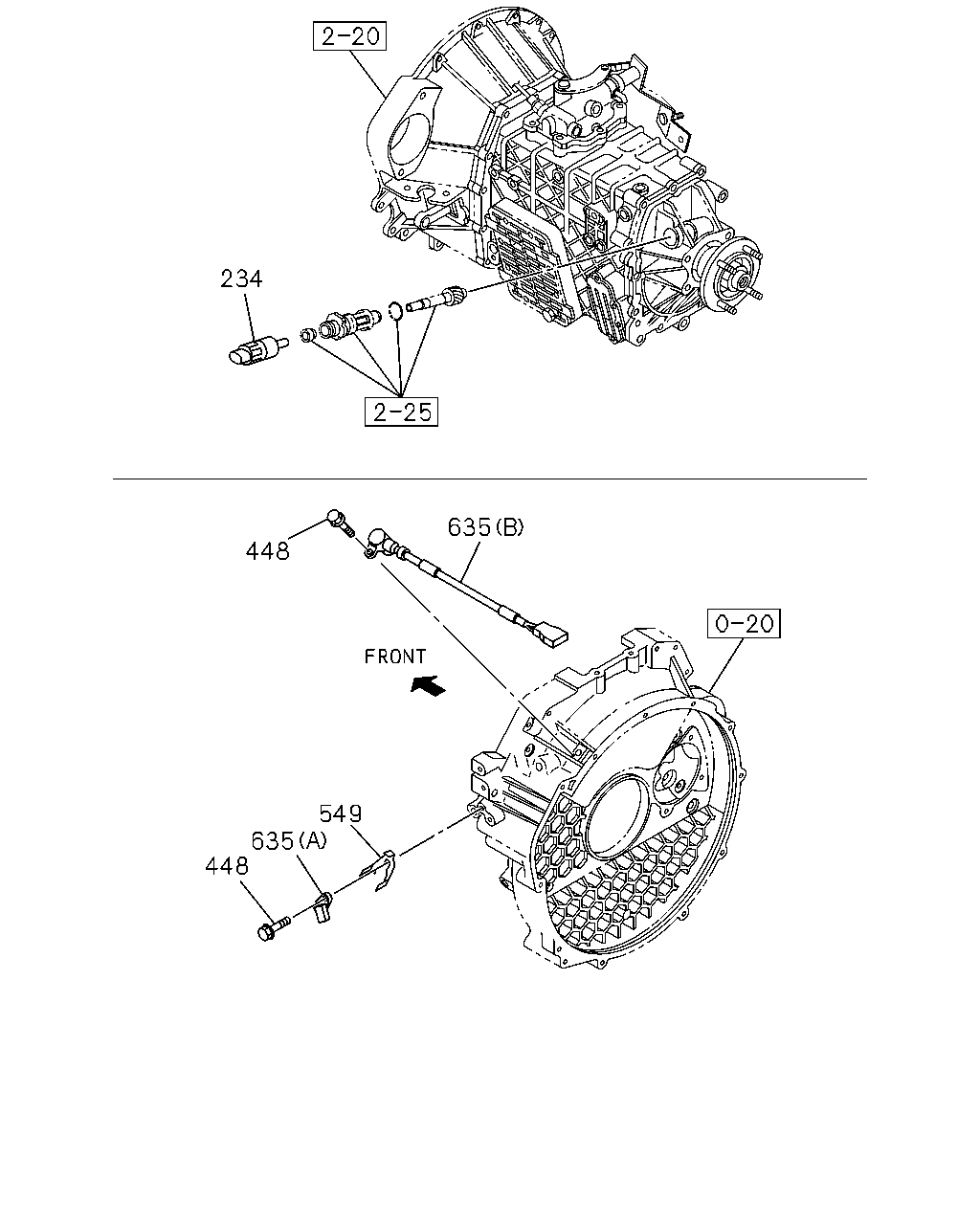

çizim 119155
234 635 448 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 4 PULSE ALUMINUM 		8-97256-525-0 01 1 0508- ● ● ●
234 SENSOR; VEHICLE SPD
4HK1-TCS ENG<RJS> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0510- ● ●
448 BOLT; SENSOR
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M6X16 FLANGE 		0-28080-616-0 01 1 0508-0509 ● ● ●
448 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0510-0512 ● ● ●
448 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 0601- ● ● ●
549 SHEET
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 		8-97161-633-2 01 1 0508- ● ● ●
635 SENSOR; TACHOMETER
4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (B) DENSO 		8-97306-113-1 01 1 0510- ● ●
635 SENSOR; TACHOMETER
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) YAZAKI 		8-97214-325-0 01 1 0508- ● ● ●
