Sayfa 8-15 - Isuzu EPC

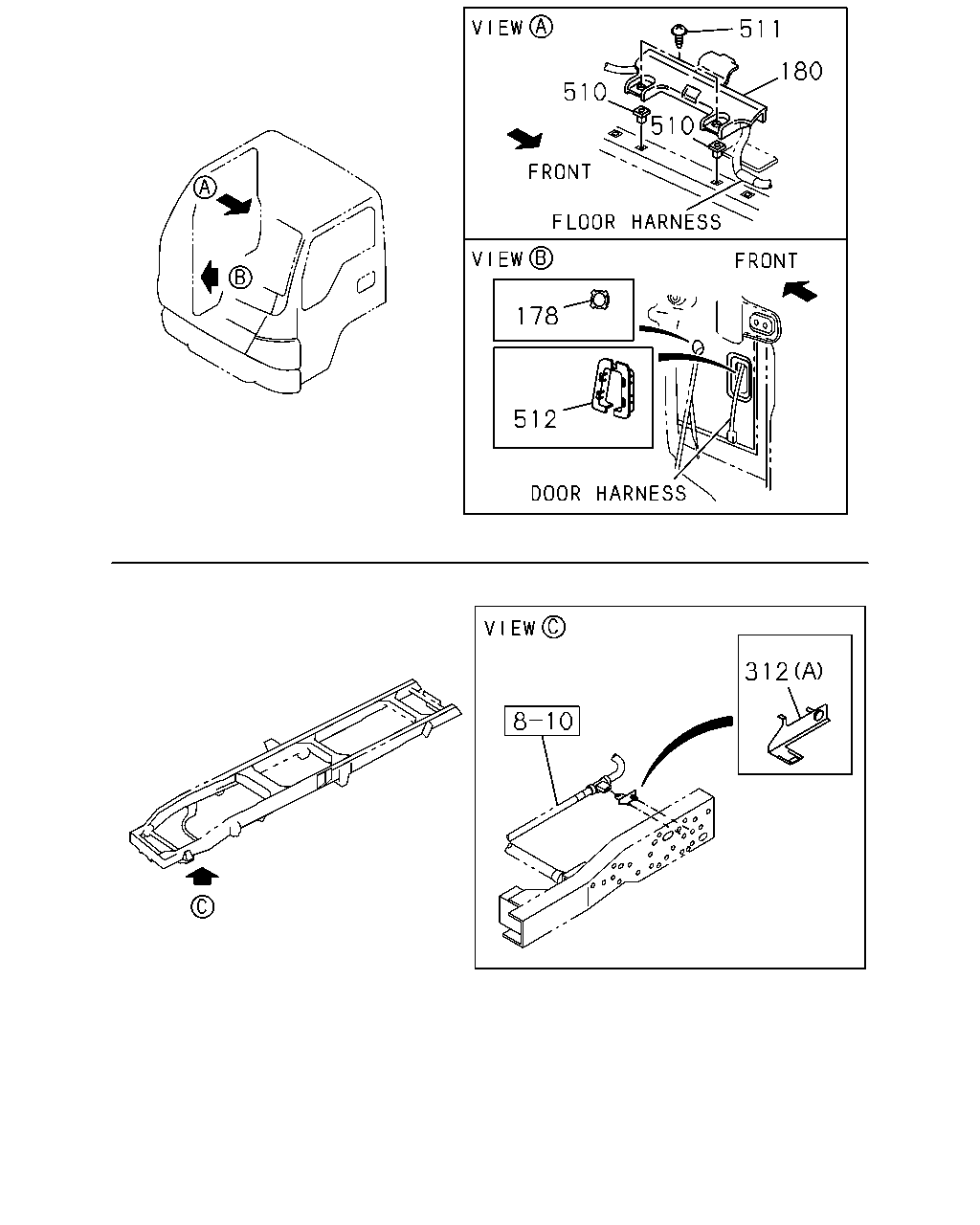

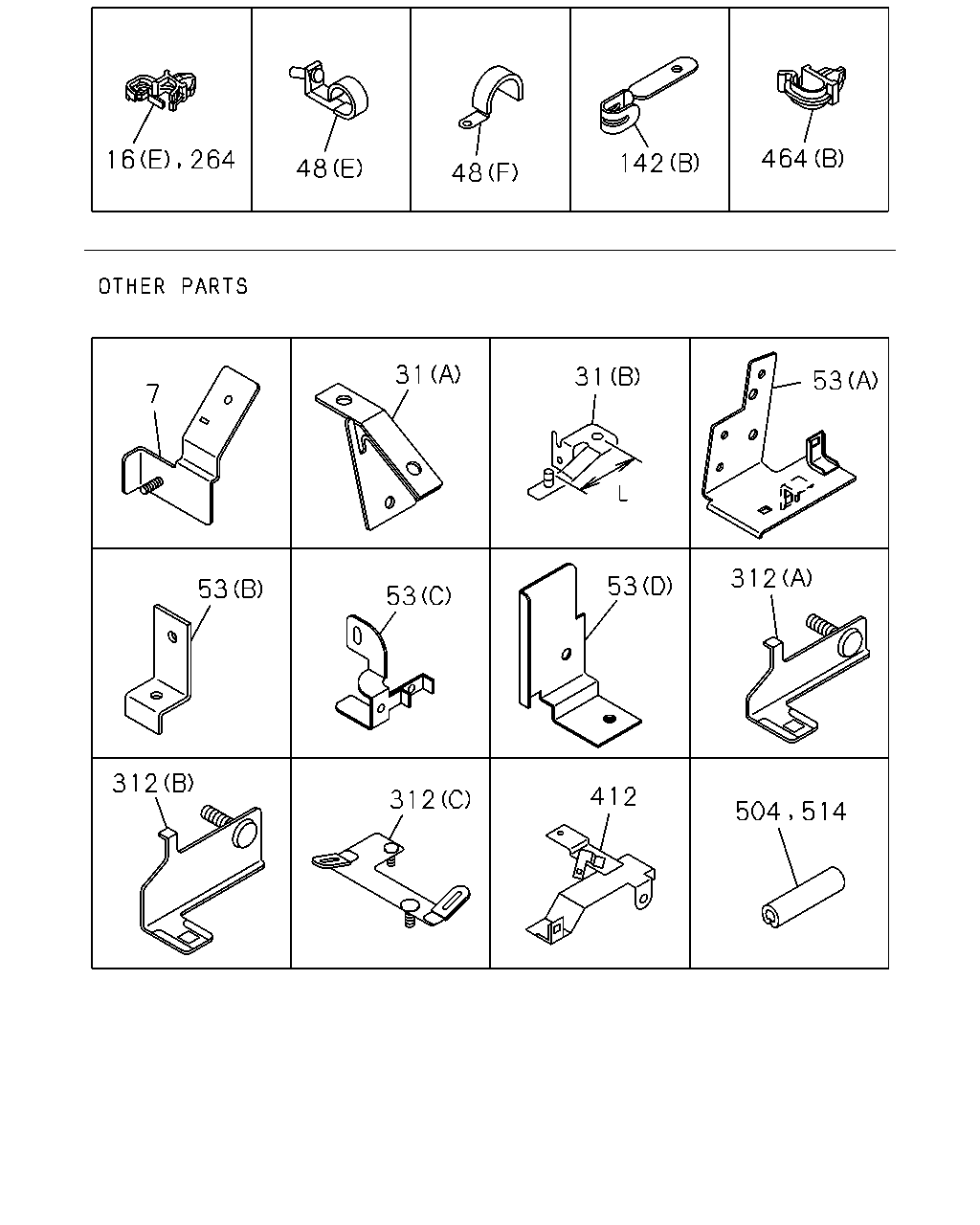

8-15 — FIXING PARTS; WIRING HARNESS (#44489) — 471 parça

38 150 139 150 38 38 19 38 139 386 377 239 219 294 515 219 294 515 219 294 469 519 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	01	1	0508-0611	●
19	BOLT; PROTECTOR M10X35 FLANGE	0-28681-035-0	01	1	0508-0611		●
19	BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE THA	0-28651-035-0	01	1	0612-	●
19	BOLT; PROTECTOR M10X35 FLANGE THA	0-28651-035-0	01	1	0612-		●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) M8X30 FLANGE	0-28680-830-0	01	1	0508-0611	●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> (A) M8X30 FLANGE	0-28680-830-0	01	1	0508-0611		●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0612-	●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0612-		●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M6X25 FLANGE	0-28680-625-0	01	1	0508-0512	●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> (C) M6X25 FLANGE	0-28680-625-0	01	1	0508-0512			●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M6X25 FLANGE THA	0-28650-625-0	01	1	0601-	●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> (C) M6X25 FLANGE THA	0-28650-625-0	01	1	0601-			●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10X35 FLANGE	0-28681-035-0	01	1	0508-0512	●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> (B) M10X35 FLANGE	0-28681-035-0	01	1	0508-0512			●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10X35 FLANGE THA	0-28651-035-0	01	1	0601-	●
38	BOLT; CLIP,HARNESS 4HG1-T ENG<RDP> (B) M10X35 FLANGE THA	0-28651-035-0	01	1	0601-			●
38	BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C) M6X25 FLANGE	0-28680-625-0	02	1	0508-0512	●
38	BOLT; CLIP,HARNESS (C) M6X25 FLANGE	0-28680-625-0	02	1	0508-0512			●
38	BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C) M6X25 FLANGE THA	0-28650-625-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS (C) M6X25 FLANGE THA	0-28650-625-0	02	1	0601-			●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0508-0508	●	●	●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> (D) M8X25 FLANGE	0-28680-825-0	01	1	0508-0508	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0508-0508		●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0509-0509	●	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0509-0509		●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0510-0512	●	●	●
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG<RJS> (D) M8X25 FLANGE	0-28680-825-0	01	1	0510-0512	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0510-0512		●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE THA	0-28650-825-0	01	1	0601-	●	●	●
38	BOLT; CLIP,HARNESS 4HK1-TCS ENG<RJS> (D) M8X25 FLANGE THA	0-28650-825-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE THA	0-28650-825-0	01	1	0601-		●	●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) M8X30 FLANGE	0-28680-830-0	01	1	0508-0512	●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> (A) M8X30 FLANGE	0-28680-830-0	01	1	0508-0512		●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0601-	●
38	BOLT; CLIP,HARNESS 4HE1-TCS ENG<RDS> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0601-		●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	03	1	0508-0512	●	●	●
139	BOLT; BRKT (B) M8X16 FLANGE THA	0-28050-816-0	03	1	0601-	●	●	●
139	BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0508-	●
139	BOLT; BRKT (A)	8-97028-451-3	01	1	0508-			●
139	BOLT; BRKT 4HK1-TCS ENG<RJS> (B) M8X16 FLANGE	0-28080-816-0	01	1	0510-0512	●	●
139	BOLT; BRKT 4HK1-TCS ENG<RJS> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●	●
139	BOLT; BRKT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) M8X16 FLANGE THA	0-28050-816-0	03	1	0612-	●	●	●
150	BOLT; CLIP 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (A) M8X12 FLANGE	0-28080-812-0	01	1	0510-0512	●	●
150	BOLT; CLIP 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (A) M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●	●
150	BOLT; CLIP 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE	0-28080-816-0	01	1	0510-0512	●	●
150	BOLT; CLIP 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●	●
219	NUT 4HK1-TCS ENG<RJS> (B) M6 FLANGE	0-91150-106-0	04	1	0510-0605	●	●
219	NUT 4HK1-TCS ENG<RJS> (B) M6 FLANGE THA	0-91180-106-0	04	1	0606-	●	●
219	NUT 4HE1-TCS ENG<RDS> (C) M8 FLANGE	0-91150-108-0	02	1	0508-0509	●	●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0510-0510	●	●	●
219	NUT 4HE1-TCS ENG<RDS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0510	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0510	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0510	●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0510-0510		●
219	NUT 4HE1-TCS ENG<RDS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0510		●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0510-	●	●	●
219	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0510-	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0510-	●
219	NUT 4HK1-TCS ENG<RJS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-	●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0510-		●
219	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-		●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0508-0509	●	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0508-0509	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0508-0509	●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0508-0509		●
219	NUT 4HE1-TCS ENG<RDS> (C) M8 FLANGE	0-91150-108-0	01	1	0508-0509		●
219	NUT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	01	1	0508-0602	●
219	NUT 4HG1-T ENG<RDP> (B) M6 FLANGE	0-91150-106-0	01	1	0508-0602			●
219	NUT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	01	1	0603-	●
219	NUT 4HG1-T ENG<RDP> (B) M6 FLANGE THA	0-91180-106-0	01	1	0603-			●
219	NUT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	01	1	0508-0602	●
219	NUT 4HG1-T ENG<RDP> (A) M10 FLANGE	0-91150-110-0	01	1	0508-0602			●
219	NUT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
219	NUT 4HG1-T ENG<RDP> (A) M10 FLANGE THA	0-91180-110-0	01	1	0603-			●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	02	1	0508-0602	●
219	NUT 4HE1-TCS ENG<RDS> (B) M6 FLANGE	0-91150-106-0	02	1	0508-0602		●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	02	1	0603-	●
219	NUT 4HE1-TCS ENG<RDS> (B) M6 FLANGE THA	0-91180-106-0	02	1	0603-		●
219	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	04	1	0508-0509	●
219	NUT (B) M6 FLANGE	0-91150-106-0	04	1	0508-0509			●
219	NUT 4HK1-TCS ENG<RJS> (B) M6 FLANGE	0-91150-106-0	04	1	0510-0602	●	●
219	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	04	1	0510-0602	●
219	NUT (B) M6 FLANGE	0-91150-106-0	04	1	0510-0602			●
219	NUT 4HK1-TCS ENG<RJS> (B) M6 FLANGE THA	0-91180-106-0	04	1	0603-	●	●
219	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	04	1	0603-	●
219	NUT (B) M6 FLANGE THA	0-91180-106-0	04	1	0603-			●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0508-0508	●	●	●
219	NUT 4HE1-TCS ENG<RDS> (C) M8 FLANGE	0-91150-108-0	01	1	0508-0508	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0508-0508	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0508-0508	●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0508-0508		●
219	NUT 4HE1-TCS ENG<RDS> (C) M8 FLANGE	0-91150-108-0	01	1	0508-0508		●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0509-0509	●	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0509-0509	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0509-0509	●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0509-0509		●
219	NUT 4HE1-TCS ENG<RDS> (C) M8 FLANGE	0-91150-108-0	01	1	0509-0509		●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0510-0602	●	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0602	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0602	●
219	NUT 4HK1-TCS ENG<RJS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0602	●
219	NUT (C) M8 FLANGE	0-91150-108-0	01	1	0510-0602		●
219	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0602		●
219	NUT (C) M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●	●
219	NUT FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE THA	0-91180-108-0	01	1	0603-	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) M8 FLANGE THA	0-91180-108-0	01	1	0603-	●
219	NUT 4HK1-TCS ENG<RJS> (C) M8 FLANGE THA	0-91180-108-0	01	1	0603-	●
219	NUT (C) M8 FLANGE THA	0-91180-108-0	01	1	0603-		●
219	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (C) M8 FLANGE THA	0-91180-108-0	01	1	0603-		●
219	NUT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	02	1	0508-0605	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	02	1	0508-0605	●
219	NUT 4HG1-T ENG<RDP> (B) M6 FLANGE	0-91150-106-0	02	1	0508-0605			●
219	NUT 4HE1-TCS ENG<RDS> (B) M6 FLANGE	0-91150-106-0	02	1	0508-0605		●
219	NUT 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	02	1	0606-0612	●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	02	1	0606-0612	●
219	NUT 4HG1-T ENG<RDP> (B) M6 FLANGE THA	0-91180-106-0	02	1	0606-0612			●
219	NUT 4HE1-TCS ENG<RDS> (B) M6 FLANGE THA	0-91180-106-0	02	1	0606-0612		●
219	NUT 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	02	1	0701-	●
219	NUT 4HE1-TCS ENG<RDS> (B) M6 FLANGE THA	0-91180-106-0	02	1	0701-		●
219	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE	0-91150-106-0	03	1	0508-0605	●
219	NUT (B) M6 FLANGE	0-91150-106-0	03	1	0508-0605			●
219	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	03	1	0606-0612	●
219	NUT (B) M6 FLANGE THA	0-91180-106-0	03	1	0606-0612			●
219	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M6 FLANGE THA	0-91180-106-0	03	1	0701-	●
219	NUT 4HG1-T ENG<RDP> (B) M6 FLANGE THA	0-91180-106-0	03	1	0701-			●
239	BOLT; GRAND M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0508-	●	●	●
294	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0508-0509	●	●	●
294	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0508-0509	●
294	NUT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) M6 FLANGE	0-91150-106-0	01	1	0508-0509	●
294	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0508-0509			●
294	NUT 4HG1-T ENG<RDP> (A) M6 FLANGE	0-91150-106-0	01	1	0508-0509			●
294	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0510-0602	●	●	●
294	NUT 4HK1-TCS ENG<RJS> (A) M6 FLANGE	0-91150-106-0	01	1	0510-0602	●	●
294	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0510-0602	●
294	NUT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) M6 FLANGE	0-91150-106-0	01	1	0510-0602	●
294	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0510-0602			●
294	NUT 4HG1-T ENG<RDP> (A) M6 FLANGE	0-91150-106-0	01	1	0510-0602			●
294	NUT (A) M6 FLANGE THA	0-91180-106-0	01	1	0603-	●	●	●
294	NUT 4HK1-TCS ENG<RJS> (A) M6 FLANGE THA	0-91180-106-0	01	1	0603-	●	●
294	NUT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE THA	0-91180-106-0	01	1	0603-	●
294	NUT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) M6 FLANGE THA	0-91180-106-0	01	1	0603-	●
294	NUT (A) M6 FLANGE THA	0-91180-106-0	01	1	0603-			●
294	NUT 4HG1-T ENG<RDP> (A) M6 FLANGE THA	0-91180-106-0	01	1	0603-			●
294	NUT (C) M8 FLANGE	0-91150-108-0	02	1	0508-0602	●	●	●
294	NUT (C) M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●	●
294	NUT (B) M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●	●
294	NUT (B) M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●	●
294	NUT 4HK1-TCS ENG<RJS> (C) M8 FLANGE	0-91150-108-0	01	1	0510-0602	●	●
294	NUT 4HK1-TCS ENG<RJS> (C) M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●
294	NUT (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-	●		●
294	NUT EXC. HYDRO BRAKE BOOSTER<7QQ> (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-	●
294	NUT (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-	●
294	NUT 4HG1-T ENG<RDP> (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-			●
294	NUT 4HG1-T ENG<RDP> (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-			●
294	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-		●
294	NUT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-		●
377	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0508-	●	●	●
386	BOLT; GRAND HARNESS M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0508-	●	●	●
469	NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●
469	NUT; PROTECTOR M10 FLANGE	0-91150-110-0	01	1	0508-0602		●
469	NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
469	NUT; PROTECTOR M10 FLANGE THA	0-91180-110-0	01	1	0603-		●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0508-0510	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. TOOL & STORAGE BOX<VK2> (B) M8 FLANGE	0-91150-108-0	01	1	0508-0510	●
515	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0508-0510		●
515	NUT; BRKT EXC. TOOL & STORAGE BOX<VK2> (B) M8 FLANGE	0-91150-108-0	01	1	0508-0510		●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE	0-91150-108-0	01	1	0511-0602	●
515	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0511-0602		●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE THA	0-91180-108-0	01	1	0603-	●
515	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	01	1	0603-		●
515	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	02	1	0508-0602	●
515	NUT; BRKT (A) M6 FLANGE	0-91150-106-0	02	1	0508-0602			●
515	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE THA	0-91180-106-0	02	1	0603-	●
515	NUT; BRKT (A) M6 FLANGE THA	0-91180-106-0	02	1	0603-			●
519	NUT; EARTH CABLE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	01	1	0508-0509	●
519	NUT; EARTH CABLE 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	01	1	0508-0509			●
519	NUT; EARTH CABLE 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	01	1	0508-0509		●
519	NUT; EARTH CABLE M10 FLANGE	0-91150-110-0	01	1	0510-0602	●
519	NUT; EARTH CABLE 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	01	1	0510-0602			●
519	NUT; EARTH CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE	0-91150-110-0	01	1	0510-0602		●
519	NUT; EARTH CABLE M10 FLANGE THA	0-91180-110-0	01	1	0603-	●
519	NUT; EARTH CABLE 4HG1-T ENG<RDP> M10 FLANGE THA	0-91180-110-0	01	1	0603-			●
519	NUT; EARTH CABLE 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-110-0	01	1	0603-		●
525	NUT; CLIP 4HE1-TCS ENG<RDS> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●
525	NUT; CLIP 4HE1-TCS ENG<RDS> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●

511 180 510 510 178 512 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0508-	●	●	●
180	COVER; HARNESS	8-97856-130-4	02	1	0508-	●	●	●
312	BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0508-	●
312	BRACKET; CLIP HARNESS (A)	8-97017-072-2	01	1	0508-		●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-050-0	01	1	0508-	●
312	BRACKET; CLIP HARNESS (B)	8-97357-050-0	01	1	0508-			●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97357-051-1	01	1	0508-	●
312	BRACKET; CLIP HARNESS (C)	8-97357-051-1	01	1	0508-			●
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	0508-	●	●	●
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0508-0604	●	●	●
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	0605-	●	●	●
512	PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0508-	●	●	●
512	PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0508-	●	●	●
512	PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0508-	●	●	●

16 22 48 102 220 483 22 102 22 220 488 16 205 48 142 14 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	CLIP; BAND,HARNESS L=200	8-94464-835-0	01	1	0508-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA	8-97173-307-0	04	1	1011-1405	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1011-1405	●	●	●
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT<C60> (G) L=140	5-09707-031-1	05	1	0510-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=100 THA	8-94327-067-1	04	1	0508-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=100 THA	8-94327-067-1	04	1	0508-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	0508-1009	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	0508-1009	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1010-1010	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1010-1010	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	06	1	1011-1405	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1406-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1406-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	10	1	0508-1009	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	11	1	1010-1010	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1406-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1406-	●	●	●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 & 22	8-94464-837-0	01	1	0508-	●
16	CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 & 22	8-94464-837-0	01	1	0508-	●
16	CLIP; HARNESS (C) ID=22 & 22	8-94464-837-0	01	1	0508-			●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> (C) ID=22 & 22	8-94464-837-0	01	1	0508-		●
16	CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	10	1	0508-	●
16	CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> (I) ID=10 & 16.5	8-94360-745-0	01	1	0508-	●
16	CLIP; HARNESS (I) ID=10 & 16.5	8-94360-745-0	01	1	0508-		●
16	CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	0508-	●	●	●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0508-	●	●	●
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	02	1	0508-	●	●	●
16	CLIP; HARNESS (F) ID=15-32	8-97174-404-0	05	1	0508-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT<C60> (G) L=140	5-09707-031-1	01	1	0508-	●	●	●
16	CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	11	1	0508-	●
16	CLIP; HARNESS (A) ID=14 L=47	5-09700-319-0	13	1	0508-		●	●
22	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (A) L=250	5-09707-030-1	01	1	0510-	●	●
22	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> HYDRO BRAKE BOOSTER<7QQ> (A) L=250	5-09707-030-1	01	1	0510-	●
22	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (A) L=250	5-09707-030-1	01	1	0510-		●
22	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (B) L=140	5-09707-031-1	03	1	0510-	●	●
22	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (C) L=170	5-09707-054-0	02	1	0510-	●	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=31 L=30	1-09700-969-0	02	1	0508-	●
48	CLIP; FRAME HARNESS (J) ID=31 L=30	1-09700-969-0	02	1	0508-			●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (B) ID=33 L=63	1-09700-807-0	05	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (M) T=6.0	5-09709-024-0	04	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (E) ID=30 W/STUD	8-97078-642-2	04	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (N) ID=11 L=50	9-09525-085-0	01	1	0510-0606	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (N) ID=11 L=50	0-95235-085-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT<C60> (A) L=140	5-09707-031-1	02	1	0508-	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) ID=33 L=63	1-09700-807-0	04	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (B) ID=33 L=63	1-09700-807-0	04	1	0508-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) ID=14 L=47	5-09700-319-0	03	1	0508-	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	03	1	0508-		●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	5-09709-023-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (C) T=4.5 & 9	5-09709-023-0	01	1	0508-		●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (K) L=170.3 THA	1-09987-182-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> (K) L=170.3 THA	1-09987-182-0	01	1	0508-	●
48	CLIP; FRAME HARNESS (K) L=170.3 THA	1-09987-182-0	01	1	0508-			●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (K) L=170.3 THA	1-09987-182-0	01	1	0508-		●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (J) ID=31 L=30	1-09700-969-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (J) ID=31 L=30	1-09700-969-0	01	1	0508-		●
48	CLIP; FRAME HARNESS (F) ID=32 L=75	1-09700-702-0	01	1	0508-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	01	1	0508-	●	●	●
48	CLIP; FRAME HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-	●
48	CLIP; FRAME HARNESS 4HG1-T ENG<RDP> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-			●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-		●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33 L=63	1-09700-807-0	07	1	0508-	●
48	CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	07	1	0508-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=14 L=47	5-09700-319-0	05	1	0508-	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	05	1	0508-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0508-0801	●
48	CLIP; FRAME HARNESS (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0508-0801			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●
48	CLIP; FRAME HARNESS (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=9 & 10.5	8-97041-091-0	02	1	0508-	●
48	CLIP; FRAME HARNESS (D) T=9 & 10.5	8-97041-091-0	02	1	0508-			●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	01	1	0508-0509	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (G) ID=14 L=47	5-09700-319-0	01	1	0508-0509	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	01	1	0510-	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (G) ID=14 L=47	5-09700-319-0	01	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (L) ID=27	5-09700-323-0	01	1	0510-	●	●
102	CLIP; BAND 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (B) L=140	5-09707-031-1	01	1	0510-	●	●
102	CLIP; BAND 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (A) L=170	5-09707-054-0	01	1	0510-	●	●
142	CLIP; HARNESS,ENG 4HE1-TCS ENG<RDS> (B)	8-97101-436-0	01	1	0508-0509	●	●
142	CLIP; HARNESS,ENG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97101-436-0	01	1	0510-	●	●
142	CLIP; HARNESS,ENG (A) L=170.3 THA	1-09987-182-0	01	1	0508-	●	●	●
205	CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0508-	●	●	●
220	CLIP; HARNESS TO CABLE 4HE1-TCS ENG<RDS> (A) L=140	5-09707-031-1	01	1	0508-	●	●
220	CLIP; HARNESS TO CABLE 4HK1-TCS ENG<RJS> (B) L=250	5-09707-030-1	01	1	0510-	●	●
483	CLIP; ENG HARNESS 4HE1-TCS ENG<RDS> L=140	5-09707-031-1	01	1	0508-	●	●
483	CLIP; ENG HARNESS 4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60>,POWER STEERING<N40> L=140	5-09707-031-1	02	1	0508-	●
483	CLIP; ENG HARNESS 4HG1-T ENG<RDP> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60>,VEHICLE CATEGORY NQR<7NQ> L=140	5-09707-031-1	02	1	0508-	●
483	CLIP; ENG HARNESS 4HG1-T ENG<RDP> EXC. AIR CONDITIONER MANUAL CONT<C60> L=140	5-09707-031-1	02	1	0508-			●
488	CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0508-	●	●	●

464 142 48 48 31 31 53 7 312 53 53 53 312 412 312 16 264 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	BRACKET; CONNECTOR 4HK1-TCS ENG<RJS>	8-98003-671-1	01	1	0510-	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA	8-97173-307-0	04	1	1011-1405	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1011-1405	●	●	●
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT<C60> (G) L=140	5-09707-031-1	05	1	0510-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=100 THA	8-94327-067-1	04	1	0508-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=100 THA	8-94327-067-1	04	1	0508-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	0508-1009	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	0508-1009	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1010-1010	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1010-1010	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	06	1	1011-1405	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1406-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1406-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	10	1	0508-1009	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	11	1	1010-1010	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1406-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1406-	●	●	●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 & 22	8-94464-837-0	01	1	0508-	●
16	CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 & 22	8-94464-837-0	01	1	0508-	●
16	CLIP; HARNESS (C) ID=22 & 22	8-94464-837-0	01	1	0508-			●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> (C) ID=22 & 22	8-94464-837-0	01	1	0508-		●
16	CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	10	1	0508-	●
16	CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> (I) ID=10 & 16.5	8-94360-745-0	01	1	0508-	●
16	CLIP; HARNESS (I) ID=10 & 16.5	8-94360-745-0	01	1	0508-		●
16	CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	0508-	●	●	●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0508-	●	●	●
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	02	1	0508-	●	●	●
16	CLIP; HARNESS (F) ID=15-32	8-97174-404-0	05	1	0508-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT<C60> (G) L=140	5-09707-031-1	01	1	0508-	●	●	●
16	CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	11	1	0508-	●
16	CLIP; HARNESS (A) ID=14 L=47	5-09700-319-0	13	1	0508-		●	●
31	BRACKET; HARNESS CLIP,PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=47	8-97042-635-0	01	1	0508-	●
31	BRACKET; HARNESS CLIP,PIPE (B) L=47	8-97042-635-0	01	1	0508-		●
31	BRACKET; HARNESS CLIP,PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0508-	●
31	BRACKET; HARNESS CLIP,PIPE (B) L=73	8-97077-845-0	02	1	0508-		●
31	BRACKET; HARNESS CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97362-859-0	03	1	0508-	●
31	BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	03	1	0508-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=31 L=30	1-09700-969-0	02	1	0508-	●
48	CLIP; FRAME HARNESS (J) ID=31 L=30	1-09700-969-0	02	1	0508-			●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (B) ID=33 L=63	1-09700-807-0	05	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (M) T=6.0	5-09709-024-0	04	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (E) ID=30 W/STUD	8-97078-642-2	04	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (N) ID=11 L=50	9-09525-085-0	01	1	0510-0606	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (N) ID=11 L=50	0-95235-085-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT<C60> (A) L=140	5-09707-031-1	02	1	0508-	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) ID=33 L=63	1-09700-807-0	04	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (B) ID=33 L=63	1-09700-807-0	04	1	0508-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) ID=14 L=47	5-09700-319-0	03	1	0508-	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	03	1	0508-		●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	5-09709-023-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (C) T=4.5 & 9	5-09709-023-0	01	1	0508-		●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (K) L=170.3 THA	1-09987-182-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> (K) L=170.3 THA	1-09987-182-0	01	1	0508-	●
48	CLIP; FRAME HARNESS (K) L=170.3 THA	1-09987-182-0	01	1	0508-			●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (K) L=170.3 THA	1-09987-182-0	01	1	0508-		●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (J) ID=31 L=30	1-09700-969-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (J) ID=31 L=30	1-09700-969-0	01	1	0508-		●
48	CLIP; FRAME HARNESS (F) ID=32 L=75	1-09700-702-0	01	1	0508-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	01	1	0508-	●	●	●
48	CLIP; FRAME HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-	●
48	CLIP; FRAME HARNESS 4HG1-T ENG<RDP> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-			●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-		●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33 L=63	1-09700-807-0	07	1	0508-	●
48	CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	07	1	0508-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=14 L=47	5-09700-319-0	05	1	0508-	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	05	1	0508-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0508-0801	●
48	CLIP; FRAME HARNESS (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0508-0801			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●
48	CLIP; FRAME HARNESS (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=9 & 10.5	8-97041-091-0	02	1	0508-	●
48	CLIP; FRAME HARNESS (D) T=9 & 10.5	8-97041-091-0	02	1	0508-			●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	01	1	0508-0509	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (G) ID=14 L=47	5-09700-319-0	01	1	0508-0509	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	01	1	0510-	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (G) ID=14 L=47	5-09700-319-0	01	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (L) ID=27	5-09700-323-0	01	1	0510-	●	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-97352-527-0	01	1	0508-	●
53	BRACKET; HARNESS (B)	8-97352-527-0	01	1	0508-		●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97065-158-2	01	1	0508-	●
53	BRACKET; HARNESS (C)	8-97065-158-2	01	1	0508-			●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97357-140-0	01	1	0508-	●
53	BRACKET; HARNESS (A)	8-97357-140-0	01	1	0508-			●
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> (D)	8-98011-924-0	01	1	0510-	●	●
142	CLIP; HARNESS,ENG 4HE1-TCS ENG<RDS> (B)	8-97101-436-0	01	1	0508-0509	●	●
142	CLIP; HARNESS,ENG 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (B)	8-97101-436-0	01	1	0510-	●	●
142	CLIP; HARNESS,ENG (A) L=170.3 THA	1-09987-182-0	01	1	0508-	●	●	●
264	CLIP; HARNESS,HEADLAMP ID=10 & 16	8-94413-325-0	01	1	0508-	●	●	●
312	BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97017-072-2	01	1	0508-	●
312	BRACKET; CLIP HARNESS (A)	8-97017-072-2	01	1	0508-		●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97357-050-0	01	1	0508-	●
312	BRACKET; CLIP HARNESS (B)	8-97357-050-0	01	1	0508-			●
312	BRACKET; CLIP HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97357-051-1	01	1	0508-	●
312	BRACKET; CLIP HARNESS (C)	8-97357-051-1	01	1	0508-			●
412	BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0508-	●	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1-T ENG<RDP> (A) ID=14 L=47	5-09700-319-0	01	1	0508-	●		●
464	CLIP; SEDIMENTER HARNESS 4HG1-T ENG<RDP> (B) ID=6.5 THA	8-94257-639-0	01	1	0508-	●		●
504	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> L=80	5-22439-006-0	01	1	0510-	●	●
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	0508-	●	●	●
514	FINISHER; HARNESS L=120 SERVICED BY L=500	1-79937-746-0	03	1	0508-	●	●	●
514	FINISHER; HARNESS L=175 SERVICED BY L=500	1-79937-746-0	01	1	0508-	●	●	●

16 48 16 48 464 48 48 48 48 16 48 48 48 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> (J) L=155 THA	8-97173-307-0	04	1	1011-1405	●	●	●
16	CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1011-1405	●	●	●
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT<C60> (G) L=140	5-09707-031-1	05	1	0510-	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (H) L=100 THA	8-94327-067-1	04	1	0508-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=100 THA	8-94327-067-1	04	1	0508-	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	0508-1009	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	0508-1009	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1010-1010	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1010-1010	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	06	1	1011-1405	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1406-	●	●	●
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	04	1	1406-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	10	1	0508-1009	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	11	1	1010-1010	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (J) L=155 THA	8-97173-307-0	05	1	1011-1405	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1406-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (J) L=155 THA	8-97173-307-0	05	1	1406-	●	●	●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 & 22	8-94464-837-0	01	1	0508-	●
16	CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 & 22	8-94464-837-0	01	1	0508-	●
16	CLIP; HARNESS (C) ID=22 & 22	8-94464-837-0	01	1	0508-			●
16	CLIP; HARNESS POWER ASSIST CLUTCH<S2T> (C) ID=22 & 22	8-94464-837-0	01	1	0508-		●
16	CLIP; HARNESS FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	10	1	0508-	●
16	CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> (I) ID=10 & 16.5	8-94360-745-0	01	1	0508-	●
16	CLIP; HARNESS (I) ID=10 & 16.5	8-94360-745-0	01	1	0508-		●
16	CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	0508-	●	●	●
16	CLIP; HARNESS (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0508-	●	●	●
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	02	1	0508-	●	●	●
16	CLIP; HARNESS (F) ID=15-32	8-97174-404-0	05	1	0508-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT<C60> (G) L=140	5-09707-031-1	01	1	0508-	●	●	●
16	CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=14 L=47	5-09700-319-0	11	1	0508-	●
16	CLIP; HARNESS (A) ID=14 L=47	5-09700-319-0	13	1	0508-		●	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=31 L=30	1-09700-969-0	02	1	0508-	●
48	CLIP; FRAME HARNESS (J) ID=31 L=30	1-09700-969-0	02	1	0508-			●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (B) ID=33 L=63	1-09700-807-0	05	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (M) T=6.0	5-09709-024-0	04	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (E) ID=30 W/STUD	8-97078-642-2	04	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (N) ID=11 L=50	9-09525-085-0	01	1	0510-0606	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (N) ID=11 L=50	0-95235-085-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT<C60> (A) L=140	5-09707-031-1	02	1	0508-	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B) ID=33 L=63	1-09700-807-0	04	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (B) ID=33 L=63	1-09700-807-0	04	1	0508-		●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) ID=14 L=47	5-09700-319-0	03	1	0508-	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	03	1	0508-		●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (C) T=4.5 & 9	5-09709-023-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (C) T=4.5 & 9	5-09709-023-0	01	1	0508-		●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (K) L=170.3 THA	1-09987-182-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ> (K) L=170.3 THA	1-09987-182-0	01	1	0508-	●
48	CLIP; FRAME HARNESS (K) L=170.3 THA	1-09987-182-0	01	1	0508-			●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (K) L=170.3 THA	1-09987-182-0	01	1	0508-		●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (J) ID=31 L=30	1-09700-969-0	01	1	0508-	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (J) ID=31 L=30	1-09700-969-0	01	1	0508-		●
48	CLIP; FRAME HARNESS (F) ID=32 L=75	1-09700-702-0	01	1	0508-	●	●	●
48	CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	01	1	0508-	●	●	●
48	CLIP; FRAME HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-	●
48	CLIP; FRAME HARNESS 4HG1-T ENG<RDP> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-			●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (E) ID=30 W/STUD	8-97078-642-2	02	1	0508-		●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33 L=63	1-09700-807-0	07	1	0508-	●
48	CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	07	1	0508-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=14 L=47	5-09700-319-0	05	1	0508-	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	05	1	0508-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0508-0801	●
48	CLIP; FRAME HARNESS (H) ID=12 B=14 ID=8.5 THA	5-09700-350-0	01	1	0508-0801			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●
48	CLIP; FRAME HARNESS (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-			●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=9 & 10.5	8-97041-091-0	02	1	0508-	●
48	CLIP; FRAME HARNESS (D) T=9 & 10.5	8-97041-091-0	02	1	0508-			●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	01	1	0508-0509	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS> (G) ID=14 L=47	5-09700-319-0	01	1	0508-0509	●	●
48	CLIP; FRAME HARNESS (G) ID=14 L=47	5-09700-319-0	01	1	0510-	●	●	●
48	CLIP; FRAME HARNESS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (G) ID=14 L=47	5-09700-319-0	01	1	0510-	●	●
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (L) ID=27	5-09700-323-0	01	1	0510-	●	●
464	CLIP; SEDIMENTER HARNESS 4HG1-T ENG<RDP> (A) ID=14 L=47	5-09700-319-0	01	1	0508-	●		●
464	CLIP; SEDIMENTER HARNESS 4HG1-T ENG<RDP> (B) ID=6.5 THA	8-94257-639-0	01	1	0508-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
