Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#44488) — 233 parça

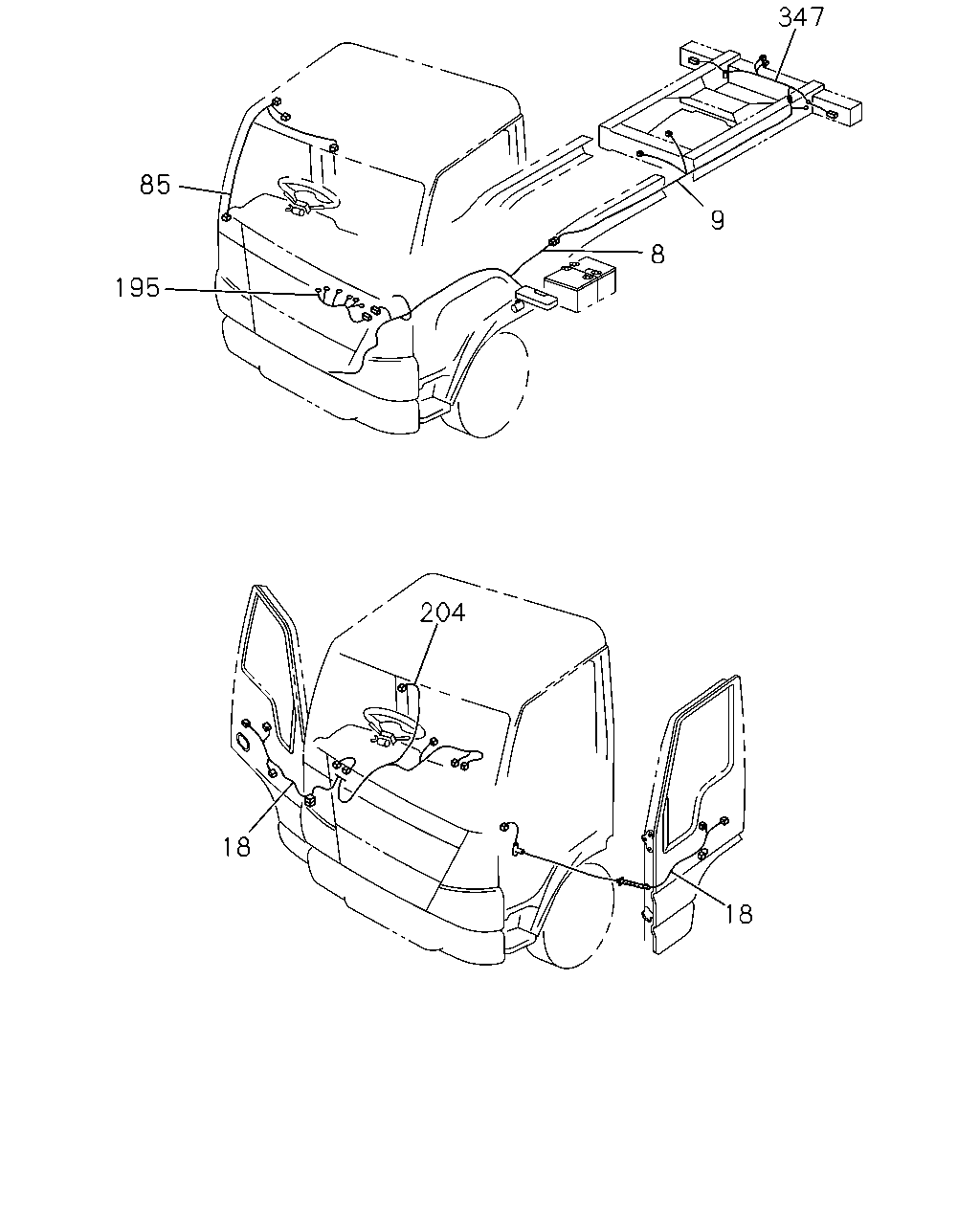

347 85 9 8 195 204 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-769-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97922-769-0	01	1	0508-0707		●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97924-170-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97924-170-0	01	1	0708-		●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97922-770-0	01	1	0508-0707			●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97924-174-0	01	1	0708-			●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97922-771-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97924-175-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97922-772-1	01	1	0510-0608	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97923-610-0	01	1	0609-0707	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97924-172-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97922-773-1	01	1	0510-0608			●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97923-611-0	01	1	0609-0707			●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97924-173-0	01	1	0708-			●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> THA	8-98005-322-0	01	1	0508-	●
9	HARNESS; FRAME,RR FRAME STRAIGHT TYPE<7KJ>	8-97377-066-1	01	1	0508-	●
9	HARNESS; FRAME,RR EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-061-1	01	1	0508-	●
9	HARNESS; FRAME,RR	8-97377-062-1	01	1	0508-		●
9	HARNESS; FRAME,RR	8-97377-068-1	01	1	0508-			●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4>	8-97226-669-0	01	1	1011-1405	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	1406-	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL>	8-97226-671-1	01	1	1011-1405	●	●	●
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1011-1405	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1406-	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1406-	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1011-1405	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0508-	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0508-1009	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1010-1010	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1011-1405	●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> THA	8-97917-005-0	02	1	0508-	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> THA	8-97917-005-0	02	1	0508-	●	●	●
85	HARNESS; ROOM LAMP THA	8-97917-004-0	01	1	0508-	●	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97377-741-0	01	1	0508-0509	●	●	●
184	COVER; RELAY & FUSE BOX	8-97377-741-0	01	1	0510-	●	●	●
195	HARNESS; EXT 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-97172-039-3	01	1	0508-0509	●
195	HARNESS; EXT 4HE1-TCS ENG<RDS>	8-97172-039-3	01	1	0508-0509			●
195	HARNESS; EXT 4HE1-TCS ENG<RDS> EURO2 SPECIFICATION<NT2>	8-97172-039-3	01	1	0510-	●		●
204	HARNESS; CABLE,FLOOR FLOOR REMOTE SHIFT<M11> THA	8-97917-002-1	01	1	0508-	●
204	HARNESS; CABLE,FLOOR THA	8-97917-002-1	01	1	0508-		●	●
314	RESISTOR; HARNESS 4HK1-TCS ENG<RJS> BLUE	1-82691-204-0	02	1	0510-	●		●
347	HARNESS; CABLE,RR BODY THA	8-97916-999-1	01	1	0508-	●	●	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98000-898-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98027-465-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>	8-97388-449-0	01	1	0508-0509			●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97388-449-0	01	1	0510-			●
434	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG<RJS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97388-448-0	01	1	0510-	●

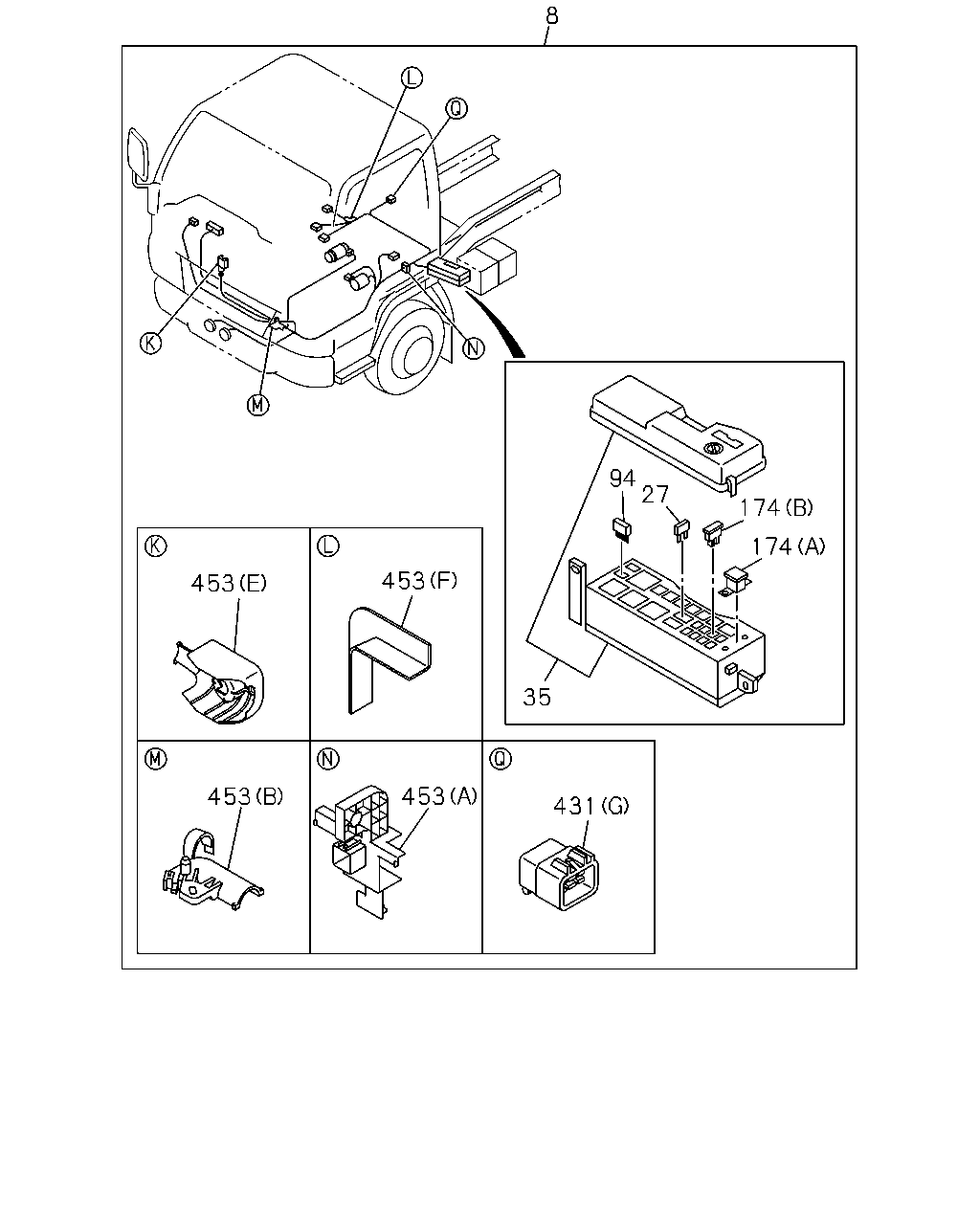

8 94 27 174 174 453 453 35 453 453 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-769-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97922-769-0	01	1	0508-0707		●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97924-170-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97924-170-0	01	1	0708-		●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97922-770-0	01	1	0508-0707			●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97924-174-0	01	1	0708-			●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97922-771-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97924-175-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97922-772-1	01	1	0510-0608	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97923-610-0	01	1	0609-0707	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97924-172-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97922-773-1	01	1	0510-0608			●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97923-611-0	01	1	0609-0707			●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97924-173-0	01	1	0708-			●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> THA	8-98005-322-0	01	1	0508-	●
27	FUSE UNIT 4HK1-TCS ENG<RJS> 10A MINI RED	8-97062-022-0	01	1	0510-	●		●
35	BOX; RELAY & FUSE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97377-739-0	01	1	0508-0509	●	●	●
35	BOX; RELAY & FUSE	8-97377-739-0	01	1	0510-	●	●	●
94	DIODE; FRAME HARNESS 4HE1-TCS ENG<RDS> BLACK 3P-1.5A THA	8-94422-640-1	01	1	0508-	●		●
174	FUSE; SLOW BLOW 4HK1-TCS ENG<RJS> (B) 60A YELLOW THA	8-97219-407-0	02	1	0510-	●		●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) 40A GREEN THA	8-97183-644-0	01	1	0508-	●	●	●
174	FUSE; SLOW BLOW 4HE1-TCS ENG<RDS> (A) 60A YELLOW	8-94388-303-1	01	1	0508-	●		●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP> (A) 100A BLUE THA	8-94388-306-1	01	1	0508-0509	●	●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP>,4HK1-TCS ENG<RJS> (A) 100A BLUE THA	8-94388-306-1	01	1	0510-	●	●	●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) 30A PINK THA	8-97183-643-0	01	1	0508-0509	●	●	●
174	FUSE; SLOW BLOW (B) 30A PINK THA	8-97183-643-0	01	1	0510-	●	●	●
174	FUSE; SLOW BLOW 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) 60A YELLOW THA	8-97219-407-0	01	1	0508-0509	●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW THA	8-97219-407-0	01	1	0510-	●	●	●
174	FUSE; SLOW BLOW 4HK1-TCS ENG<RJS> (B) 40A GREEN THA	8-97183-644-0	02	1	0510-	●		●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97377-741-0	01	1	0508-0509	●	●	●
184	COVER; RELAY & FUSE BOX	8-97377-741-0	01	1	0510-	●	●	●
314	RESISTOR; HARNESS 4HK1-TCS ENG<RJS> BLUE	1-82691-204-0	02	1	0510-	●		●

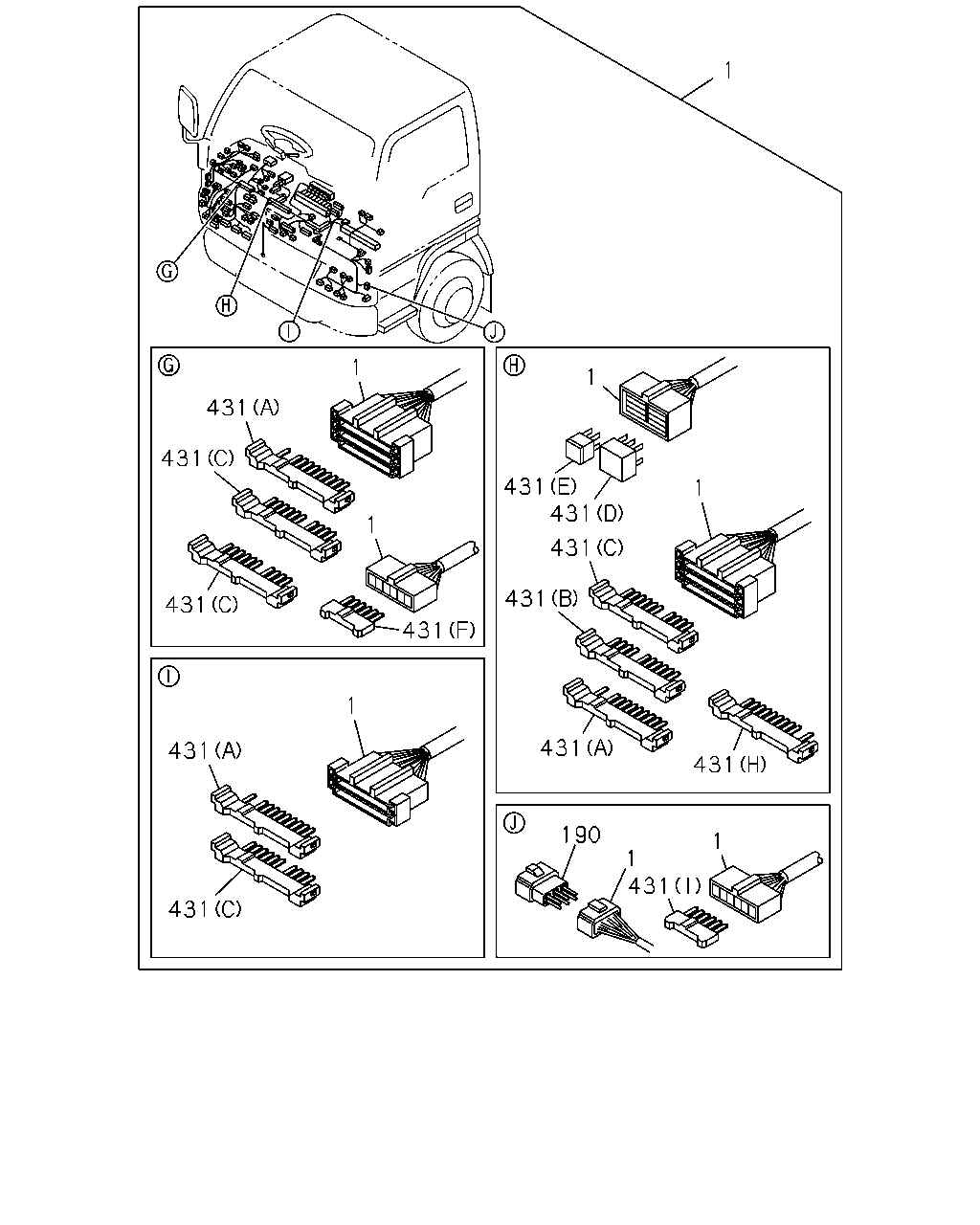

431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (F) 6P	1-82691-206-0	03	1	0510-	●		●
431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (G) 6P	8-97381-428-1	01	1	0510-	●		●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (H) 10P GREEN THA	1-82698-579-0	01	1	0508-	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (C) 10P GREEN THA	1-82699-599-0	01	1	0508-	●	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (I) 3P & 3P	1-82698-170-0	02	1	0510-	●		●
431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (C) 10P GREEN THA	1-82699-599-0	02	1	0510-	●		●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) 10P BLUE THA	1-82699-598-0	01	1	0508-0509	●	●	●
431	CONNECTOR; JOINT (B) 10P BLUE THA	1-82699-598-0	01	1	0510-	●	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) 10P BROWN THA	1-82699-601-0	03	1	0508-	●	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (E) 4P	8-97077-939-0	01	1	0508-0509	●	●	●
431	CONNECTOR; JOINT (E) 4P	8-97077-939-0	01	1	0510-	●	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (D) 6P	8-97077-941-0	01	1	0508-0509	●	●	●
431	CONNECTOR; JOINT (D) 6P	8-97077-941-0	01	1	0510-	●	●	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98000-898-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98027-465-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>	8-97388-449-0	01	1	0508-0509			●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97388-449-0	01	1	0510-			●
434	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG<RJS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97388-448-0	01	1	0510-	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (G)	8-97088-615-0	02	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (F) THA	8-94417-716-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (E) THA	8-94482-169-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (G)	8-97088-615-0	01	1	0508-0509	●	●	●
453	PROTECTOR; HARNESS (G)	8-97088-615-0	01	1	0510-	●	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) THA	8-97093-668-1	01	1	0508-0509	●	●	●
453	PROTECTOR; HARNESS (B) THA	8-97093-668-1	01	1	0510-	●	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (D)	8-97259-730-3	01	1	0508-0509	●	●	●
453	PROTECTOR; HARNESS (D)	8-97259-730-3	01	1	0510-	●	●	●
453	PROTECTOR; HARNESS 4HE1-TCS ENG<RDS> (A) THA	8-97120-591-1	01	1	0508-0509	●		●
453	PROTECTOR; HARNESS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) THA	8-97120-591-1	01	1	0510-	●		●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> (E)	8-97062-169-0	01	1	0510-	●		●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> (C)	8-97261-653-2	01	1	0510-	●		●

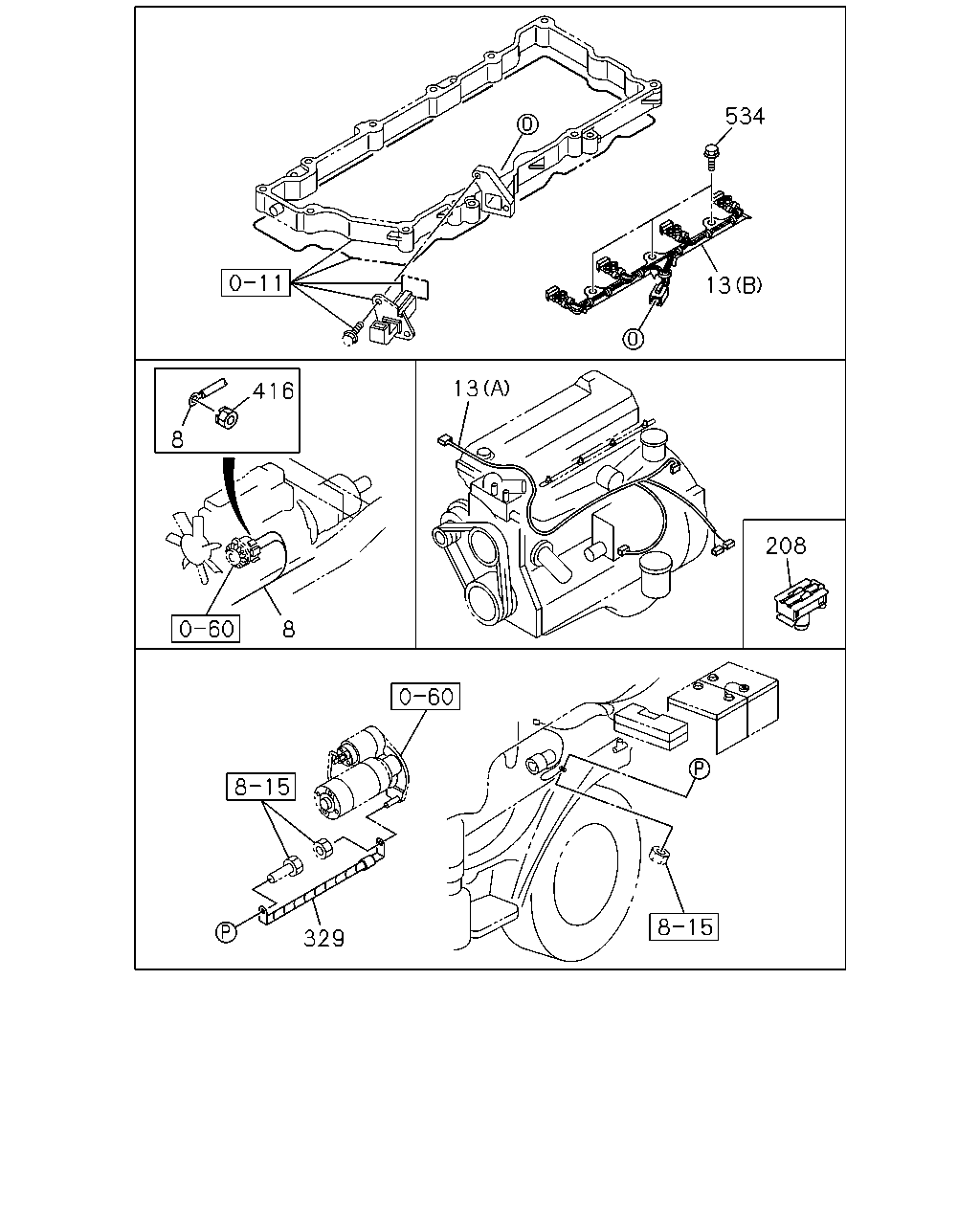

534 13 13 416 8 208 8 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-769-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97922-769-0	01	1	0508-0707		●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97924-170-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> THA	8-97924-170-0	01	1	0708-		●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97922-770-0	01	1	0508-0707			●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97924-174-0	01	1	0708-			●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97922-771-0	01	1	0508-0707	●
8	HARNESS; FRAME,FRT 4HE1-TCS ENG<RDS> THA	8-97924-175-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97922-772-1	01	1	0510-0608	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97923-610-0	01	1	0609-0707	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97924-172-0	01	1	0708-	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97922-773-1	01	1	0510-0608			●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97923-611-0	01	1	0609-0707			●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG<RJS> THA	8-97924-173-0	01	1	0708-			●
8	HARNESS; FRAME,FRT 4HG1-T ENG<RDP> FRAME STRAIGHT TYPE<7KJ> THA	8-98005-322-0	01	1	0508-	●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (A)	8-98020-041-0	01	1	0510-0510	●		●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (A)	8-98023-708-0	01	1	0510-	●		●
13	HARNESS; ENG 4HG1-T ENG<RDP> (A)	8-97360-784-1	01	1	0508-	●	●
13	HARNESS; ENG 4HE1-TCS ENG<RDS> (A)	8-98000-365-0	01	1	0508-	●		●
13	HARNESS; ENG 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> (B)	8-97332-133-3	01	1	0510-	●		●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97377-741-0	01	1	0508-0509	●	●	●
184	COVER; RELAY & FUSE BOX	8-97377-741-0	01	1	0510-	●	●	●
208	HOLDER; CONNECTOR 4HE1-TCS ENG<RDS>	8-94459-973-1	01	1	0508-	●		●
314	RESISTOR; HARNESS 4HK1-TCS ENG<RJS> BLUE	1-82691-204-0	02	1	0510-	●		●
329	CABLE; ENG TO FRAME 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-588-0	01	1	0508-	●
329	CABLE; ENG TO FRAME 4HG1-T ENG<RDP> THA	8-97916-588-0	01	1	0508-		●
329	CABLE; ENG TO FRAME 4HE1-TCS ENG<RDS> THA	8-97920-957-0	01	1	0508-0509	●		●
329	CABLE; ENG TO FRAME 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> THA	8-97920-957-0	01	1	0510-	●		●
416	NUT; TERMINAL M6 W/LK WASHER	8-94424-179-0	01	1	0508-	●	●	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98000-898-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98027-465-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>	8-97388-449-0	01	1	0508-0509			●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97388-449-0	01	1	0510-			●
434	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG<RJS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97388-448-0	01	1	0510-	●
534	BOLT 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> M10X55 FLANGE THA	8-94399-863-1	03	1	0510-0805	●		●
534	BOLT 4HK1-TCS ENG<RJS> KD PREPARATORY PACK<6HF> M10X55 FLANGE	8-97365-449-0	03	1	0806-	●		●

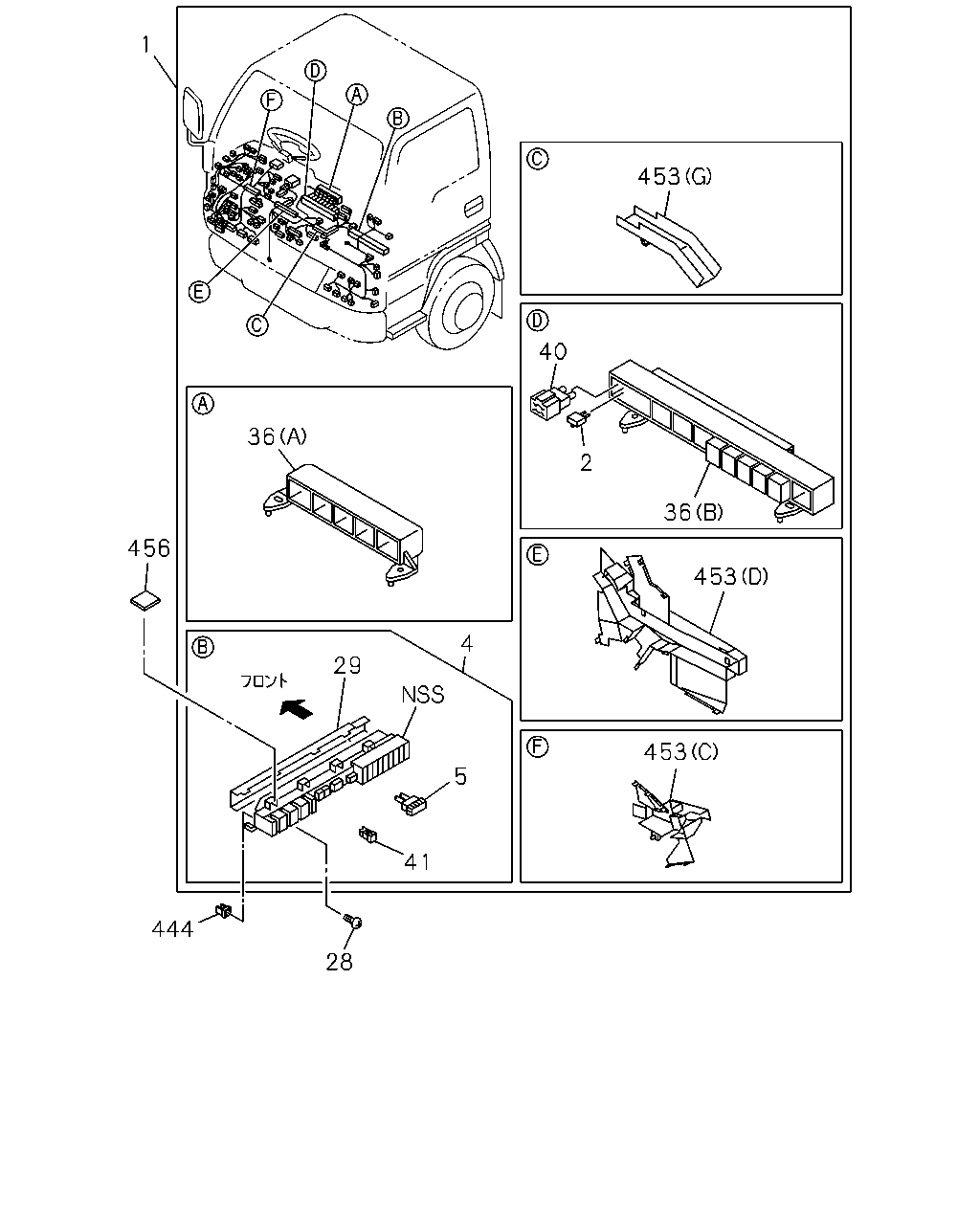

1 453 40 36 2 36 456 453 4 29 453 5 41 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4HK1-TCS ENG<RJS> THA	8-97922-782-1	01	1	0510-	●		●
1	HARNESS; CAB 4HG1-T ENG<RDP> THA	8-97922-778-1	01	1	0508-	●	●
1	HARNESS; CAB 4HE1-TCS ENG<RDS> THA	8-97922-780-1	01	1	0508-	●		●
2	DIODE; CABLE HARNESS 4HK1-TCS ENG<RJS> BLACK 3P-1.5A THA	8-94416-438-1	01	1	0510-	●		●
2	DIODE; CABLE HARNESS 4HK1-TCS ENG<RJS> BLACK 3P-1.5A THA	8-94422-640-1	02	1	0510-	●		●
2	DIODE; CABLE HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> BLACK 3P-1.5A THA	8-94422-640-1	01	1	0508-	●	●	●
2	DIODE; CABLE HARNESS 4HE1-TCS ENG<RDS> BLACK 2P-1.5A THA	8-94422-639-1	02	1	0508-	●		●
4	BOX ASM; FUSE,HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97187-921-1	01	1	0508-0509	●	●	●
4	BOX ASM; FUSE,HARNESS	8-97187-921-1	01	1	0510-	●	●	●
5	FUSE; FACIA HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 10A MINI RED	8-97062-022-0	12	1	0508-0509	●	●	●
5	FUSE; FACIA HARNESS 10A MINI RED	8-97062-022-0	12	1	0510-	●	●	●
5	FUSE; FACIA HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 15A MINI BLUE	8-97062-023-0	07	1	0508-0509	●	●	●
5	FUSE; FACIA HARNESS 15A MINI BLUE	8-97062-023-0	07	1	0510-	●	●	●
5	FUSE; FACIA HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> 20A MINI YELLOW	8-97062-024-0	02	1	0508-0509	●	●	●
5	FUSE; FACIA HARNESS 20A MINI YELLOW	8-97062-024-0	02	1	0510-	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0508-0604	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●	●	●
28	SCREW; FUSE BOX T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-	●	●	●
29	COVER; FUSE BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA	8-97074-955-0	01	1	0508-0509	●	●	●
29	COVER; FUSE BOX THA	8-97074-955-0	01	1	0510-	●	●	●
36	BOX; RELAY 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B)	8-97187-918-1	01	1	0508-0509	●	●	●
36	BOX; RELAY 4HK1-TCS ENG<RJS> (A)	8-97087-640-2	01	1	0510-	●		●
36	BOX; RELAY (B)	8-97187-918-1	01	1	0510-	●	●	●
40	BOX; DIODE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> BLACK 8P THA	8-97078-064-1	01	1	0508-	●	●	●
40	BOX; DIODE 4HK1-TCS ENG<RJS> NATURAL 8P	8-97200-753-0	01	1	0510-	●		●
41	PULLER; FUSE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97103-388-0	01	1	0508-0509	●	●	●
41	PULLER; FUSE	8-97103-388-0	01	1	0510-	●	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97377-741-0	01	1	0508-0509	●	●	●
184	COVER; RELAY & FUSE BOX	8-97377-741-0	01	1	0510-	●	●	●
314	RESISTOR; HARNESS 4HK1-TCS ENG<RJS> BLUE	1-82691-204-0	02	1	0510-	●		●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98000-898-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98027-465-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>	8-97388-449-0	01	1	0508-0509			●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97388-449-0	01	1	0510-			●
434	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG<RJS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97388-448-0	01	1	0510-	●
444	GROMMET; SCREW,FUSE BOX D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0508-	●	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (G)	8-97088-615-0	02	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (F) THA	8-94417-716-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP> (E) THA	8-94482-169-0	01	1	0508-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (G)	8-97088-615-0	01	1	0508-0509	●	●	●
453	PROTECTOR; HARNESS (G)	8-97088-615-0	01	1	0510-	●	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) THA	8-97093-668-1	01	1	0508-0509	●	●	●
453	PROTECTOR; HARNESS (B) THA	8-97093-668-1	01	1	0510-	●	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (D)	8-97259-730-3	01	1	0508-0509	●	●	●
453	PROTECTOR; HARNESS (D)	8-97259-730-3	01	1	0510-	●	●	●
453	PROTECTOR; HARNESS 4HE1-TCS ENG<RDS> (A) THA	8-97120-591-1	01	1	0508-0509	●		●
453	PROTECTOR; HARNESS 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> (A) THA	8-97120-591-1	01	1	0510-	●		●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> (E)	8-97062-169-0	01	1	0510-	●		●
453	PROTECTOR; HARNESS 4HK1-TCS ENG<RJS> (C)	8-97261-653-2	01	1	0510-	●		●
456	CUSHION; FUSE BOX 15X30 T=5	8-94270-366-2	01	1	0508-	●	●	●

1 1 1 431 431 431 431 1 1 431 431 431 431 1 431 431 431 190 1 1 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4HK1-TCS ENG<RJS> THA	8-97922-782-1	01	1	0510-	●		●
1	HARNESS; CAB 4HG1-T ENG<RDP> THA	8-97922-778-1	01	1	0508-	●	●
1	HARNESS; CAB 4HE1-TCS ENG<RDS> THA	8-97922-780-1	01	1	0508-	●		●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97377-741-0	01	1	0508-0509	●	●	●
184	COVER; RELAY & FUSE BOX	8-97377-741-0	01	1	0510-	●	●	●
190	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG<RJS> THA	5-82690-411-0	01	1	0510-	●		●
314	RESISTOR; HARNESS 4HK1-TCS ENG<RJS> BLUE	1-82691-204-0	02	1	0510-	●		●
431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (F) 6P	1-82691-206-0	03	1	0510-	●		●
431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (G) 6P	8-97381-428-1	01	1	0510-	●		●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP> (H) 10P GREEN THA	1-82698-579-0	01	1	0508-	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (C) 10P GREEN THA	1-82699-599-0	01	1	0508-	●	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (I) 3P & 3P	1-82698-170-0	02	1	0510-	●		●
431	CONNECTOR; JOINT 4HK1-TCS ENG<RJS> (C) 10P GREEN THA	1-82699-599-0	02	1	0510-	●		●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (B) 10P BLUE THA	1-82699-598-0	01	1	0508-0509	●	●	●
431	CONNECTOR; JOINT (B) 10P BLUE THA	1-82699-598-0	01	1	0510-	●	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) 10P BROWN THA	1-82699-601-0	03	1	0508-	●	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (E) 4P	8-97077-939-0	01	1	0508-0509	●	●	●
431	CONNECTOR; JOINT (E) 4P	8-97077-939-0	01	1	0510-	●	●	●
431	CONNECTOR; JOINT 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (D) 6P	8-97077-941-0	01	1	0508-0509	●	●	●
431	CONNECTOR; JOINT (D) 6P	8-97077-941-0	01	1	0510-	●	●	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98000-898-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98027-465-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0508-0509	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>	8-97388-449-0	01	1	0508-0509			●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> HYDRO BRAKE BOOSTER<7QQ>	8-97388-449-0	01	1	0510-	●
434	CONNECTOR; SHORT CIRCUIT 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS>	8-97388-449-0	01	1	0510-			●
434	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG<RJS> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97388-448-0	01	1	0510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
