◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#44485) — 41 parça
çizim 119114
37 177 161 166 165 161 166 166
BalonParca AdiParca NoAdetTipApplied Date A B C
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0508- ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0508- ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0508- ● ● ●
165 HOOK; SEAT BELT ANCHOR
THA 		8-97917-395-0 01 1 0508- ● ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28680-825-0 06 1 0508-0611 ● ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE THA 		0-28650-825-0 06 1 0612- ● ● ●
177 NUT
M8 W/LK WASHER 		8-94327-073-0 02 1 0508-0805 ● ● ●
177 NUT
M8 W/LK WASHER THA 		8-97581-234-0 02 1 0806- ● ● ●

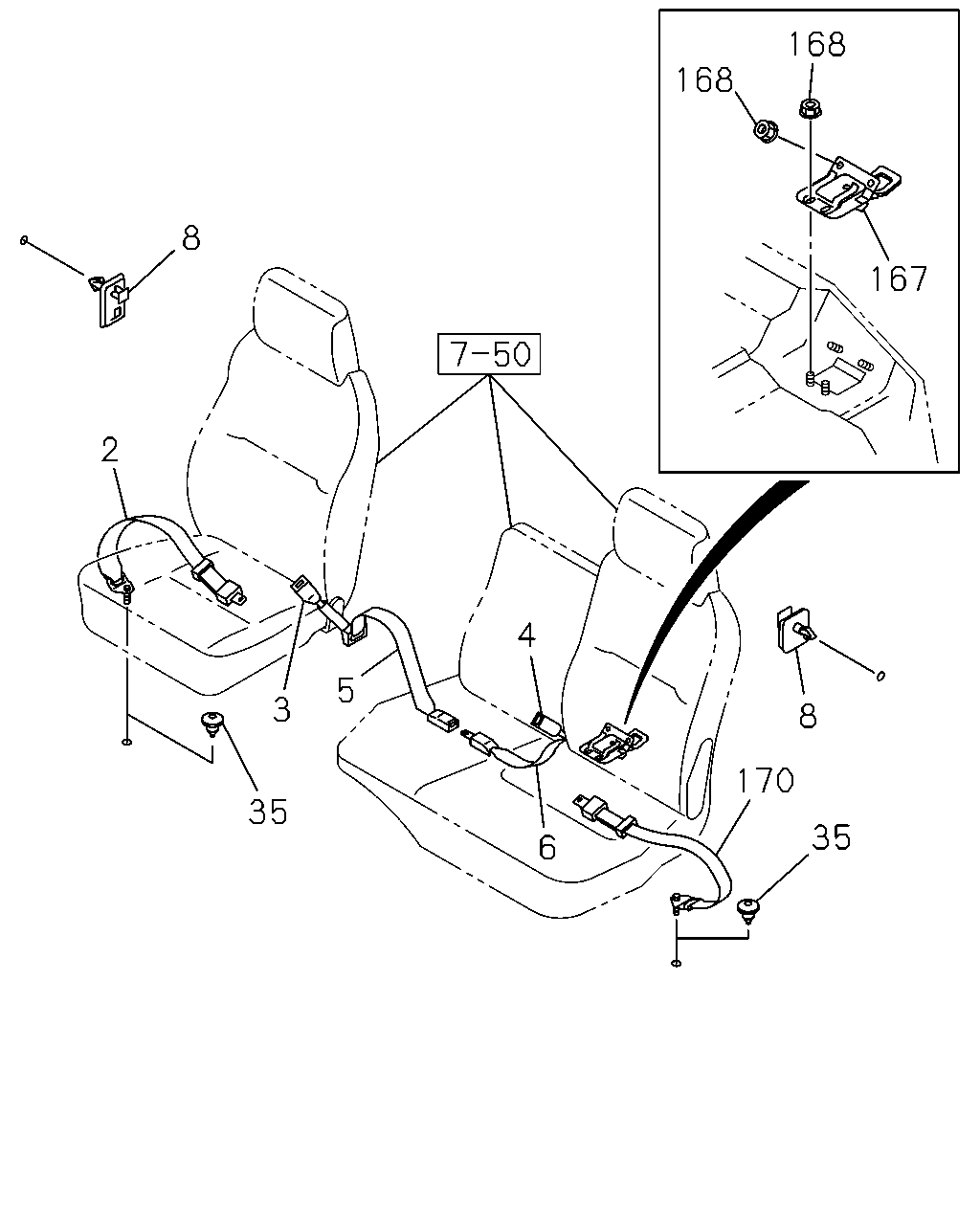

çizim 119129
168 168 8 167 2 4 5 3 8 170 35 35 6
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0508- ● ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-806-0 01 1 0508- ● ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-799-0 01 1 0508- ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0508- ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> THA 		8-97922-802-0 01 1 0508- ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0508-0512 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601- ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0508- ● ● ●
8 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0508- ● ● ●
35 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0508- ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0508- ● ● ●
167 PLATE; ANCHOR 8-97869-412-2 01 1 0508- ● ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE THA 		5-09440-005-0 04 1 0508-0712 ● ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE THA 		0-91180-108-0 04 1 0801- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0508- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-805-0 01 1 0508- ● ● ●

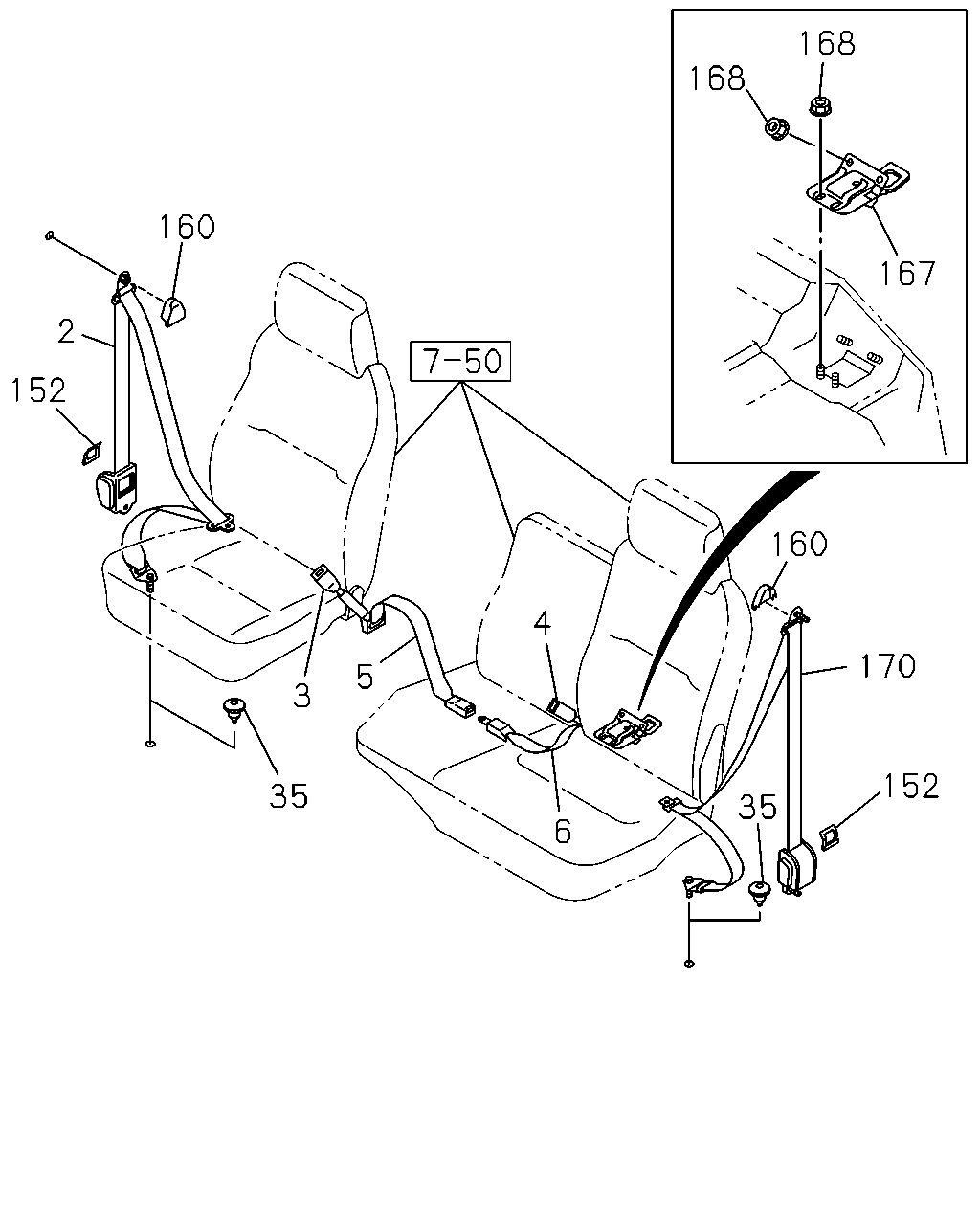

çizim 119169
168 168 160 167 2 152 160 4 170 5 3 152 35 35 6
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0508- ● ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-806-0 01 1 0508- ● ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-799-0 01 1 0508- ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0508- ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> THA 		8-97922-802-0 01 1 0508- ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0508-0512 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601- ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0508- ● ● ●
35 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0508- ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0508- ● ● ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0508- ● ● ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-907-0 01 1 0508- ● ● ●
167 PLATE; ANCHOR 8-97869-412-2 01 1 0508- ● ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE THA 		5-09440-005-0 04 1 0508-0712 ● ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE THA 		0-91180-108-0 04 1 0801- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0508- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> THA 		8-97922-805-0 01 1 0508- ● ● ●
