7-50 — FRONT SEAT (#44484) — 65 parça

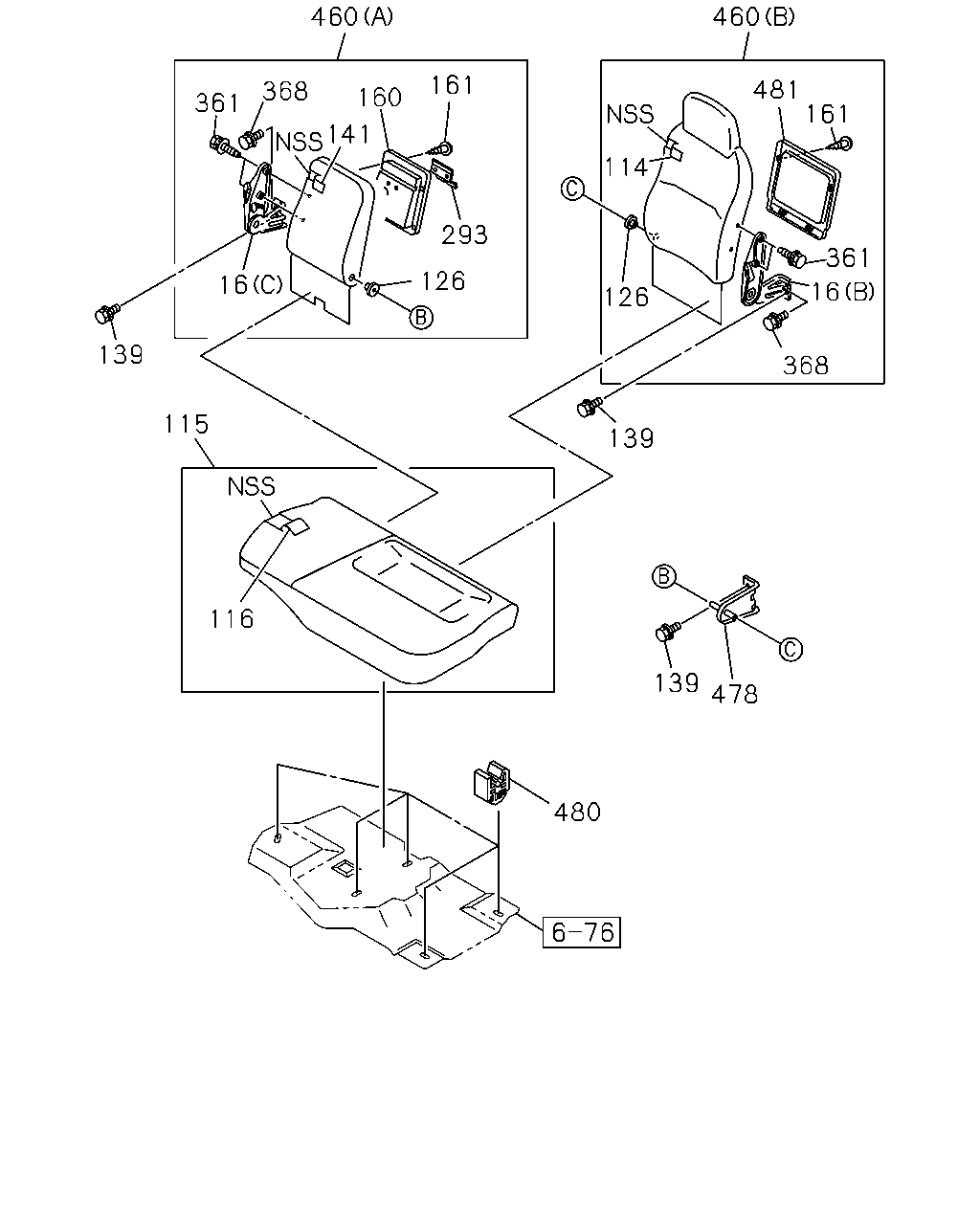

460 460 161 481 368 160 361 161 141 114 293 361 126 16 16 126 139 368 115 139 116 139 478 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	ADJUSTER ASM; RECLINING (A) DRIVER THA	8-97854-057-3	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (B) PASSENGER BLACK THA	8-97859-273-3	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (C) PASSENGER CENTER BLACK	8-97859-274-3	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (B) PASSENGER THA	8-97917-120-0	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (C) PASSENGER CENTER THA	8-97917-199-0	01	1	0508-	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-690-2	01	1	0508-	●	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> THA	8-97922-845-0	01	1	0508-	●	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97400-660-2	01	1	0508-	●	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> THA	8-97922-847-0	01	1	0508-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97400-700-1	01	1	0508-	●	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. SEAT CLOTH<7FL> THA	8-97922-849-0	01	1	0508-	●	●	●
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL> THA	8-97854-900-0	02	1	0508-0804	●	●	●
126	BUSHING; HINGE,RECLINING SEAT CLOTH<7FL>	8-98069-558-0	02	1	0805-	●	●	●
126	BUSHING; HINGE,RECLINING EXC. SEAT CLOTH<7FL> THA	8-97917-184-0	02	1	0508-	●	●	●
139	BOLT; PASSENGER SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0508-	●	●	●
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-697-2	01	1	0508-	●	●	●
141	COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> THA	8-97922-852-0	01	1	0508-	●	●	●
160	CONSOLE; UPR,BACK CENTER SEAT CLOTH<7FL> GRAY	8-97398-252-1	01	1	0508-	●	●	●
160	CONSOLE; UPR,BACK CENTER EXC. SEAT CLOTH<7FL> THA	8-97922-853-0	01	1	0508-	●	●	●
161	SCREW; CONSOLE SEAT CLOTH<7FL> M4X12	8-94279-351-0	04	1	0508-	●	●	●
161	SCREW; CONSOLE EXC. SEAT CLOTH<7FL> THA	8-97917-195-0	08	1	0508-	●	●	●
293	BINDER; CENTER CONSOLE EXC. SEAT CLOTH<7FL> THA	8-97917-194-0	01	1	0508-	●	●	●
361	BOLT; ADJ,RECLINING SEAT CLOTH<7FL> M8X18	8-94279-109-1	04	1	0508-	●	●	●
361	BOLT; ADJ,RECLINING EXC. SEAT CLOTH<7FL> M8X18	8-94279-109-1	04	1	0508-	●	●	●
368	BOLT; SEAT SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0508-	●	●	●
368	BOLT; SEAT EXC. SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0508-	●	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97400-651-2	01	1	0508-	●	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97400-657-4	01	1	0508-	●	●	●
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) THA	8-97922-840-0	01	1	0508-	●	●	●
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) THA	8-97922-850-0	01	1	0508-	●	●	●
478	BRACKET ASM; HINGE,PASSENGER SEAT THA	8-97916-789-0	01	1	0508-	●	●	●
480	CLIP; CUSHION	8-94279-977-0	05	1	0508-	●	●	●
481	TRAY; SEAT BACK EXC. SEAT CLOTH<7FL> THA	8-97922-871-0	01	1	0508-	●	●	●

1 18 228 24 2 16 99 17 19 12 13 69 382 67 71 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97400-474-3	01	1	0508-	●	●	●
1	BACK ASM; SEAT EXC. SEAT CLOTH<7FL> THA	8-97922-833-0	01	1	0508-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-475-2	01	1	0508-	●	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL> THA	8-97922-835-0	01	1	0508-	●	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97397-972-1	01	1	0508-	●	●	●
12	CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL> THA	8-97922-418-0	01	1	0508-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97397-982-1	01	1	0508-	●	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL> THA	8-97922-836-0	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING (A) DRIVER THA	8-97854-057-3	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (B) PASSENGER BLACK THA	8-97859-273-3	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING SEAT CLOTH<7FL> (C) PASSENGER CENTER BLACK	8-97859-274-3	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (B) PASSENGER THA	8-97917-120-0	01	1	0508-	●	●	●
16	ADJUSTER ASM; RECLINING EXC. SEAT CLOTH<7FL> (C) PASSENGER CENTER THA	8-97917-199-0	01	1	0508-	●	●	●
17	BOLT; RECLINING M8X20 THA	8-97255-906-0	02	1	0508-	●	●	●
18	COVER; RECLINING SEAT CLOTH<7FL> GRAY	8-97398-249-0	01	1	0508-	●	●	●
18	COVER; RECLINING EXC. SEAT CLOTH<7FL> THA	8-97922-837-0	01	1	0508-	●	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0508-0604	●	●	●
19	SCREW; COVER SEAT CLOTH<7FL> M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●	●
19	SCREW; COVER EXC. SEAT CLOTH<7FL> M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> GRAY	8-97398-250-0	01	1	0508-0804	●	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT CLOTH<7FL> GRAY	8-97415-445-0	01	1	0805-	●	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. SEAT CLOTH<7FL> THA	8-97922-838-0	01	1	0508-	●	●	●
63	ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> THA	8-97854-059-3	01	1	0508-	●	●	●
63	ADJUSTER; SEAT SLIDE EXC. SEAT CLOTH<7FL> THA	8-97916-796-0	01	1	0508-	●	●	●
67	BOLT; FRT SEAT TO BODY M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0508-	●	●	●
69	NUT; FRT SEAT M8	1-09984-109-0	01	1	0508-	●	●	●
71	BOLT; ADJ TO SEAT M8X20 THA	8-97255-906-0	02	1	0508-	●	●	●
99	BUSHING; SEAT BACK SEAT CLOTH<7FL> THA	8-97854-087-0	01	1	0508-	●	●	●
99	BUSHING; SEAT BACK EXC. SEAT CLOTH<7FL> THA	8-97916-793-0	01	1	0508-	●	●	●
228	SCREW; KNOB SEAT CLOTH<7FL> M4X6 THA	8-97042-273-0	01	1	0508-	●	●	●
228	SCREW; KNOB EXC. SEAT CLOTH<7FL> M4X6 THA	8-97042-273-0	01	1	0508-	●	●	●
382	WASHER; PL,DRIVER SEAT ID=8.4 OD=22	8-94127-883-1	01	1	0508-	●	●	●
