7-43 — SUN VISOR AND ASSIST GRIP (#44482) — 49 parça

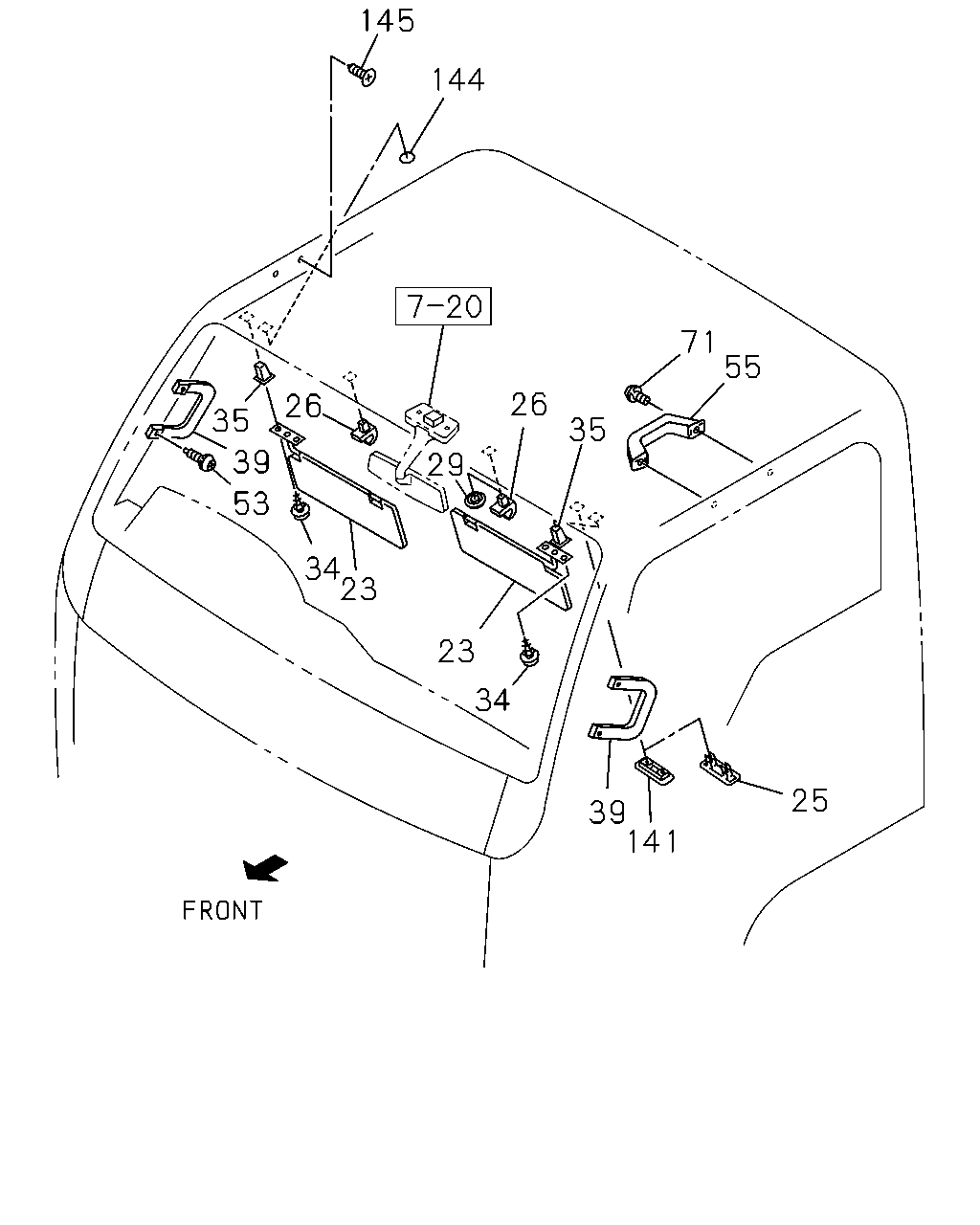

çizim 119117
145 144 71 55 26 26 39 35 35 29 53 34 23 23 34 25 39 141
BalonParca AdiParca NoAdetTipApplied Date A B C
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-220-2 01 1 0508-0509 ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-443-0 01 1 0510- ● ● ●
23 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97867-781-2 01 1 0508-0509 ● ● ●
23 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-441-0 01 1 0510- ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> THA 		8-97921-548-0 01 1 0508- ● ● ●
23 SUN VISOR
TRAY ROOF HEAD<7EJ> THA 		8-97921-547-0 01 1 0508- ● ● ●
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-846-3 01 1 0508-0610 ● ● ●
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-201-3 01 1 0611- ● ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-198-2 02 1 0611- ● ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 02 1 0508-0610 ● ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 02 1 0611- ● ● ●
26 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY THA 		8-97867-184-2 01 1 0508-0610 ● ● ●
26 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-198-2 01 1 0611- ● ● ●
26 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 01 1 0508-0610 ● ● ●
26 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 01 1 0611- ● ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> THA 		8-97916-520-0 02 1 0508- ● ● ●
29 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> OD=15.0 		8-94279-040-0 01 1 0508- ● ● ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M5X20 		5-09981-059-0 04 1 0508- ● ● ●
34 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20 		5-09981-059-0 04 1 0508- ● ● ●
34 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0508- ● ● ●
35 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> THA 		8-94279-039-0 04 1 0508- ● ● ●
35 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> THA 		8-94279-039-0 04 1 0508- ● ● ●
35 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> THA 		8-94279-039-0 02 1 0508- ● ● ●
39 HANDLE; ASSIST,A-POST
THA 		8-97922-816-0 02 1 0508- ● ● ●
53 SCREW; ASSIST HANDLE
THA 		8-97916-653-0 04 1 0508- ● ● ●
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97582-294-2 01 1 0508-0610 ● ● ●
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0611- ● ● ●
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER 		5-09981-064-0 02 1 0508- ● ● ●
141 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 0508- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE<951> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0508-0610 ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE<951> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0508-0610 ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE<951> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE<951> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE<890> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0508- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE<890> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0508- ● ● ●
145 PLUG; HOLE
EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8 THA 		8-94279-921-0 04 1 0508- ● ● ●

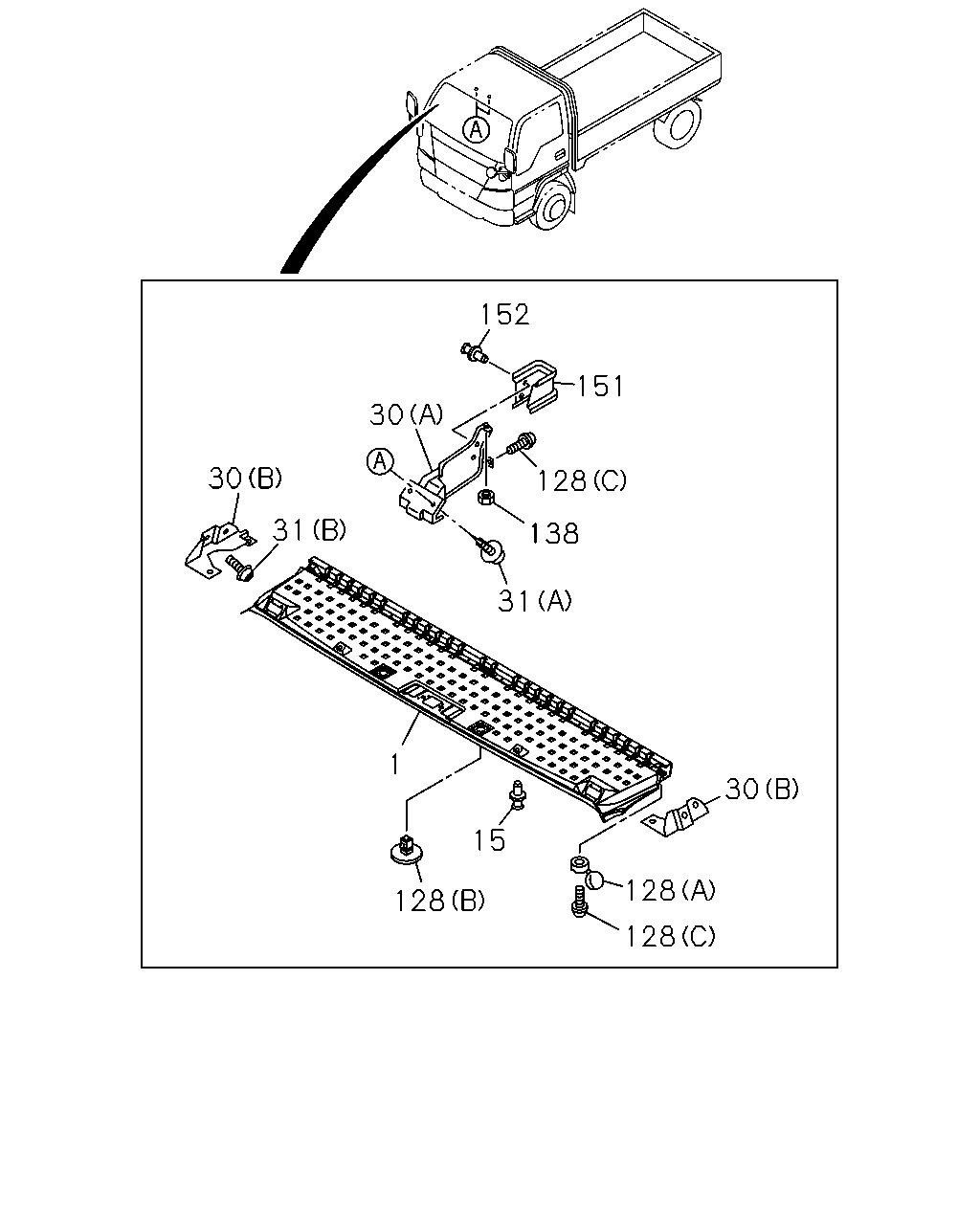

çizim 119126
152 151 30 30 128 31 138 31 1 30 15 128 128 128
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97994-820-1 01 1 0508- ● ● ●
15 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> 		8-97892-697-0 02 1 0508- ● ● ●
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-797-3 01 1 0508- ● ● ●
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-798-3 01 1 0508- ● ● ●
30 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97859-388-4 01 1 0508- ● ● ●
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) M5X16 		8-94279-341-0 02 1 0508- ● ● ●
31 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0508- ● ● ●
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) LIGHT GRAY 		8-97892-153-2 02 1 0508- ● ● ●
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (C) 		8-97892-737-0 03 1 0508- ● ● ●
128 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY 		8-97892-151-0 01 1 0508- ● ● ●
138 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> M8 FLANGE 		0-91150-108-0 01 1 0508- ● ● ●
151 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-250-0 01 1 0508- ● ● ●
152 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-185-0 02 1 0508- ● ● ●
