Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-41 - UNDER COVER; INSTRUMENT
▶

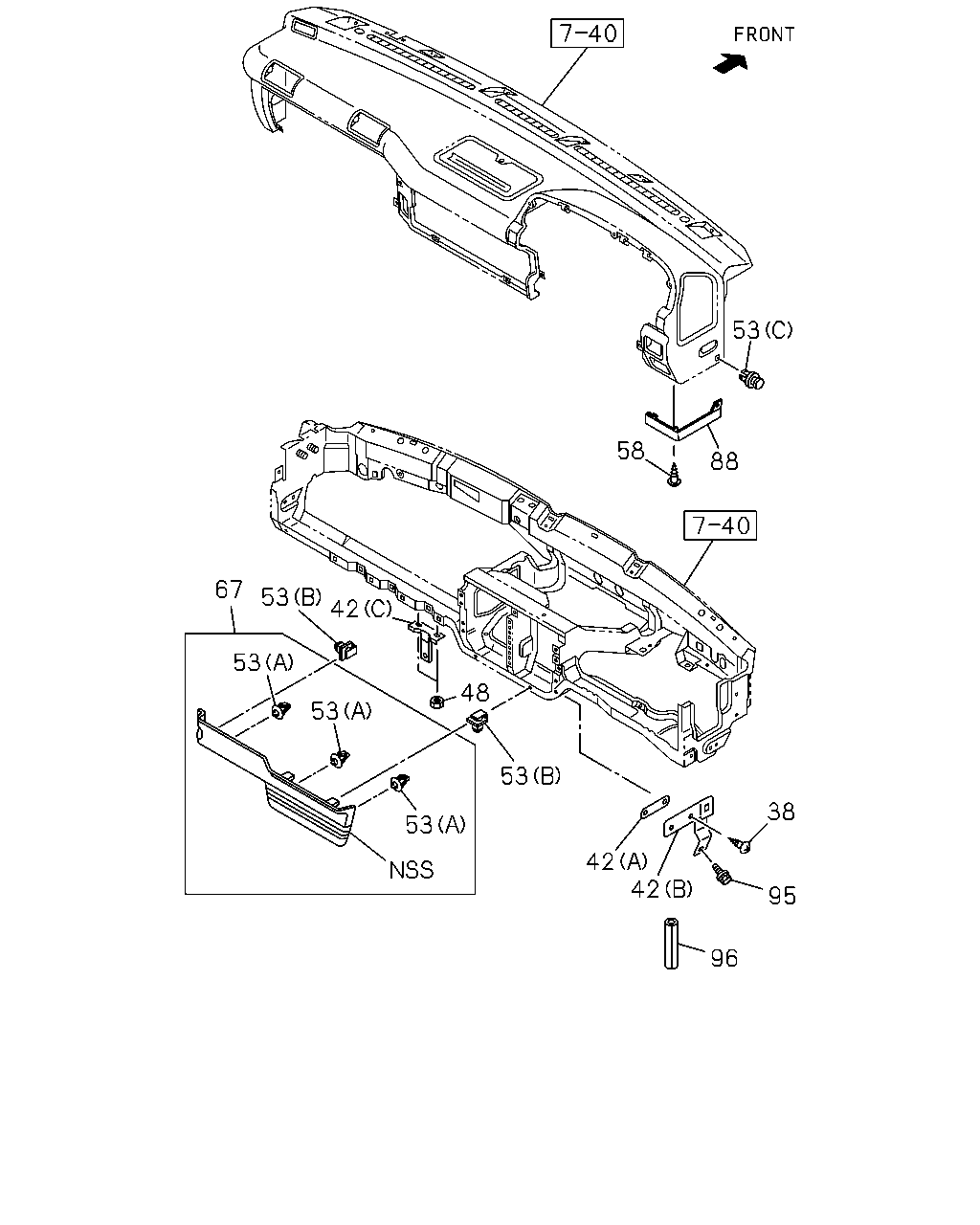

7-41 — UNDER COVER; INSTRUMENT
(#44480) — 14 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
53
58
88
67
53
42
53
48
53
53
38
53
42
42
95
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
38
SCREW; BRKT
THA
8-97916-572-1
02
1
0508-
●
●
●
42
BRACKET; UNDER COVER
(C)
8-97217-299-1
01
1
0508-
●
●
●
42
BRACKET; UNDER COVER
(A) THA
8-97916-599-0
01
1
0508-
●
●
●
42
BRACKET; UNDER COVER
(B) THA
8-97916-601-0
01
1
0508-
●
●
●
48
NUT; UNDER COVER
M6 FLANGE
0-91150-106-0
02
1
0508-0605
●
●
●
48
NUT; UNDER COVER
M6 FLANGE THA
0-91180-106-0
02
1
0606-
●
●
●
53
CLIP; UNDER COVER
(C) DARK GRAY
8-97582-246-0
01
1
0508-
●
●
●
53
CLIP; UNDER COVER
(A)
8-97853-169-0
04
1
0508-
●
●
●
53
CLIP; UNDER COVER
(B)
8-97853-249-5
03
1
0508-
●
●
●
58
SCREW; UNDER COVER
M5X14
8-94279-325-0
02
1
0508-
●
●
●
67
COVER; UNDER,INST PNL
8-97856-661-6
01
1
0508-
●
●
●
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97582-201-2
01
1
0508-
●
●
●
95
BOLT; BRKT
THA
8-97916-573-1
01
1
0508-
●
●
●
96
FINISHER; EDGE
THA
8-97916-771-0
02
1
0508-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
