7-20 — MIRROR AND MIRROR STAY (#44477) — 88 parça

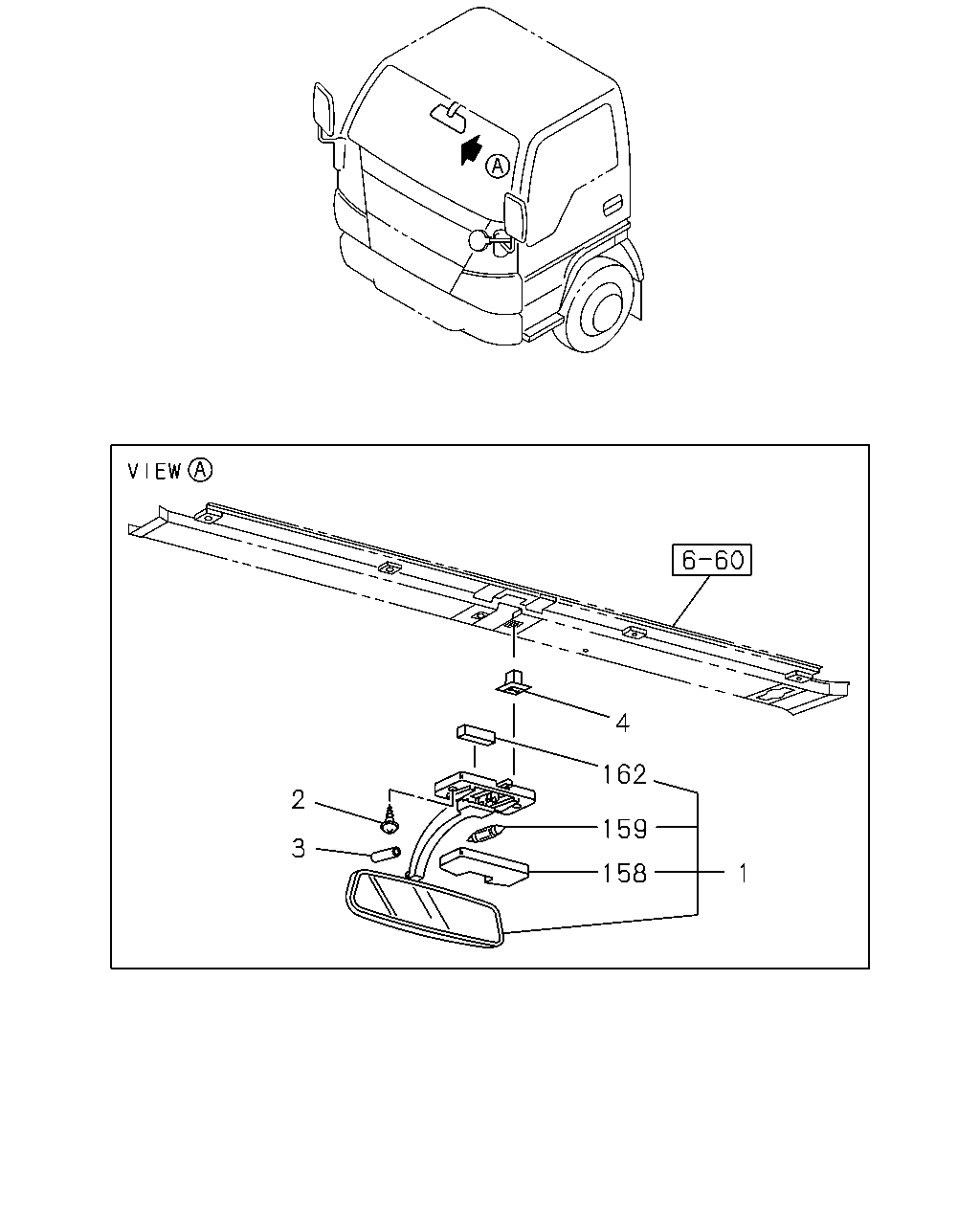

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-242-2	01	1	0508-	●	●	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> THA	8-97922-804-0	01	1	0508-	●	●	●
2	SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	0508-	●	●	●
2	SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16	8-94279-341-0	02	1	0508-	●	●	●
3	STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35	8-97867-849-0	01	1	0508-	●	●	●
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40	8-94273-036-3	01	1	0508-	●	●	●
3	STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0508-	●	●	●
3	STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26 THA	8-97916-546-1	01	1	0508-	●	●	●
4	GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> THA	8-94279-039-0	01	1	0508-	●	●	●
64	SEAL; MIRROR BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-98015-058-0	02	1	0508-	●	●	●
64	SEAL; MIRROR	8-98015-057-0	02	1	0508-	●	●	●
158	LENS; ROOM LAMP TRAY ROOF HEAD<7EJ> THA	8-97917-211-0	01	1	0508-	●	●	●
158	LENS; ROOM LAMP EXC. TRAY ROOF HEAD<7EJ> THA	5-73117-108-1	01	1	0508-	●	●	●
159	BULB; ROOM LAMP TRAY ROOF HEAD<7EJ> 24V 10W THA	8-97917-213-0	01	1	0508-	●	●	●
159	BULB; ROOM LAMP EXC. TRAY ROOF HEAD<7EJ> 24V 10W THA	5-82194-030-0	01	1	0508-	●	●	●
162	SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ> THA	8-97856-532-0	01	1	0508-	●	●	●

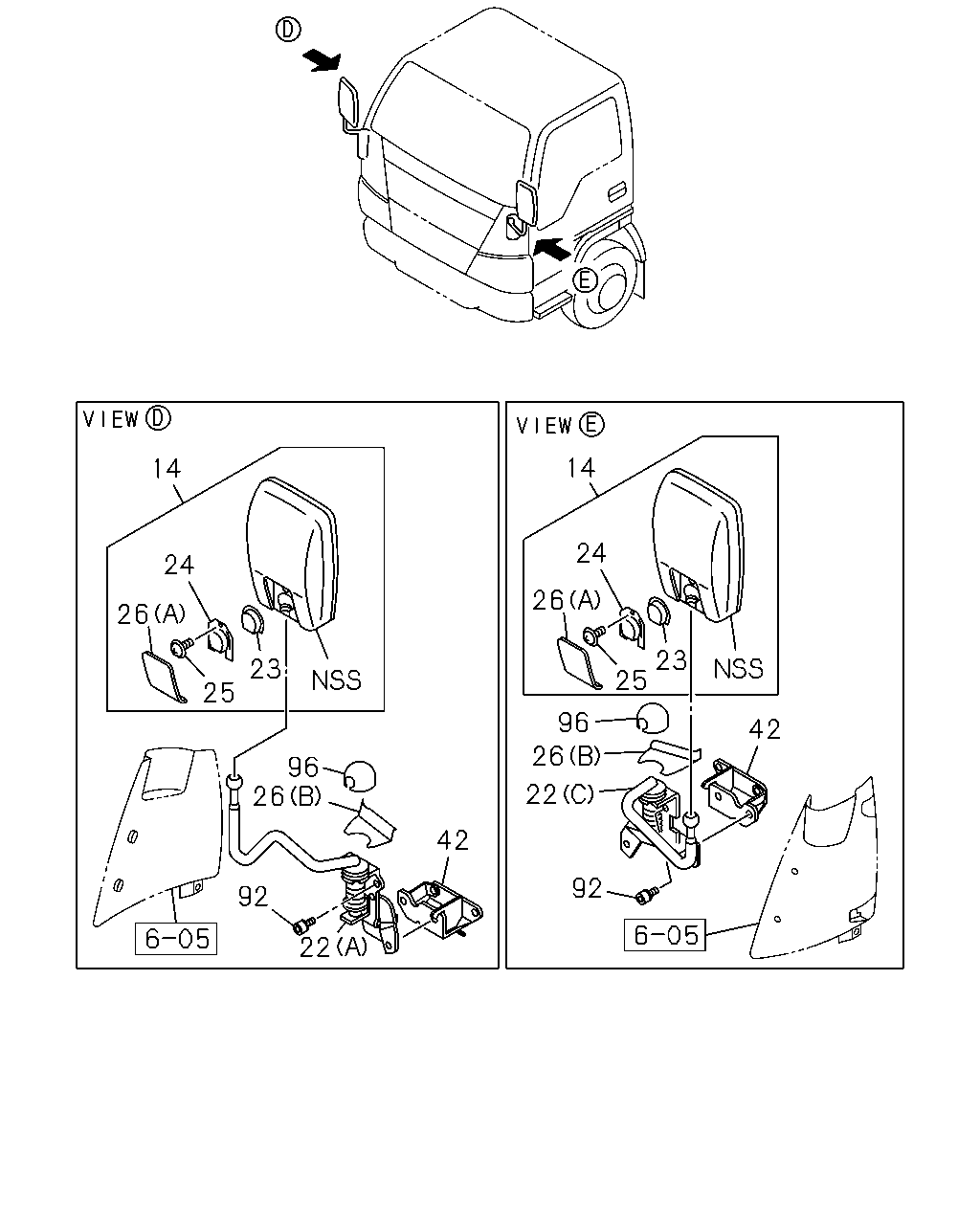

14 14 24 24 26 26 23 25 23 25 96 42 26 96 26 22 42 92 92 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	MIRROR ASM; OUTSIDE RH,UNDER MIRROR LH THA	8-97917-088-0	01	1	0508-0508	●	●	●
14	MIRROR ASM; OUTSIDE UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97917-088-0	01	1	0508-0508	●	●	●
14	MIRROR ASM; OUTSIDE EXC. UNDER MIRROR<RR9> THA	8-94262-543-3	01	1	0508-	●	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (C)	8-97583-376-3	01	1	0508-0509	●	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) THA	8-97922-899-0	01	1	0508-0508	●	●	●
22	STAY; OUTSIDE MIRROR (A) THA	8-97922-897-0	01	1	0508-0508	●	●	●
23	WASHER; OUTSIDE MIRROR RH,UNDER MIRROR LH THA	8-97918-674-0	01	1	0508-0508	●	●	●
23	WASHER; OUTSIDE MIRROR UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97918-674-0	01	1	0508-0508	●	●	●
23	WASHER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=2.0	8-94262-545-0	01	1	0508-0509	●	●	●
24	HOLDER; OUTSIDE MIRROR RH,UNDER MIRROR LH THA	8-97918-675-0	01	1	0508-0508	●	●	●
24	HOLDER; OUTSIDE MIRROR UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97918-675-0	01	1	0508-0508	●	●	●
24	HOLDER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=1.6	8-94262-546-1	01	1	0508-0509	●	●	●
25	SCREW; OUTSIDE MIRROR RH,UNDER MIRROR LH THA	8-97918-676-0	01	1	0508-0508	●	●	●
25	SCREW; OUTSIDE MIRROR UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97918-676-0	01	1	0508-0508	●	●	●
25	SCREW; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> M6X30	8-94279-365-0	01	1	0508-0509	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-565-0	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-568-1	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR (A) THA	8-97918-677-0	01	1	0508-0508	●	●	●
26	COVER; OUTSIDE MIRROR UNDER MIRROR<RR9> (A) THA	8-97918-677-0	01	1	0508-0508	●	●	●
26	COVER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A) T=2.3	8-94262-547-2	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-566-5	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-567-4	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0508-	●	●	●
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-625-2	01	1	0508-	●	●	●
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-755-2	01	1	0508-	●	●	●
64	SEAL; MIRROR BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-98015-058-0	02	1	0508-	●	●	●
64	SEAL; MIRROR	8-98015-057-0	02	1	0508-	●	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0508-	●	●	●
96	CAP; MIRROR STAY	8-97581-631-2	02	1	0508-	●	●	●

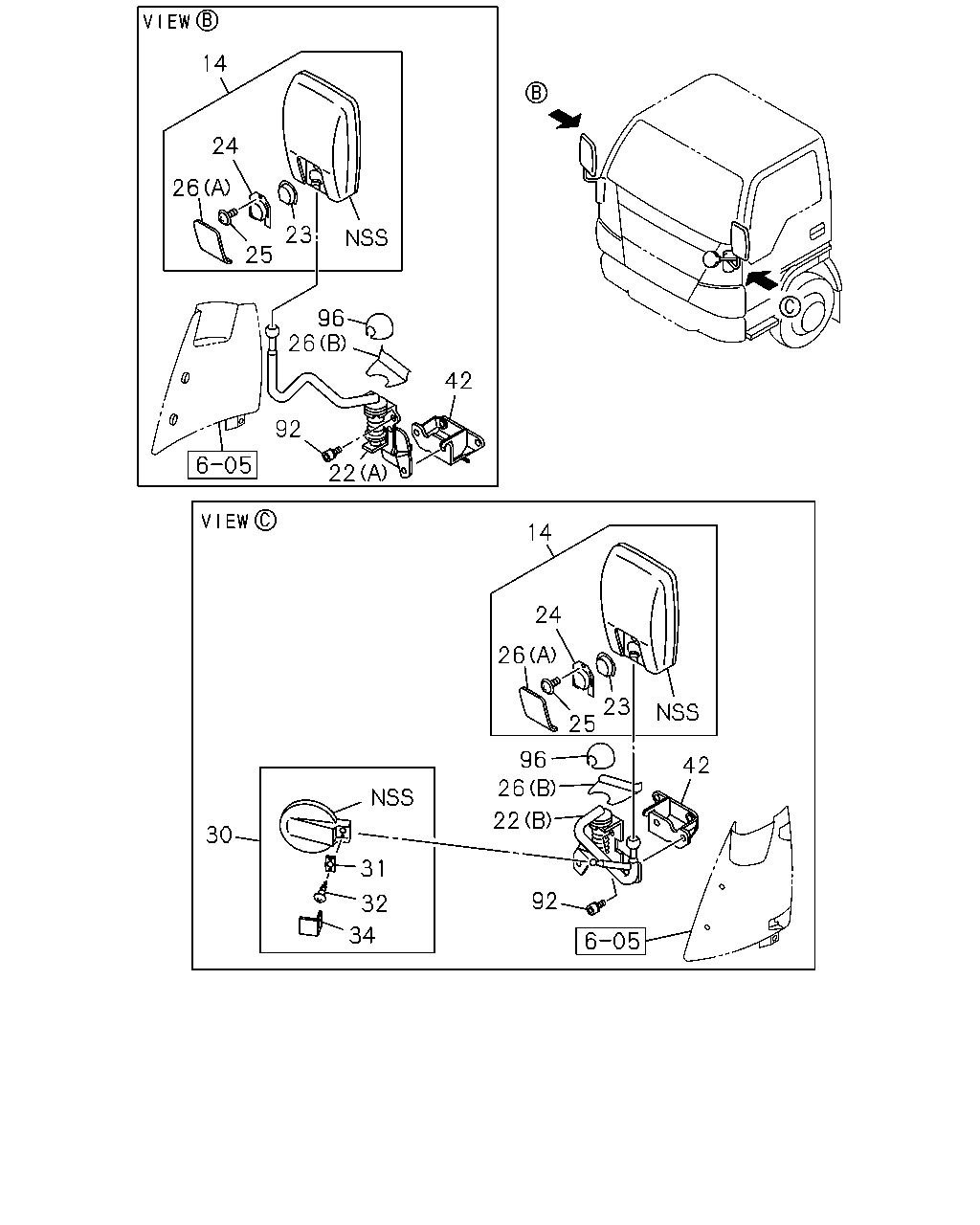

14 24 26 23 25 96 26 42 92 22 14 24 26 23 25 96 42 26 22 30 31 92 32 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	MIRROR ASM; OUTSIDE RH,UNDER MIRROR LH THA	8-97917-088-0	01	1	0508-0508	●	●	●
14	MIRROR ASM; OUTSIDE UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97917-088-0	01	1	0508-0508	●	●	●
14	MIRROR ASM; OUTSIDE EXC. UNDER MIRROR<RR9> THA	8-94262-543-3	01	1	0508-	●	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (C)	8-97583-376-3	01	1	0508-0509	●	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> (B) THA	8-97922-899-0	01	1	0508-0508	●	●	●
22	STAY; OUTSIDE MIRROR (A) THA	8-97922-897-0	01	1	0508-0508	●	●	●
23	WASHER; OUTSIDE MIRROR RH,UNDER MIRROR LH THA	8-97918-674-0	01	1	0508-0508	●	●	●
23	WASHER; OUTSIDE MIRROR UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97918-674-0	01	1	0508-0508	●	●	●
23	WASHER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=2.0	8-94262-545-0	01	1	0508-0509	●	●	●
24	HOLDER; OUTSIDE MIRROR RH,UNDER MIRROR LH THA	8-97918-675-0	01	1	0508-0508	●	●	●
24	HOLDER; OUTSIDE MIRROR UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97918-675-0	01	1	0508-0508	●	●	●
24	HOLDER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> T=1.6	8-94262-546-1	01	1	0508-0509	●	●	●
25	SCREW; OUTSIDE MIRROR RH,UNDER MIRROR LH THA	8-97918-676-0	01	1	0508-0508	●	●	●
25	SCREW; OUTSIDE MIRROR UNDER MIRROR<RR9> RH,UNDER MIRROR LH THA	8-97918-676-0	01	1	0508-0508	●	●	●
25	SCREW; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> M6X30	8-94279-365-0	01	1	0508-0509	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-565-0	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-568-1	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR (A) THA	8-97918-677-0	01	1	0508-0508	●	●	●
26	COVER; OUTSIDE MIRROR UNDER MIRROR<RR9> (A) THA	8-97918-677-0	01	1	0508-0508	●	●	●
26	COVER; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> (A) T=2.3	8-94262-547-2	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-566-5	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE<951> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97404-567-4	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0508-	●	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE<890> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0508-	●	●	●
30	MIRROR; UNDER	8-94262-625-2	01	1	0510-	●	●	●
30	MIRROR; UNDER UNDER MIRROR<RR9> THA	8-97922-900-0	01	1	0508-0508	●	●	●
31	PLATE; MIRROR	8-94262-631-0	01	1	0510-	●	●	●
31	PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	0508-0508	●	●	●
32	SCREW; UNDER MIRROR M5X18	8-94279-372-0	02	1	0510-	●	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	0508-0508	●	●	●
34	CAP; MIRROR	8-94262-629-0	01	1	0510-	●	●	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	0508-0508	●	●	●
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-625-2	01	1	0508-	●	●	●
42	ATTACHMENT; OUTSIDE MIRROR	8-97581-755-2	01	1	0508-	●	●	●
64	SEAL; MIRROR BODY COLOR MARINE BLUE<890>,BODY COLOR ARC WHITE<951> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-98015-058-0	02	1	0508-	●	●	●
64	SEAL; MIRROR	8-98015-057-0	02	1	0508-	●	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0508-	●	●	●
96	CAP; MIRROR STAY	8-97581-631-2	02	1	0508-	●	●	●
