◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#44476) — 26 parça
çizim 119104
49 106 5 48 12 225
BalonParca AdiParca NoAdetTipApplied Date A B C
5 LABEL; TIRE AIR PRESSURE
THA 		8-97918-774-2 01 1 0508- ● ● ●
12 LABEL; TURN
THA 		8-97918-780-0 01 1 0508- ● ● ●
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE<V66> 		8-94469-277-0 01 1 0508- ● ● ●
49 PLATE; CAUTION,FUSE BOX
4HK1-TCS ENG<RJS> THA 		8-98028-577-0 01 1 0510- ● ●
49 PLATE; CAUTION,FUSE BOX
4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> THA 		8-97922-785-0 01 1 0508- ● ● ●
49 PLATE; CAUTION,FUSE BOX
4HK1-TCS ENG<RJS> THA 		8-97922-786-0 01 1 0510- ● ●
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> THA 		8-97918-777-0 01 1 0508- ● ● ●
145 PLATE; CAUTION,RADIATOR
4HK1-TCS ENG<RJS> THA 		8-97922-972-0 01 1 0510- ● ●
193 PLATE; CAUTION,EGR
4HK1-TCS ENG<RJS> THA 		8-97922-970-0 01 1 0510- ● ●
225 PLATE; CAUTION,RELAY POSITION
THA 		8-97922-787-0 01 1 0508- ● ● ●

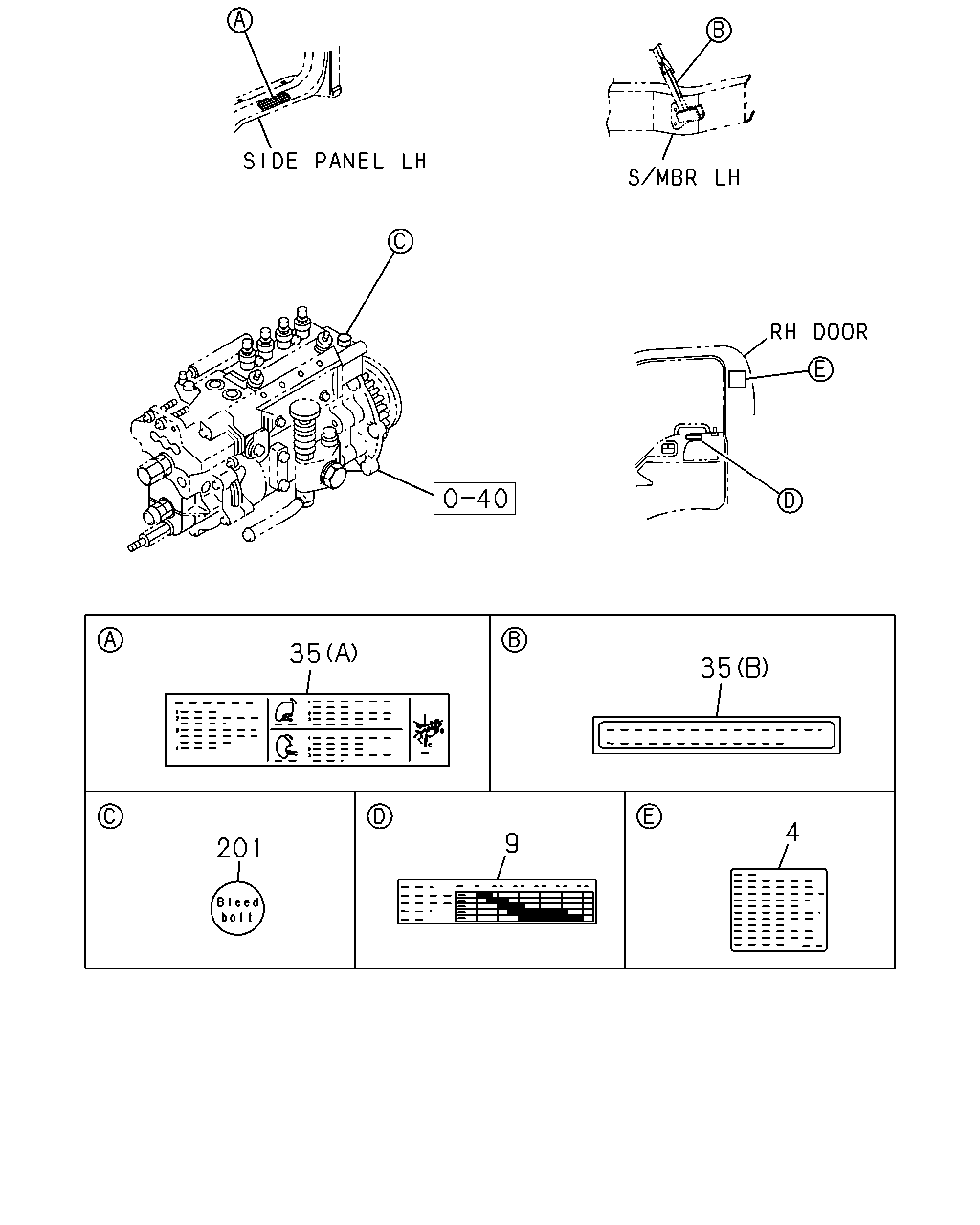

çizim 119111
35 35 4 9 201
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE
4HK1-TCS ENG<RJS> THA 		8-97922-969-0 01 1 0510- ● ●
4 LABEL; ENG MAINTENANCE
4HK1-TCS ENG<RJS> 		8-98013-423-0 01 1 0510- ● ●
4 LABEL; ENG MAINTENANCE
4HG1-T ENG<RDP> THA 		8-97917-043-1 01 1 0508- ● ●
4 LABEL; ENG MAINTENANCE
4HE1-TCS ENG<RDS> THA 		8-97920-919-0 01 1 0508- ● ●
9 PLATE; NAME,SPD RANGE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> EXC. TACHOMETER<U16> THA 		8-97229-101-0 01 1 0510- ● ●
9 PLATE; NAME,SPD RANGE
4HG1-T ENG<RDP> M/T MYY5T<RSM> EXC. TACHOMETER<U16> THA 		8-97918-772-0 01 1 0508- ● ●
9 PLATE; NAME,SPD RANGE
4HE1-TCS ENG<RDS> M/T MYY5T<RSM> EXC. TACHOMETER<U16> THA 		8-97920-971-0 01 1 0508- ●
9 PLATE; NAME,SPD RANGE
4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FINAL GEAR RATIO 41/8<RU1> EXC. TACHOMETER<U16> THA 		8-97922-728-0 01 1 0508- ●
9 PLATE; NAME,SPD RANGE
4HE1-TCS ENG<RDS> M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 43/10<S7C> EXC. TACHOMETER<U16> THA 		8-97922-729-0 01 1 0508-0509 ●
9 PLATE; NAME,SPD RANGE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FINAL GEAR RATIO 41/9<HC6> EXC. TACHOMETER<U16> THA 		8-97922-729-0 01 1 0510- ●
9 PLATE; NAME,SPD RANGE
4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> M/T MZZ6F<RSR> FINAL GEAR RATIO 41/10<GT5>,FINAL GEAR RATIO 43/10<S7C> EXC. TACHOMETER<U16> THA 		8-97922-729-0 01 1 0510- ●
35 PLATE; CAUTION,CAB
(B) THA 		8-97918-771-0 01 1 0508- ● ● ●
35 PLATE; CAUTION,CAB
(A) THA 		8-97918-776-0 01 1 0508- ● ● ●
145 PLATE; CAUTION,RADIATOR
4HK1-TCS ENG<RJS> THA 		8-97922-972-0 01 1 0510- ● ●
193 PLATE; CAUTION,EGR
4HK1-TCS ENG<RJS> THA 		8-97922-970-0 01 1 0510- ● ●
201 PLATE; CAUTION,BLEED BOLT
4HE1-TCS ENG<RDS> 		8-97192-288-0 01 1 0508- ● ●
