6-90 — REAR BUMPER (#44474) — 16 parça

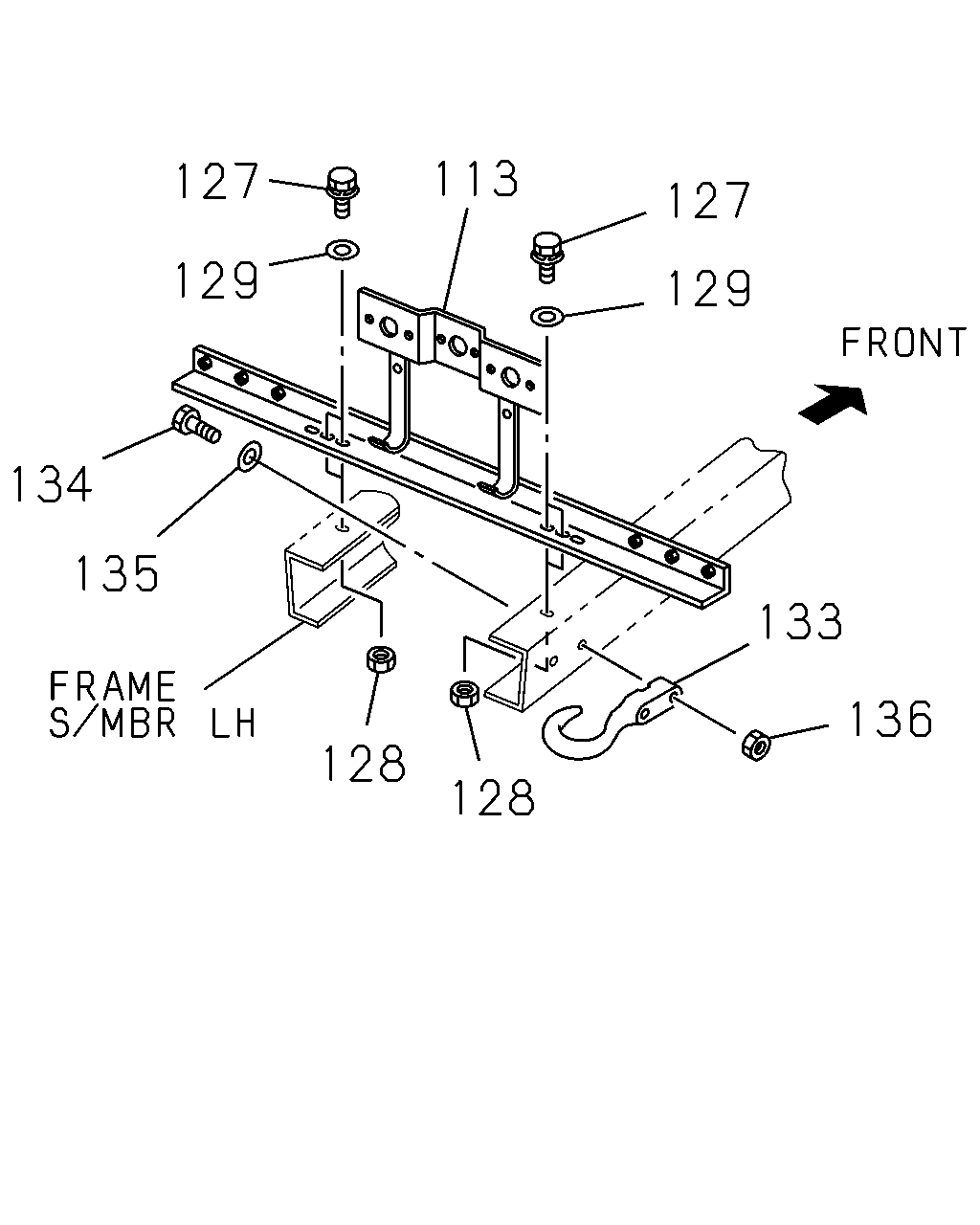

çizim 119118
113 127 127 129 129 134 135 133 136 128 128
BalonParca AdiParca NoAdetTipApplied Date A B C
113 BRACKET; LICENSE PLATE
THA 		8-97913-672-0 01 1 0508- ● ● ●
127 BOLT; CROSS PLATE
M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0508-0512 ● ● ●
127 BOLT; CROSS PLATE
M8X40 W/LK&PL WASHER 		0-50640-840-0 02 1 0601- ● ● ●
128 NUT; CROSS PLATE
M8 		9-09110-408-0 02 1 0508- ● ● ●
129 WASHER; PL,CROSS PLATE
ID=8.4 OD=26 		9-09164-808-0 02 1 0508-0605 ● ●
129 WASHER; PL,CROSS PLATE
ID=8.4 OD=26 		0-91614-808-0 02 1 0606- ● ●
133 HOOK
FRAME STRAIGHT TYPE<7KJ> THA 		8-97918-519-0 01 1 0508- ●
133 HOOK
THA 		8-97918-519-0 01 1 0508- ●
133 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97918-518-0 01 1 0508- ●
133 HOOK
THA 		8-97918-518-0 01 1 0508- ●
134 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0508-0512 ● ● ●
134 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0601- ● ● ●
135 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0508-0603 ● ● ●
135 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0604- ● ● ●
136 NUT; HOOK
M14 THA 		9-99110-514-0 02 1 0508-0512 ● ● ●
136 NUT; HOOK
M14 THA 		0-91110-514-0 02 1 0601- ● ● ●
