◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#44471) — 11 parça

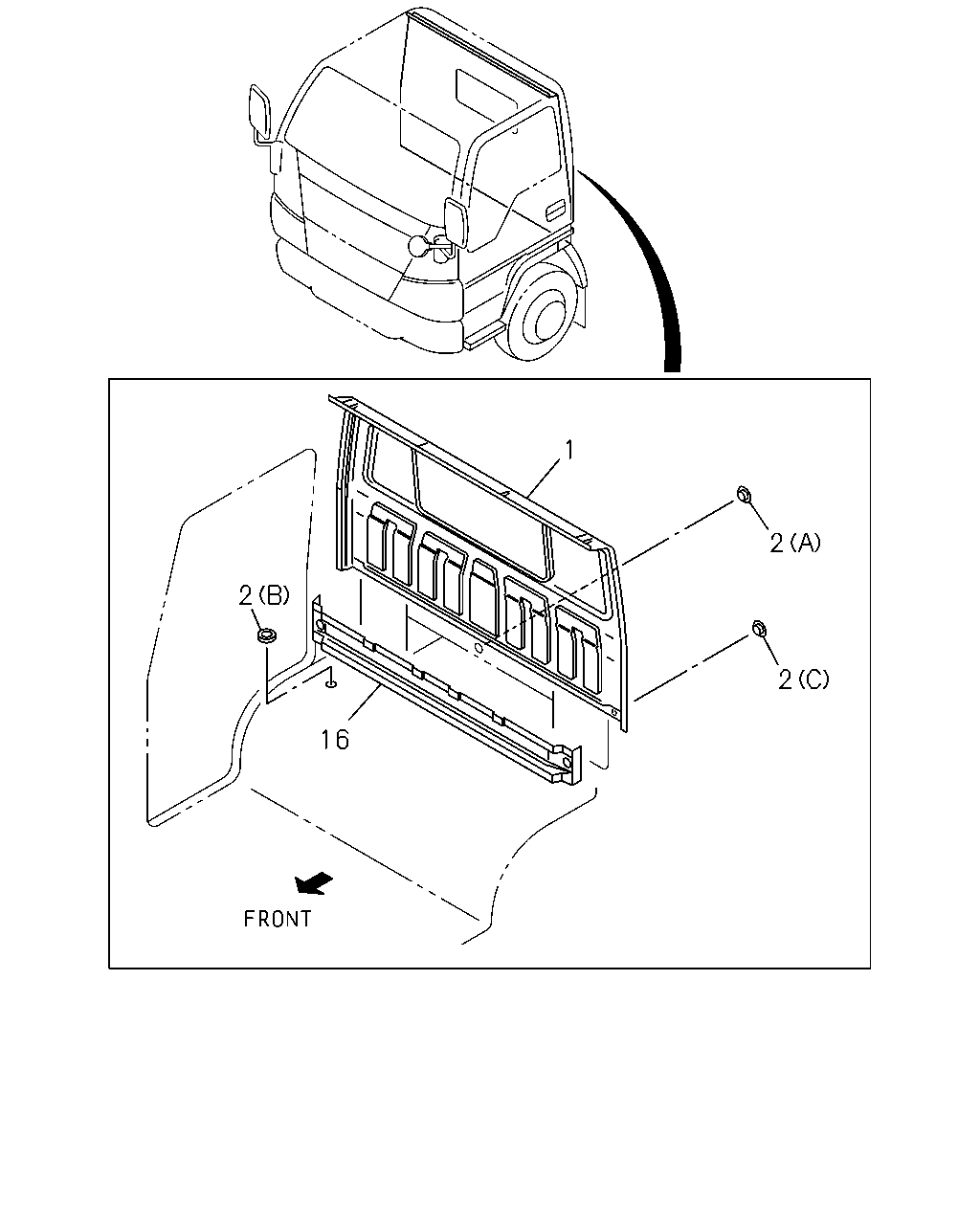

çizim 119102
1 2 2 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; BACK OUTER
4HG1-T ENG<RDP> KD CAB BREAKDOWN<RZV> THA 		8-97916-408-0 01 1 0508- ● ●
1 PANEL; BACK OUTER
4HE1-TCS ENG<RDS> KD CAB BREAKDOWN<RZV> THA 		8-97921-222-0 01 1 0508- ● ●
1 PANEL; BACK OUTER
4HK1-TCS ENG<RJS> THA 		8-97859-127-0 01 1 0510- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 0508- ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0508-0710 ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=16.2 		8-94492-493-0 02 1 0508-0512 ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HG1-T ENG<RDP> KD CAB BREAKDOWN<RZV> THA 		8-97916-527-1 01 1 0508- ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HE1-TCS ENG<RDS> KD CAB BREAKDOWN<RZV> THA 		8-97921-439-0 01 1 0508- ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HK1-TCS ENG<RJS> THA 		8-97890-837-1 01 1 0510- ● ●
