6-76 — FLOOR EQUIPMENT AND SEALING (#44469) — 27 parça

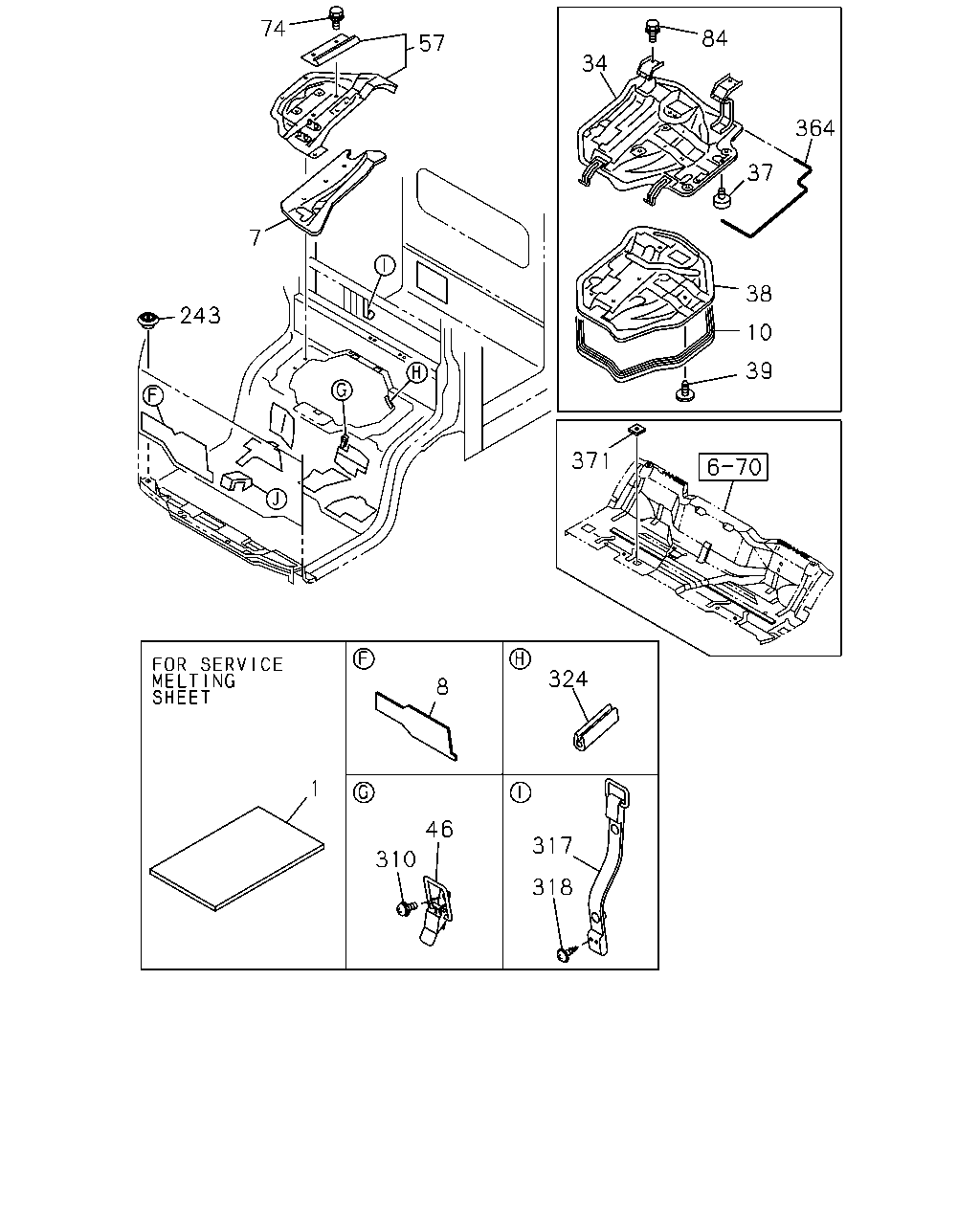

çizim 119113
74 84 57 34 364 37 7 38 243 10 39 371 324 8 1 46 317 310 318
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0508- ● ● ●
7 INSULATOR; SUPPORT COVER 8-97853-629-2 01 1 0508- ● ● ●
8 MAT; SILENCER,FRT PANEL 8-97581-660-3 01 1 0508- ● ● ●
8 MAT; SILENCER,FRT PANEL 8-97581-661-3 01 1 0508- ● ● ●
10 SEAL; ENG COVER 8-97581-109-1 01 1 0508- ● ● ●
34 COVER ASM; ENG,CAB FLOOR
THA 		8-97920-596-0 01 1 0508- ● ● ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 0508- ● ● ●
38 INSULATOR; ENG COVER 8-97898-101-0 01 1 0508- ● ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0508- ● ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 08 1 0508- ● ● ●
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0508- ● ● ●
57 COVER ASM; SUPPORT,CAB FLOOR
THA 		8-97916-295-0 01 1 0508- ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28680-820-0 05 1 0508-0611 ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE THA 		0-28650-820-0 05 1 0612- ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28680-820-0 04 1 0508-0611 ● ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE THA 		0-28650-820-0 04 1 0612- ● ● ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0508- ● ● ●
310 SCREW; ENG COVER HOOK
M6X16 W/LK&PL WASHER THA 		8-97922-695-0 04 1 0508- ● ● ●
317 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0508- ● ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0508-0604 ● ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ● ●
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0508- ● ● ●
337 SEAL; CLIP HOLE
4HK1-TCS ENG<RJS> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0510- ● ●
364 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0508- ● ● ●
371 GROMMET; LOCATION HOLE
14.5X14.5 BLACK 		8-94279-714-0 02 1 0508- ● ● ●
