◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51041 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#44467) — 65 parça

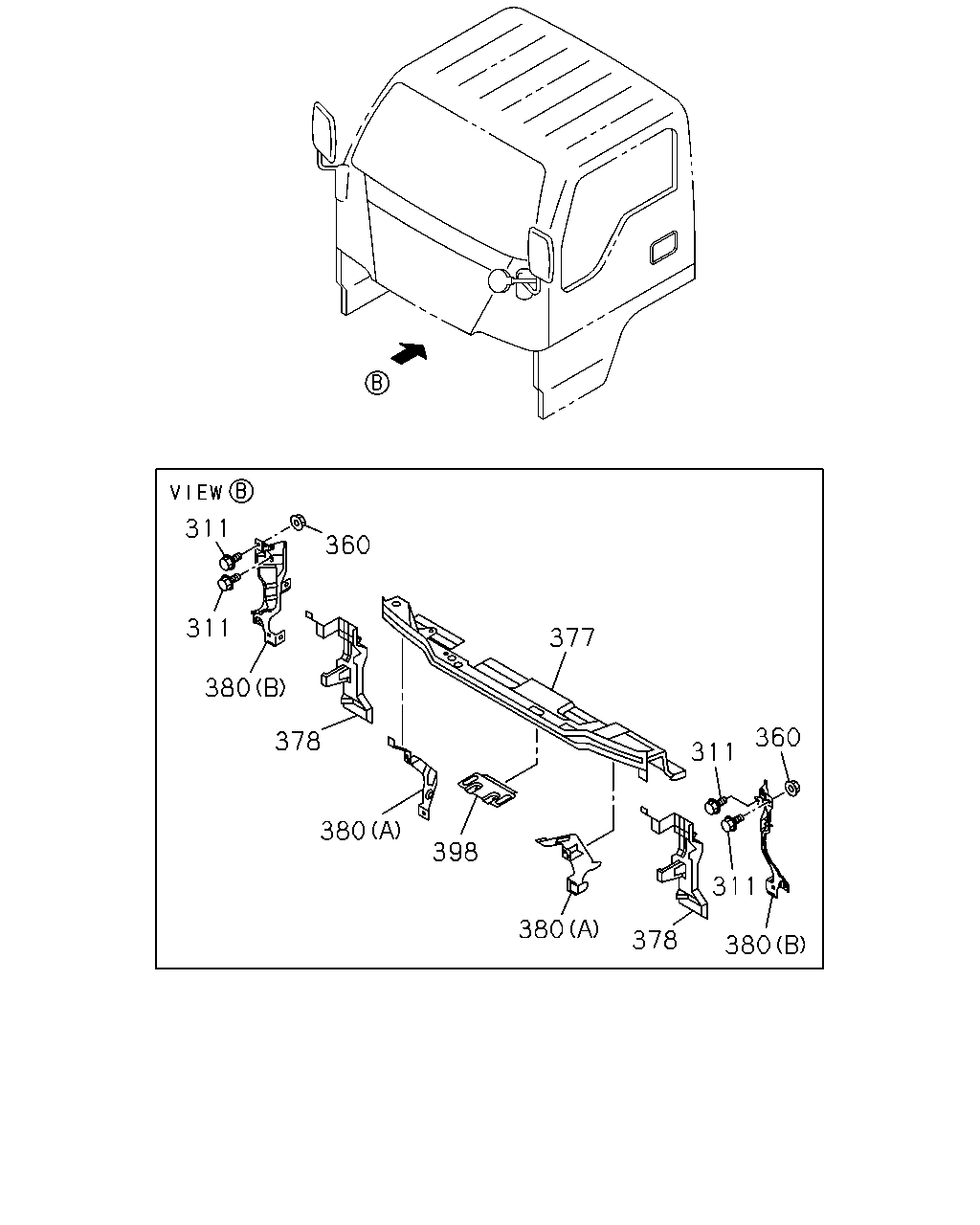

çizim 119086
311 360 311 377 380 360 378 311 380 398 311 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C
311 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0508-0804 ● ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 0805- ● ● ●
360 NUT; BRKT
M6 POP NUT 		8-94279-537-0 02 1 0508-0805 ● ● ●
360 NUT; BRKT
M6 POP NUT 		8-98013-752-0 02 1 0806- ● ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97997-638-0 01 1 0508- ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0508- ● ●
378 GASSET; LWR
FLOOR REMOTE SHIFT<M11> 		8-97581-827-2 01 1 0508- ●
378 GASSET; LWR 8-97581-827-2 01 1 0508- ● ●
378 GASSET; LWR
FLOOR REMOTE SHIFT<M11> 		8-97581-828-2 01 1 0508- ●
378 GASSET; LWR 8-97581-828-2 01 1 0508- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 0508- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 0508- ● ● ●
380 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> (A) 		8-97850-090-2 01 1 0508- ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0508- ● ●
380 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> (A) 		8-97850-767-0 01 1 0508- ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-767-0 01 1 0508- ● ●
398 BRACKET; PIPE SUPPORT
FLOOR REMOTE SHIFT<M11> 		8-97850-318-1 01 1 0508- ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0508- ● ●

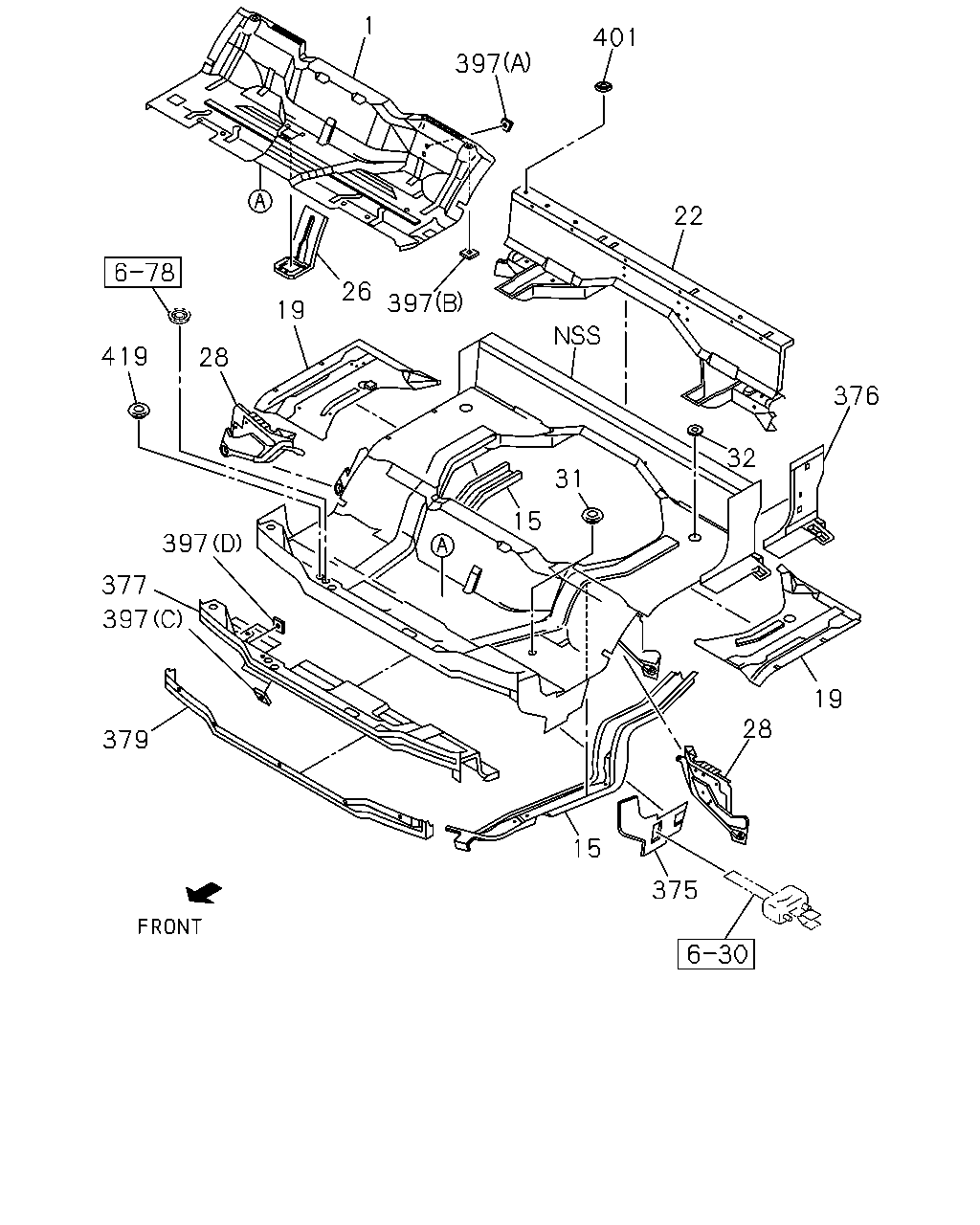

çizim 119112
1 401 397 22 26 397 19 419 28 376 32 31 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97581-801-0 01 1 0508- ●
1 PANEL; FLOOR 8-97581-801-0 01 1 0508- ● ●
15 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> THA 		8-97850-060-9 01 1 0508- ●
15 FRAME; UNDER
THA 		8-97850-060-9 01 1 0508- ● ●
15 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> 		8-98013-405-0 01 1 0508- ●
15 FRAME; UNDER 8-98013-405-0 01 1 0508- ● ●
19 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> 		8-97850-008-4 01 1 0508- ●
19 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 0508- ● ●
19 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> 		8-97850-118-6 01 1 0508- ●
19 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0508- ● ●
22 FRAME; FLOOR REAR
FLOOR REMOTE SHIFT<M11> 		8-97850-657-6 01 1 0508- ●
22 FRAME; FLOOR REAR 8-97850-657-6 01 1 0508- ● ●
26 PANEL; GEAR CONT REINF
FLOOR REMOTE SHIFT<M11> 		8-97850-140-3 01 1 0508- ●
26 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0508- ● ●
28 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> 		8-97850-017-7 01 1 0508-1106 ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0508-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> THA 		8-98170-771-0 01 1 1107- ●
28 GUSSET; FLOOR PANEL SIDE
THA 		8-98170-771-0 01 1 1107- ● ●
28 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> 		8-97850-338-5 01 1 0508-1106 ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0508-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> THA 		8-98170-770-0 01 1 1107- ●
28 GUSSET; FLOOR PANEL SIDE
THA 		8-98170-770-0 01 1 1107- ● ●
31 GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5 		8-94279-711-0 02 1 0508- ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0508- ● ● ●
375 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> 		8-97850-086-5 01 1 0508- ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 0508- ● ●
375 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> 		8-97850-087-4 01 1 0508- ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 0508- ● ●
376 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> 		8-97850-320-6 01 1 0508- ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0508- ● ●
376 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> 		8-97850-923-1 01 1 0508- ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0508- ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> 		8-97997-638-0 01 1 0508- ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0508- ● ●
379 PANEL
FLOOR REMOTE SHIFT<M11> 		8-97581-640-0 01 1 0508- ●
379 PANEL 8-97581-640-0 01 1 0508- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> (A) M6 		9-09114-046-0 04 1 0508- ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0508- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> (C) M8 		9-09114-048-0 04 1 0508- ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 0508- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> (D) M10 		9-09114-030-0 03 1 0508- ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0508- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> (B) M8 		9-09114-048-0 06 1 0508- ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 06 1 0508- ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0508- ● ● ●
401 GROMMET; HOLE
OD=12.1 		8-97898-423-0 01 1 0508- ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE<V66> OD=36 		1-09983-092-0 01 1 0508- ● ● ●
