Isuzu WW
▶
TRUCKS
▶
NPR
▶
51041 - NPR/NQR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

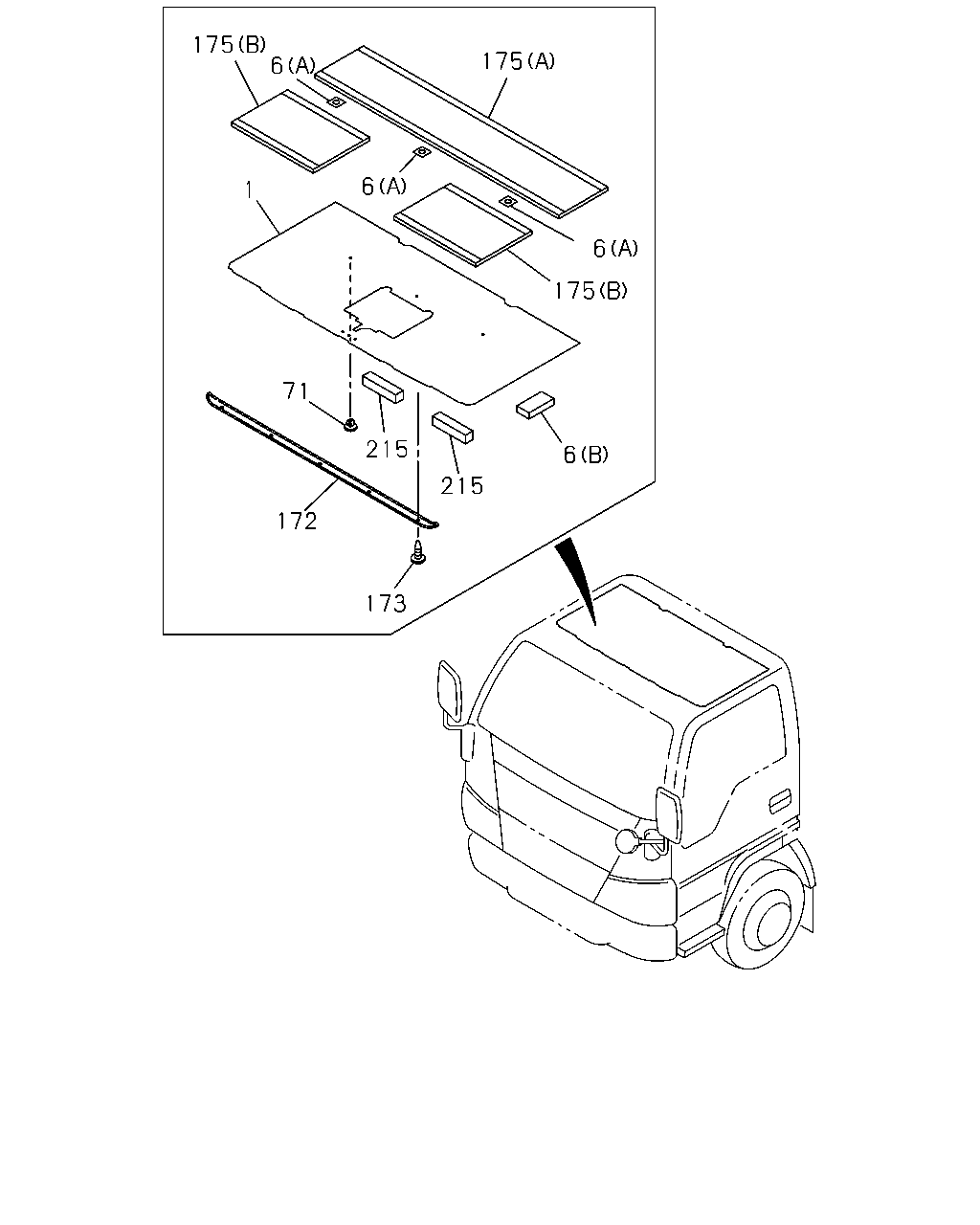

6-66 — HEAD LINING AND TRIM
(#44465) — 13 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
175
6
175
6
1
6
175
71
215
6
215
172
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-426-2
01
1
0508-
●
●
●
1
LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-224-2
01
1
0508-
●
●
●
1
LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY
8-97867-608-3
01
1
0508-
●
●
●
1
LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-427-2
01
1
0508-
●
●
●
6
SPACER; HD LINING
(A)
8-94353-014-0
03
1
0508-
●
●
●
6
SPACER; HD LINING
(B) H=10 L=55
8-97410-832-0
02
1
0508-
●
●
●
71
FASTENER; HD LINING
LIGHT GRAY
8-97867-230-2
03
1
0508-0610
●
●
●
71
FASTENER; HD LINING
DARK GRAY
8-97405-301-2
03
1
0611-
●
●
●
172
RETAINER; HEAD LINING
LIGHT GRAY
8-97867-611-4
01
1
0508-
●
●
●
173
CLIP; RETAINER,HEAD LINING
D6.8X11 PUSH RIVET
8-97856-755-0
05
1
0508-
●
●
●
175
CUSHION; HEAD LINING
(B)
8-97856-524-5
02
1
0508-
●
●
●
175
CUSHION; HEAD LINING
(A)
8-97859-105-3
01
1
0508-
●
●
●
215
CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> L=100
8-97866-625-0
02
1
0508-
●
●
●
