Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#44463) — 167 parça

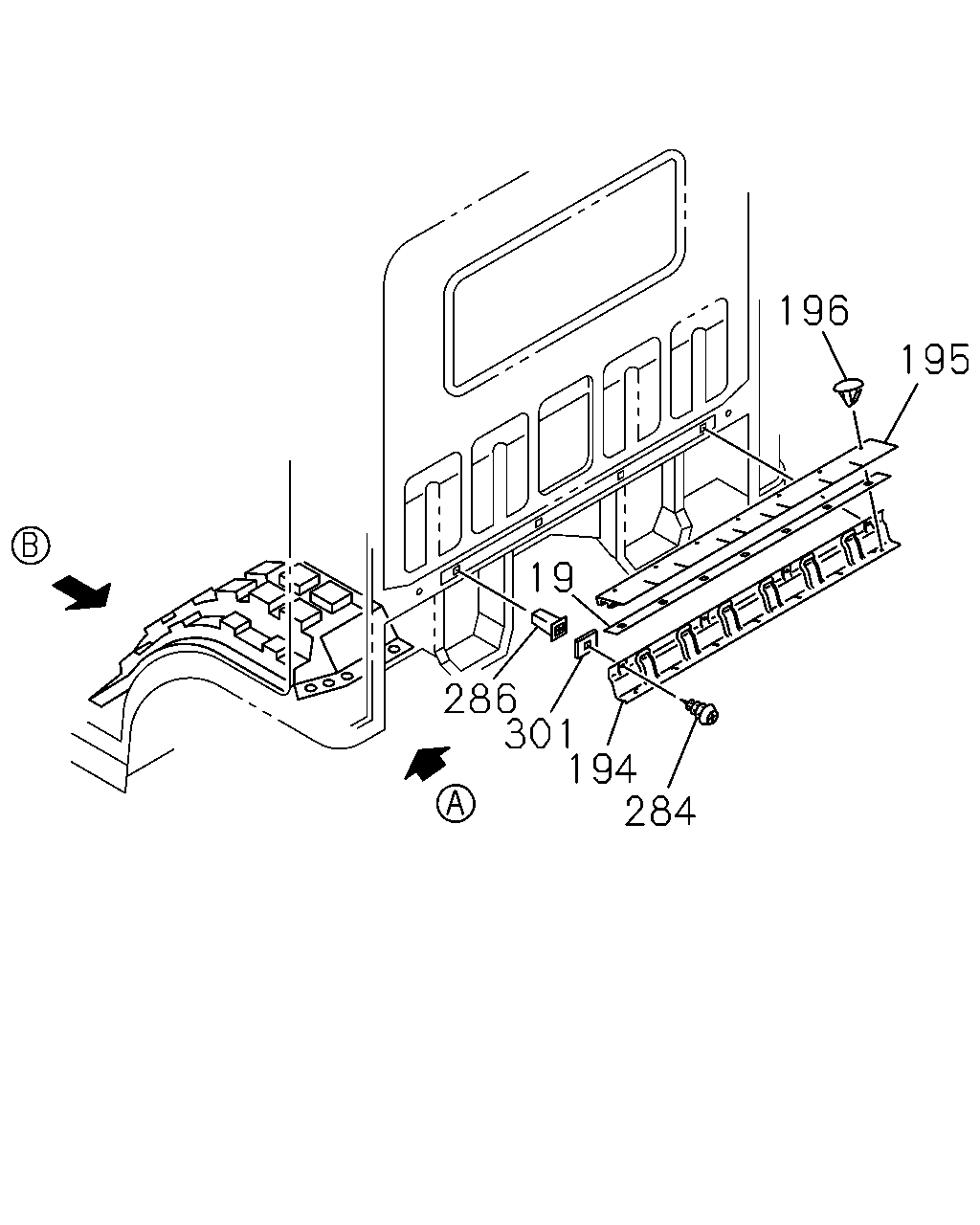

196 195 19 286 301 194 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SHEET; HEAT PROTECTOR,CAB BACK 4HE1-TCS ENG<RDS> VEHICLE CATEGORY NQR<7NQ>	8-97856-016-0	01	1	0508-	●
19	SHEET; HEAT PROTECTOR,CAB BACK 4HE1-TCS ENG<RDS>	8-97856-016-0	01	1	0508-		●
194	BRACKET; HEAT PROTECTOR 4HE1-TCS ENG<RDS> VEHICLE CATEGORY NQR<7NQ>	8-97853-797-1	01	1	0508-	●
194	BRACKET; HEAT PROTECTOR 4HE1-TCS ENG<RDS>	8-97853-797-1	01	1	0508-		●
195	PROTECTOR; HEAT 4HE1-TCS ENG<RDS> VEHICLE CATEGORY NQR<7NQ>	8-97856-386-2	01	1	0508-	●
195	PROTECTOR; HEAT 4HE1-TCS ENG<RDS>	8-97856-386-2	01	1	0508-		●
196	CLIP; HEAT PROTECTOR 4HE1-TCS ENG<RDS> VEHICLE CATEGORY NQR<7NQ>	8-94244-922-0	07	1	0508-	●
196	CLIP; HEAT PROTECTOR 4HE1-TCS ENG<RDS>	8-94244-922-0	07	1	0508-		●
284	SCREW; HEAT PROTECTOR 4HE1-TCS ENG<RDS> VEHICLE CATEGORY NQR<7NQ> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0508-	●
284	SCREW; HEAT PROTECTOR 4HE1-TCS ENG<RDS> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0508-		●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0508-	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0508-	●	●	●

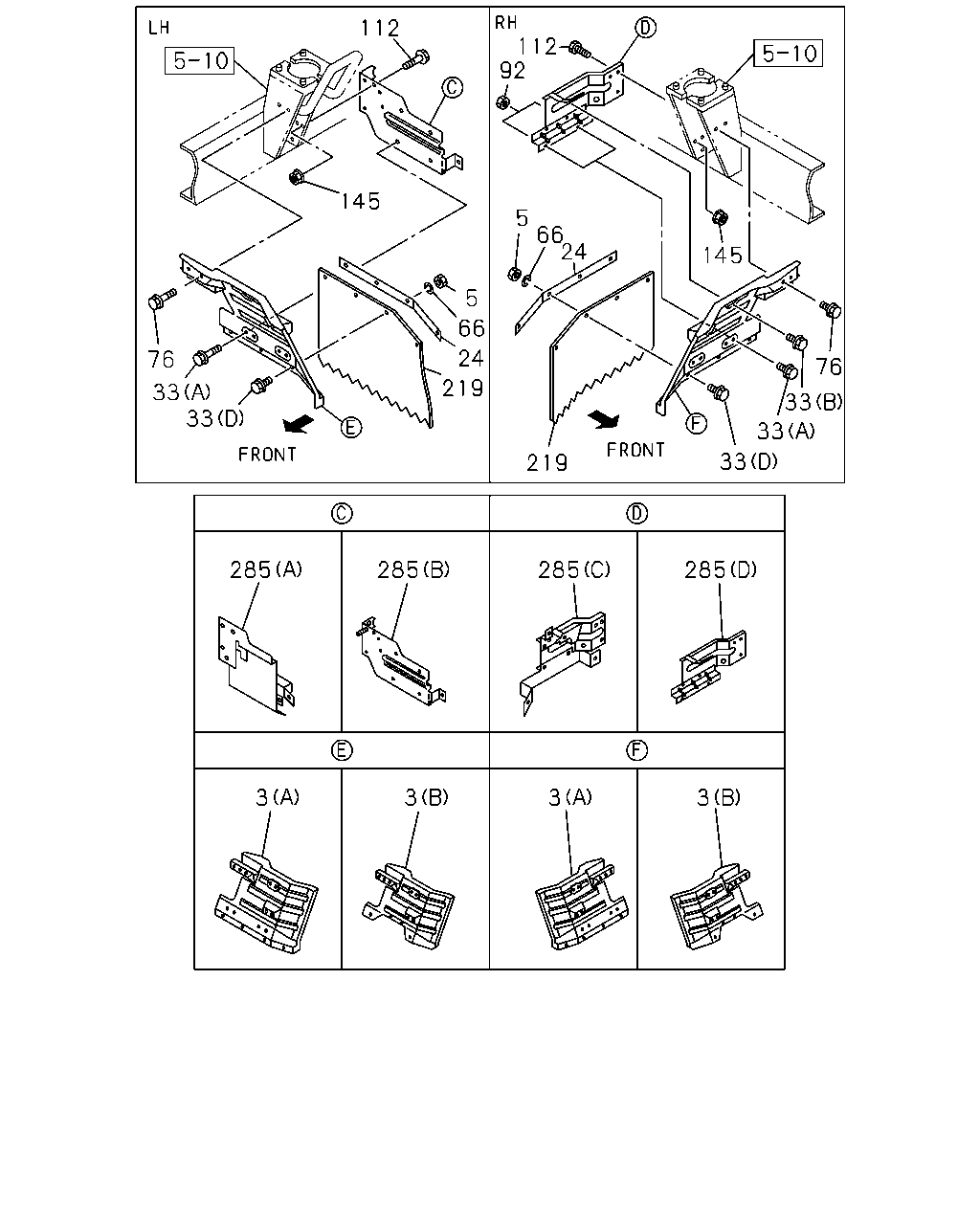

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) THA	8-97912-559-0	01	1	0508-	●
3	GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> (B) THA	8-97912-559-0	01	1	0508-		●
3	GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) THA	8-97912-560-0	01	1	0508-	●
3	GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> (B) THA	8-97912-560-0	01	1	0508-		●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A) THA	8-97912-557-0	01	1	0508-	●	●
3	GUARD; MUD,RR (A) THA	8-97912-557-0	01	1	0508-			●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A) THA	8-97912-558-0	01	1	0508-	●	●
3	GUARD; MUD,RR (A) THA	8-97912-558-0	01	1	0508-			●
5	NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	06	1	0508-0512	●
5	NUT; FLAP RUBBER TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	06	1	0508-0512		●
5	NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	06	1	0601-	●
5	NUT; FLAP RUBBER TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	06	1	0601-		●
5	NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	08	1	0508-0512	●	●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0508-0512			●
5	NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	08	1	0601-	●	●
5	NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-			●
24	PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97914-748-1	02	1	0508-	●
24	PLATE; MUD COVER TIRE SIZE 8.25-16<7QP> THA	8-97914-748-1	02	1	0508-		●
24	PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-499-1	02	1	0508-	●	●
24	PLATE; MUD COVER THA	8-97916-499-1	02	1	0508-			●
33	BOLT; MUD COVER (C) M6X25 FLANGE THA	0-28650-625-0	04	1	0601-0611	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE THA	0-28650-625-0	08	1	0612-	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0508-0611	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE THA	0-28050-820-0	05	1	0612-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0508-0805	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512		●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE THA	0-28050-616-0	06	1	0601-	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE THA	0-28050-616-0	06	1	0601-		●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0508-0510	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	08	1	0511-0512	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0601-0611	●	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512			●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE THA	0-28050-616-0	08	1	0601-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE THA	0-28050-616-0	08	1	0601-			●
66	WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	06	1	0508-0601	●
66	WASHER; LK TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	06	1	0508-0601		●
66	WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	06	1	0602-	●
66	WASHER; LK TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	06	1	0602-		●
66	WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	08	1	0508-0601	●	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0508-0601			●
66	WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	08	1	0602-	●	●
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0602-			●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	0508-0611	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE THA	0-28050-820-0	04	1	0612-	●	●	●
92	NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	05	1	0508-	●
92	NUT; MUD COVER TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	05	1	0508-		●
92	NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	02	1	0508-	●	●
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	0508-			●
112	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8X25 FLANGE THA	0-28650-825-0	06	1	0601-	●
112	BOLT; BRKT TIRE SIZE 8.25-16<7QP> M8X25 FLANGE THA	0-28650-825-0	06	1	0601-		●
112	BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> M8X25 FLANGE THA	0-28650-825-0	05	1	0601-	●	●
112	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	05	1	0601-			●
112	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	06	1	0508-0611	●
112	BOLT; BRKT TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	06	1	0508-0611		●
112	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8X25 FLANGE THA	0-28650-825-0	06	1	0612-	●
112	BOLT; BRKT TIRE SIZE 8.25-16<7QP> M8X25 FLANGE THA	0-28650-825-0	06	1	0612-		●
112	BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	05	1	0508-0611	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0508-0611			●
112	BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> M8X25 FLANGE THA	0-28650-825-0	05	1	0612-	●	●
112	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	05	1	0612-			●
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0508-	●	●	●
219	FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97913-999-2	02	1	0508-	●
219	FLAP; MUD GUARD TIRE SIZE 8.25-16<7QP> THA	8-97913-999-2	02	1	0508-		●
219	FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-762-0	02	1	0508-	●	●
219	FLAP; MUD GUARD THA	8-97916-762-0	02	1	0508-			●
285	BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-235-0	01	1	0508-	●
285	BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (C)	8-97147-235-0	01	1	0508-		●
285	BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (A)	8-97180-529-0	01	1	0508-	●
285	BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (A)	8-97180-529-0	01	1	0508-		●
285	BRACKET; MUD COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0508-0509	●
285	BRACKET; MUD COVER 4HG1-T ENG<RDP> (D)	8-97035-778-4	01	1	0508-0509			●
285	BRACKET; MUD COVER 4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0508-0509		●
285	BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0510-	●
285	BRACKET; MUD COVER 4HG1-T ENG<RDP> (D)	8-97035-778-4	01	1	0510-			●
285	BRACKET; MUD COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0510-		●
285	BRACKET; MUD COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0508-0509	●
285	BRACKET; MUD COVER 4HG1-T ENG<RDP> (B)	8-97092-037-2	01	1	0508-0509			●
285	BRACKET; MUD COVER 4HE1-TCS ENG<RDS> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0508-0509		●
285	BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0510-	●
285	BRACKET; MUD COVER 4HG1-T ENG<RDP> (B)	8-97092-037-2	01	1	0510-			●
285	BRACKET; MUD COVER 4HE1-TCS ENG<RDS>,4HK1-TCS ENG<RJS> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0510-		●

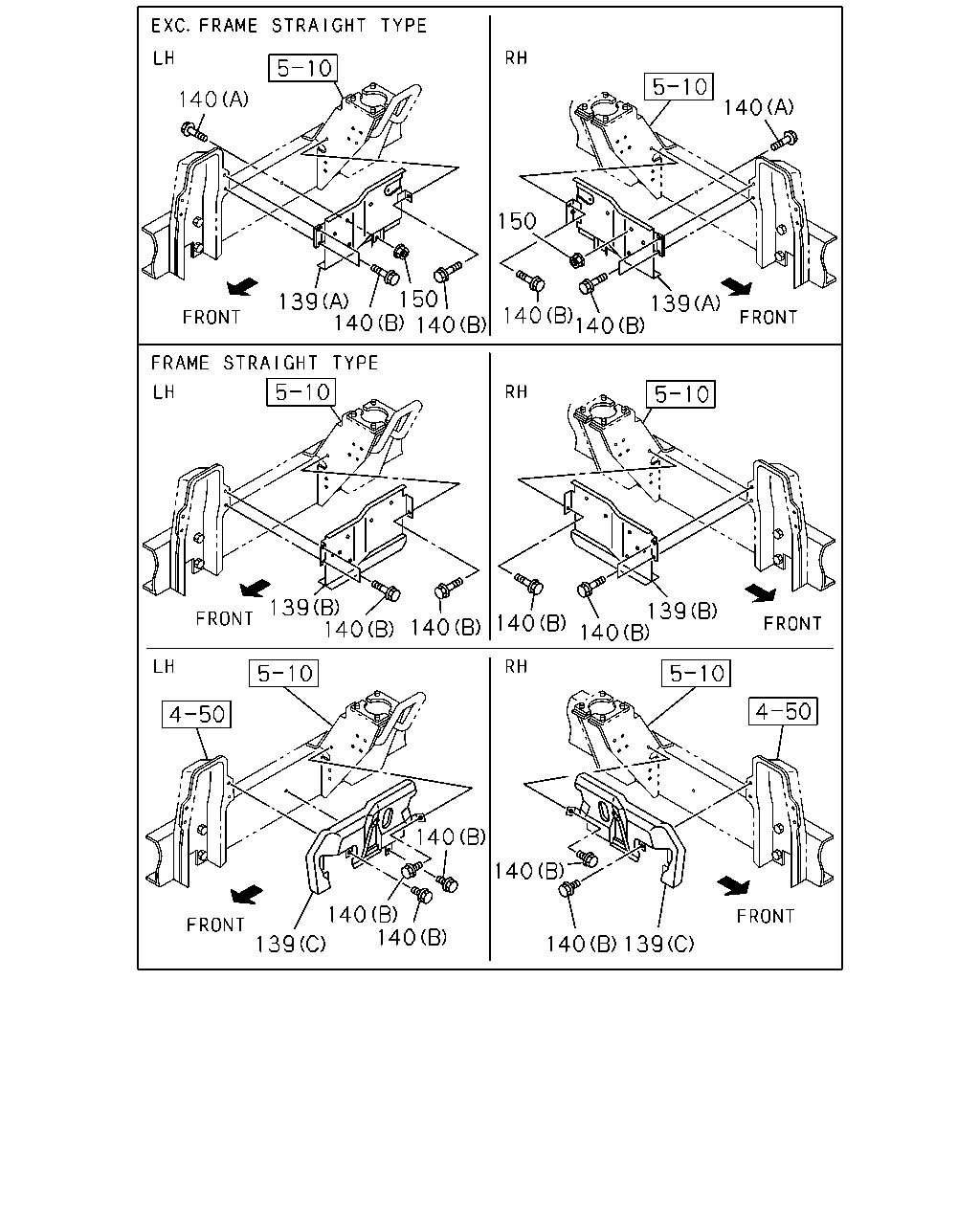

140 140 150 139 150 140 140 139 140 140 139 140 140 139 140 140 140 140 140 140 139 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
139	PANEL; SIDE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97021-164-0	01	1	0508-	●
139	PANEL; SIDE 4HG1-T ENG<RDP> (A)	8-97021-164-0	01	1	0508-			●
139	PANEL; SIDE 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0508-	●
139	PANEL; SIDE 4HG1-T ENG<RDP> (A)	8-97092-020-1	01	1	0508-			●
139	PANEL; SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0508-	●
139	PANEL; SIDE 4HE1-TCS ENG<RDS> (B)	8-97171-996-0	01	1	0508-		●
139	PANEL; SIDE 4HE1-TCS ENG<RDS> FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0508-	●
139	PANEL; SIDE 4HE1-TCS ENG<RDS> (B)	8-97188-736-0	01	1	0508-		●
139	PANEL; SIDE 4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (C)	8-97352-124-1	01	1	0510-	●
139	PANEL; SIDE 4HK1-TCS ENG<RJS> (C)	8-97352-124-1	01	1	0510-		●
139	PANEL; SIDE 4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (C)	8-97352-125-2	01	1	0510-	●
139	PANEL; SIDE 4HK1-TCS ENG<RJS> (C)	8-97352-125-2	01	1	0510-		●
140	BOLT; SIDE PANEL 4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0510-0511	●
140	BOLT; SIDE PANEL 4HK1-TCS ENG<RJS> (B) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0510-0511		●
140	BOLT; SIDE PANEL 4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0512-0611	●
140	BOLT; SIDE PANEL 4HK1-TCS ENG<RJS> (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0512-0611		●
140	BOLT; SIDE PANEL 4HK1-TCS ENG<RJS> FRAME STRAIGHT TYPE<7KJ> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0612-	●
140	BOLT; SIDE PANEL 4HK1-TCS ENG<RJS> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0612-		●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512	●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP> (A) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512			●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0601-	●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0601-			●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) M8X25 FLANGE	0-28680-825-0	06	1	0508-0512	●	●	●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) M8X25 FLANGE THA	0-28650-825-0	06	1	0601-	●	●	●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-			●
140	BOLT; SIDE PANEL 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A) M8X25 FLANGE THA	0-28650-825-0	06	1	0612-	●	●	●
150	NUT; SIDE PANEL 4HG1-T ENG<RDP> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0508-	●
150	NUT; SIDE PANEL 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	02	1	0508-			●

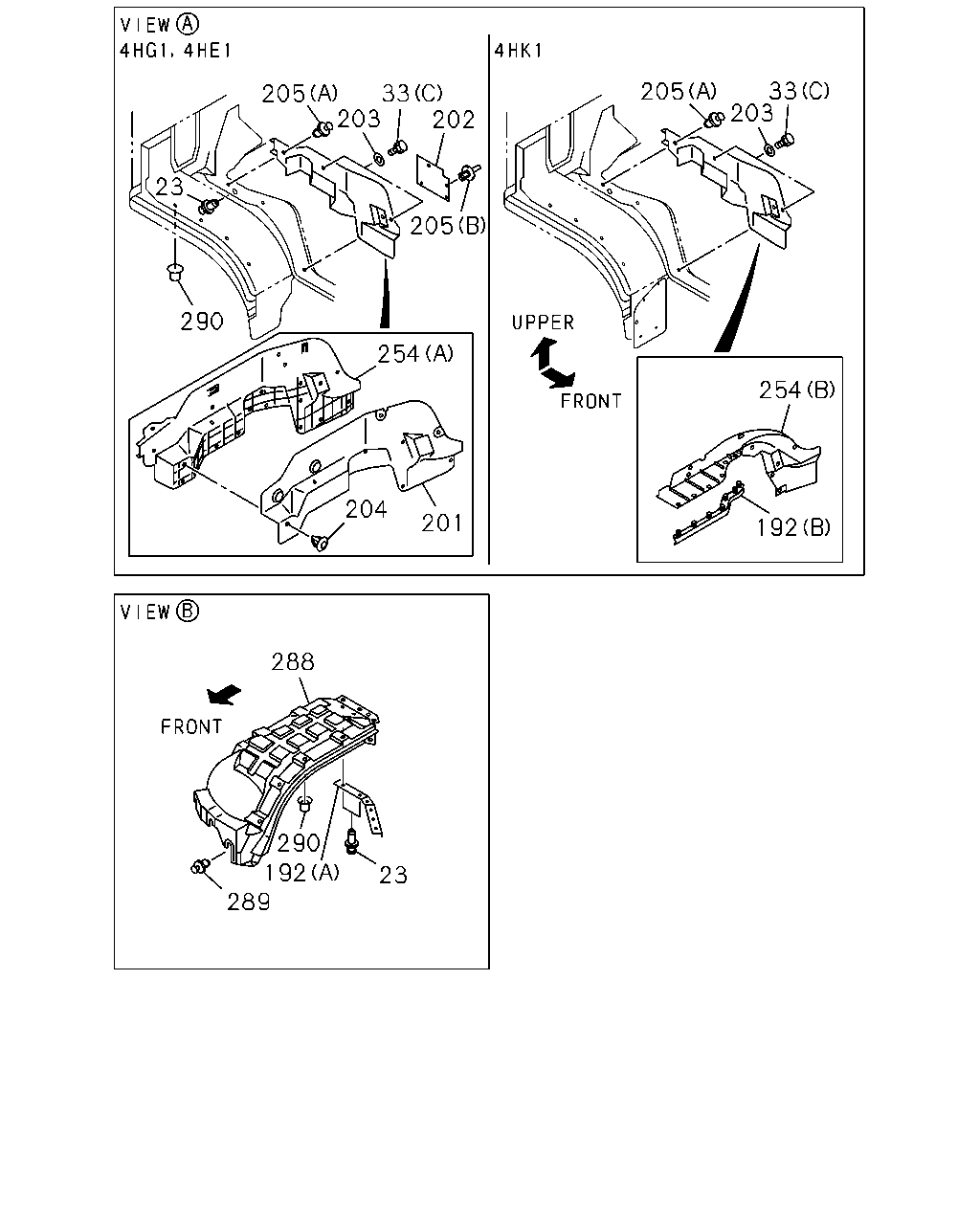

33 203 205 33 203 202 205 23 205 290 254 254 204 201 192 288 290 192 289 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	FASTENER; MUD COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> OD=8.3	8-97997-832-0	06	1	0508-	●	●	●
23	FASTENER; MUD COVER 4HK1-TCS ENG<RJS> OD=8.3	8-97997-832-0	10	1	0510-	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE THA	0-28650-625-0	04	1	0601-0611	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE THA	0-28650-625-0	08	1	0612-	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0508-0611	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE THA	0-28050-820-0	05	1	0612-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0508-0805	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512		●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE THA	0-28050-616-0	06	1	0601-	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE THA	0-28050-616-0	06	1	0601-		●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0508-0510	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	08	1	0511-0512	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0601-0611	●	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0508-0512			●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE THA	0-28050-616-0	08	1	0601-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE THA	0-28050-616-0	08	1	0601-			●
192	SEAL; MUD COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A)	8-97857-297-4	02	1	0508-1106	●	●	●
192	SEAL; MUD COVER 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A)	8-98192-031-0	02	1	1107-	●	●	●
192	SEAL; MUD COVER 4HK1-TCS ENG<RJS> (B)	8-97581-413-1	01	1	0510-	●	●
192	SEAL; MUD COVER 4HK1-TCS ENG<RJS> (B)	8-97581-414-1	01	1	0510-	●	●
192	SEAL; MUD COVER 4HK1-TCS ENG<RJS> (A)	8-97896-994-1	02	1	0510-1106	●	●
192	SEAL; MUD COVER 4HK1-TCS ENG<RJS> (A)	8-98192-033-0	02	1	1107-	●	●
201	INSULATOR; VALANCE 4HG1-T ENG<RDP>	8-97853-630-3	01	1	0508-	●		●
201	INSULATOR; VALANCE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS>	8-97853-631-3	01	1	0508-	●	●	●
201	INSULATOR; VALANCE 4HE1-TCS ENG<RDS>	8-97892-184-1	01	1	0508-	●	●
202	RUBBER; MUD,VALANCE PANEL 4HE1-TCS ENG<RDS>	8-97892-185-0	01	1	0508-	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0508-	●	●	●
204	CLIP; VALANCE,INSULATOR 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> OD=18 L=17	8-94279-702-0	12	1	0508-	●	●	●
205	FASTENER; MUD COVER 4HE1-TCS ENG<RDS> (B)	5-09989-002-0	04	1	0508-	●	●
205	FASTENER; MUD COVER (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0508-	●	●	●
254	COVER; MUD,VALANCE 4HG1-T ENG<RDP>,4HE1-TCS ENG<RDS> (A)	8-97853-359-3	01	1	0508-	●	●	●
254	COVER; MUD,VALANCE 4HE1-TCS ENG<RDS> (A)	8-97892-183-0	01	1	0508-	●	●
254	COVER; MUD,VALANCE 4HG1-T ENG<RDP> (A)	8-97853-358-3	01	1	0508-	●		●
254	COVER; MUD,VALANCE 4HK1-TCS ENG<RJS> (B)	8-97899-213-4	01	1	0510-	●	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG<RJS> (B)	8-97899-214-4	01	1	0510-	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0508-	●	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0508-	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0508-	●	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0508-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
