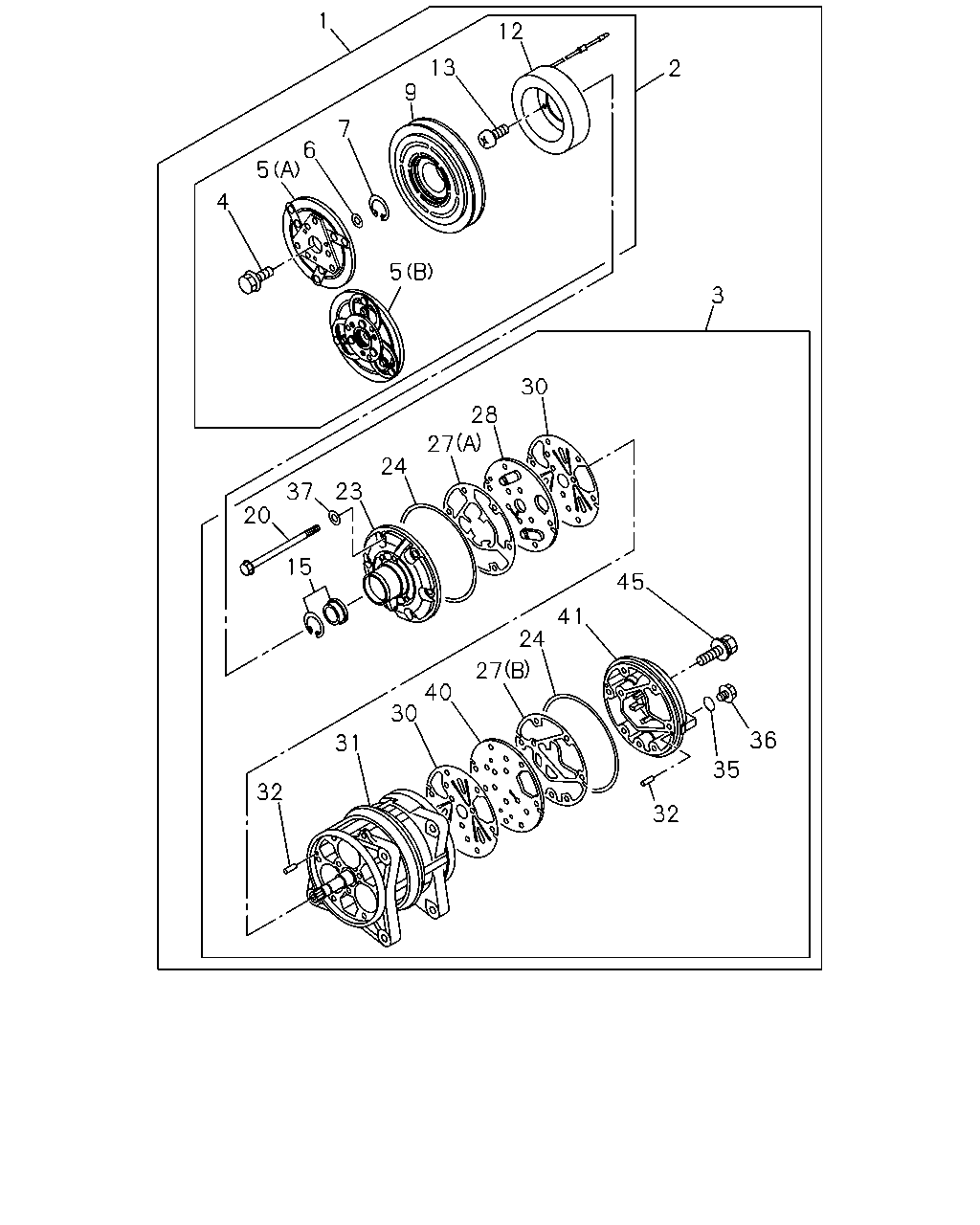

8-71 — COMPRESSOR; AIR CONDITIONING (#44457) — 92 parça

1 12 13 2 9 7 6 5 4 5 3 30 28 27 24 23 37 20 15 45 41 24 27 40 30 36 31 35 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.170 COMPRESSOR ASM; A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) VALEO	8-97072-662-4	01	1	0502-	●	●	●
1	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) VALEO	8-97072-662-4	01	1	0211-0501	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) VALEO	8-97072-662-4	01	1	0211-0501						●
2	09.188 CLUTCH; MAGNET,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97211-282-2	01	1	0502-	●	●	●
2	09.188 CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-210-0	01	1	0211-0212	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97114-210-0	01	1	0211-0212						●
2	09.188 CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97211-282-2	01	1	0301-0501	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97211-282-2	01	1	0301-0501						●
3	09.170 COMPRESSOR ASM; A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97138-168-0	01	1	0502-	●	●	●
3	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97138-168-0	01	1	0211-0501	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97138-168-0	01	1	0211-0501						●
4	09.181 BOLT; MAGNET CLU 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	0502-	●	●	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	0211-0501	●	●	●	●	●
4	09.181 BOLT; MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.186	8-94164-439-0	01	1	0211-0501						●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97357-156-0	01	1	0502-	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97034-789-0	01	1	0211-0212	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97034-789-0	01	1	0211-0212						●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97357-156-0	01	1	0301-0501	●	●	●	●	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97357-156-0	01	1	0301-0501						●
6	09.181 SHIM; MAGNET CLU 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	0502-	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	0502-	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	0502-	●	●	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	0211-0501	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) T=0.1	8-94120-721-0	AR	1	0211-0501						●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	0211-0501	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) T=0.3	8-94120-722-0	AR	1	0211-0501						●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	0211-0501	●	●	●	●	●
6	09.181 SHIM; MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) T=0.5	8-94120-723-0	AR	1	0211-0501						●
7	09.181 RING; SNAP,PULLEY 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	0502-	●	●	●
7	09.181 RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	0211-0501	●	●	●	●	●
7	09.181 RING; SNAP,PULLEY 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-94120-724-0	01	1	0211-0501						●
9	09.181 PULLEY; MAGNET CLU 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97360-618-0	01	1	0502-	●	●	●
9	09.181 PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-97034-791-0	01	1	0211-0212	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-791-0	01	1	0211-0212						●
9	09.181 PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-97360-618-0	01	1	0301-0501	●	●	●	●	●
9	09.181 PULLEY; MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97360-618-0	01	1	0301-0501						●
12	09.186 COIL; FIELD,MAGNET CLU 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97170-918-0	01	1	0502-	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-97081-400-0	01	1	0211-0212	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-400-0	01	1	0211-0212						●
12	09.186 COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONT(C60)	8-97170-918-0	01	1	0301-0501	●	●	●	●	●
12	09.186 COIL; FIELD,MAGNET CLU 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97170-918-0	01	1	0301-0501						●
13	09.186 SCREW; COIL FIELD 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	0502-	●	●	●
13	09.186 SCREW; COIL FIELD AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	0211-0501	●	●	●	●	●
13	09.186 SCREW; COIL FIELD 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.188	8-94120-727-0	03	1	0211-0501						●
15	09.175 SEAL; SHAFT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-1	01	1	0502-	●	●	●
15	09.175 SEAL; SHAFT AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-1	01	1	0211-0501	●	●	●	●	●
15	09.175 SEAL; SHAFT 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-217-1	01	1	0211-0501						●
20	09.174 BOLT; CMPR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	0502-	●	●	●
20	09.174 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	0211-0501	●	●	●	●	●
20	09.174 BOLT; CMPR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97081-394-0	06	1	0211-0501						●
23	09.174 HEAD; CYL,FRT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-215-0	01	1	0502-	●	●	●
23	09.174 HEAD; CYL,FRT AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-215-0	01	1	0211-0501	●	●	●	●	●
23	09.174 HEAD; CYL,FRT 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97114-215-0	01	1	0211-0501						●
24	09.172 GASKET; CMPR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	0502-	●	●	●
24	09.172 GASKET; CMPR AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	0211-0501	●	●	●	●	●
24	09.172 GASKET; CMPR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-396-0	02	1	0211-0501						●
27	09.174 GASKET; CYL HD 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	0502-	●	●	●
27	09.174 GASKET; CYL HD 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	0502-	●	●	●
27	09.174 GASKET; CYL HD AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	0211-0501	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A"	8-97085-777-0	01	1	0211-0501						●
27	09.174 GASKET; CYL HD AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	0211-0501	●	●	●	●	●
27	09.174 GASKET; CYL HD 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A"	8-97085-779-0	01	1	0211-0501						●
28	09.172 PLATE; VLV,CMPR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97135-796-0	01	1	0502-	●	●	●
28	09.172 PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97135-796-0	01	1	0211-0501	●	●	●	●	●
28	09.172 PLATE; VLV,CMPR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97135-796-0	01	1	0211-0501						●
30	09.172 VALVE; SUCTION 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97134-755-0	02	1	0502-	●	●	●
30	09.172 VALVE; SUCTION AIR CONDITIONER MANUAL CONT(C60)	8-97134-755-0	02	1	0211-0501	●	●	●	●	●
30	09.172 VALVE; SUCTION 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97134-755-0	02	1	0211-0501						●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97138-175-0	01	1	0502-	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97138-175-0	01	1	0211-0501	●	●	●	●	●
31	09.170 CYLINDER & SHAFT ASM; AIR CMPR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97138-175-0	01	1	0211-0501						●
32	09.174 PIN; CMPR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	0502-	●	●	●
32	09.174 PIN; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	0211-0501	●	●	●	●	●
32	09.174 PIN; CMPR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-94154-711-0	04	1	0211-0501						●
35	09.175 GASKET; PLUG,CYL 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	0502-	●	●	●
35	09.175 GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	0211-0501	●	●	●	●	●
35	09.175 GASKET; PLUG,CYL 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97081-395-0	01	1	0211-0501						●
36	09.173 PLUG; CYL 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	0502-	●	●	●
36	09.173 PLUG; CYL AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	0211-0501	●	●	●	●	●
36	09.173 PLUG; CYL 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-94164-473-0	01	1	0211-0501						●
37	09.172 GASKET; CMPR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	0502-	●	●	●
37	09.172 GASKET; CMPR AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	0211-0501	●	●	●	●	●
37	09.172 GASKET; CMPR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.174	8-94466-678-0	06	1	0211-0501						●
40	09.172 PLATE; VLV,RR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97135-797-0	01	1	0502-	●	●	●
40	09.172 PLATE; VLV,RR AIR CONDITIONER MANUAL CONT(C60)	8-97135-797-0	01	1	0211-0501	●	●	●	●	●
40	09.172 PLATE; VLV,RR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97135-797-0	01	1	0211-0501						●
41	09.174 HEAD; CYL,RR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	0502-	●	●	●
41	09.174 HEAD; CYL,RR AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	0211-0501	●	●	●	●	●
41	09.174 HEAD; CYL,RR 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60)	8-97034-784-0	01	1	0211-0501						●
45	09.173 BOLT; PLATE TO CYL HD 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	0502-	●	●	●
45	09.173 BOLT; PLATE TO CYL HD AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	0211-0501	●	●	●	●	●
45	09.173 BOLT; PLATE TO CYL HD 4JB1 NA ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	0211-0501						●
