8-65 — CONTROL LEVER; HEATER AND AIR CON (#44456) — 47 parça

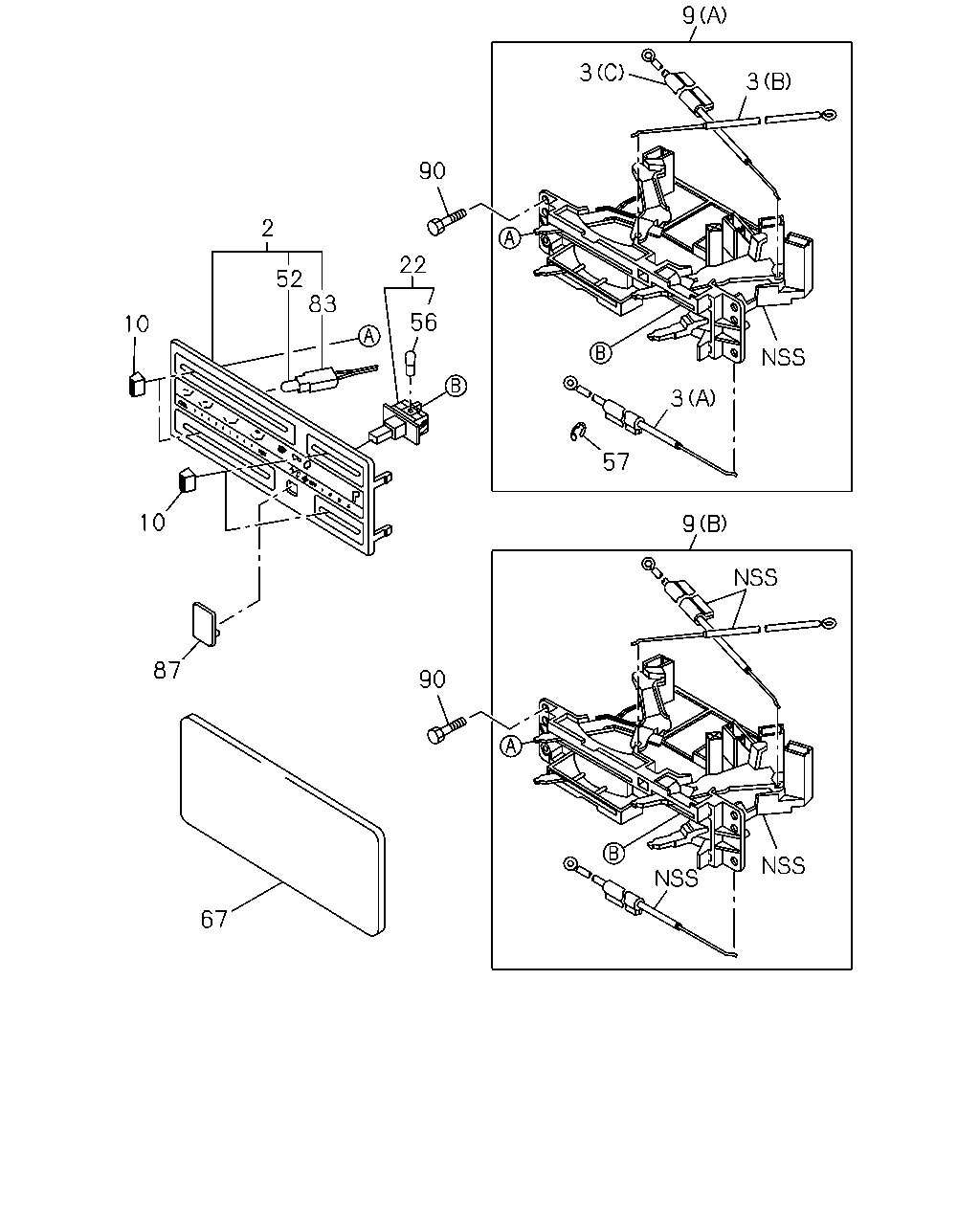

çizim 53299
9 3 3 90 2 22 52 83 56 10 3 57 10 9 87 90 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 0211- ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 0211-0501 ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) MODE 		8-97085-618-1 01 1 0502- ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97087-578-0 01 1 0211-0501 ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-97087-578-0 01 1 0502- ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97085-617-2 01 1 0211-0501 ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (A) MIX 		8-97085-617-2 01 1 0502- ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-2 01 1 0211-0501 ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) MODE 		8-97101-674-0 01 1 0502- ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97101-675-3 01 1 0211-0501 ● ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-97101-675-0 01 1 0502- ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-2 01 1 0211-0501 ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (A) MIX 		8-97101-660-2 01 1 0502- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-97381-197-0 01 1 0502- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97048-456-4 01 1 0211-0501 ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41) (A) 		8-97048-456-4 01 1 0502- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-832-0 01 1 0211-0501 ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-832-0 01 1 0502- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-97381-198-0 01 1 0502- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-831-1 01 1 0211-0501 ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41) (A) 		8-97069-831-1 01 1 0502- ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97071-219-0 01 1 0211-0501 ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97071-219-0 01 1 0502- ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41) 		8-97114-430-0 04 1 0502- ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0211-0501 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C39) 		8-97114-430-0 02 1 0502- ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0211-0501 ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0502- ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 0502- ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 0211-0501 ● ● ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 0211- ● ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 14V 60MA 		8-94337-134-0 01 1 0211-0501 ● ● ● ● ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97262-535-0 01 1 0211-0501 ● ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41) 		8-97262-535-0 01 1 0502- ● ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97311-509-0 01 1 0211-0501 ● ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41) 		8-97311-509-0 01 1 0502- ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0211-0304 ● ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),INDONESIA EQUIPMENT(S4S) 		8-97071-228-0 01 1 0305-0501 ● ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41), INDONESIA EQUIPMENT(S4S) 		8-97071-228-0 01 1 0502- ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41) 		8-97071-228-0 01 1 0502- ● ● ● ● ●
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0211- ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0211-0304 ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) ,INDONESIA EQUIPMENT(S4S) 		8-97065-448-2 01 1 0305-0501 ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. INDONESIA EQUIPMENT(S4S) 		8-97065-448-2 01 1 0502- ●
87 08.849 CAP; A/C SWITCH 8-97065-448-2 01 1 0502- ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0211-1210 ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ● ● ● ● ●
