◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#44455) — 609 parça

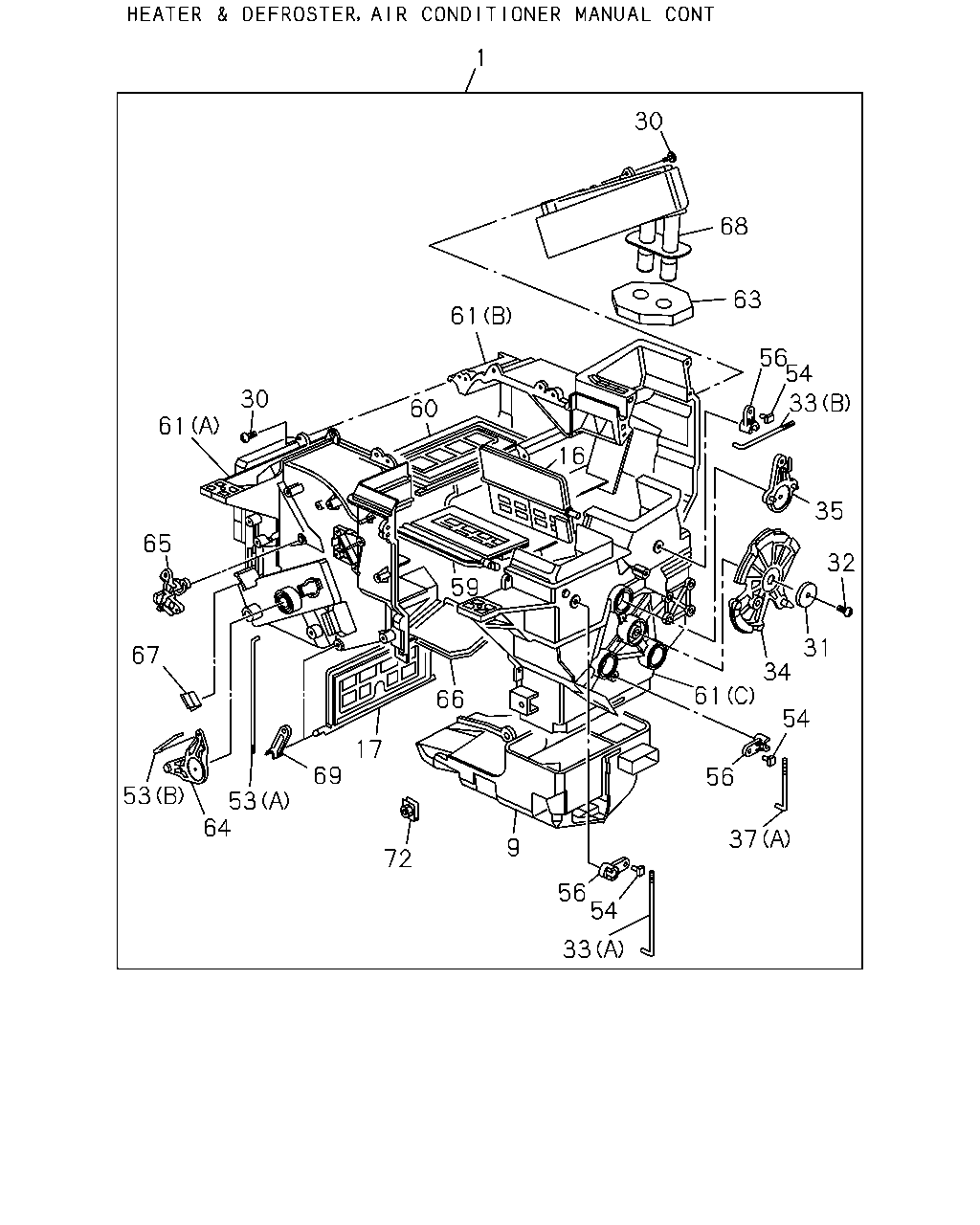

çizim 12385
1 30 68 63 61 56 54 33 30 60 61 16 35 65 32 59 31 67 34 61 66 54 17 69 56 53 53 64 37 9 72 56 54 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-555-0 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-638-0 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-559-2 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-642-0 01 1 0502- ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 0211-0501 ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		8-97087-557-1 01 1 0502- ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-640-0 01 1 0211-0501 ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		8-97101-640-0 01 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0211-0501 ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0502- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0211-0501 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0502-1408 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-568-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-569-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 02 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 (C) 		8-97087-566-0 02 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 01 1 0211- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97166-657-0 01 1 0502- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-669-0 01 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-565-0 03 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-673-0 03 1 0502- ● ● ●
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (C) 		8-98008-959-0 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-570-1 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
(B) 		8-97101-677-2 02 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-677-2 02 1 0502- ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 0211-0501 ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (A) 		8-97087-567-1 01 1 0502- ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 0211-0501 ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		8-97087-566-0 01 1 0502- ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0211-0501 ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		1-83574-136-0 03 1 0502- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0211-0501 ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97096-142-0 03 1 0502- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-558-2 01 1 0502- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-641-0 01 1 0502- ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 0211-0501 ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-556-1 01 1 0502- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-552-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97087-553-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0211- ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97101-634-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-635-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97101-636-3 01 1 0502- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-323-0 01 1 1409- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-580-0 01 1 0211-0501 ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-580-0 01 1 0502-1408 ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-580-0 01 1 1409- ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 0211-0501 ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97087-562-1 01 1 0502- ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-670-1 01 1 0211-0501 ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97101-670-1 01 1 0502- ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 0211-0501 ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97087-564-1 01 1 0502- ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97200-276-0 01 1 0211-0501 ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97200-276-0 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-560-2 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-643-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 0502- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97251-290-0 01 1 0211-0501 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97251-290-0 01 1 0502-1408 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98238-503-0 01 1 1409- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97240-941-0 01 1 0211-0501 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97240-941-0 01 1 0502-1408 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98238-504-0 01 1 1409- ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 0211-0501 ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-563-1 01 1 0502- ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-671-0 01 1 0211-0501 ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97101-671-0 01 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 02 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 01 1 0502- ● ● ●

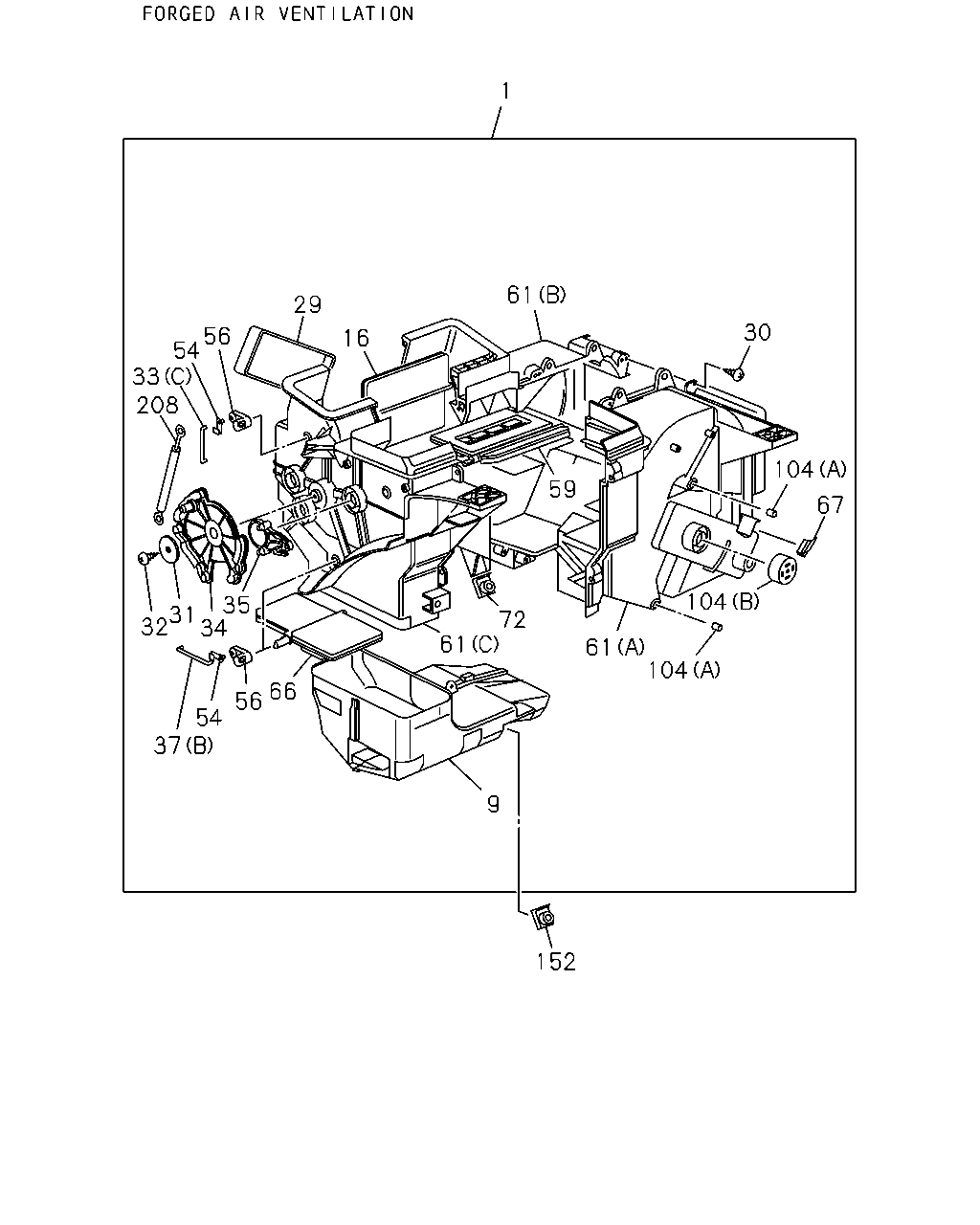

çizim 49422
1 61 29 30 56 54 33 208 16 104 59 67 104 35 31 72 61 61 104 66 56 54 37 9 152 32 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-555-0 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-638-0 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-559-2 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-642-0 01 1 0502- ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0211- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0211-0501 ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0502- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0211-0501 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0502-1408 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-568-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-569-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 02 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 (C) 		8-97087-566-0 02 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 01 1 0211- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97166-657-0 01 1 0502- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-669-0 01 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-565-0 03 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-673-0 03 1 0502- ● ● ●
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (C) 		8-98008-959-0 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-570-1 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
(B) 		8-97101-677-2 02 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-677-2 02 1 0502- ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0211-0501 ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		1-83574-136-0 03 1 0502- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0211-0501 ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97096-142-0 03 1 0502- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-558-2 01 1 0502- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-641-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-552-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97087-553-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0211- ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97101-634-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-635-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97101-636-3 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-560-2 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-643-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 0502- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 02 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 01 1 0502- ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0211- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0211- ● ● ● ● ● ●
152 08.854 NUT; HTR UNIT 8-97107-811-0 01 1 0211- ● ● ●
208 02.480 CABLE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98008-958-0 01 1 0502- ● ● ●

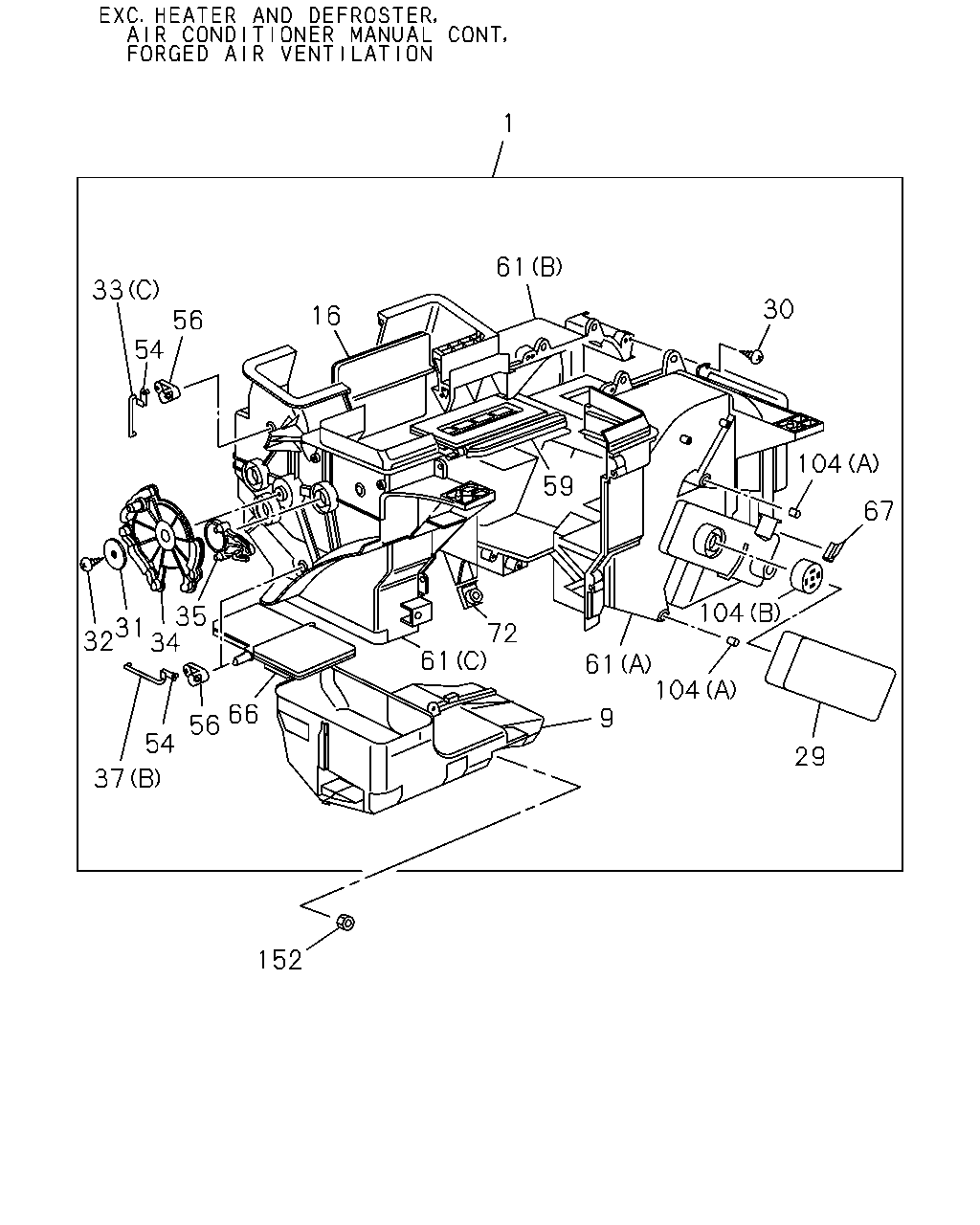

çizim 51137
1 61 33 30 16 56 54 104 59 67 104 35 31 72 61 61 104 66 56 9 54 29 37 152 34 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-555-0 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-638-0 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-559-2 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-642-0 01 1 0502- ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0211- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0211-0501 ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0502- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0211-0501 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0502-1408 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-568-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-569-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 02 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 (C) 		8-97087-566-0 02 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 01 1 0211- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97166-657-0 01 1 0502- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-669-0 01 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-565-0 03 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-673-0 03 1 0502- ● ● ●
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (C) 		8-98008-959-0 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-570-1 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
(B) 		8-97101-677-2 02 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-677-2 02 1 0502- ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0211-0501 ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		1-83574-136-0 03 1 0502- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0211-0501 ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97096-142-0 03 1 0502- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-558-2 01 1 0502- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-641-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-552-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97087-553-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0211- ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97101-634-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-635-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97101-636-3 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-560-2 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-643-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 0502- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 02 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 01 1 0502- ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0211- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0211- ● ● ● ● ● ●
152 08.854 NUT; HTR UNIT 8-97107-811-0 01 1 0211- ● ● ●

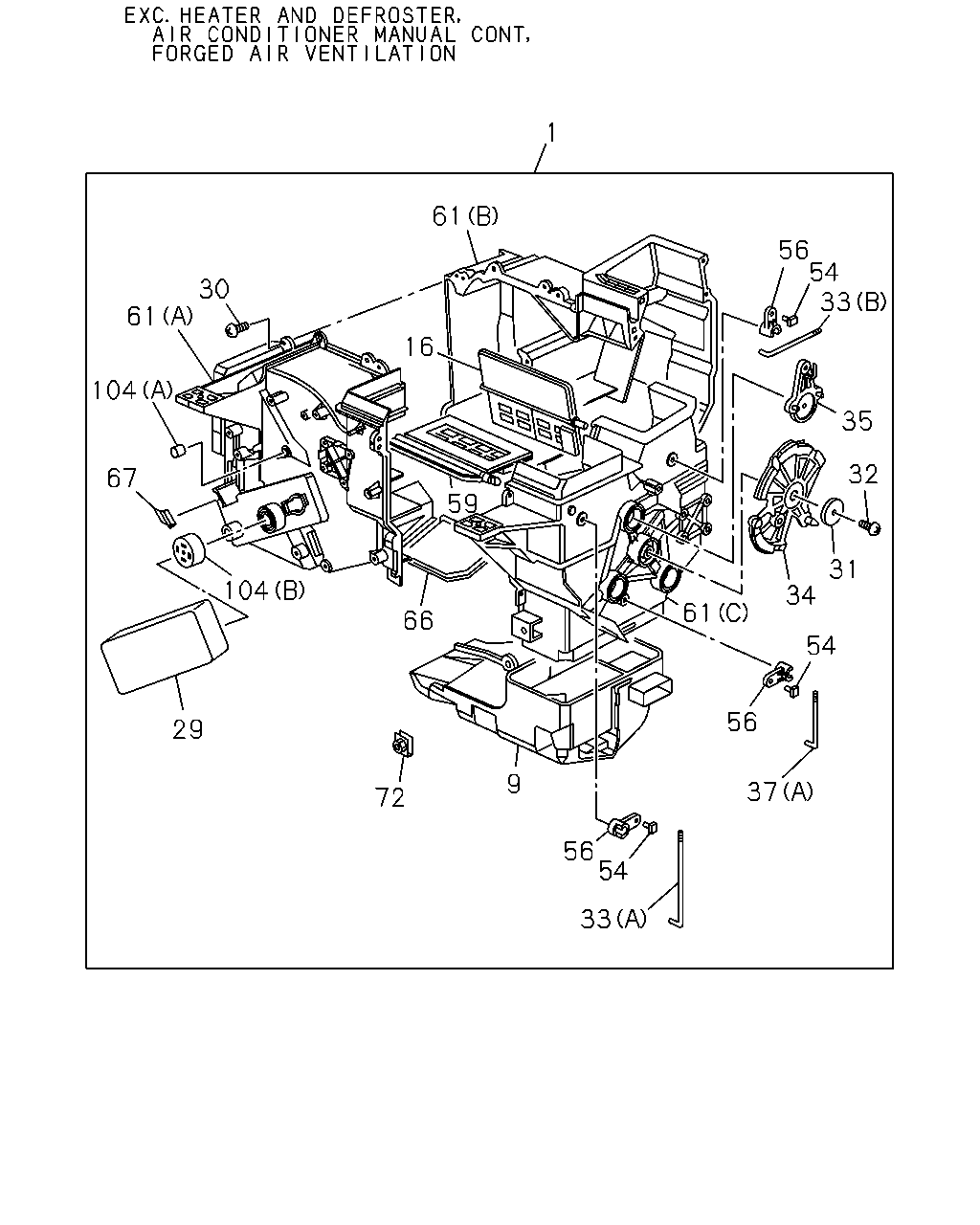

çizim 52742
61 56 54 33 30 61 16 104 35 32 67 59 31 104 34 61 66 54 56 29 9 37 72 56 54 33 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-555-0 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-638-0 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-559-2 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-642-0 01 1 0502- ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0211- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0211-0501 ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0502- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0211-0501 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0502-1408 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-568-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-569-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 02 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 (C) 		8-97087-566-0 02 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 01 1 0211- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97166-657-0 01 1 0502- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-669-0 01 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-565-0 03 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-673-0 03 1 0502- ● ● ●
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (C) 		8-98008-959-0 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-570-1 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
(B) 		8-97101-677-2 02 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-677-2 02 1 0502- ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0211-0501 ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		1-83574-136-0 03 1 0502- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0211-0501 ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97096-142-0 03 1 0502- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-558-2 01 1 0502- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-641-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-552-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97087-553-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0211- ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97101-634-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-635-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97101-636-3 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-560-2 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-643-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 0502- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 02 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 01 1 0502- ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0211- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0211- ● ● ● ● ● ●

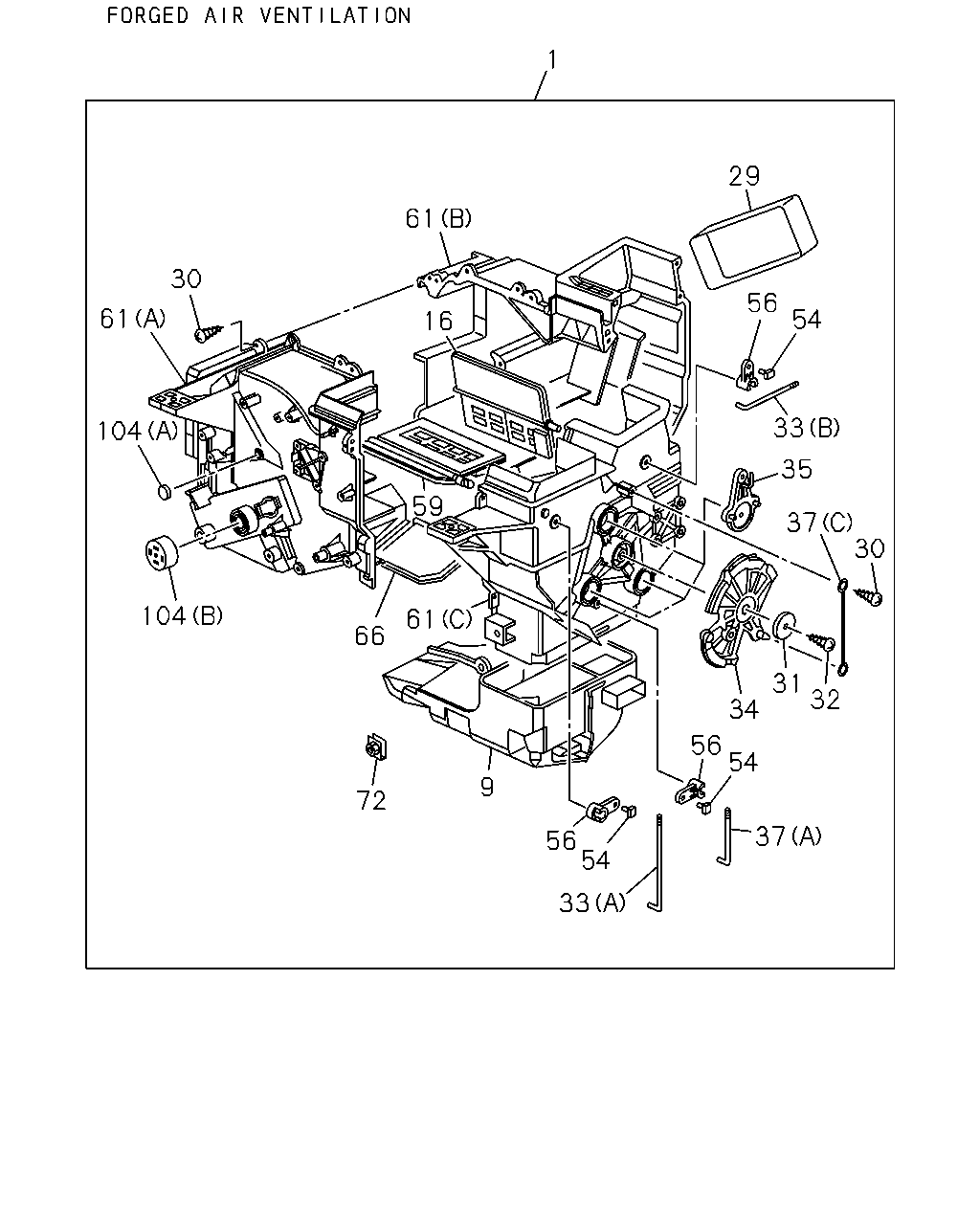

çizim 53363
1 29 61 30 56 61 54 16 33 104 35 59 37 30 104 61 66 31 32 34 56 54 9 72 37 56 54 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-555-0 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-638-0 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-559-2 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-642-0 01 1 0502- ● ● ●
29 08.857 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97102-661-0 01 1 0211- ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0211-0501 ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0502- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0211-0501 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0502-1408 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-568-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-569-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 02 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 (C) 		8-97087-566-0 02 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 01 1 0211- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97166-657-0 01 1 0502- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-669-0 01 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-565-0 03 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-673-0 03 1 0502- ● ● ●
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (C) 		8-98008-959-0 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-570-1 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
(B) 		8-97101-677-2 02 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-677-2 02 1 0502- ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0211-0501 ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		1-83574-136-0 03 1 0502- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0211-0501 ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97096-142-0 03 1 0502- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-558-2 01 1 0502- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-641-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-552-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97087-553-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0211- ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97101-634-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-635-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97101-636-3 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-560-2 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-643-0 01 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 02 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 01 1 0502- ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A) 		8-94328-657-0 04 1 0211- ● ● ● ● ● ●
104 08.854 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94387-703-0 01 1 0211- ● ● ● ● ● ●

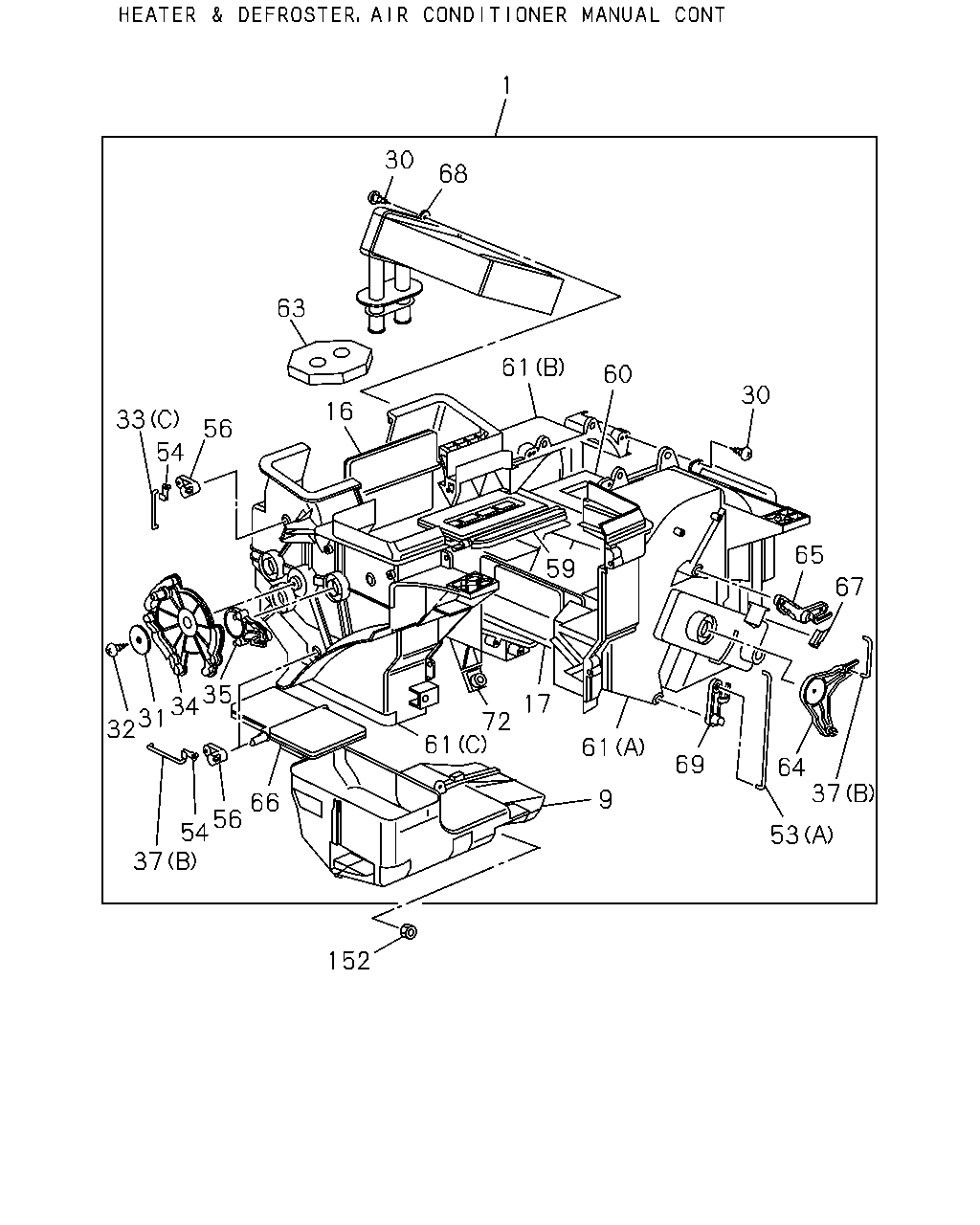

çizim 53381
1 30 68 63 61 60 30 16 33 56 54 65 59 67 35 34 31 32 17 72 61 61 69 64 37 9 66 56 54 37 53 152
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-200-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-286-2 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97224-286-2 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-498-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97166-608-3 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 0502- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-97174-733-6 01 1 0502-1408 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1409- ● ● ●
1 08.845 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0211-0501 ● ● ●
1 08.845 HEATER UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-697-3 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97087-555-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-555-0 01 1 0502- ● ● ●
9 08.854 DUCT; HTR UNIT 8-97101-638-0 01 1 0211-0501 ● ● ●
9 08.854 DUCT; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-638-0 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-559-2 01 1 0502- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0211-0501 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-642-0 01 1 0502- ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-557-1 01 1 0211-0501 ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		8-97087-557-1 01 1 0502- ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-640-0 01 1 0211-0501 ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		8-97101-640-0 01 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 11 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 		8-94324-850-0 11 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0211-0501 ● ● ● ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
30 08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 10 1 0502- ● ● ●
31 08.852 WASHER; HTR UNIT 8-94129-950-0 01 1 0211-0501 ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0502- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.846 M5X16 		8-94248-820-0 01 1 1409- ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 		9-09829-324-1 01 1 0211-0501 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0502-1408 ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409-1409 ● ● ●
32 08.852 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 1409- ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-568-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-569-1 01 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 02 1 0211-0501 ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 08.866 (C) 		8-97087-566-0 02 1 0502- ● ● ●
33 09.786 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 (C) 		8-97087-566-0 01 1 0211- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97166-657-0 01 1 0502- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0211-0501 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-669-0 01 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-565-0 03 1 0502- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0211-0501 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-673-0 03 1 0502- ● ● ●
37 08.852 ROD; LEVER
(A) 		8-97087-570-1 01 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
FORGED AIR VENTILATION(C39) (C) 		8-98008-959-0 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-570-1 01 1 0502- ● ● ●
37 08.852 ROD; LEVER
(B) 		8-97101-677-2 02 1 0211-0501 ● ● ●
37 08.852 ROD; LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-677-2 02 1 0502- ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-567-1 01 1 0211-0501 ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (A) 		8-97087-567-1 01 1 0502- ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-566-0 01 1 0211-0501 ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		8-97087-566-0 01 1 0502- ● ● ●
54 08.854 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0211-0501 ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		1-83574-136-0 03 1 0502- ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0211-0501 ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97096-142-0 03 1 0502- ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-558-2 01 1 0502- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0211-0501 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-641-0 01 1 0502- ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 0211-0501 ● ● ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-556-1 01 1 0502- ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97087-552-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97087-553-0 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-551-3 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-97087-551-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97115-147-3 01 1 0211- ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97101-634-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97101-635-3 01 1 0502- ● ● ●
61 08.854 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0211-0501 ● ● ●
61 08.854 CASE; HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97101-636-3 01 1 0502- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-323-0 01 1 1409- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-580-0 01 1 0211-0501 ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-580-0 01 1 0502-1408 ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-580-0 01 1 1409- ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-562-1 01 1 0211-0501 ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97087-562-1 01 1 0502- ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-670-1 01 1 0211-0501 ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97101-670-1 01 1 0502- ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-564-1 01 1 0211-0501 ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97087-564-1 01 1 0502- ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97200-276-0 01 1 0211-0501 ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97200-276-0 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97087-560-2 01 1 0502- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0211-0501 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97101-643-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 09.787 		8-94337-654-0 02 1 0502- ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0211-0501 ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
67 08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 01 1 0502- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97251-290-0 01 1 0211-0501 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97251-290-0 01 1 0502-1408 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98238-503-0 01 1 1409- ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97240-941-0 01 1 0211-0501 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97240-941-0 01 1 0502-1408 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98238-504-0 01 1 1409- ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-563-1 01 1 0211-0501 ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-563-1 01 1 0502- ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-671-0 01 1 0211-0501 ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97101-671-0 01 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 02 1 0502- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0211-0501 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97085-613-0 01 1 0502- ● ● ●
152 08.854 NUT; HTR UNIT 8-97107-811-0 01 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
