Sayfa 8-45 - Isuzu EPC

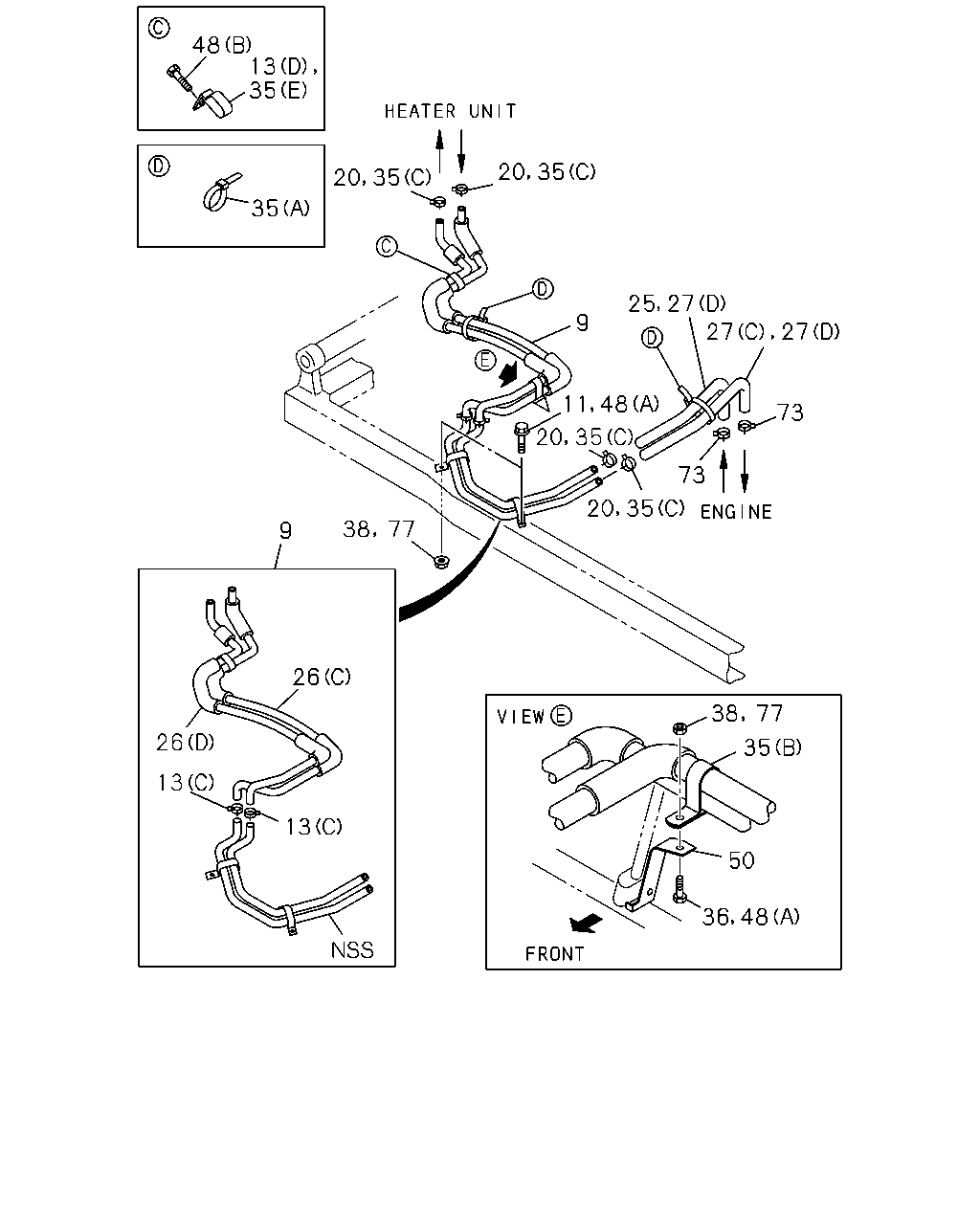

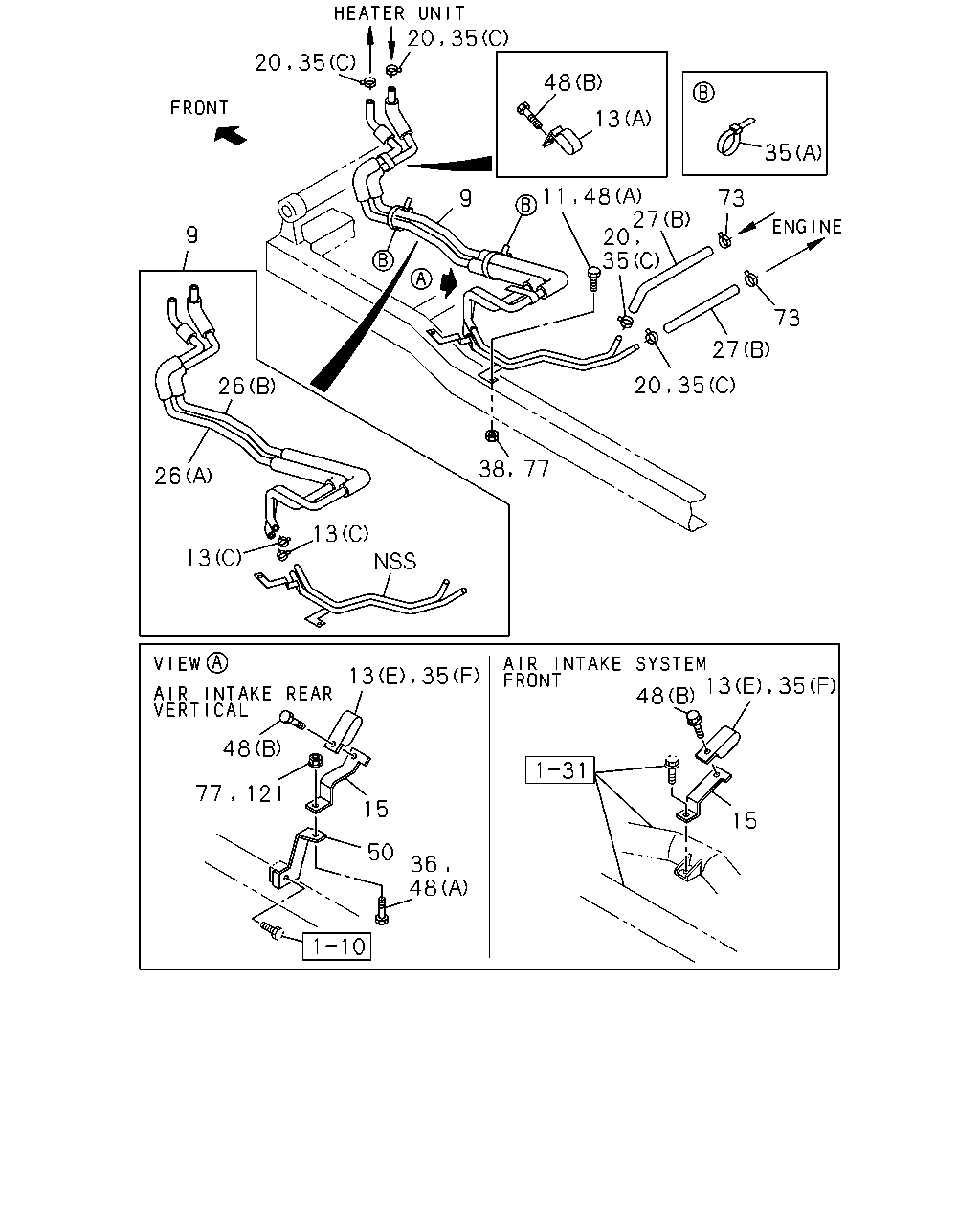

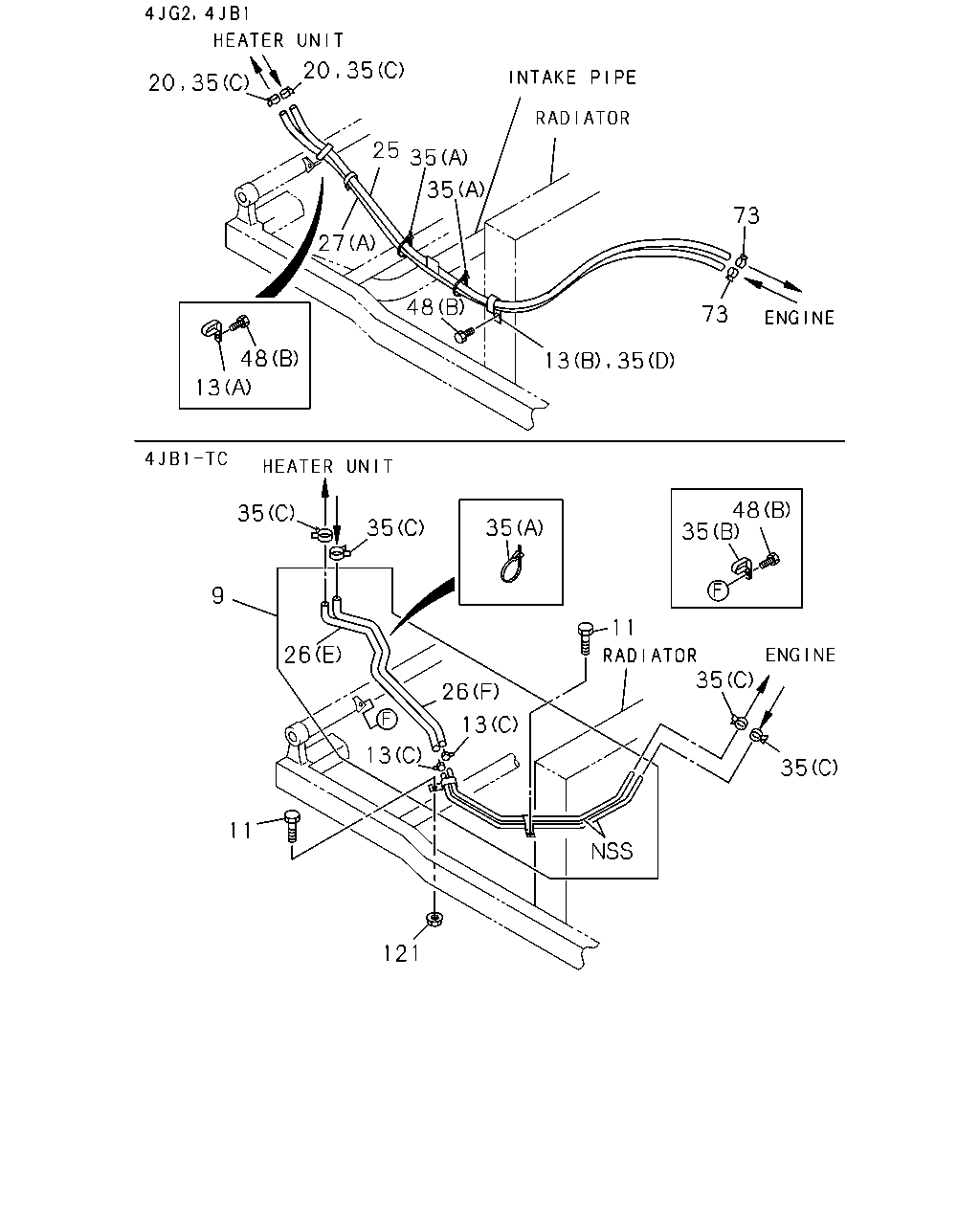

8-45 — HEATER PIPING (#44452) — 412 parça

48 13 35 48 27 20 35 11 9 73 9 73 27 26 38 77 26 13 13 48 48 77 121 15 15 50 36 48 20 35 20 35 20 35 13 35 13 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-97205-282-1	01	1	0607-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	0211-0501		●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-97231-907-0	01	1	0502-		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	0211-0501		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	0211-0501			●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-185-0	01	1	0502-		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41)	8-97129-185-0	01	1	0502-			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-003-0	01	1	0211-0501	●				●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	0211-0501	●				●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (E) B=18	9-83651-948-1	01	1	0211-0501		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) B=18	9-83651-948-1	01	1	0211-0501			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-94124-169-1	01	1	0211-0501		●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0211-0501		●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0502-0606		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0502-0606			●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-			●	●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-872-0	01	1	0211-0501		●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-872-0	01	1	0211-0501			●	●
15	08.846 BRACKET; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	0502-		●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	0502-			●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	0211-0501	●				●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	0211-0501		●	●	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-97239-082-0	01	1	0607-	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (F)	8-97239-083-0	01	1	0607-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0211-0501		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0211-0501		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0211-0501		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97107-809-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97107-809-0	01	1	0502-			●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0211-0501		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97107-810-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97107-810-0	01	1	0502-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97129-201-0	01	1	0211-0501	●				●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97129-201-0	01	1	0502-	●				●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI TURBOCHARGER<K51> HEATER & DEFROSTER(C41) (C)	8-97204-607-1	01	1	0211-0501		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (C)	8-97204-607-1	01	1	0502-0604		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (D)	8-97205-283-0	02	1	0605-0606		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97205-283-0	02	1	0607-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (B)	8-97300-262-0	02	1	0211-0501		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0502-		●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0607-	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0607-					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610					●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B)	5-83574-006-0	01	1	0211-0501		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610					●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610						●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-					●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	9-83651-948-1	01	1	0502-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	9-83651-948-1	01	1	0502-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-97359-144-0	01	1	0611-1205		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-97359-144-0	01	1	0611-1205			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-98166-023-0	01	1	1206-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-98166-023-0	01	1	1206-			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (E)	8-94124-169-1	01	1	0502-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (E)	8-94124-169-1	01	1	0502-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0611-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0611-			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0502-0606		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0502-0606			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-			●	●
36	08.846 BOLT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
36	08.846 BOLT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
36	08.846 BOLT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
36	08.846 BOLT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
38	08.846 NUT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0511		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0511			●	●
38	08.846 NUT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0512-0602		●
38	08.846 NUT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0512-0602		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0512-0602			●	●
38	08.846 NUT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-		●
38	08.846 NUT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●		●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606		●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-			●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.417	8-97072-530-0	01	1	0211-0501		●
50	08.846 BRACKET 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.417	8-97072-530-0	01	1	0502-		●
50	08.846 BRACKET HEATER & DEFROSTER(C41) 03.417	8-97072-530-0	01	1	0502-			●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) ID=22	8-94382-401-0	02	1	0502-0610	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0610		●	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) 03.278 ID=22	8-97359-141-0	02	1	0611-0910	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0611-0910		●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0911-	●	●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501		●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501		●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501			●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●
121	08.845 NUT; PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●
121	08.845 NUT; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606	●
121	08.845 NUT; PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606		●
121	08.845 NUT; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606		●
121	08.845 NUT; PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-	●	●
121	08.845 NUT; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-	●	●

35 13 48 35 20 35 20 35 9 25 27 27 27 73 73 48 11 35 20 20 35 77 38 9 26 26 13 13 38 77 35 50 36 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-97205-282-1	01	1	0607-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	0211-0501		●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-97231-907-0	01	1	0502-		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	0211-0501		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	0211-0501			●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-185-0	01	1	0502-		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41)	8-97129-185-0	01	1	0502-			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-003-0	01	1	0211-0501	●				●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	0211-0501	●				●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (E) B=18	9-83651-948-1	01	1	0211-0501		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) B=18	9-83651-948-1	01	1	0211-0501			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-94124-169-1	01	1	0211-0501		●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0211-0501		●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0502-0606		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0502-0606			●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-			●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	0211-0501	●				●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	0211-0501		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S)	8-97129-200-0	01	1	0211-0501	●				●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S)	8-97129-200-0	01	1	0502-	●				●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT TURBOCHARGER<K51> HEATER & DEFROSTER(C41)	8-97204-606-1	01	1	0211-0501		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74)	8-97204-606-1	01	1	0502-0604		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-97239-082-0	01	1	0607-	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (F)	8-97239-083-0	01	1	0607-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0211-0501		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0211-0501		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0211-0501		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97107-809-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97107-809-0	01	1	0502-			●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0211-0501		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97107-810-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97107-810-0	01	1	0502-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97129-201-0	01	1	0211-0501	●				●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97129-201-0	01	1	0502-	●				●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI TURBOCHARGER<K51> HEATER & DEFROSTER(C41) (C)	8-97204-607-1	01	1	0211-0501		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (C)	8-97204-607-1	01	1	0502-0604		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (D)	8-97205-283-0	02	1	0605-0606		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97205-283-0	02	1	0607-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (B)	8-97300-262-0	02	1	0211-0501		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0502-		●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0607-	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0607-					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610					●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B)	5-83574-006-0	01	1	0211-0501		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610					●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610						●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-					●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	9-83651-948-1	01	1	0502-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	9-83651-948-1	01	1	0502-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-97359-144-0	01	1	0611-1205		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-97359-144-0	01	1	0611-1205			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-98166-023-0	01	1	1206-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-98166-023-0	01	1	1206-			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (E)	8-94124-169-1	01	1	0502-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (E)	8-94124-169-1	01	1	0502-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0611-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0611-			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0502-0606		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0502-0606			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-			●	●
36	08.846 BOLT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
36	08.846 BOLT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
36	08.846 BOLT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
36	08.846 BOLT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
38	08.846 NUT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0511		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0511			●	●
38	08.846 NUT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0512-0602		●
38	08.846 NUT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0512-0602		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0512-0602			●	●
38	08.846 NUT; BRKT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-		●
38	08.846 NUT; BRKT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-		●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●		●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606		●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-			●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.417	8-97072-530-0	01	1	0211-0501		●
50	08.846 BRACKET 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.417	8-97072-530-0	01	1	0502-		●
50	08.846 BRACKET HEATER & DEFROSTER(C41) 03.417	8-97072-530-0	01	1	0502-			●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) ID=22	8-94382-401-0	02	1	0502-0610	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0610		●	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) 03.278 ID=22	8-97359-141-0	02	1	0611-0910	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0611-0910		●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0911-	●	●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501		●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501		●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501			●	●

25 35 35 73 27 48 73 48 13 48 35 35 35 35 9 11 26 35 26 13 13 35 11 121 13 35 20 35 20 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-97205-282-1	01	1	0607-	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	0211-0501		●
9	08.846 PIPE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-97231-907-0	01	1	0502-		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	0211-0501		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	0211-0501			●	●
9	08.846 PIPE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41)	8-97129-185-0	01	1	0502-		●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41)	8-97129-185-0	01	1	0502-			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606			●	●
11	08.845 BOLT; HTR PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●
11	08.845 BOLT; HTR PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-		●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-003-0	01	1	0211-0501	●				●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	0211-0501	●				●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (E) B=18	9-83651-948-1	01	1	0211-0501		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) B=18	9-83651-948-1	01	1	0211-0501			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-94124-169-1	01	1	0211-0501		●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0211-0501		●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0502-0606		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0502-0606			●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0607-			●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	0211-0501	●				●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	0211-0501		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S)	8-97129-200-0	01	1	0211-0501	●				●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S)	8-97129-200-0	01	1	0502-	●				●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT TURBOCHARGER<K51> HEATER & DEFROSTER(C41)	8-97204-606-1	01	1	0211-0501		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74)	8-97204-606-1	01	1	0502-0604		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-97239-082-0	01	1	0607-	●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (F)	8-97239-083-0	01	1	0607-	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0211-0501		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97239-084-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0211-0501		●
26	08.846 HOSE; HTR 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97239-085-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0211-0501		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (A)	8-97107-809-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97107-809-0	01	1	0502-			●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0211-0501		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0211-0501			●	●
26	08.846 HOSE; HTR 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97107-810-0	01	1	0502-		●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97107-810-0	01	1	0502-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97129-201-0	01	1	0211-0501	●				●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97129-201-0	01	1	0502-	●				●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI TURBOCHARGER<K51> HEATER & DEFROSTER(C41) (C)	8-97204-607-1	01	1	0211-0501		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (C)	8-97204-607-1	01	1	0502-0604		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) (D)	8-97205-283-0	02	1	0605-0606		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (D)	8-97205-283-0	02	1	0607-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> (B)	8-97300-262-0	02	1	0211-0501		●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-97300-262-0	02	1	0502-		●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0607-	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D)	5-83574-003-0	01	1	0607-					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610					●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-	●					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-					●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B)	5-83574-006-0	01	1	0211-0501		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606	●				●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0502-0606						●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610					●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	5-83574-006-0	01	1	0607-0610						●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-					●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-		●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (B)	8-98029-677-0	01	1	0611-						●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	9-83651-948-1	01	1	0502-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	9-83651-948-1	01	1	0502-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-97359-144-0	01	1	0611-1205		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-97359-144-0	01	1	0611-1205			●	●
35	08.852 CLIP; WATER HOSE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-98166-023-0	01	1	1206-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (F) B=18	8-98166-023-0	01	1	1206-			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (E)	8-94124-169-1	01	1	0502-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (E)	8-94124-169-1	01	1	0502-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0611-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0611-			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0502-0606		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0502-0606			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0607-0610			●	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-	●
35	08.852 CLIP; WATER HOSE 4JB1-TC ENG(RDT),4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-			●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●		●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●		●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512		●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●		●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606		●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0607-			●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	0211-0501	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) ID=22	8-94382-401-0	02	1	0502-0610	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0502-0610		●	●	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) EXC. INDONESIA EQUIPMENT(S4S) 03.278 ID=22	8-97359-141-0	02	1	0611-0910	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0611-0910		●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0911-	●	●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●
121	08.845 NUT; PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●
121	08.845 NUT; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●
121	08.845 NUT; PIPE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606	●
121	08.845 NUT; PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606		●
121	08.845 NUT; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606		●
121	08.845 NUT; PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-	●	●
121	08.845 NUT; PIPE 4JB1 NA ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
