◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#44450) — 59 parça

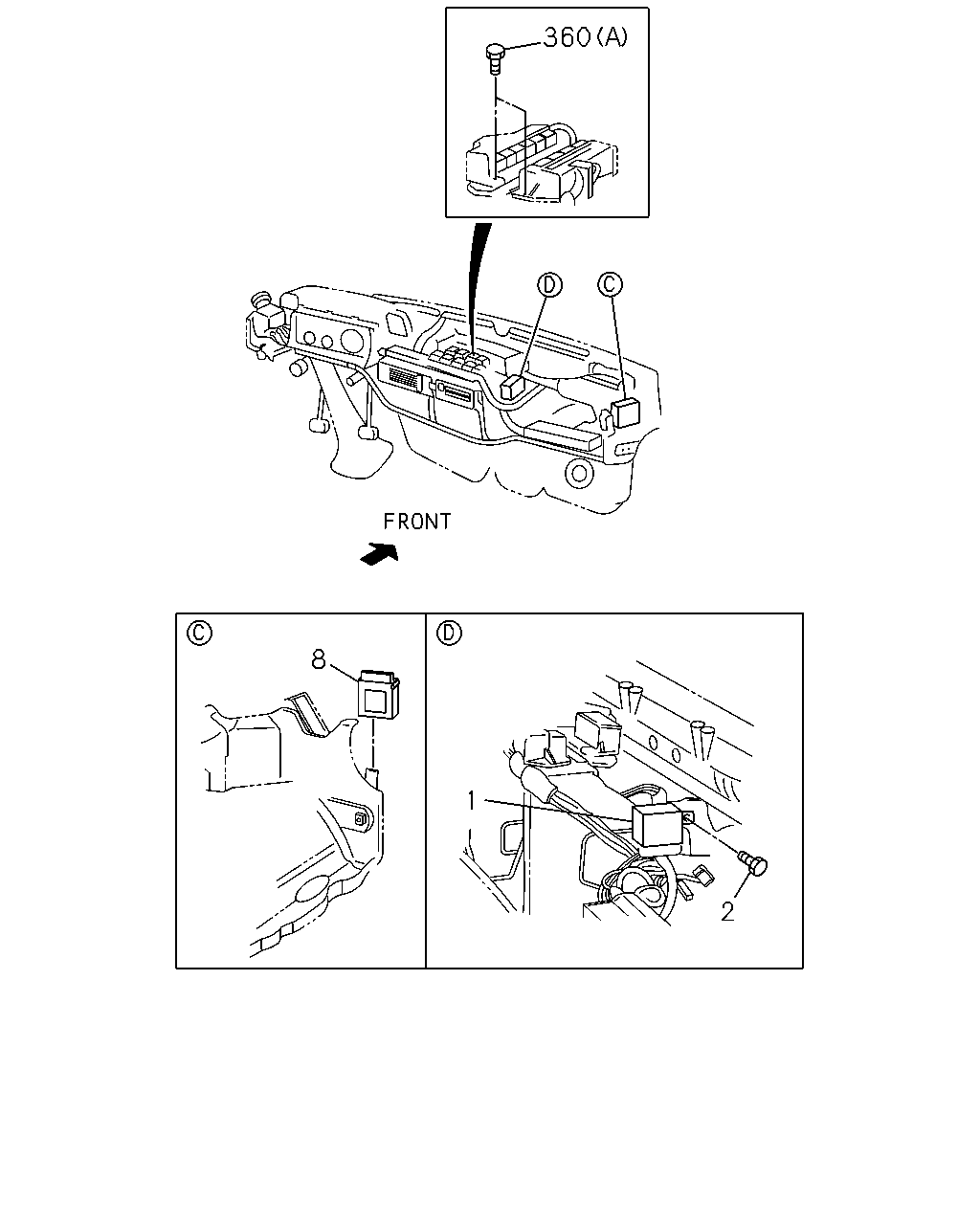

çizim 11003
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0211- ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-1210 ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-186-0 01 1 0211-0301 ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0302- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0512 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0502-1210 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ● ● ●
çizim 12183
361 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) 		8-97211-743-2 01 1 0211- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) 		8-97109-362-1 01 1 0211- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-744-2 01 1 0211- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-1004 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-1004 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211-1210 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ● ●
çizim 12993
29 22 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ● ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ● ● ● ●
çizim 49384
22 11 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ● ●
11 02.485 RELAY; DIMMER
02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ● ● ● ●
29 02.815 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ● ● ● ●
29 02.815 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ● ● ● ●

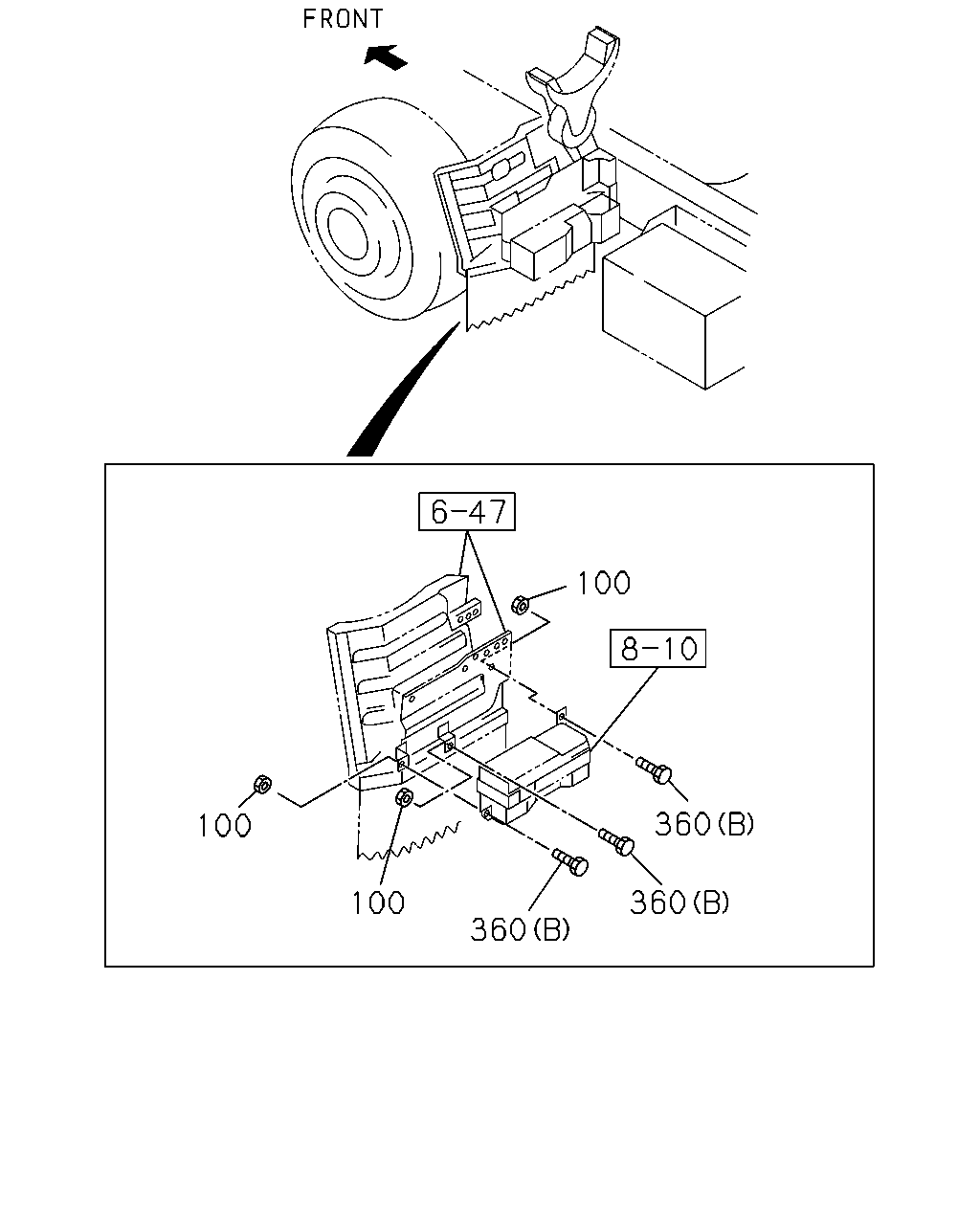

çizim 49466
100 360 100 360 100 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0512 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0502-1210 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ● ● ●

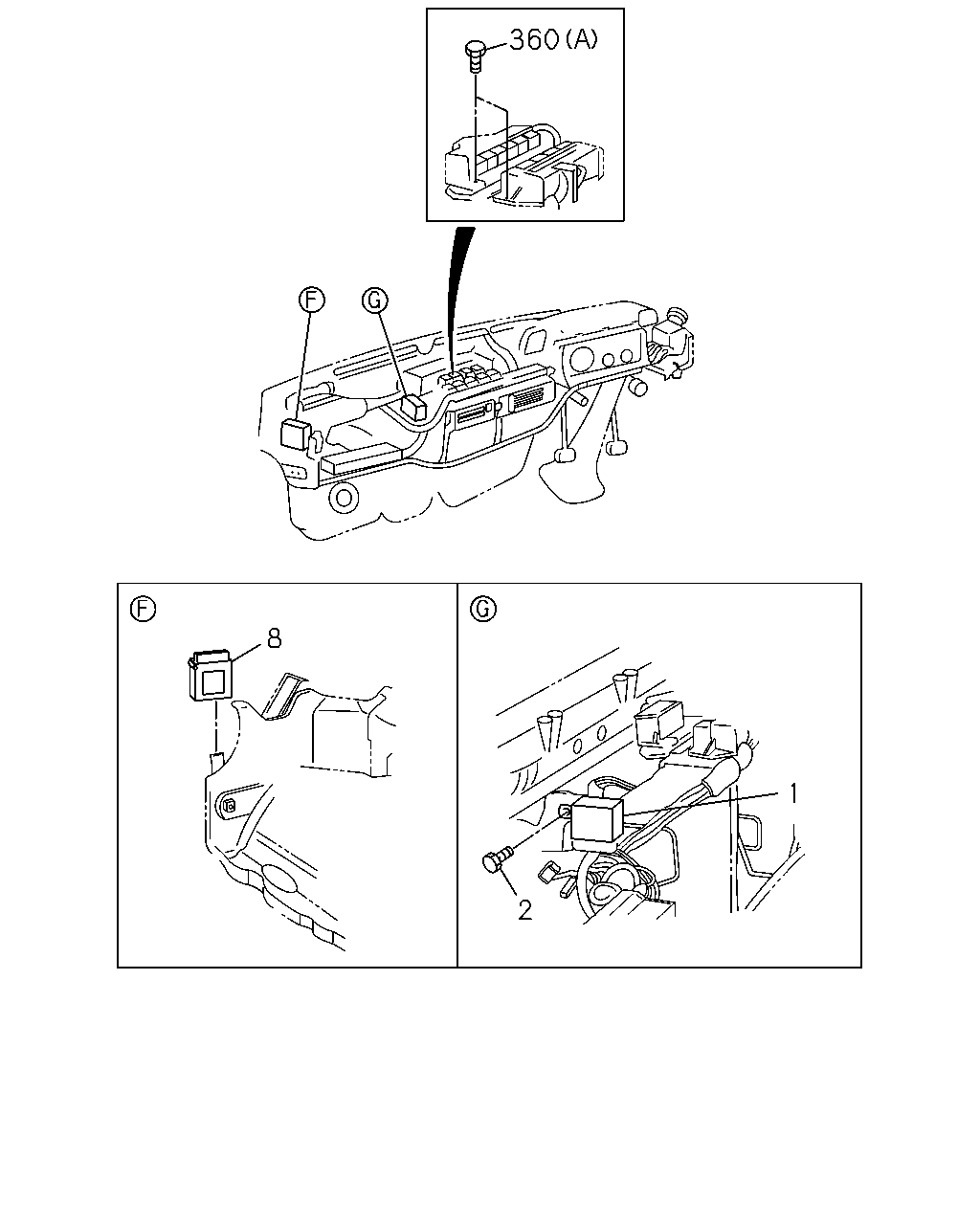

çizim 50595
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER 8-97228-398-0 01 1 0211- ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-1210 ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-186-0 01 1 0211-0301 ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-984-0 01 1 0302- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0512 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0502-1210 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ● ● ●

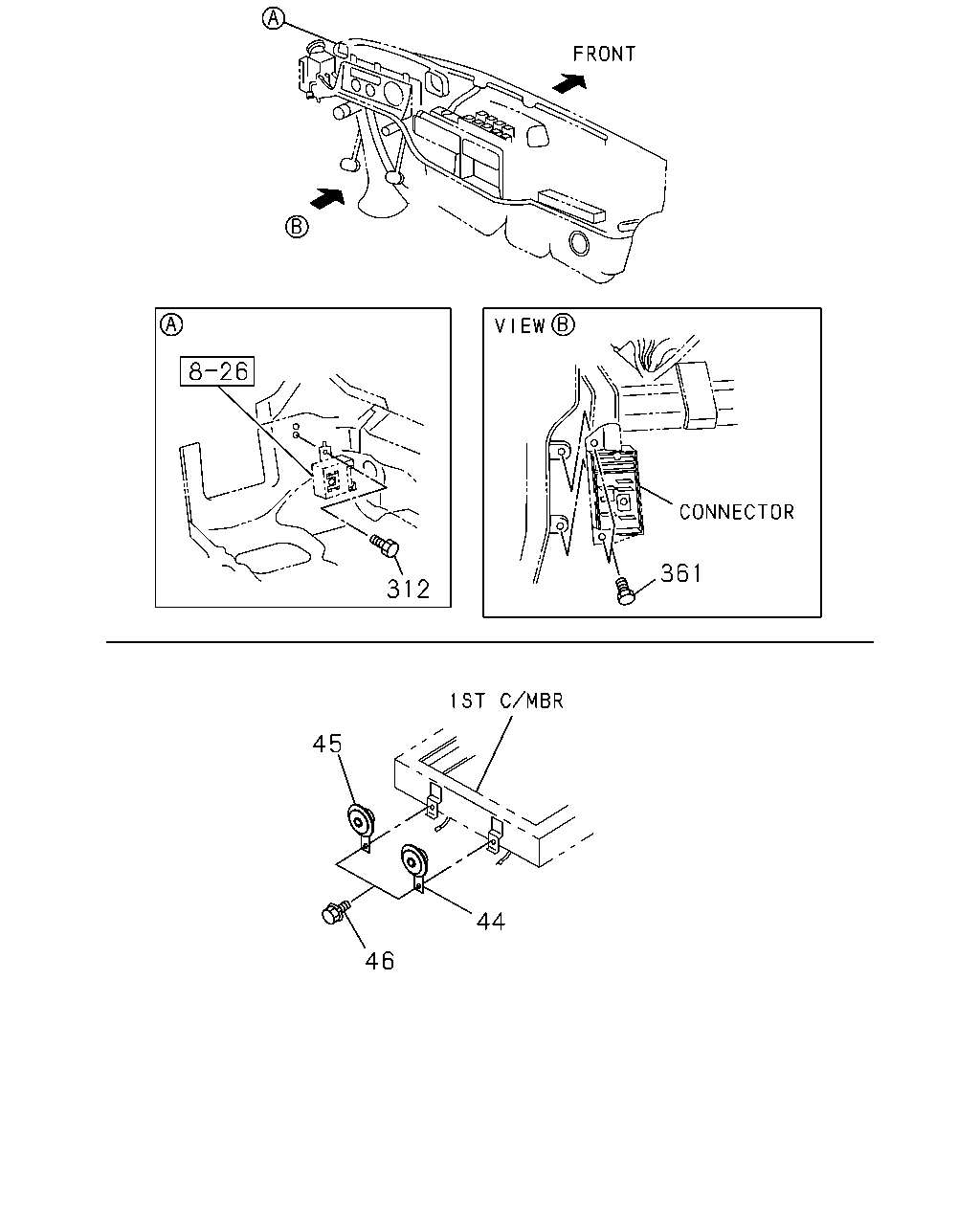

çizim 52148
361 312 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) 		8-97211-743-2 01 1 0211- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) 		8-97109-362-1 01 1 0211- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) 		8-97211-744-2 01 1 0211- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-1004 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-1004 ● ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ● ●
312 09.765 BOLT; BUZZER
SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-1210 ● ●
312 09.765 BOLT; BUZZER
SAVE MECH TROUBLE DOOR LOCK<6LK> 02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211-1210 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ● ●
