Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#4445) — 313 parça

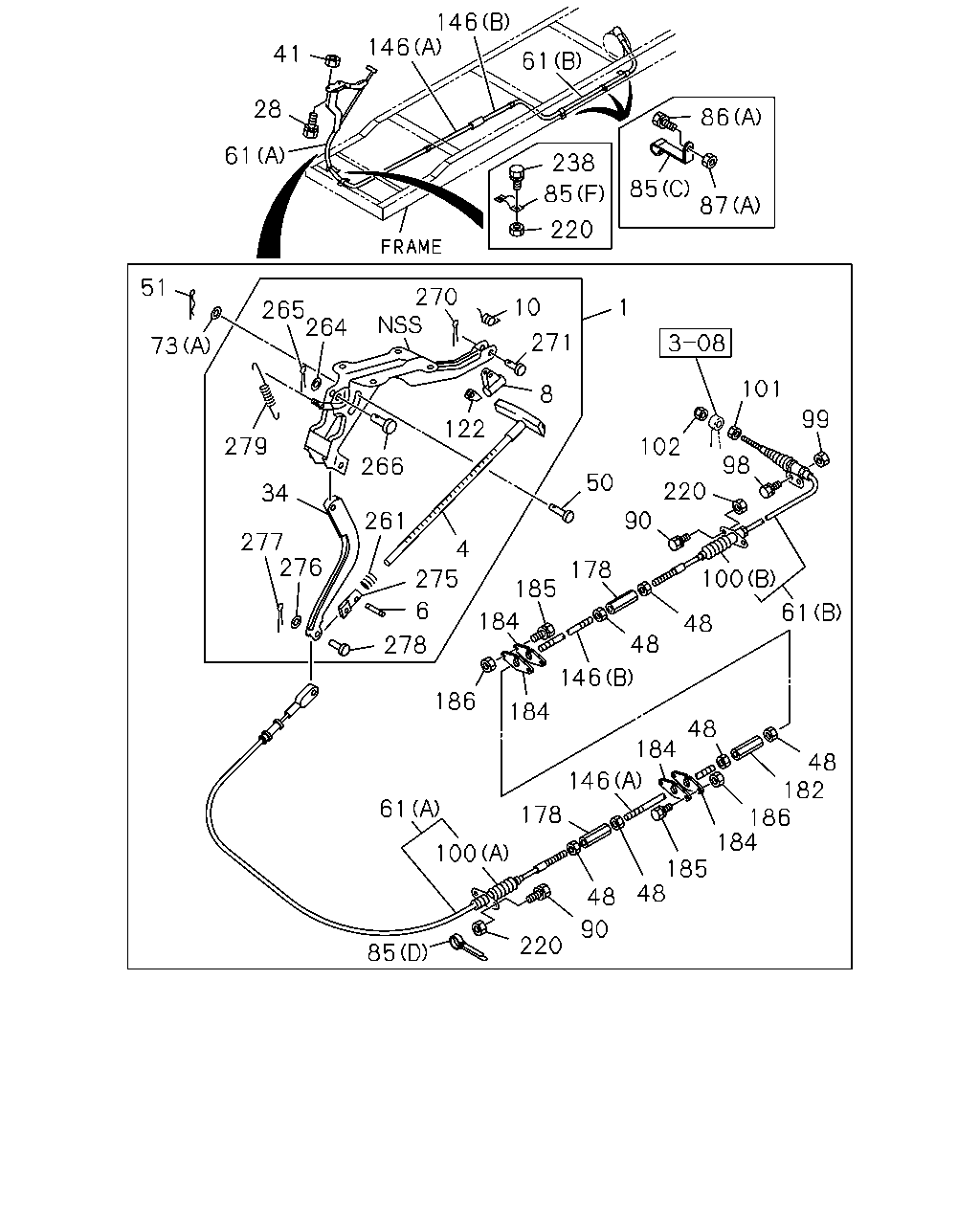

146 61 146 41 28 86 61 238 85 87 85 220 51 270 10 1 265 264 271 73 101 8 99 122 279 102 98 266 50 220 34 90 261 277 276 4 178 100 275 185 6 61 184 48 48 278 146 186 184 48 184 48 182 186 184 146 61 178 100 185 48 48 90 220 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-079-2	01	1	9101-9504	●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46120-079-2	01	1	9505-0203	●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-028-1	01	1	9101-9504	●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-080-2	01	1	9101-9504		●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46120-080-2	01	1	9505-0203		●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-022-2	01	1	9101-9504		●
4	STEM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46129-033-0	01	1	9101-9504	●
4	STEM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46129-032-0	01	1	9101-9504		●
6	PIN; STEM,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46129-002-0	01	1	9101-9504	●	●
8	GUIDE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46124-002-0	01	1	9101-9504	●	●
10	SPRING; TORSION,CLAW,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09585-032-0	01	1	9101-9504	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	02	1	9505-0203	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30 W/LK WASHER	0-50040-830-0	04	1	9101-9412	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30 FLANGE	0-28080-830-0	04	1	9501-9504	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	02	1	9505-9606	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	9607-0203	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	04	1	9101-9412	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 FLANGE	0-28080-820-0	04	1	9501-9504	●	●
34	LEVER; PARK BRK CONT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46143-047-0	01	1	9101-9504	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	04	1	9101-9412	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-208-0	04	1	9501-9501	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	1-09440-049-0	04	1	9502-9504	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	1-09440-049-0	02	1	9505-0203	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	02	1	9505-9606	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9607-0203	●	●
48	NUT; LK,TURN BUCKLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LH THREAD	1-09409-002-0	02	1	9101-0203	●	●
48	NUT; LK,TURN BUCKLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9101-9606	●	●
48	NUT; LK,TURN BUCKLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9607-0203	●	●
50	PIN; CABLE TO LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OD=8 L=17	9-08223-817-0	01	1	9101-9504	●	●
51	PIN; JOINT,RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OD=3.7 L=28	9-08114-028-0	01	1	9101-9504	●	●
51	PIN; JOINT,RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=3.7 L=28	9-08114-028-0	01	1	9505-0203	●	●
51	PIN; JOINT,RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=27.7	1-09747-005-0	01	1	9101-9504	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2415	1-46151-104-0	01	1	9505-9708	●	●
61	CABLE; PARKING BRK MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2415	1-46151-104-0	01	1	9709-9809	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2415	1-46151-104-0	01	1	9810-0203	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=1960	1-46151-373-1	01	1	9101-9504	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1960	1-46151-373-2	01	1	9505-0203	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2330	1-46151-154-1	01	1	9101-9504	●	●
61	CABLE; PARKING BRK MBG5B M/T(X4K) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9101-9304	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D), MLD6AM/T(X5N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9101-9304	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9305-9504	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9305-9504	●	●
61	CABLE; PARKING BRK MBG5B M/T(X4K) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2515	1-46151-180-0	01	1	9101-9504	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2295	1-46151-164-0	01	1	9101-9504	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=8.4	9-09160-508-0	02	1	9101-9504	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4	9-09160-508-0	02	1	9505-9606	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=17	9-09160-516-0	01	1	9101-9504	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=17	9-09160-516-0	01	1	9505-0203	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=8.4	9-09160-508-0	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=40	1-09701-014-0	01	1	9604-0203	●
85	CLIP; BRKT AIR DRYER<PS7> (C) ID=14 H=50 L=20	1-09700-843-0	02	1	9106-9504	●	●
85	CLIP; BRKT AIR DRYER<PS7> (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9106-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 H=50 L=20	1-09700-843-0	03	1	9505-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=20	1-09701-012-0	01	1	9505-9603	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=20	1-09701-012-0	01	1	9604-0203		●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=9 H=80 L=23	1-09701-061-0	01	1	9505-9506	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=16 H=30 L=30	1-09701-080-0	01	1	9507-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=42	9-09716-203-1	01	1	9505-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) ID=14 H=50 L=20	1-09700-843-0	03	1	9101-9105	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> (C) ID=14 H=50 L=20	1-09700-843-0	03	1	9106-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=14.5	9-09916-724-1	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (G) ID=15	9-09917-075-1	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=16 L=46	9-09917-428-0	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 L=46	9-09917-428-0	01	1	9505-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) ID=14	1-09700-057-1	03	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (F) L=68	1-09700-407-1	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=14 L=44	9-09917-427-0	01	1	9101-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	03	1	9505-9606	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-0203	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE	0-28080-825-0	03	1	9505-9606	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X20 W/LK WASHER	0-50040-820-0	03	1	9101-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M6X20 FLANGE	0-28080-620-0	01	1	9505-9603	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8X25 FLANGE	0-28680-825-0	01	1	9604-9606	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8X25 FLANGE	0-28680-825-0	04	1	9607-0203	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-408-0	03	1	9101-9504	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-508-0	05	1	9505-9603	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-508-0	04	1	9604-9606	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M6	9-09110-406-0	01	1	9101-9504	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M6	9-09110-506-0	01	1	9505-9603	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8	9-09110-408-0	01	1	9604-9606	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91150-108-0	05	1	9607-0203	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8	9-09110-408-0	02	1	9101-9504	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-508-0	01	1	9604-9606		●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	01	1	9607-0203		●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	02	1	9101-9504	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	02	1	9101-9504	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9505-9606	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9607-0203	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30	0-20800-830-0	02	1	9101-9504	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9505-9606	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9607-0203	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30 W/LK WASHER	0-50040-830-0	02	1	9101-9504	●	●
98	BOLT; RR COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50051-025-0	02	1	9101-9504	●	●
98	BOLT; RR COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28081-025-0	02	1	9505-9606	●	●
98	BOLT; RR COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9607-0203	●	●
99	NUT; CONT CABLE MBG5B M/T(X4K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09120-510-0	02	1	9305-9504	●	●
99	NUT; CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09120-510-0	02	1	9505-9606	●	●
99	NUT; CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91250-210-0	02	1	9607-0203	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-46151-048-0	01	1	9101-9201	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-46151-048-0	02	1	9202-9603	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-46151-048-0	01	1	9604-9805	●	●
100	BELLOWS; CONT WIRE MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-46151-048-0	01	1	9806-9809	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-46151-048-0	01	1	9810-0203	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-46159-048-0	01	1	9604-0203	●	●
101	NUT; CABLE TO LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	9-46259-016-0	01	1	9101-0203	●	●
102	NUT; LK,CABLE TO LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9101-9606	●	●
102	NUT; LK,CABLE TO LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
122	CLAW; PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46124-003-0	01	1	9101-9504	●	●
146	ROD; LINK,PARKING BRK WHEEL BASE 4500MM(45W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09765-194-0	01	1	9101-9504	●
146	ROD; LINK,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2935	1-09765-236-0	01	1	9101-9504	●	●
146	ROD; LINK,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2935	1-09765-236-0	01	1	9505-0203	●	●
146	ROD; LINK,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-09765-156-0	01	1	9101-9504	●	●
146	ROD; LINK,PARKING BRK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2150	1-09765-151-0	01	1	9101-0203	●	●
146	ROD; LINK,PARKING BRK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2850	1-09765-157-0	01	1	9101-0203	●	●
178	BUCKLE; TURN,WIRE TO ROD BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09768-004-0	02	1	9101-0203	●	●
182	BUCKLE; TURN,ROD TO ROD BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-14149-158-0	01	1	9101-0203	●	●
184	SUPPORT; CONT LINK,PARK BRK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-23319-021-0	08	1	9101-9504	●	●
184	SUPPORT; CONT LINK,PARK BRK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-23319-021-0	08	1	9505-0203	●	●
184	SUPPORT; CONT LINK,PARK BRK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-23319-021-0	10	1	9101-0203	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	9-01900-630-0	08	1	9101-9204	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	0-50040-630-0	08	1	9205-9504	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	0-50040-630-0	08	1	9505-9606	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 FLANGE	0-28680-630-0	08	1	9607-0203	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	9-01900-630-0	10	1	9101-9204	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	0-50040-630-0	10	1	9205-9606	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 FLANGE	0-28680-630-0	10	1	9607-0203	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6	9-09110-406-0	08	1	9101-9504	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6	9-09110-406-0	08	1	9505-9606	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6 FLANGE	0-91150-106-0	08	1	9607-0203	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6	9-09110-406-0	10	1	9101-9606	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6 FLANGE	0-91150-106-0	10	1	9607-0203	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9101-9504	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	03	1	9101-9504	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	04	1	9505-9606	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9607-0203	●	●
238	BOLT; CLIP TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	02	1	9101-9504	●	●
261	SPRING; TORSION,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46129-031-0	01	1	9101-9504	●
261	SPRING; TORSION,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-09944-219-0	01	1	9101-9504		●
264	WASHER; PARK BRK BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-46129-029-0	01	1	9101-9504	●	●
265	PIN; SPLIT,PARK BRK BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OD=3.7 L=20	9-08114-020-0	01	1	9101-9504	●	●
266	PIN; PARK BRK BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-08224-225-0	01	1	9101-9504	●	●
270	PIN; SPLIT,GUIDE TO BRKT,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=20	9-08112-520-0	01	1	9101-9504	●	●
271	PIN; GUIDE TO BRKT,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09744-017-0	01	1	9101-9504	●	●
275	SLEEVE; STEM,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-45129-030-0	01	1	9101-9504	●
275	SLEEVE; STEM,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46129-025-0	01	1	9101-9504		●
276	WASHER; SLEEVE TO LEVER,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-46129-028-0	01	1	9101-9504	●	●
277	PIN; SPLIT,SLEEVE TO LEVER,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OD=1.8 L=15	9-08112-015-0	01	1	9101-9504	●	●
278	PIN; SLEEVE TO LEVER,PARK BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-08233-815-0	01	1	9101-9504	●	●
279	SPRING; TORSION,PARK BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09583-100-0	01	1	9101-9504	●	●

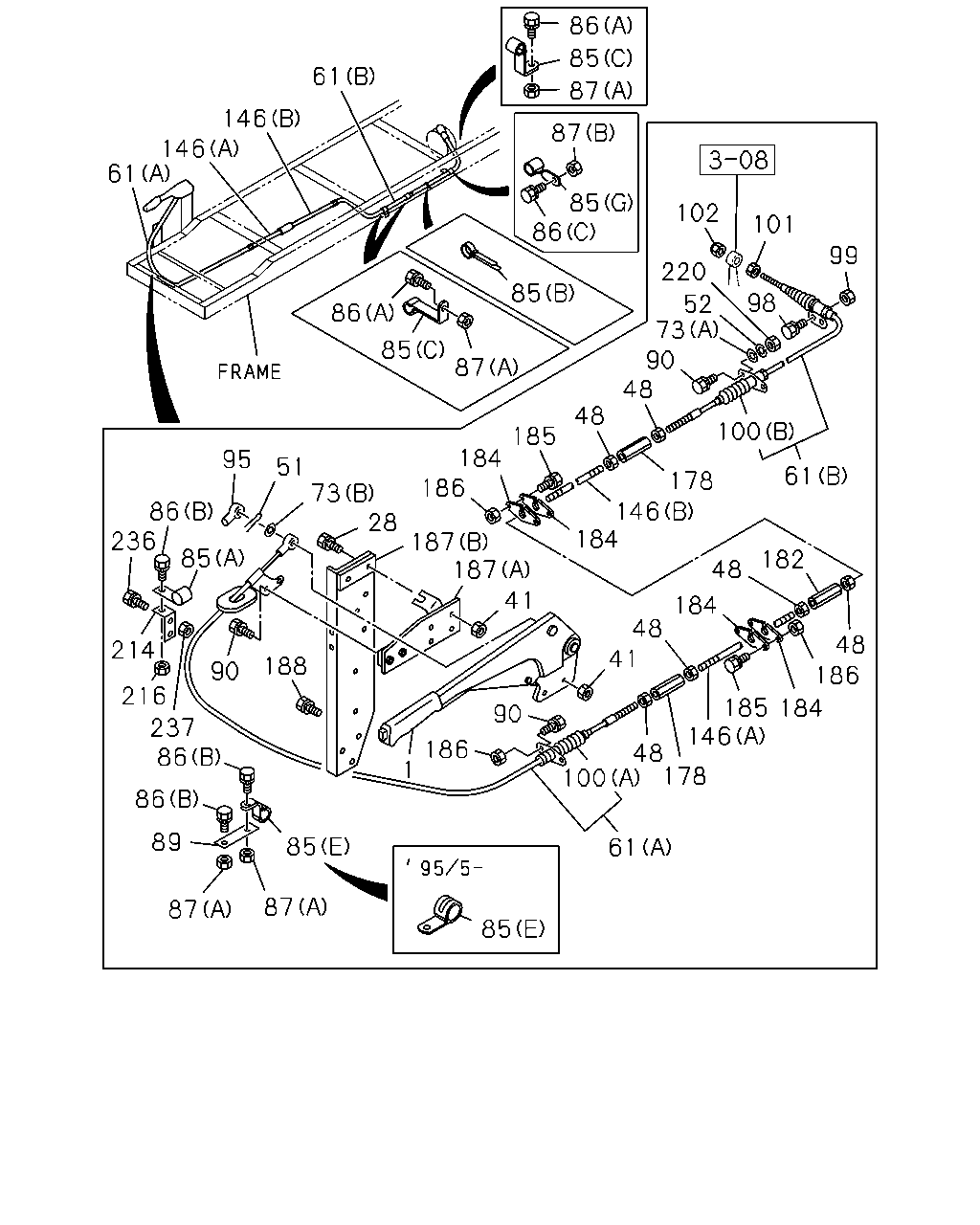

86 85 61 87 146 146 87 61 85 86 102 101 99 220 85 98 52 73 90 48 86 85 87 48 100 185 184 186 95 51 73 28 61 178 187 187 86 236 146 184 182 85 48 214 41 184 48 48 186 41 188 90 216 185 146 184 90 237 86 186 48 178 100 1 86 89 85 61 87 87 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-079-2	01	1	9101-9504	●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46120-079-2	01	1	9505-0203	●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-028-1	01	1	9101-9504	●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-080-2	01	1	9101-9504		●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46120-080-2	01	1	9505-0203		●
1	STEM ASM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-46120-022-2	01	1	9101-9504		●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	02	1	9505-0203	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30 W/LK WASHER	0-50040-830-0	04	1	9101-9412	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30 FLANGE	0-28080-830-0	04	1	9501-9504	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	02	1	9505-9606	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	9607-0203	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	04	1	9101-9412	●	●
28	BOLT; HAND BRK LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 FLANGE	0-28080-820-0	04	1	9501-9504	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	04	1	9101-9412	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-208-0	04	1	9501-9501	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	1-09440-049-0	04	1	9502-9504	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	1-09440-049-0	02	1	9505-0203	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	02	1	9505-9606	●	●
41	NUT; HAND BRK STEM BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9607-0203	●	●
48	NUT; LK,TURN BUCKLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LH THREAD	1-09409-002-0	02	1	9101-0203	●	●
48	NUT; LK,TURN BUCKLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9101-9606	●	●
48	NUT; LK,TURN BUCKLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9607-0203	●	●
51	PIN; JOINT,RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> OD=3.7 L=28	9-08114-028-0	01	1	9101-9504	●	●
51	PIN; JOINT,RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=3.7 L=28	9-08114-028-0	01	1	9505-0203	●	●
51	PIN; JOINT,RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=27.7	1-09747-005-0	01	1	9101-9504	●	●
52	WASHER; CURVED RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2	9-09150-508-0	02	1	9101-9504	●	●
52	WASHER; CURVED RELAY LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.2	9-09150-508-0	02	1	9505-9606	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2415	1-46151-104-0	01	1	9505-9708	●	●
61	CABLE; PARKING BRK MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2415	1-46151-104-0	01	1	9709-9809	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2415	1-46151-104-0	01	1	9810-0203	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=1960	1-46151-373-1	01	1	9101-9504	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1960	1-46151-373-2	01	1	9505-0203	●	●
61	CABLE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2330	1-46151-154-1	01	1	9101-9504	●	●
61	CABLE; PARKING BRK MBG5B M/T(X4K) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9101-9304	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D), MLD6AM/T(X5N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9101-9304	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9305-9504	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N),MLD6A M/T(X5N), MLD6FM/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2415	1-46151-104-0	01	1	9305-9504	●	●
61	CABLE; PARKING BRK MBG5B M/T(X4K) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2515	1-46151-180-0	01	1	9101-9504	●	●
61	CABLE; PARKING BRK MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) L=2295	1-46151-164-0	01	1	9101-9504	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=8.4	9-09160-508-0	02	1	9101-9504	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4	9-09160-508-0	02	1	9505-9606	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=17	9-09160-516-0	01	1	9101-9504	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=17	9-09160-516-0	01	1	9505-0203	●	●
73	WASHER; PL,CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=8.4	9-09160-508-0	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=40	1-09701-014-0	01	1	9604-0203	●
85	CLIP; BRKT AIR DRYER<PS7> (C) ID=14 H=50 L=20	1-09700-843-0	02	1	9106-9504	●	●
85	CLIP; BRKT AIR DRYER<PS7> (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9106-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 H=50 L=20	1-09700-843-0	03	1	9505-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=20	1-09701-012-0	01	1	9505-9603	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=20	1-09701-012-0	01	1	9604-0203		●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=9 H=80 L=23	1-09701-061-0	01	1	9505-9506	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=16 H=30 L=30	1-09701-080-0	01	1	9507-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=15 L=42	9-09716-203-1	01	1	9505-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) ID=14 H=50 L=20	1-09700-843-0	03	1	9101-9105	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR DRYER<PS7> (C) ID=14 H=50 L=20	1-09700-843-0	03	1	9106-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=14.5	9-09916-724-1	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (G) ID=15	9-09917-075-1	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=16 L=46	9-09917-428-0	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 L=46	9-09917-428-0	01	1	9505-0203	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) ID=14	1-09700-057-1	03	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (F) L=68	1-09700-407-1	01	1	9101-9504	●	●
85	CLIP; BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) ID=14 L=44	9-09917-427-0	01	1	9101-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28080-820-0	03	1	9505-9606	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-0203	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE	0-28080-825-0	03	1	9505-9606	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M8X20 W/LK WASHER	0-50040-820-0	03	1	9101-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9504	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M6X20 FLANGE	0-28080-620-0	01	1	9505-9603	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8X25 FLANGE	0-28680-825-0	01	1	9604-9606	●	●
86	BOLT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8X25 FLANGE	0-28680-825-0	04	1	9607-0203	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-408-0	03	1	9101-9504	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-508-0	05	1	9505-9603	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-508-0	04	1	9604-9606	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M6	9-09110-406-0	01	1	9101-9504	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M6	9-09110-506-0	01	1	9505-9603	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8	9-09110-408-0	01	1	9604-9606	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91150-108-0	05	1	9607-0203	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8	9-09110-408-0	02	1	9101-9504	●	●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-508-0	01	1	9604-9606		●
87	NUT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	01	1	9607-0203		●
89	BRACKET; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47477-077-1	01	1	9604-0203	●
89	BRACKET; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-47475-704-0	01	1	9101-9504	●	●
89	BRACKET; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-704-0	01	1	9505-9603	●	●
89	BRACKET; CLIP BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-704-0	01	1	9604-0203		●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	02	1	9101-9504	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	02	1	9101-9504	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9505-9606	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9607-0203	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30	0-20800-830-0	02	1	9101-9504	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9505-9606	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9607-0203	●	●
90	BOLT; CABLE TO BRKT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X30 W/LK WASHER	0-50040-830-0	02	1	9101-9504	●	●
95	CAP; CABLE,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-79997-140-2	01	1	9101-9504	●	●
95	CAP; CABLE,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-79997-140-2	01	1	9505-0203	●	●
98	BOLT; RR COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50051-025-0	02	1	9101-9504	●	●
98	BOLT; RR COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28081-025-0	02	1	9505-9606	●	●
98	BOLT; RR COVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9607-0203	●	●
99	NUT; CONT CABLE MBG5B M/T(X4K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09120-510-0	02	1	9305-9504	●	●
99	NUT; CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09120-510-0	02	1	9505-9606	●	●
99	NUT; CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91250-210-0	02	1	9607-0203	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-46151-048-0	01	1	9101-9201	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-46151-048-0	02	1	9202-9603	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-46151-048-0	01	1	9604-9805	●	●
100	BELLOWS; CONT WIRE MLD7Q M/T(X5K),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-46151-048-0	01	1	9806-9809	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-46151-048-0	01	1	9810-0203	●	●
100	BELLOWS; CONT WIRE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-46159-048-0	01	1	9604-0203	●	●
101	NUT; CABLE TO LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	9-46259-016-0	01	1	9101-0203	●	●
102	NUT; LK,CABLE TO LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9101-9606	●	●
102	NUT; LK,CABLE TO LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
146	ROD; LINK,PARKING BRK WHEEL BASE 4500MM(45W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09765-194-0	01	1	9101-9504	●
146	ROD; LINK,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) L=2935	1-09765-236-0	01	1	9101-9504	●	●
146	ROD; LINK,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=2935	1-09765-236-0	01	1	9505-0203	●	●
146	ROD; LINK,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-09765-156-0	01	1	9101-9504	●	●
146	ROD; LINK,PARKING BRK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2150	1-09765-151-0	01	1	9101-0203	●	●
146	ROD; LINK,PARKING BRK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2850	1-09765-157-0	01	1	9101-0203	●	●
178	BUCKLE; TURN,WIRE TO ROD BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09768-004-0	02	1	9101-0203	●	●
182	BUCKLE; TURN,ROD TO ROD BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-14149-158-0	01	1	9101-0203	●	●
184	SUPPORT; CONT LINK,PARK BRK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-23319-021-0	08	1	9101-9504	●	●
184	SUPPORT; CONT LINK,PARK BRK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-23319-021-0	08	1	9505-0203	●	●
184	SUPPORT; CONT LINK,PARK BRK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-23319-021-0	10	1	9101-0203	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	9-01900-630-0	08	1	9101-9204	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	0-50040-630-0	08	1	9205-9504	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	0-50040-630-0	08	1	9505-9606	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 FLANGE	0-28680-630-0	08	1	9607-0203	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	9-01900-630-0	10	1	9101-9204	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 W/LK WASHER	0-50040-630-0	10	1	9205-9606	●	●
185	BOLT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X30 FLANGE	0-28680-630-0	10	1	9607-0203	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 4500MM(45W),WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6	9-09110-406-0	08	1	9101-9504	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6	9-09110-406-0	08	1	9505-9606	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6 FLANGE	0-91150-106-0	08	1	9607-0203	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6	9-09110-406-0	10	1	9101-9606	●	●
186	NUT; SUPPORT,CONT LINK WHEEL BASE 5700MM(57W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6 FLANGE	0-91150-106-0	10	1	9607-0203	●	●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-46147-100-2	01	1	9101-9504	●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-46147-225-1	01	1	9505-0203	●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-46147-120-2	01	1	9101-9504	●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-46147-237-2	01	1	9505-0203	●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-46147-102-2	01	1	9101-9504		●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-46147-226-1	01	1	9505-0203		●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-46147-121-2	01	1	9101-9504		●
187	BRACKET; HAND BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-46147-238-2	01	1	9505-0203		●
188	BOLT; BRKT SET BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12X32 W/LK WASHER	0-50041-232-0	03	1	9101-9504	●	●
188	BOLT; BRKT SET BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X30 FLANGE	0-28081-230-0	03	1	9505-9606	●	●
188	BOLT; BRKT SET BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 FLANGE	0-28681-235-0	03	1	9607-0203	●	●
214	BRACKET; STAY,PEDAL BOARD BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=62	1-21464-170-2	01	1	9101-9504	●	●
216	NUT; CLIP,1ST C/MBR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	01	1	9101-9504	●	●
216	NUT; CLIP,1ST C/MBR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9505-9606	●	●
216	NUT; CLIP,1ST C/MBR BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-0203	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9101-9504	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	03	1	9101-9504	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	04	1	9505-9606	●	●
220	NUT; CLIP,PARKING CONT CABLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9607-0203	●	●
236	BOLT; BRKT TO FRAME BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER	0-50040-825-0	02	1	9101-9504	●	●
237	NUT; BRKT TO FRAME BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
