4-60 — REAR SUSPENSION (#44445) — 94 parça

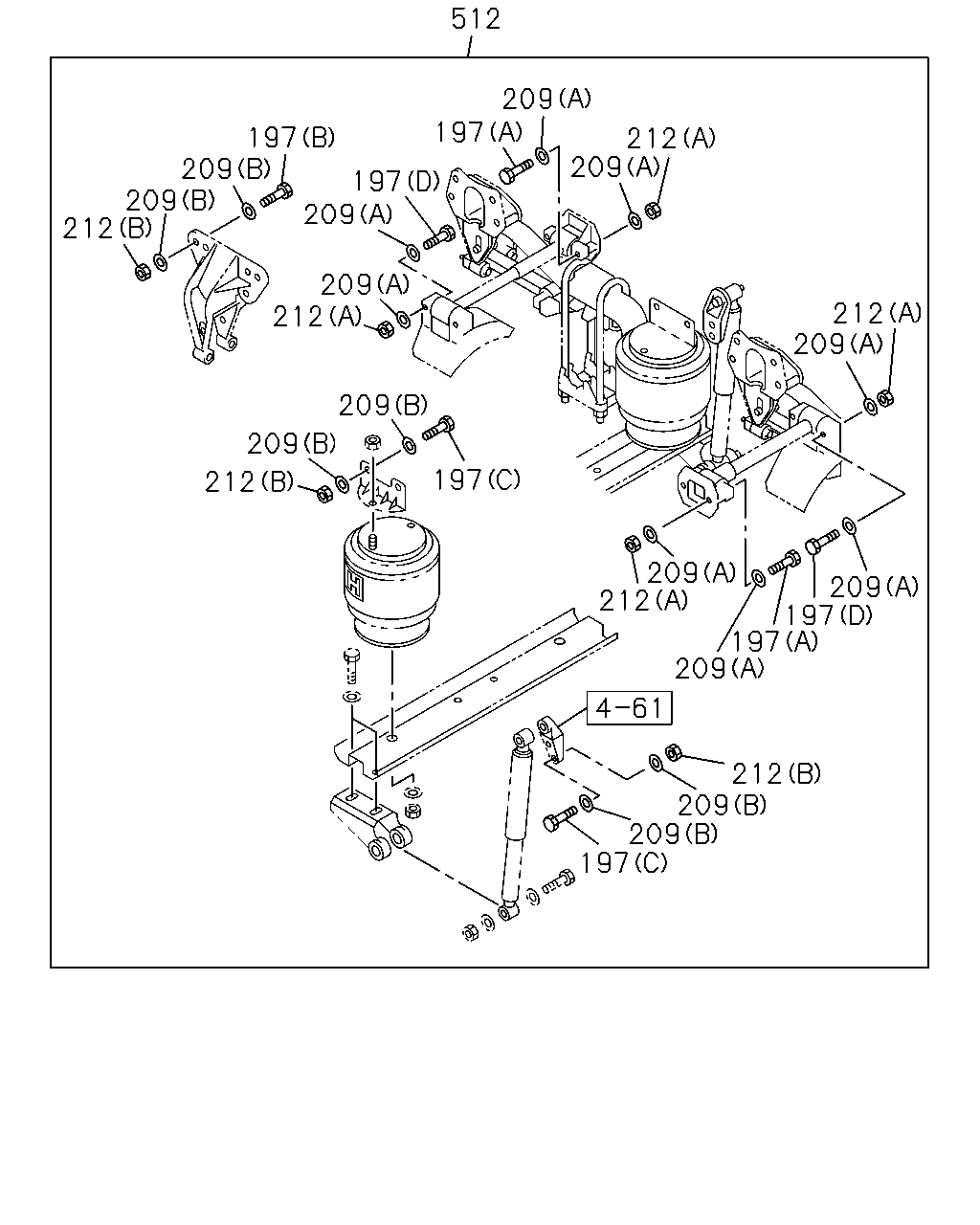

çizim 111194
512 209 197 197 209 209 212 212 209 197 209 209 212 212 209 209 209 197 212 209 212 209 197 197 209 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 0710- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 0710- ●

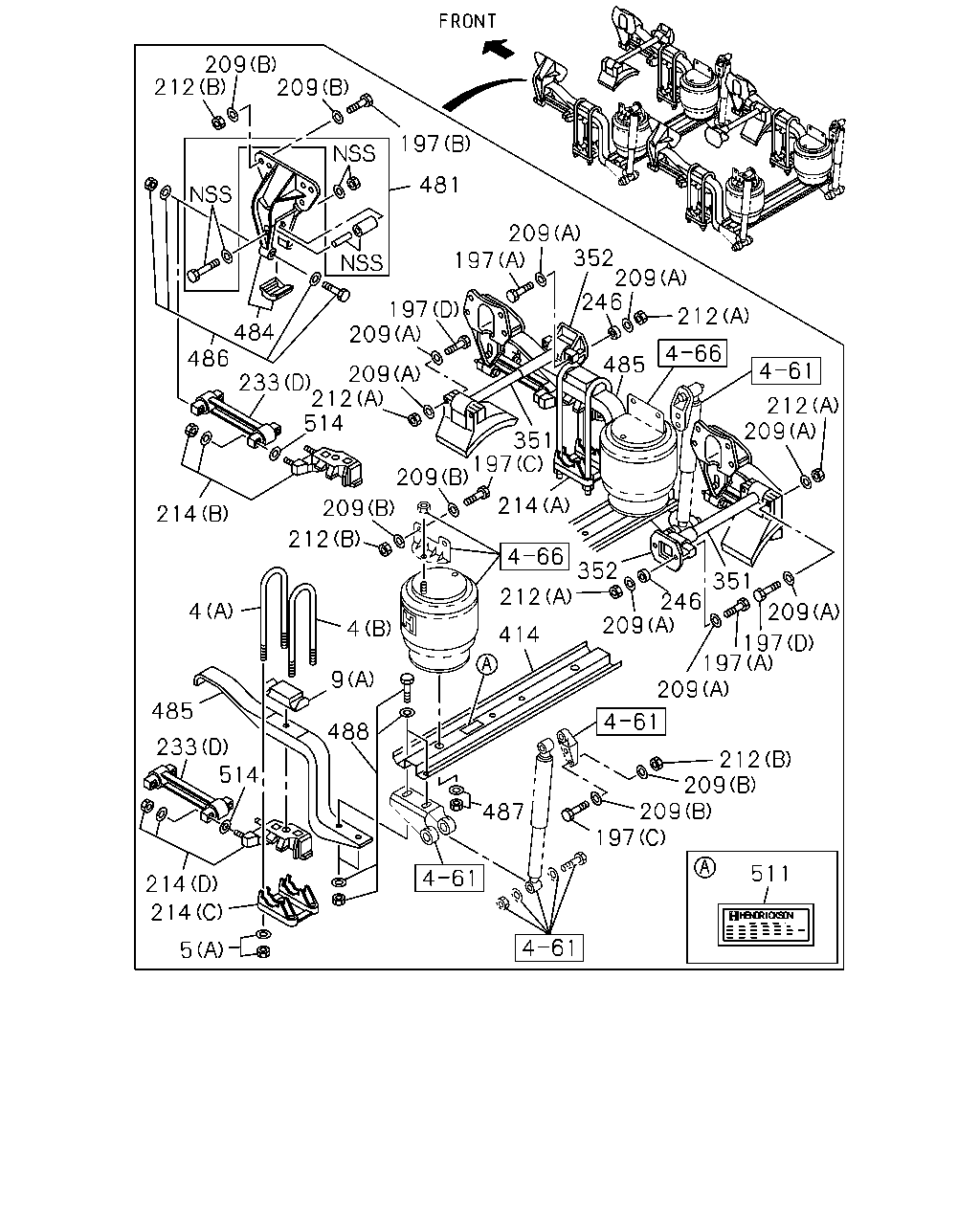

çizim 111205
209 212 209 197 481 209 197 352 209 246 197 209 212 484 486 209 233 212 514 485 212 209 351 197 209 214 209 214 212 352 351 212 246 209 4 209 4 414 197 197 209 9 485 488 233 514 212 209 209 197 487 511 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0710- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0710- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0710- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0710- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0710-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
197 BOLT
(D) 		1-09000-767-0 04 1 0710- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0710- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0710- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0710- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 01 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=535 		1-51511-657-0 03 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=510 		1-51511-671-0 02 1 0710- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1101- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0710- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0710- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0710- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0710- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0710- ●
485 SPRING; LEAF 1-51410-240-0 04 1 0710- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0710- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0710- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0710- ●
511 LABEL 1-51399-034-0 02 1 0710- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0710- ●

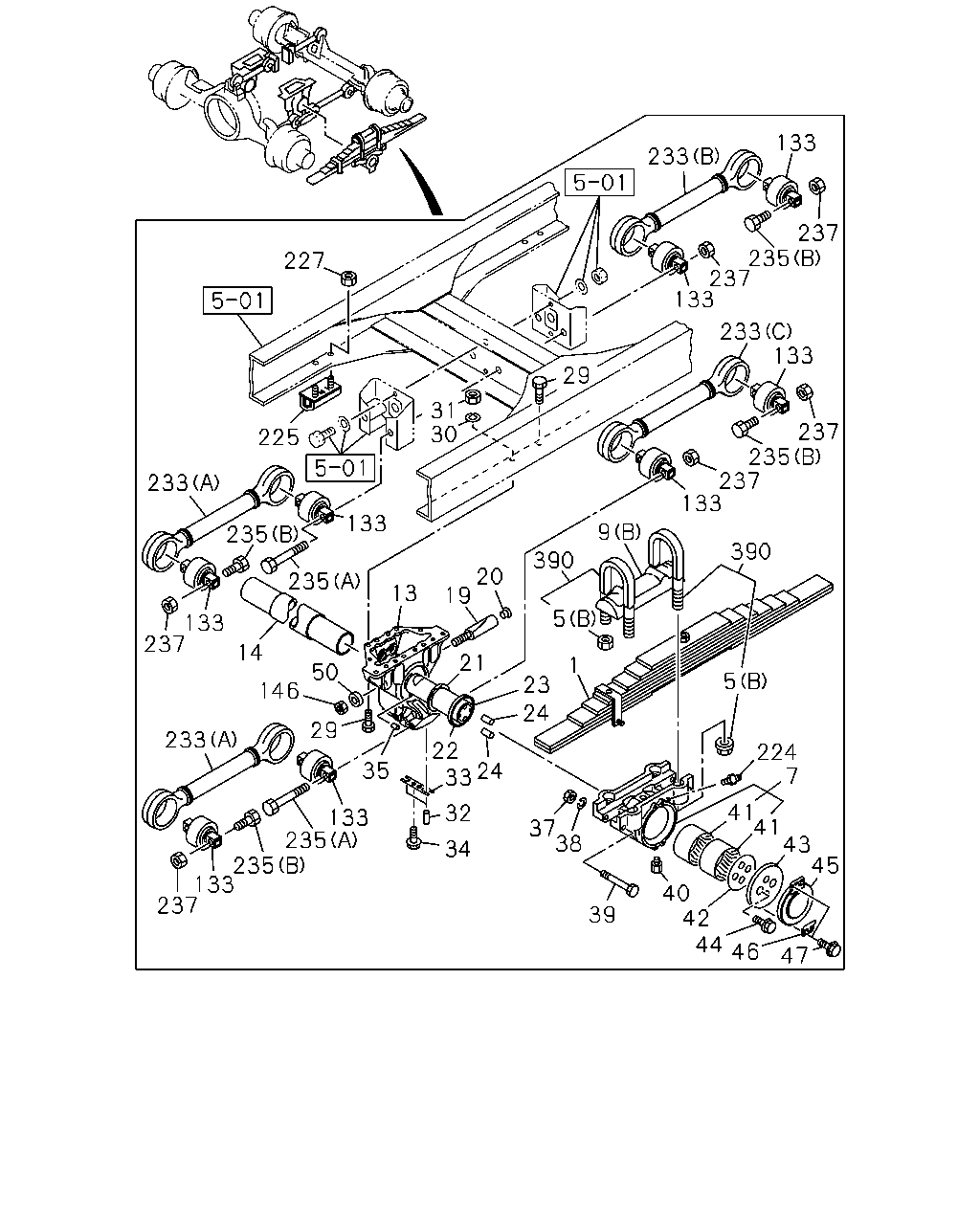

çizim 111210
133 233 237 235 237 133 227 233 133 29 31 30 237 235 237 133 225 233 9 133 235 390 390 20 19 235 13 5 133 237 21 14 1 50 5 23 24 146 29 233 22 24 33 224 7 35 41 41 43 45 32 133 235 235 133 237 37 38 34 40 42 44 46 39 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51310-880-0 02 1 0710- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0710- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0710- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0710- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0710-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0710- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 0710- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0710- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0710- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0710- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0710- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0710- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0710- ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 0710- ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 0710- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0710- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 0710- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0710- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0710- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 0710- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0710- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 0710- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 0710- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0710- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0710- ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0710-0902 ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 0903- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0710- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0710- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0710- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0710- ●
46 BRACKET; COVER 1-51387-015-2 02 1 0710- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 0710- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 0710- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 0710- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 0710- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD 		1-53366-072-2 03 1 0710- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-143-1 01 1 0710- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 01 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=535 		1-51511-657-0 03 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=510 		1-51511-671-0 02 1 0710- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 0710- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 0710- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0710- ●
390 U-BOLT SET; RR SPRING
L=310 		1-87870-166-3 04 1 0710- ●
