3-10 — BRAKE PEDAL AND CONTROL (#4444) — 45 parça

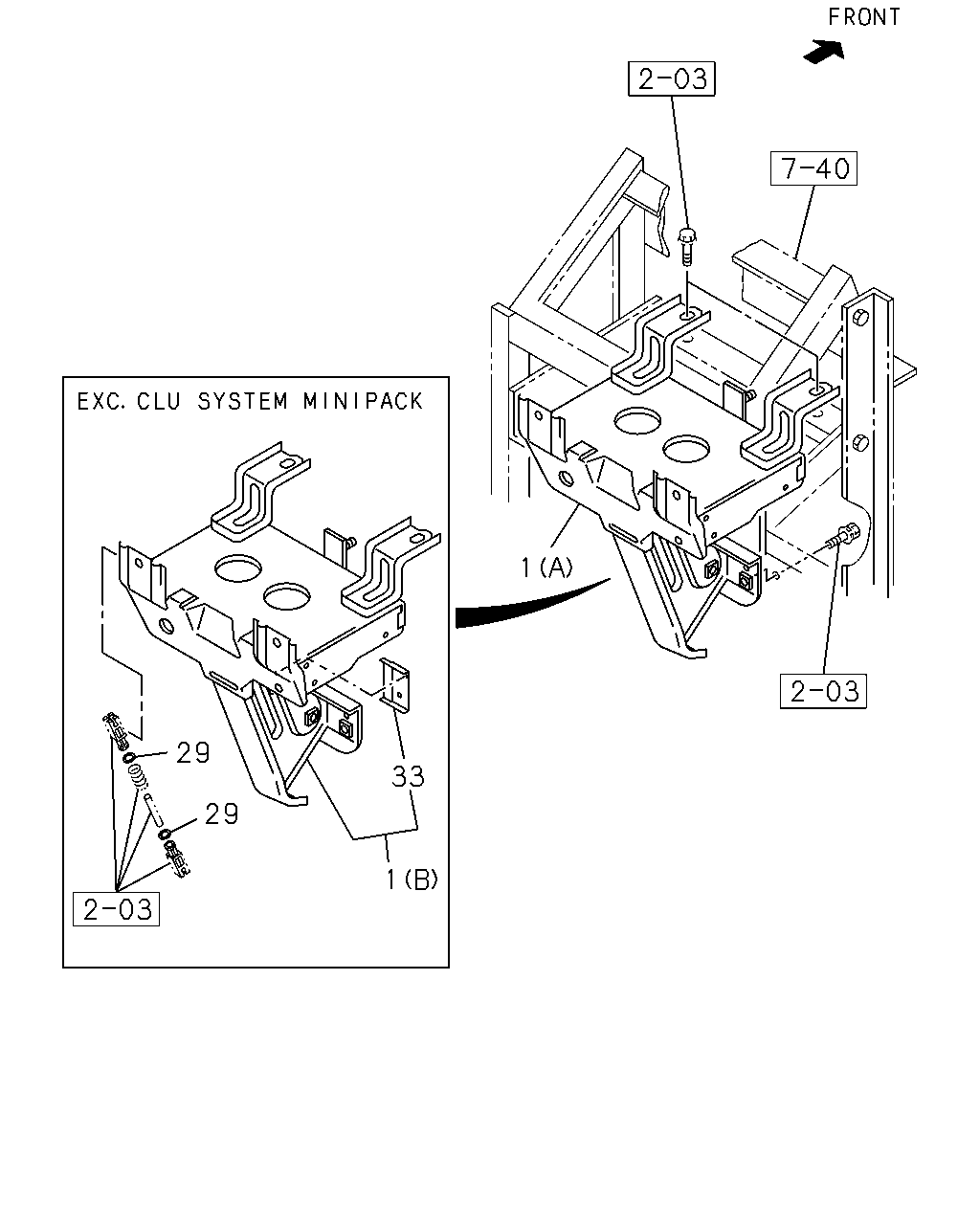

1 29 33 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET ASM; PEDAL CLU SYSTEM MINIPACK(B1Z) (A)	1-73998-935-9	01	1	9505-9705	●	●
1	BRACKET ASM; PEDAL CLU SYSTEM MINIPACK(B1Z) (A)	1-73908-280-1	01	1	9706-	●	●
1	BRACKET ASM; PEDAL EXC. CLU SYSTEM MINIPACK(B1Z) (B)	1-73908-050-7	01	1	9505-9706	●	●
1	BRACKET ASM; PEDAL ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z) (B)	1-73908-050-7	01	1	9707-9805	●	●
1	BRACKET ASM; PEDAL EXC. CLU SYSTEM MINIPACK(B1Z) (B)	1-73908-050-8	01	1	9806-	●	●
29	WASHER; PL,BRK PEDAL ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-09503-114-0	02	1	9707-9805	●	●
29	WASHER; PL,BRK PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-09503-114-0	02	1	9806-	●	●
33	STOPPER; BRK PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-088-1	01	1	9505-9706	●	●
33	STOPPER; BRK PEDAL ISUZU M/T<X9A> EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-088-1	01	1	9707-9805	●	●
33	STOPPER; BRK PEDAL EXC. CLU SYSTEM MINIPACK(B1Z)	1-73908-088-1	01	1	9806-	●	●

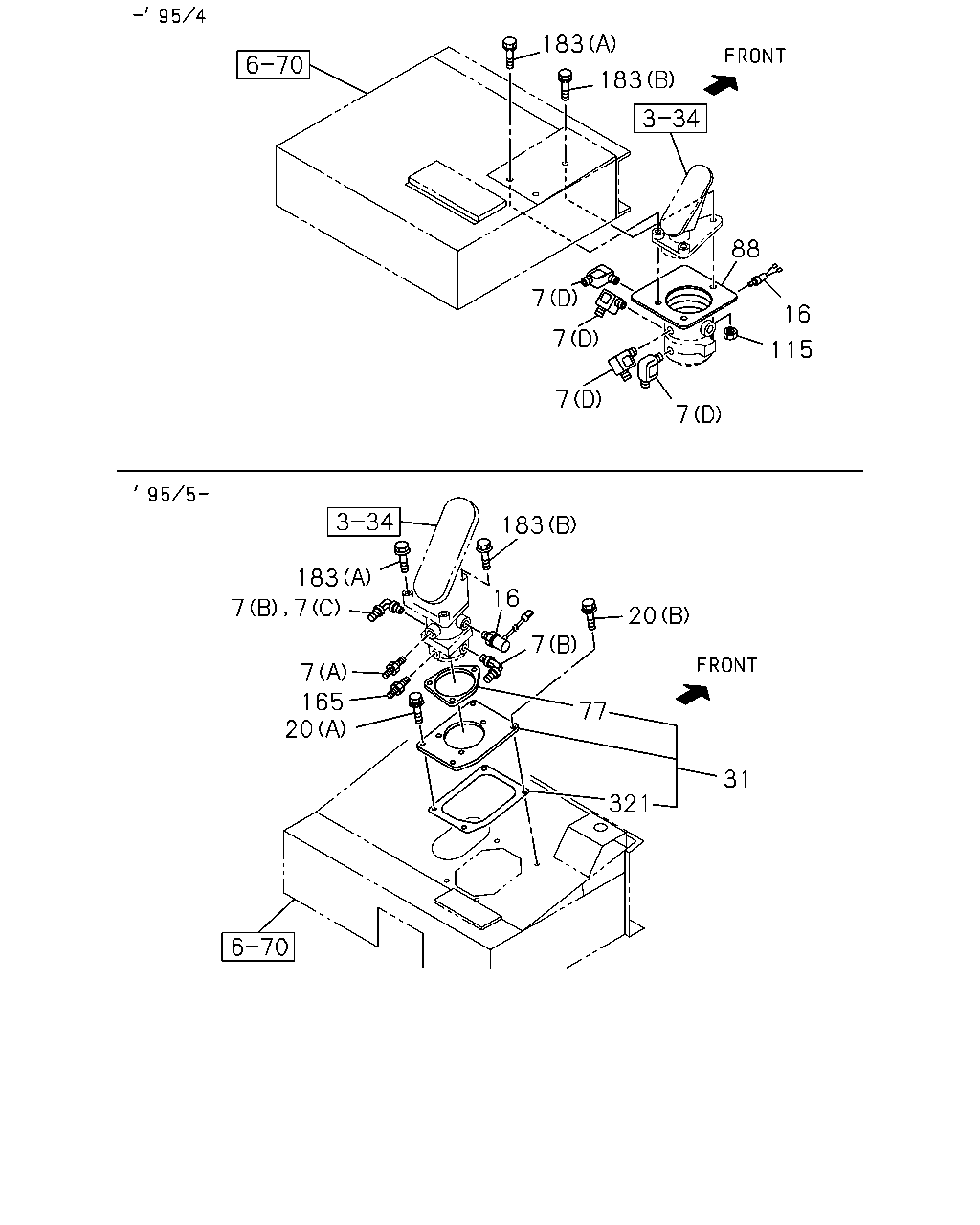

183 183 88 7 16 7 115 7 7 183 183 16 20 7 7 165 20 77 31 321 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	CONNECTOR; BRK VALVE (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9505-0306	●	●
7	CONNECTOR; BRK VALVE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0307-	●	●
7	CONNECTOR; BRK VALVE (C)	1-09660-910-0	01	1	9511-0103	●	●
7	CONNECTOR; BRK VALVE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M20 & PT3/8 ELBOW	9-09234-312-1	04	1	9101-9302	●	●
7	CONNECTOR; BRK VALVE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M20 & PT3/8 ELBOW	1-09650-439-0	04	1	9303-9504	●	●
7	CONNECTOR; BRK VALVE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & PT3/8 ELBOW	1-09650-180-1	04	1	9101-9302	●	●
7	CONNECTOR; BRK VALVE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	9303-9504	●	●
7	CONNECTOR; BRK VALVE (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9505-9510	●	●
7	CONNECTOR; BRK VALVE (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9511-0103	●	●
7	CONNECTOR; BRK VALVE (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0104-0306	●	●
7	CONNECTOR; BRK VALVE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0307-	●	●
16	SWITCH; STOP LAMP	1-82410-080-1	02	1	9101-9504	●	●
16	SWITCH; STOP LAMP GREEN	1-82410-141-1	02	1	9505-9511	●	●
16	SWITCH; STOP LAMP GREEN	1-82410-176-1	02	1	9512-	●	●
20	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	9505-0512	●	●
20	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
20	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9505-0904	●	●
20	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
31	PLATE; MTG,BRKT VLV	1-73996-140-0	01	1	9505-9604	●	●
31	PLATE; MTG,BRKT VLV	1-73996-329-1	01	1	9605-	●	●
77	RUBBER; SEAL,BRK	1-73996-207-0	01	1	9505-	●	●
88	COVER; PEDAL BOARD,BRK VLV	1-62100-691-0	01	1	9101-9504	●	●
115	NUT; BRK VLV BRKT M10	9-09110-410-0	03	1	9101-9504	●	●
165	CONNECTOR; SECONDARY DELIVERY DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9505-0306	●	●
165	CONNECTOR; SECONDARY DELIVERY DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0307-	●	●
183	BOLT; BRK VLV (B) M10X25 W/LK WASHER	0-50041-025-0	01	1	9101-9504	●	●
183	BOLT; BRK VLV (B) M10X25 FLANGE	0-28081-025-0	01	1	9505-9606	●	●
183	BOLT; BRK VLV (B) M10X30 FLANGE	0-28681-030-0	01	1	9607-0512	●	●
183	BOLT; BRK VLV (B) M10X30 FLANGE	0-28651-030-0	01	1	0601-0811	●	●
183	BOLT; BRK VLV (B) M10X25 FLANGE	0-28651-025-0	01	1	0812-	●	●
183	BOLT; BRK VLV (A) M10X40 W/LK WASHER	0-50041-040-0	02	1	9101-9504	●	●
183	BOLT; BRK VLV (A) M10X35 FLANGE	0-28081-035-0	02	1	9505-9606	●	●
183	BOLT; BRK VLV (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-0512	●	●
183	BOLT; BRK VLV (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
321	SEAL; VALVE	1-73996-143-0	01	1	9505-	●	●
