Sayfa 3-08 - Isuzu EPC

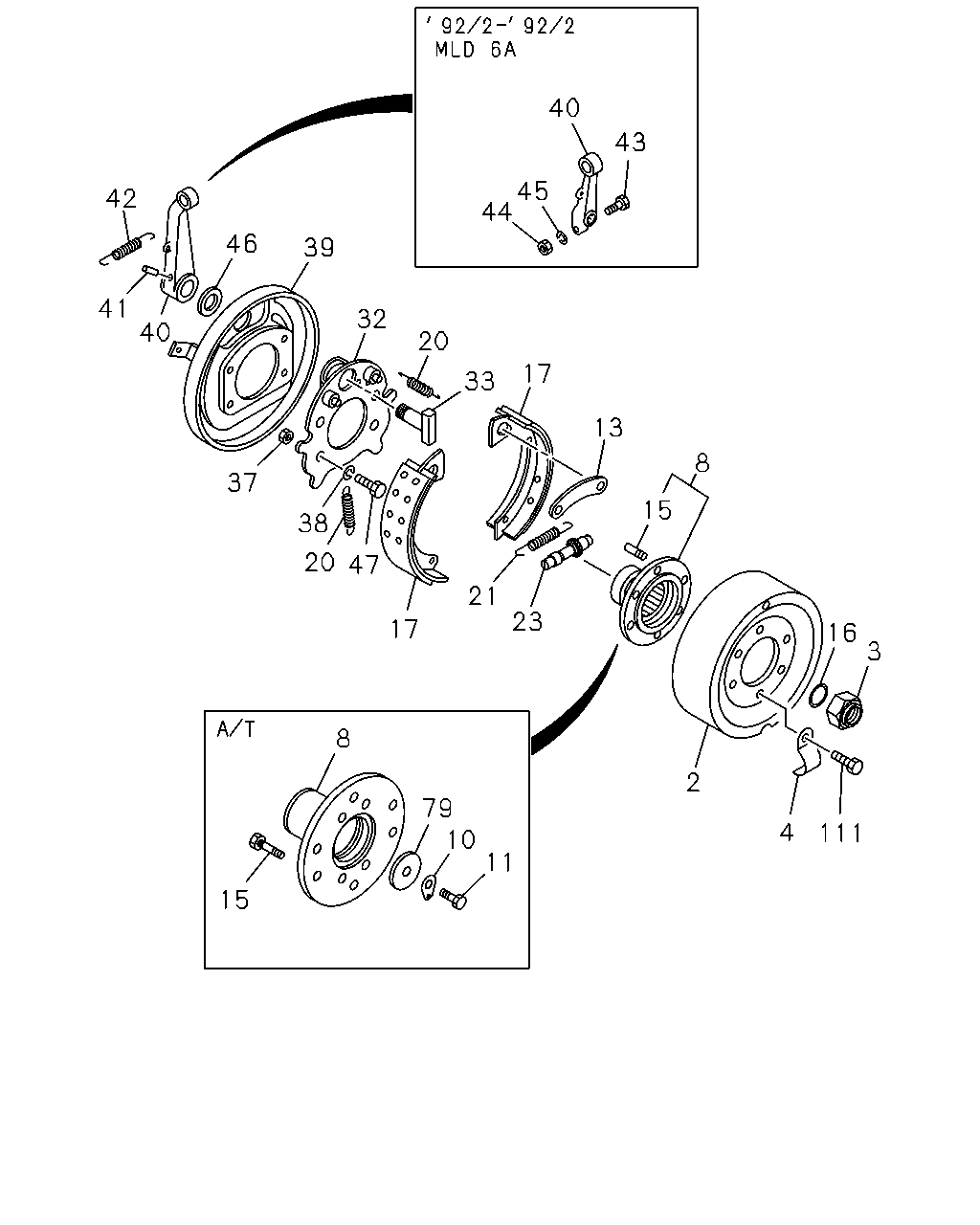

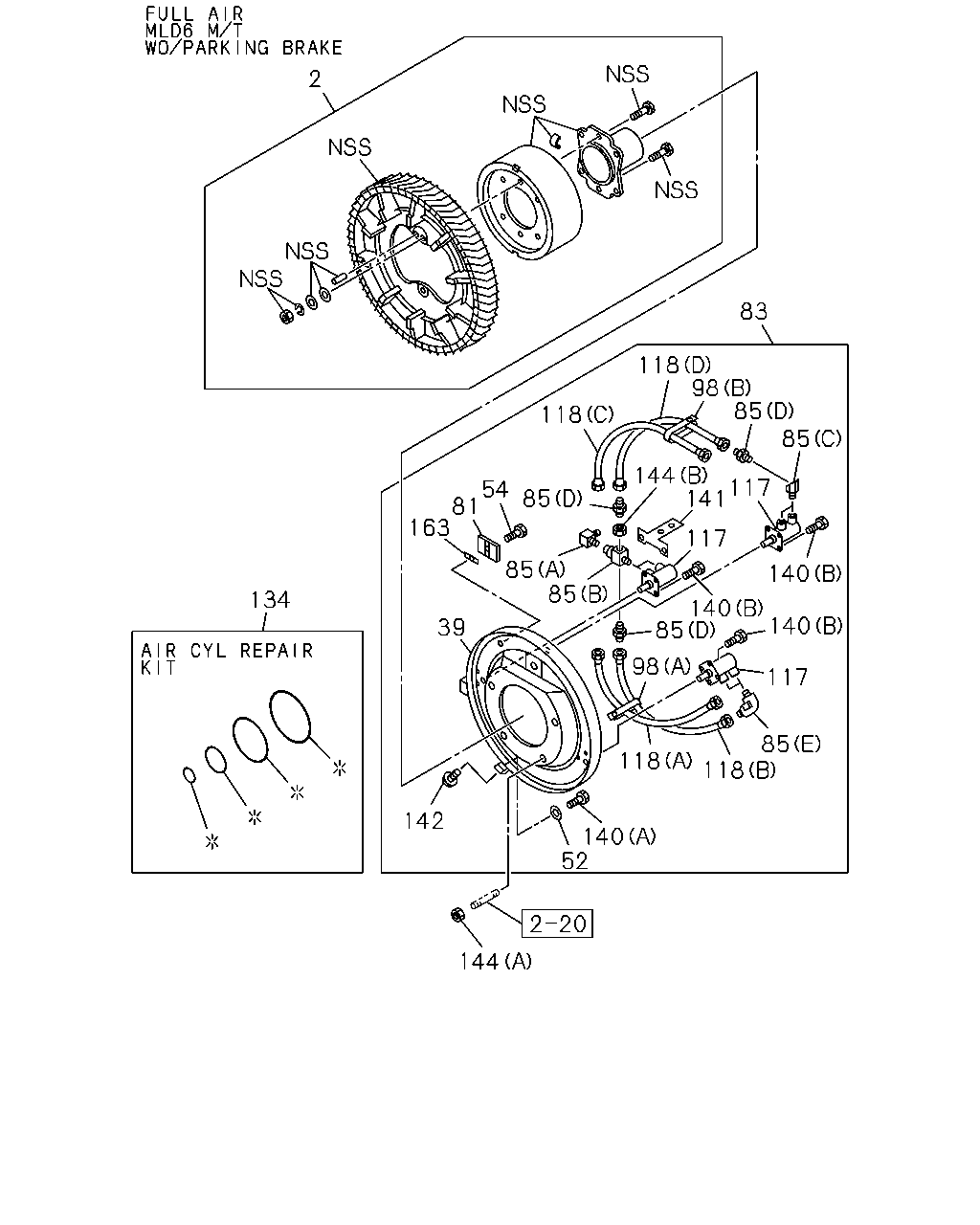

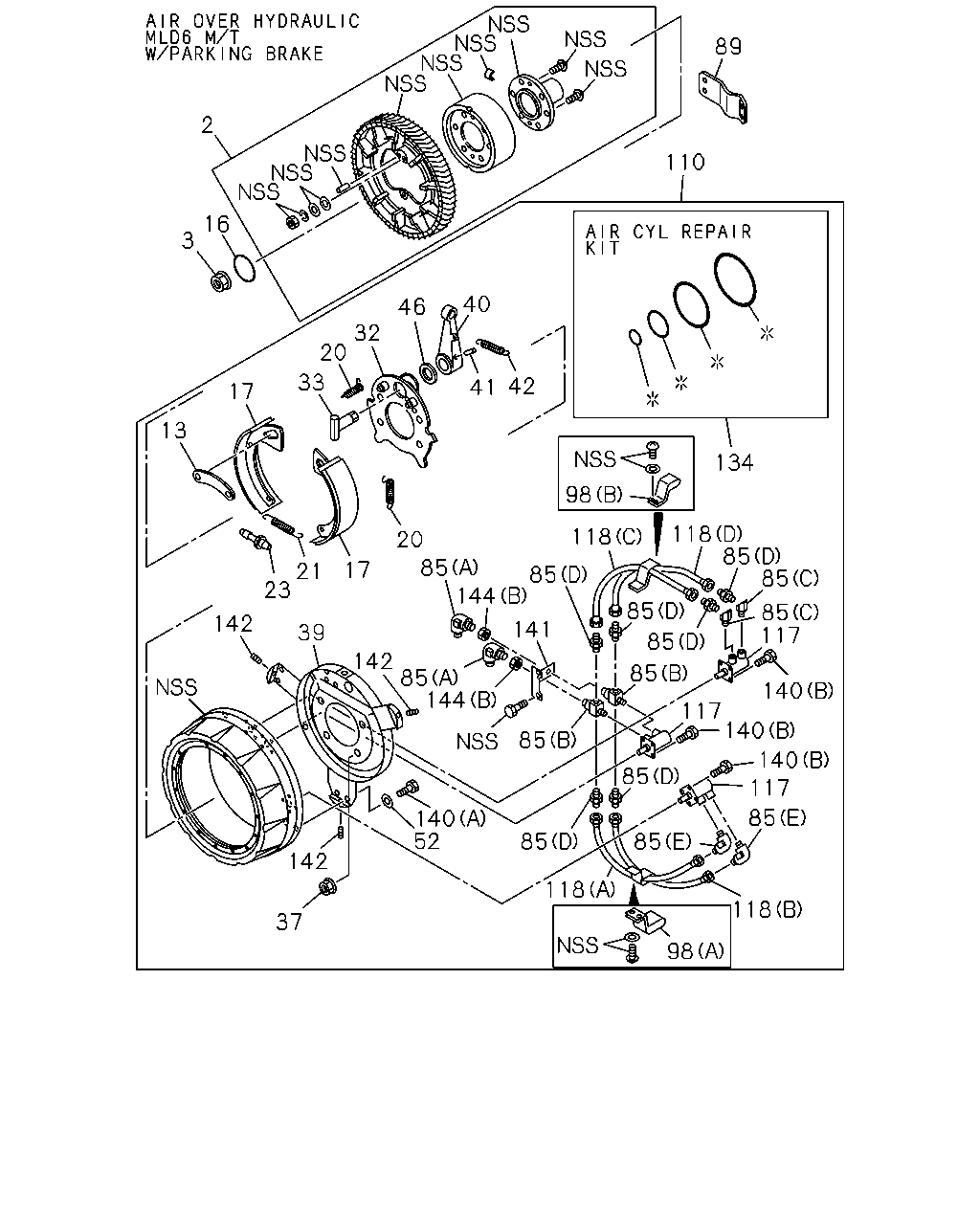

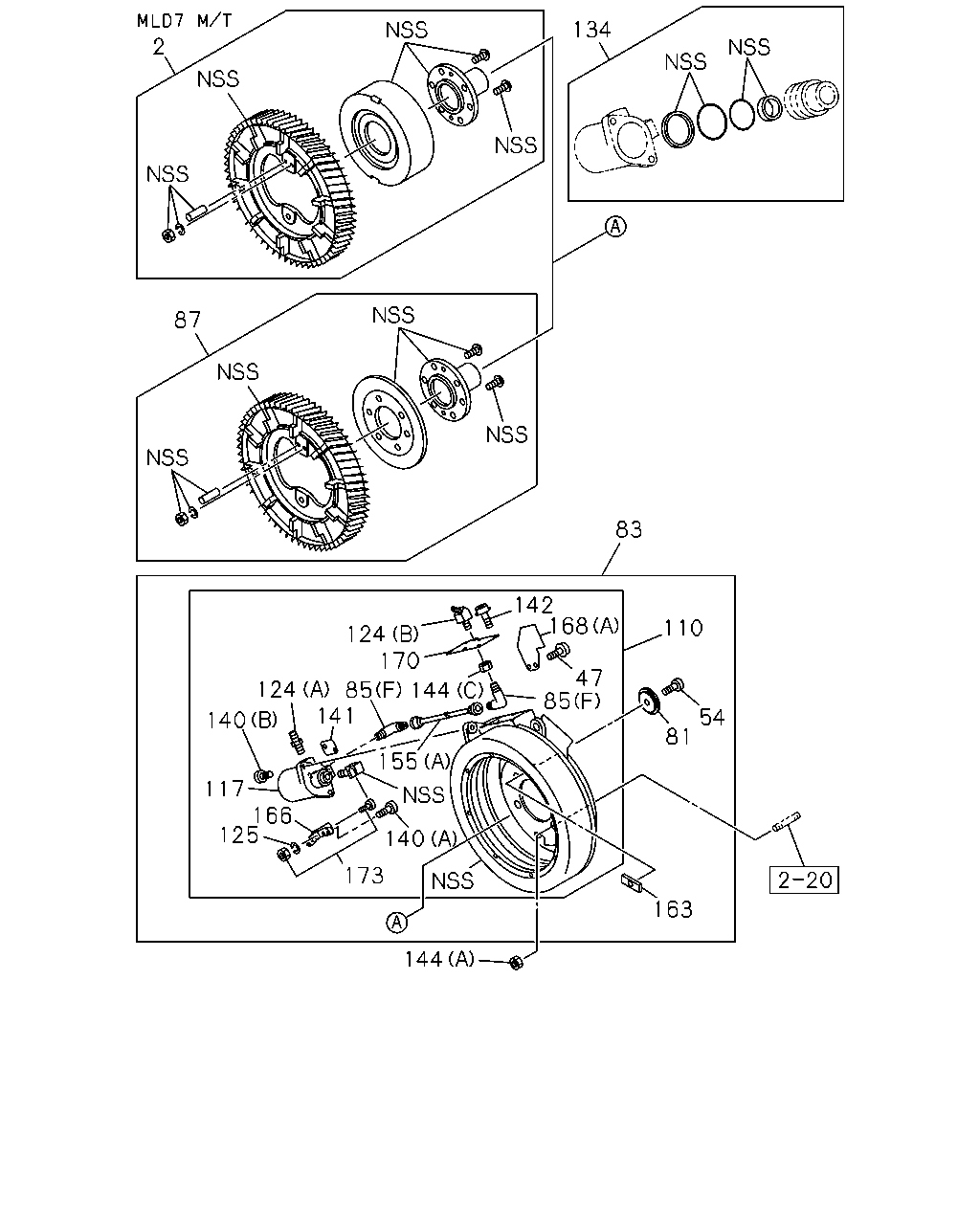

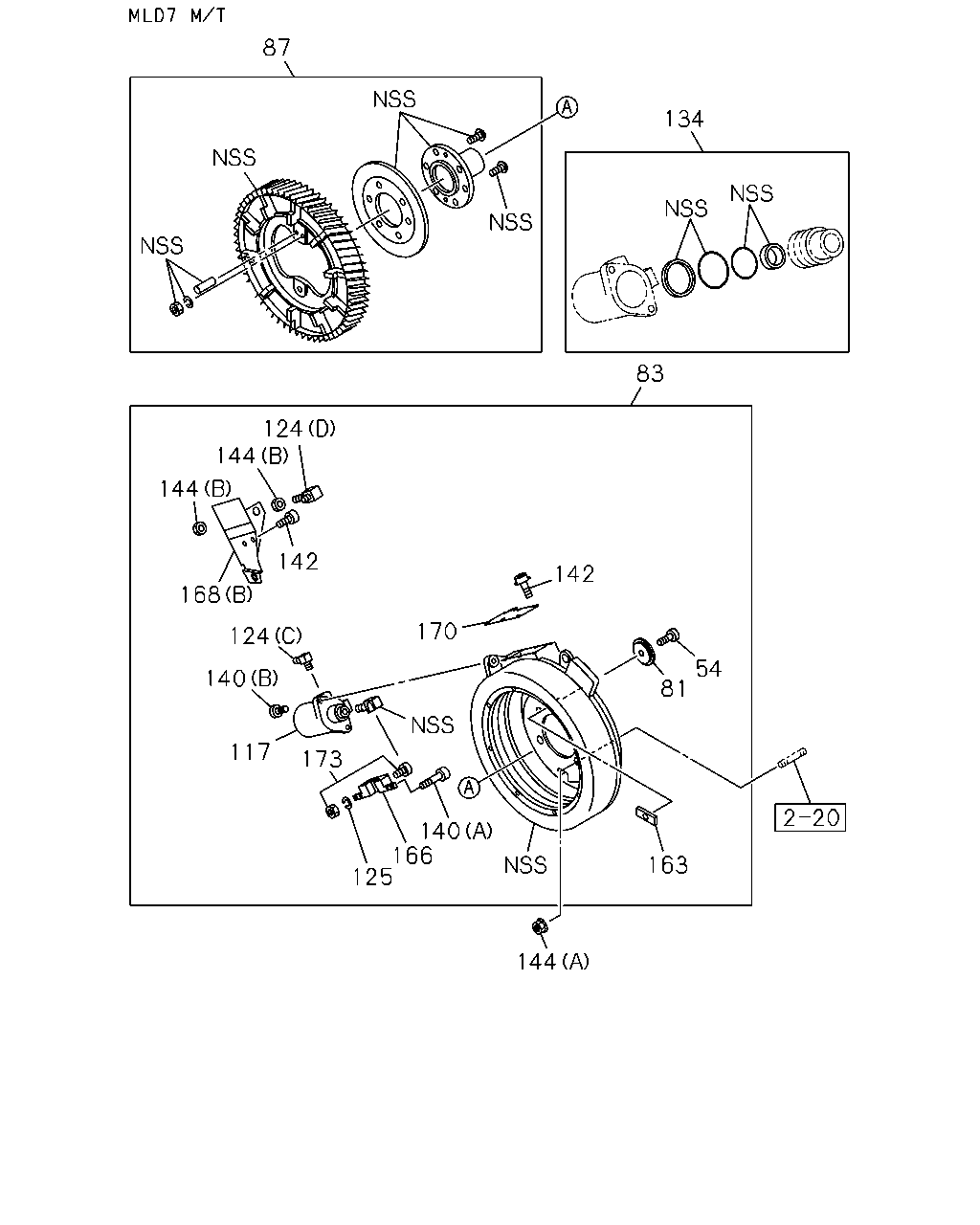

3-08 — PARKING BRAKE (#4443) — 691 parça

89 2 110 16 3 40 46 32 20 33 42 41 17 13 134 98 118 85 85 118 20 85 17 21 23 85 144 85 85 117 142 141 39 85 85 142 85 144 140 117 140 85 140 117 85 85 140 52 85 85 142 118 118 37 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46211-040-0	01	1	9101-9504	●	●
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46211-020-0	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46210-194-5	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46210-194-5	01	1	0204-0708	●	●
2	DRUM; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46211-019-0	01	1	9202-9202	●	●
2	DRUM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-46210-260-0	01	1	9702-0203	●	●
2	DRUM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-46210-260-0	01	1	0204-0206	●	●
3	NUT; LK MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M30 FLANGE	1-09449-066-1	01	1	9101-9504	●	●
3	NUT; LK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9202-9202	●	●
3	NUT; LK MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M36 FLANGE	1-09449-063-0	01	1	9305-9504	●	●
3	NUT; LK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M36 FLANGE	1-09449-063-0	01	1	9505-0203	●	●
13	BRACE; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46239-003-0	01	1	9101-9504	●	●
13	BRACE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46239-003-0	01	1	9505-0203	●	●
13	BRACE; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-46239-002-0	01	1	9202-9202	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=35.7 T=5	1-09623-379-0	01	1	9101-9504	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9202-9202	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=47 T=5	1-09623-380-0	01	1	9305-9504	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=47 T=5	1-09623-380-0	01	1	9505-0203	●	●
17	SHOE; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46220-012-0	02	1	9101-9411	●	●
17	SHOE; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46220-024-0	02	1	9412-9504	●	●
17	SHOE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46220-024-0	02	1	9505-0203	●	●
17	SHOE; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46220-009-0	02	1	9202-9202	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9101-9504	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9505-0203	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09942-434-0	02	1	9202-9202	●	●
21	SPRING; RETURN,PARKING BRK SHOE ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-268-0	01	1	9101-9504	●	●
21	SPRING; RETURN,PARKING BRK SHOE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-268-0	01	1	9505-0203	●	●
21	SPRING; RETURN,PARKING BRK SHOE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09942-516-0	01	1	9202-9202	●	●
23	SCREW; ADJ,PARKING BRK SHOE ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46240-008-0	01	1	9101-9504	●	●
23	SCREW; ADJ,PARKING BRK SHOE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46240-008-0	01	1	9505-0203	●	●
23	SCREW; ADJ,PARKING BRK SHOE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46240-003-0	01	1	9202-9202	●	●
32	PLATE; SUPPORT,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46213-023-0	01	1	9101-9504	●	●
32	PLATE; SUPPORT,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46213-023-0	01	1	9505-0203	●	●
32	PLATE; SUPPORT,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46213-039-0	01	1	9202-9202	●	●
33	SHAFT; CAM,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46251-002-0	01	1	9101-9504	●	●
33	SHAFT; CAM,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46251-002-0	01	1	9505-0203	●	●
33	SHAFT; CAM,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46251-006-0	01	1	9202-9202	●	●
37	NUT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99111-514-0	01	1	9101-9207	●	●
37	NUT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-047-0	01	1	9208-9310	●	●
37	NUT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-048-0	01	1	9311-9504	●	●
37	NUT; SUPPORT PLATE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99110-514-0	04	1	9202-9202	●	●
37	NUT; SUPPORT PLATE MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-047-0	04	1	9305-9310	●	●
37	NUT; SUPPORT PLATE MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-048-0	04	1	9311-9504	●	●
37	NUT; SUPPORT PLATE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-048-0	04	1	9505-0203	●	●
39	COVER; DUST,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46213-019-0	01	1	9101-9504	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46213-019-0	01	1	9505-0203	●	●
39	COVER; DUST,PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46213-092-1	01	1	9505-0203	●	●
39	COVER; DUST,PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46213-092-1	01	1	0204-0708	●	●
39	COVER; DUST,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46213-038-0	01	1	9202-9202	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	1-46252-038-0	01	1	9505-0203	●	●
40	LEVER; CM/SHF,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46252-003-0	01	1	9101-9504	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46252-003-0	01	1	9505-0203	●	●
40	LEVER; CM/SHF,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46252-013-0	01	1	9202-9202	●	●
41	PIN; KNOCK,LEVER ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09878-594-0	01	1	9101-9504	●	●
41	PIN; KNOCK,LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09878-594-0	01	1	9505-0203	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	9-09942-516-0	01	1	9505-0203	●	●
42	SPRING; RETURN,LEVER ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-592-0	01	1	9101-9504	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	9-09942-592-0	01	1	9505-0203	●	●
42	SPRING; RETURN,LEVER MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-104-0	01	1	9202-9202	●	●
46	WASHER; LEVER ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09855-367-0	01	1	9101-9504	●	●
46	WASHER; LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09855-367-0	01	1	9505-0203	●	●
46	WASHER; LEVER MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09855-362-0	01	1	9202-9202	●	●
52	WASHER; PL MLD6 M/T<X9Y> RETARDER BRK<RE2> ID=10.5 OD=18	9-09160-510-0	03	1	9505-0203	●	●
52	WASHER; PL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> ID=10.5 OD=18	9-09160-510-0	03	1	0204-0605	●	●
52	WASHER; PL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> ID=10.5	0-91610-510-0	03	1	0606-0708	●	●

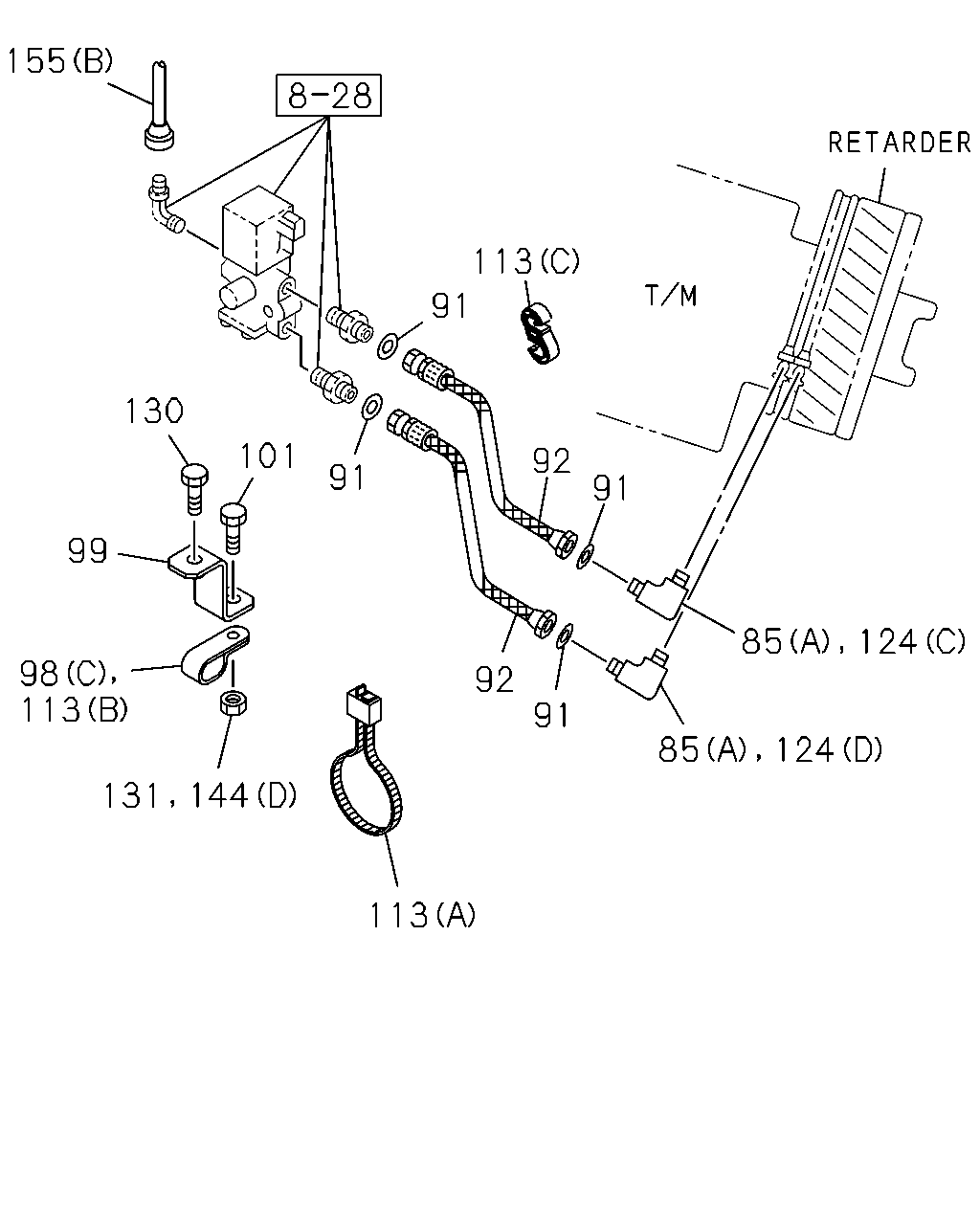

85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	8-94454-582-1	02	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	06	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	0-92111-806-0	04	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	0-92124-306-0	02	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD7 M/T<X9Z> RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	9702-0203	●	●
85	CONNECTOR; RETARDER MLD7Q M/T(X5K) RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	0204-	●	●
89	BRACKET; PARKING BRK CONT BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	1-46147-224-0	01	1	9505-0203	●	●
89	BRACKET; PARKING BRK CONT MT643 A/T ALLISON(PR7)	1-46276-059-0	01	1	9709-9805		●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (A)	1-48629-038-0	01	1	9505-0203	●	●
98	CLIP; AIR PIPE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A)	1-48629-038-0	01	1	0204-0708	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-055-0	01	1	9505-0203	●	●
98	CLIP; AIR PIPE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-055-0	01	1	0204-0708	●	●
98	CLIP; AIR PIPE RETARDER BRK<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9505-9701	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9702-0708	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) ID=13X2 L=16	0-95325-225-0	01	1	0709-	●	●
110	BRAKE ASM; PARKING BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	1-46200-204-0	01	1	9505-9505	●	●
110	BRAKE ASM; PARKING BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	1-46200-213-2	01	1	9506-0203	●	●
110	BRAKE ASM; PARKING MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48610-331-3	01	1	9702-0203	●	●
110	BRAKE ASM; PARKING MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-331-3	01	1	0204-0206	●	●
110	BRAKE ASM; PARKING MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-483-4	01	1	0207-	●	●
117	CYLINDER ASM; AIR MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-033-1	03	1	9505-0203	●	●
117	CYLINDER ASM; AIR MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-033-1	03	1	0204-0708	●	●
117	CYLINDER ASM; AIR MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-220-0	01	1	9702-0203	●	●
117	CYLINDER ASM; AIR MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-220-0	01	1	0204-0708	●	●
117	CYLINDER ASM; AIR RETARDER BRK<RE2>	1-48629-220-0	01	1	0709-	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) LOWER FRT	1-47493-115-0	01	1	9505-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) LOWER FRT	1-47493-115-0	01	1	0204-0708	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) LOWER RR	1-47493-116-0	01	1	9505-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) LOWER RR	1-47493-116-0	01	1	0204-0708	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) UPPER FRT	1-49111-770-0	01	1	9505-9506	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) UPPER FRT	1-49115-743-0	01	1	9507-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C) UPPER FRT	1-49115-743-0	01	1	0204-0708	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) UPPER RR	1-49111-771-0	01	1	9505-9506	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) UPPER RR	1-49115-744-0	01	1	9507-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) UPPER RR	1-49115-744-0	01	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-044-0	03	1	9505-0203	●	●
134	REPAIR KIT; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-044-0	03	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-230-0	01	1	9702-0203	●	●
134	REPAIR KIT; AIR CYL MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-230-0	01	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL RETARDER BRK<RE2>	1-48629-230-0	01	1	0709-	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A)	1-48629-039-1	03	1	9505-9506	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	9507-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	0204-0512	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28761-030-0	03	1	0601-0708	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	9505-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	0204-0708	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0709-	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0709-	●	●
141	BRACKET MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-47476-804-0	01	1	9505-0203	●	●
141	BRACKET MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-47476-804-0	01	1	0204-0708	●	●
141	BRACKET MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-227-0	01	1	9702-9901	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-058-0	03	1	9505-9506	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	9-06043-810-0	03	1	9507-0203	●	●
142	SCREW MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	9-06043-810-0	03	1	0204-0708	●	●
142	SCREW MLD7 M/T<X9Z> RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	9702-0203	●	●
142	SCREW MLD7Q M/T(X5K) RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0204-0708	●	●
142	SCREW RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0709-	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) WO/PARKING BRAKE M14 FLANGE	1-09440-048-0	04	1	9505-9701	●	●
144	NUT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9702-0203	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	0204-0604	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	8-97365-444-0	04	1	0605-	●	●
144	NUT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	9505-0203	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	0204-0708	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) M12	9-09840-280-0	02	1	0709-	●	●
144	NUT MLD7 M/T<X9Z> RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	9702-0203	●	●
144	NUT MLD7Q M/T(X5K) RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	0204-	●	●
144	NUT RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

2 134 87 83 142 168 110 170 144 47 85 141 54 81 155 117 166 125 140 173 2 20 163 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46211-040-0	01	1	9101-9504	●	●
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46211-020-0	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46210-194-5	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46210-194-5	01	1	0204-0708	●	●
2	DRUM; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46211-019-0	01	1	9202-9202	●	●
2	DRUM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-46210-260-0	01	1	9702-0203	●	●
2	DRUM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-46210-260-0	01	1	0204-0206	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9101-9504	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9505-0203	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09942-434-0	02	1	9202-9202	●	●
47	BOLT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X32	0-23801-432-0	03	1	9101-9504	●	●
47	BOLT; SUPPORT PLATE MLD7 M/T<X9Z> RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	9702-0203	●	●
47	BOLT; SUPPORT PLATE MLD7Q M/T(X5K) RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	0204-0708	●	●
47	BOLT; SUPPORT PLATE RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	0709-	●	●
54	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE M8X16	9-05820-816-0	01	1	9505-9701	●	●
54	BOLT; COVER MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	9702-0203	●	●
54	BOLT; COVER RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	0204-0708	●	●
54	BOLT; COVER MLD7Q M/T(X5K) RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	0709-0812	●	●
81	COVER; CHECK HOLE,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48629-124-0	01	1	9505-9701	●	●
81	COVER; CHECK HOLE,PARKING BRK MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-48629-124-0	01	1	9702-0203	●	●
81	COVER; CHECK HOLE,PARKING BRK RETARDER BRK<RE2>	1-48629-124-0	01	1	0204-0708	●	●
81	COVER; CHECK HOLE,PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-124-0	01	1	0709-0812	●	●
83	RETARDER ASM; PARKING BRK MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48610-246-3	01	1	9505-0203	●	●
83	RETARDER ASM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48610-246-3	01	1	0204-0708	●	●
83	RETARDER ASM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48610-370-7	01	1	0709-	●	●
83	RETARDER ASM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48610-330-3	01	1	9702-0203	●	●
83	RETARDER ASM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-330-3	01	1	0204-0206	●	●
83	RETARDER ASM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-482-4	01	1	0207-	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	8-94454-582-1	02	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	06	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	0-92111-806-0	04	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	0-92124-306-0	02	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD7 M/T<X9Z> RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	9702-0203	●	●
85	CONNECTOR; RETARDER MLD7Q M/T(X5K) RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	0204-	●	●
87	DRUM; RETARDER,PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-365-1	01	1	0207-0708	●	●
87	DRUM; RETARDER,PARKING BRK RETARDER BRK<RE2>	1-48610-365-1	01	1	0709-	●	●
110	BRAKE ASM; PARKING BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	1-46200-204-0	01	1	9505-9505	●	●
110	BRAKE ASM; PARKING BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	1-46200-213-2	01	1	9506-0203	●	●
110	BRAKE ASM; PARKING MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48610-331-3	01	1	9702-0203	●	●
110	BRAKE ASM; PARKING MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-331-3	01	1	0204-0206	●	●
110	BRAKE ASM; PARKING MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-483-4	01	1	0207-	●	●
117	CYLINDER ASM; AIR MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-033-1	03	1	9505-0203	●	●
117	CYLINDER ASM; AIR MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-033-1	03	1	0204-0708	●	●
117	CYLINDER ASM; AIR MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-220-0	01	1	9702-0203	●	●
117	CYLINDER ASM; AIR MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-220-0	01	1	0204-0708	●	●
117	CYLINDER ASM; AIR RETARDER BRK<RE2>	1-48629-220-0	01	1	0709-	●	●
125	WASHER; LK MLD7 M/T<X9Z> RETARDER BRK<RE2> ID=6.1	9-09150-506-0	01	1	9702-0203	●	●
125	WASHER; LK MLD7Q M/T(X5K) RETARDER BRK<RE2> ID=6.1	9-09150-506-0	01	1	0204-0603	●	●
125	WASHER; LK MLD7Q M/T(X5K) RETARDER BRK<RE2> ID=6.1	0-91510-506-0	01	1	0604-0708	●	●
125	WASHER; LK RETARDER BRK<RE2> ID=6.1	0-91510-506-0	01	1	0709-	●	●
134	REPAIR KIT; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-044-0	03	1	9505-0203	●	●
134	REPAIR KIT; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-044-0	03	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-230-0	01	1	9702-0203	●	●
134	REPAIR KIT; AIR CYL MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-230-0	01	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL RETARDER BRK<RE2>	1-48629-230-0	01	1	0709-	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A)	1-48629-039-1	03	1	9505-9506	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	9507-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	0204-0512	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28761-030-0	03	1	0601-0708	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	9505-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	0204-0708	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0709-	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0709-	●	●
141	BRACKET MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-47476-804-0	01	1	9505-0203	●	●
141	BRACKET MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-47476-804-0	01	1	0204-0708	●	●
141	BRACKET MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-227-0	01	1	9702-9901	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-058-0	03	1	9505-9506	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	9-06043-810-0	03	1	9507-0203	●	●
142	SCREW MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	9-06043-810-0	03	1	0204-0708	●	●
142	SCREW MLD7 M/T<X9Z> RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	9702-0203	●	●
142	SCREW MLD7Q M/T(X5K) RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0204-0708	●	●
142	SCREW RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0709-	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) WO/PARKING BRAKE M14 FLANGE	1-09440-048-0	04	1	9505-9701	●	●
144	NUT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9702-0203	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	0204-0604	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	8-97365-444-0	04	1	0605-	●	●
144	NUT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	9505-0203	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	0204-0708	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) M12	9-09840-280-0	02	1	0709-	●	●
144	NUT MLD7 M/T<X9Z> RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	9702-0203	●	●
144	NUT MLD7Q M/T(X5K) RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	0204-	●	●
144	NUT RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
155	TUBE MLD7 M/T<X9Z> RETARDER BRK<RE2> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0204-	●	●
155	TUBE MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-225-0	01	1	9702-0203	●	●
155	TUBE MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-225-0	01	1	0204-	●	●
155	TUBE MLD7 M/T<X9Z> RETARDER BRK<RE2> (B) L=1000 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9702-0203	●	●
155	TUBE RETARDER BRK<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9505-9701	●	●
155	TUBE MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9702-0203	●	●
155	TUBE MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0204-	●	●
163	BAR; FLAT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48629-125-0	01	1	9505-9701	●	●
163	BAR; FLAT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-48629-125-0	01	1	9702-0203	●	●
163	BAR; FLAT RETARDER BRK<RE2>	1-48629-125-0	01	1	0204-0708	●	●
163	BAR; FLAT MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-125-0	01	1	0709-0812	●	●
166	ATTACHMENT; YOKE MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-181-0	01	1	9702-0203	●	●
166	ATTACHMENT; YOKE MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-181-0	01	1	0204-0708	●	●
166	ATTACHMENT; YOKE RETARDER BRK<RE2>	1-48629-181-0	01	1	0709-	●	●
168	PROTECTOR; HEAT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-259-0	01	1	0709-	●	●
168	PROTECTOR; HEAT MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-222-0	01	1	9702-0203	●	●
168	PROTECTOR; HEAT MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-222-0	01	1	0204-	●	●
170	COVER; CASE MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-219-0	01	1	9702-0203	●	●
170	COVER; CASE MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-219-0	01	1	0204-0708	●	●
170	COVER; CASE RETARDER BRK<RE2>	1-48629-219-0	01	1	0709-	●	●
173	FOLLOWER MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-159-0	01	1	9702-0203	●	●
173	FOLLOWER MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-159-0	01	1	0204-0708	●	●
173	FOLLOWER RETARDER BRK<RE2>	1-48629-159-0	01	1	0709-	●	●

40 43 45 44 42 46 39 41 32 40 20 17 33 13 8 37 15 38 20 47 21 23 17 16 3 8 2 79 10 4 111 11 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46211-040-0	01	1	9101-9504	●	●
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46211-020-0	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46210-194-5	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46210-194-5	01	1	0204-0708	●	●
2	DRUM; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46211-019-0	01	1	9202-9202	●	●
2	DRUM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-46210-260-0	01	1	9702-0203	●	●
2	DRUM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-46210-260-0	01	1	0204-0206	●	●
3	NUT; LK MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M30 FLANGE	1-09449-066-1	01	1	9101-9504	●	●
3	NUT; LK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9202-9202	●	●
3	NUT; LK MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M36 FLANGE	1-09449-063-0	01	1	9305-9504	●	●
3	NUT; LK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M36 FLANGE	1-09449-063-0	01	1	9505-0203	●	●
4	COVER; ADJ HOLE ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46219-018-0	02	1	9101-9504	●	●
4	COVER; ADJ HOLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46219-018-0	02	1	9505-0203	●	●
4	COVER; ADJ HOLE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46219-030-0	02	1	9202-9202	●	●
8	FLANGE; PARKING BRK MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-37243-245-0	01	1	9112-9504	●	●
8	FLANGE; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-37243-235-0	01	1	9202-9202	●	●
8	FLANGE; PARKING BRK MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-37243-236-0	01	1	9305-9504	●	●
8	FLANGE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-37243-236-0	01	1	9505-0203	●	●
8	FLANGE; PARKING BRK 6BG1 STD ENG(16L) MT643 A/T ALLISON(PR7)	1-37243-018-2	01	1	9101-9504	●	●
8	FLANGE; PARKING BRK 6BD1 TC ENG(L29) MT643 A/T ALLISON(PR7) EXH BRK<NF8>	1-37243-018-2	01	1	9101-9504	●	●
10	PLATE; LOCK 6BG1 STD ENG(16L) MT643 A/T ALLISON(PR7)	1-37249-021-0	01	1	9101-9504	●	●
10	PLATE; LOCK 6BD1 TC ENG(L29) MT643 A/T ALLISON(PR7) EXH BRK<NF8>	1-37249-021-0	01	1	9101-9504	●	●
11	BOLT; FLANGE FIX 6BG1 STD ENG(16L) MT643 A/T ALLISON(PR7) M14X44.5	1-09087-014-0	01	1	9101-9504	●	●
11	BOLT; FLANGE FIX 6BD1 TC ENG(L29) MT643 A/T ALLISON(PR7) EXH BRK<NF8> M14X44.5	1-09087-014-0	01	1	9101-9504	●	●
13	BRACE; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46239-003-0	01	1	9101-9504	●	●
13	BRACE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46239-003-0	01	1	9505-0203	●	●
13	BRACE; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-46239-002-0	01	1	9202-9202	●	●
15	BOLT; FLANGE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X43 KNURL	1-09046-003-0	04	1	9101-9101	●	●
15	BOLT; FLANGE ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X43 KNURL	1-09046-003-0	04	1	9101-9504	●	●
15	BOLT; FLANGE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	9505-0203	●	●
15	BOLT; FLANGE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X55	1-46219-039-0	04	1	9202-9202	●	●
15	BOLT; FLANGE 6BG1 STD ENG(16L) MT643 A/T ALLISON(PR7) M14X46	9-46219-012-0	04	1	9101-9504	●	●
15	BOLT; FLANGE 6BD1 TC ENG(L29) MT643 A/T ALLISON(PR7) EXH BRK<NF8> M14X46	9-46219-012-0	04	1	9101-9504	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=35.7 T=5	1-09623-379-0	01	1	9101-9504	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9202-9202	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=47 T=5	1-09623-380-0	01	1	9305-9504	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=47 T=5	1-09623-380-0	01	1	9505-0203	●	●
17	SHOE; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46220-012-0	02	1	9101-9411	●	●
17	SHOE; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46220-024-0	02	1	9412-9504	●	●
17	SHOE; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46220-024-0	02	1	9505-0203	●	●
17	SHOE; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46220-009-0	02	1	9202-9202	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9101-9504	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9505-0203	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09942-434-0	02	1	9202-9202	●	●
21	SPRING; RETURN,PARKING BRK SHOE ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-268-0	01	1	9101-9504	●	●
21	SPRING; RETURN,PARKING BRK SHOE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-268-0	01	1	9505-0203	●	●
21	SPRING; RETURN,PARKING BRK SHOE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09942-516-0	01	1	9202-9202	●	●
23	SCREW; ADJ,PARKING BRK SHOE ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46240-008-0	01	1	9101-9504	●	●
23	SCREW; ADJ,PARKING BRK SHOE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-46240-008-0	01	1	9505-0203	●	●
23	SCREW; ADJ,PARKING BRK SHOE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46240-003-0	01	1	9202-9202	●	●
32	PLATE; SUPPORT,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46213-023-0	01	1	9101-9504	●	●
32	PLATE; SUPPORT,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46213-023-0	01	1	9505-0203	●	●
32	PLATE; SUPPORT,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46213-039-0	01	1	9202-9202	●	●
33	SHAFT; CAM,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46251-002-0	01	1	9101-9504	●	●
33	SHAFT; CAM,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46251-002-0	01	1	9505-0203	●	●
33	SHAFT; CAM,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46251-006-0	01	1	9202-9202	●	●
37	NUT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99111-514-0	01	1	9101-9207	●	●
37	NUT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-047-0	01	1	9208-9310	●	●
37	NUT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-048-0	01	1	9311-9504	●	●
37	NUT; SUPPORT PLATE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99110-514-0	04	1	9202-9202	●	●
37	NUT; SUPPORT PLATE MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-047-0	04	1	9305-9310	●	●
37	NUT; SUPPORT PLATE MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-048-0	04	1	9311-9504	●	●
37	NUT; SUPPORT PLATE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 FLANGE	1-09440-048-0	04	1	9505-0203	●	●
38	WASHER; LK,SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	04	1	9101-9207	●	●
38	WASHER; LK,SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	03	1	9208-9504	●	●
39	COVER; DUST,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46213-019-0	01	1	9101-9504	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46213-019-0	01	1	9505-0203	●	●
39	COVER; DUST,PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46213-092-1	01	1	9505-0203	●	●
39	COVER; DUST,PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46213-092-1	01	1	0204-0708	●	●
39	COVER; DUST,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46213-038-0	01	1	9202-9202	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	1-46252-038-0	01	1	9505-0203	●	●
40	LEVER; CM/SHF,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46252-003-0	01	1	9101-9504	●	●
40	LEVER; CM/SHF,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46252-003-0	01	1	9505-0203	●	●
40	LEVER; CM/SHF,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46252-013-0	01	1	9202-9202	●	●
41	PIN; KNOCK,LEVER ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09878-594-0	01	1	9101-9504	●	●
41	PIN; KNOCK,LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09878-594-0	01	1	9505-0203	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RETARDER BRK<RE2>	9-09942-516-0	01	1	9505-0203	●	●
42	SPRING; RETURN,LEVER ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-592-0	01	1	9101-9504	●	●
42	SPRING; RETURN,LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	9-09942-592-0	01	1	9505-0203	●	●
42	SPRING; RETURN,LEVER MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-104-0	01	1	9202-9202	●	●
43	BOLT; LEVER TO CM/SHF MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-01041-040-0	01	1	9202-9202	●	●
44	NUT; LEVER TO CM/SHF MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09111-410-0	01	1	9202-9202	●	●
45	WASHER; LK,LEVER TO CM/SHF MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-010-0	01	1	9202-9202	●	●
46	WASHER; LEVER ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09855-367-0	01	1	9101-9504	●	●
46	WASHER; LEVER BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09855-367-0	01	1	9505-0203	●	●
46	WASHER; LEVER MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09855-362-0	01	1	9202-9202	●	●
47	BOLT; SUPPORT PLATE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X32	0-23801-432-0	03	1	9101-9504	●	●
47	BOLT; SUPPORT PLATE MLD7 M/T<X9Z> RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	9702-0203	●	●
47	BOLT; SUPPORT PLATE MLD7Q M/T(X5K) RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	0204-0708	●	●
47	BOLT; SUPPORT PLATE RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	0709-	●	●
79	WASHER; FLANGE 6BG1 STD ENG(16L) MT643 A/T ALLISON(PR7) ID=14.5 OD=56.426	1-09503-078-0	01	1	9101-9504	●	●
79	WASHER; FLANGE 6BD1 TC ENG(L29) MT643 A/T ALLISON(PR7) EXH BRK<NF8> ID=14.5 OD=56.426	1-09503-078-0	01	1	9101-9504	●	●
111	BOLT; COVER,CHECK HOLE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X18 W/LK WASHER	9-01900-818-0	02	1	9101-9204	●	●
111	BOLT; COVER,CHECK HOLE MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X18 W/LK WASHER	0-50040-818-0	02	1	9205-9504	●	●
111	BOLT; COVER,CHECK HOLE MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 W/LK WASHER	9-01900-820-0	02	1	9202-9202	●	●
111	BOLT; COVER,CHECK HOLE MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 W/LK WASHER	0-50040-820-0	02	1	9305-9504	●	●
111	BOLT; COVER,CHECK HOLE BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-0203	●	●

155 113 91 130 101 92 91 91 99 85 124 98 113 92 91 85 124 131 144 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	8-94454-582-1	02	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	06	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	0-92111-806-0	04	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	0-92124-306-0	02	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD7 M/T<X9Z> RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	9702-0203	●	●
85	CONNECTOR; RETARDER MLD7Q M/T(X5K) RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	0204-	●	●
91	GASKET RETARDER BRK<RE2> ID=11 OD=18	9-09572-510-0	04	1	9505-9701	●	●
91	GASKET MLD6 M/T<X9Y> RETARDER BRK<RE2> ID=11 OD=18	9-09572-510-0	04	1	9702-	●	●
92	HOSE; FLEX,RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> L=520	1-09363-957-0	01	1	0709-	●	●
92	HOSE; FLEX,RETARDER MLD7 M/T<X9Z> RETARDER BRK<RE2> L=300	1-09363-611-0	01	1	9702-	●	●
92	HOSE; FLEX,RETARDER MLD7 M/T<X9Z> RETARDER BRK<RE2> L=210	1-09363-614-0	01	1	9702-	●	●
92	HOSE; FLEX,RETARDER RETARDER BRK<RE2> SERVICED BY L=600	0-07150-600-0	02	1	9505-9701	●	●
92	HOSE; FLEX,RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> SERVICED BY L=600	0-07150-600-0	02	1	9702-0708	●	●
92	HOSE; FLEX,RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> L=480	0-07150-480-0	01	1	0709-	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (A)	1-48629-038-0	01	1	9505-0203	●	●
98	CLIP; AIR PIPE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A)	1-48629-038-0	01	1	0204-0708	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-055-0	01	1	9505-0203	●	●
98	CLIP; AIR PIPE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-055-0	01	1	0204-0708	●	●
98	CLIP; AIR PIPE RETARDER BRK<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9505-9701	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9702-0708	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) ID=13X2 L=16	0-95325-225-0	01	1	0709-	●	●
99	BRACKET; CLIP RETARDER BRK<RE2> MLD6 M/T<X9Y>	1-47476-658-0	01	1	0709-		●
101	BOLT; CLIP RETARDER BRK<RE2> M8X25 FLANGE	0-28080-825-0	01	1	9505-9606	●	●
101	BOLT; CLIP RETARDER BRK<RE2> M8X30 FLANGE	0-28680-830-0	01	1	9607-9701	●	●
101	BOLT; CLIP MLD6 M/T<X9Y> RETARDER BRK<RE2> M8X30 FLANGE	0-28680-830-0	01	1	9702-0512	●	●
101	BOLT; CLIP MLD6 M/T<X9Y> RETARDER BRK<RE2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
101	BOLT; CLIP RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28680-820-0	01	1	9707-9712	●	●
101	BOLT; CLIP RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28680-820-0	01	1	9707-9712	●	●
101	BOLT; CLIP 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28680-820-0	01	1	9801-0512	●	●
101	BOLT; CLIP 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28680-820-0	01	1	9801-0512	●	●
101	BOLT; CLIP 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28680-820-0	01	1	9801-0512	●	●
101	BOLT; CLIP 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28680-820-0	01	1	9801-0512	●	●
101	BOLT; CLIP 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
101	BOLT; CLIP 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
101	BOLT; CLIP 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
101	BOLT; CLIP 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
113	CLIP; HOSE RETARDER BRK<RE2> (A) L=250	1-09707-126-0	02	1	9505-9507	●	●
113	CLIP; HOSE RETARDER BRK<RE2> (C) ID=10 & 10	1-09709-277-1	01	1	0107-	●	●
113	CLIP; HOSE RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (B) ID=16 L=50	9-09525-586-0	01	1	9707-9712	●	●
113	CLIP; HOSE RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=16 L=50	9-09525-586-0	01	1	9707-9712	●	●
113	CLIP; HOSE 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=16 L=50	9-09525-586-0	01	1	9801-	●	●
113	CLIP; HOSE 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> EXC. RETARDER BRK<RE2> (B) ID=16 L=50	9-09525-586-0	01	1	9801-	●	●
113	CLIP; HOSE 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (B) ID=16 L=50	9-09525-586-0	01	1	9801-	●	●
113	CLIP; HOSE 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (B) ID=16 L=50	9-09525-586-0	01	1	9801-	●	●
113	CLIP; HOSE 6HE1 TC ENG(57L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (B) ID=19 L=50	9-09525-886-0	01	1	9801-0606	●	●
113	CLIP; HOSE 6HE1 TC ENG(57L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (B) ID=19 L=50	0-95235-886-0	01	1	0607-	●	●
124	CONNECTOR; FLEX HOSE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0709-	●	●
124	CONNECTOR; FLEX HOSE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D)	1-48629-204-0	01	1	0709-	●	●
124	CONNECTOR; FLEX HOSE MLD7 M/T<X9Z> RETARDER BRK<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9702-0203	●	●
124	CONNECTOR; FLEX HOSE MLD7Q M/T(X5K) RETARDER BRK<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0204-	●	●
124	CONNECTOR; FLEX HOSE MLD7 M/T<X9Z> RETARDER BRK<RE2> (B)	1-48629-243-0	01	1	9702-0203	●	●
124	CONNECTOR; FLEX HOSE MLD7Q M/T(X5K) RETARDER BRK<RE2> (B)	1-48629-243-0	01	1	0204-	●	●
130	BOLT; BRKT RETARDER BRK<RE2> MLD6 M/T<X9Y> M8X30 FLANGE	0-28650-830-0	01	1	0709-		●
131	NUT; BRKT RETARDER BRK<RE2> M8	9-09110-508-0	01	1	9505-9603	●	●
131	NUT; BRKT RETARDER BRK<RE2> M8	9-09110-408-0	01	1	9604-9606	●	●
131	NUT; BRKT RETARDER BRK<RE2> M8 FLANGE	0-91150-108-0	01	1	9607-9701	●	●
131	NUT; BRKT MLD6 M/T<X9Y> RETARDER BRK<RE2> M8 FLANGE	0-91150-108-0	01	1	9702-0602	●	●
131	NUT; BRKT MLD6 M/T<X9Y> RETARDER BRK<RE2> M8 FLANGE	0-91180-108-0	01	1	0603-0708	●	●
131	NUT; BRKT RETARDER BRK<RE2> MLD6 M/T<X9Y> M8 FLANGE	0-91180-108-0	01	1	0709-	●	●
131	NUT; BRKT RETARDER BRK<RE2> MLD6 M/T<X9Y> M8 FLANGE	0-91180-108-0	01	1	0709-		●
144	NUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) WO/PARKING BRAKE M14 FLANGE	1-09440-048-0	04	1	9505-9701	●	●
144	NUT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9702-0203	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	0204-0604	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	8-97365-444-0	04	1	0605-	●	●
144	NUT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	9505-0203	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	0204-0708	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) M12	9-09840-280-0	02	1	0709-	●	●
144	NUT MLD7 M/T<X9Z> RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	9702-0203	●	●
144	NUT MLD7Q M/T(X5K) RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	0204-	●	●
144	NUT RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
155	TUBE MLD7 M/T<X9Z> RETARDER BRK<RE2> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0204-	●	●
155	TUBE MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-225-0	01	1	9702-0203	●	●
155	TUBE MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-225-0	01	1	0204-	●	●
155	TUBE MLD7 M/T<X9Z> RETARDER BRK<RE2> (B) L=1000 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9702-0203	●	●
155	TUBE RETARDER BRK<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9505-9701	●	●
155	TUBE MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9702-0203	●	●
155	TUBE MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) L=1300 SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0204-	●	●

87 134 83 124 144 144 142 142 168 170 124 54 81 117 173 2 20 140 166 125 163 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46211-040-0	01	1	9101-9504	●	●
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46211-020-0	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46210-194-5	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46210-194-5	01	1	0204-0708	●	●
2	DRUM; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46211-019-0	01	1	9202-9202	●	●
2	DRUM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-46210-260-0	01	1	9702-0203	●	●
2	DRUM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-46210-260-0	01	1	0204-0206	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9101-9504	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09942-567-1	02	1	9505-0203	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09942-434-0	02	1	9202-9202	●	●
54	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE M8X16	9-05820-816-0	01	1	9505-9701	●	●
54	BOLT; COVER MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	9702-0203	●	●
54	BOLT; COVER RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	0204-0708	●	●
54	BOLT; COVER MLD7Q M/T(X5K) RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	0709-0812	●	●
81	COVER; CHECK HOLE,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48629-124-0	01	1	9505-9701	●	●
81	COVER; CHECK HOLE,PARKING BRK MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-48629-124-0	01	1	9702-0203	●	●
81	COVER; CHECK HOLE,PARKING BRK RETARDER BRK<RE2>	1-48629-124-0	01	1	0204-0708	●	●
81	COVER; CHECK HOLE,PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-124-0	01	1	0709-0812	●	●
83	RETARDER ASM; PARKING BRK MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48610-246-3	01	1	9505-0203	●	●
83	RETARDER ASM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48610-246-3	01	1	0204-0708	●	●
83	RETARDER ASM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48610-370-7	01	1	0709-	●	●
83	RETARDER ASM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48610-330-3	01	1	9702-0203	●	●
83	RETARDER ASM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-330-3	01	1	0204-0206	●	●
83	RETARDER ASM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-482-4	01	1	0207-	●	●
87	DRUM; RETARDER,PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-365-1	01	1	0207-0708	●	●
87	DRUM; RETARDER,PARKING BRK RETARDER BRK<RE2>	1-48610-365-1	01	1	0709-	●	●
117	CYLINDER ASM; AIR MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-033-1	03	1	9505-0203	●	●
117	CYLINDER ASM; AIR MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-033-1	03	1	0204-0708	●	●
117	CYLINDER ASM; AIR MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-220-0	01	1	9702-0203	●	●
117	CYLINDER ASM; AIR MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-220-0	01	1	0204-0708	●	●
117	CYLINDER ASM; AIR RETARDER BRK<RE2>	1-48629-220-0	01	1	0709-	●	●
124	CONNECTOR; FLEX HOSE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0709-	●	●
124	CONNECTOR; FLEX HOSE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D)	1-48629-204-0	01	1	0709-	●	●
124	CONNECTOR; FLEX HOSE MLD7 M/T<X9Z> RETARDER BRK<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9702-0203	●	●
124	CONNECTOR; FLEX HOSE MLD7Q M/T(X5K) RETARDER BRK<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0204-	●	●
124	CONNECTOR; FLEX HOSE MLD7 M/T<X9Z> RETARDER BRK<RE2> (B)	1-48629-243-0	01	1	9702-0203	●	●
124	CONNECTOR; FLEX HOSE MLD7Q M/T(X5K) RETARDER BRK<RE2> (B)	1-48629-243-0	01	1	0204-	●	●
125	WASHER; LK MLD7 M/T<X9Z> RETARDER BRK<RE2> ID=6.1	9-09150-506-0	01	1	9702-0203	●	●
125	WASHER; LK MLD7Q M/T(X5K) RETARDER BRK<RE2> ID=6.1	9-09150-506-0	01	1	0204-0603	●	●
125	WASHER; LK MLD7Q M/T(X5K) RETARDER BRK<RE2> ID=6.1	0-91510-506-0	01	1	0604-0708	●	●
125	WASHER; LK RETARDER BRK<RE2> ID=6.1	0-91510-506-0	01	1	0709-	●	●
134	REPAIR KIT; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-044-0	03	1	9505-0203	●	●
134	REPAIR KIT; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-044-0	03	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-230-0	01	1	9702-0203	●	●
134	REPAIR KIT; AIR CYL MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-230-0	01	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL RETARDER BRK<RE2>	1-48629-230-0	01	1	0709-	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A)	1-48629-039-1	03	1	9505-9506	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	9507-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	0204-0512	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28761-030-0	03	1	0601-0708	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	9505-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	0204-0708	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0709-	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0709-	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-058-0	03	1	9505-9506	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	9-06043-810-0	03	1	9507-0203	●	●
142	SCREW MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	9-06043-810-0	03	1	0204-0708	●	●
142	SCREW MLD7 M/T<X9Z> RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	9702-0203	●	●
142	SCREW MLD7Q M/T(X5K) RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0204-0708	●	●
142	SCREW RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0709-	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) WO/PARKING BRAKE M14 FLANGE	1-09440-048-0	04	1	9505-9701	●	●
144	NUT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9702-0203	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	0204-0604	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	8-97365-444-0	04	1	0605-	●	●
144	NUT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	9505-0203	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	0204-0708	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) M12	9-09840-280-0	02	1	0709-	●	●
144	NUT MLD7 M/T<X9Z> RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	9702-0203	●	●
144	NUT MLD7Q M/T(X5K) RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	0204-	●	●
144	NUT RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
163	BAR; FLAT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48629-125-0	01	1	9505-9701	●	●
163	BAR; FLAT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-48629-125-0	01	1	9702-0203	●	●
163	BAR; FLAT RETARDER BRK<RE2>	1-48629-125-0	01	1	0204-0708	●	●
163	BAR; FLAT MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-125-0	01	1	0709-0812	●	●
166	ATTACHMENT; YOKE MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-181-0	01	1	9702-0203	●	●
166	ATTACHMENT; YOKE MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-181-0	01	1	0204-0708	●	●
166	ATTACHMENT; YOKE RETARDER BRK<RE2>	1-48629-181-0	01	1	0709-	●	●
168	PROTECTOR; HEAT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-259-0	01	1	0709-	●	●
168	PROTECTOR; HEAT MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-222-0	01	1	9702-0203	●	●
168	PROTECTOR; HEAT MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-222-0	01	1	0204-	●	●
170	COVER; CASE MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-219-0	01	1	9702-0203	●	●
170	COVER; CASE MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-219-0	01	1	0204-0708	●	●
170	COVER; CASE RETARDER BRK<RE2>	1-48629-219-0	01	1	0709-	●	●
173	FOLLOWER MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-159-0	01	1	9702-0203	●	●
173	FOLLOWER MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-159-0	01	1	0204-0708	●	●
173	FOLLOWER RETARDER BRK<RE2>	1-48629-159-0	01	1	0709-	●	●

2 83 118 98 85 85 118 144 117 141 54 81 163 85 117 85 85 140 134 140 85 140 39 98 117 85 118 118 142 140 52 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46211-040-0	01	1	9101-9504	●	●
2	DRUM; PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46211-020-0	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46210-194-5	01	1	9505-0203	●	●
2	DRUM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46210-194-5	01	1	0204-0708	●	●
2	DRUM; PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46211-019-0	01	1	9202-9202	●	●
2	DRUM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-46210-260-0	01	1	9702-0203	●	●
2	DRUM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-46210-260-0	01	1	0204-0206	●	●
39	COVER; DUST,PARKING BRK ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46213-019-0	01	1	9101-9504	●	●
39	COVER; DUST,PARKING BRK BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2>	1-46213-019-0	01	1	9505-0203	●	●
39	COVER; DUST,PARKING BRK MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-46213-092-1	01	1	9505-0203	●	●
39	COVER; DUST,PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-46213-092-1	01	1	0204-0708	●	●
39	COVER; DUST,PARKING BRK MLD6A M/T(X5N) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-46213-038-0	01	1	9202-9202	●	●
52	WASHER; PL MLD6 M/T<X9Y> RETARDER BRK<RE2> ID=10.5 OD=18	9-09160-510-0	03	1	9505-0203	●	●
52	WASHER; PL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> ID=10.5 OD=18	9-09160-510-0	03	1	0204-0605	●	●
52	WASHER; PL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> ID=10.5	0-91610-510-0	03	1	0606-0708	●	●
54	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE M8X16	9-05820-816-0	01	1	9505-9701	●	●
54	BOLT; COVER MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	9702-0203	●	●
54	BOLT; COVER RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	0204-0708	●	●
54	BOLT; COVER MLD7Q M/T(X5K) RETARDER BRK<RE2> M8X16	9-05820-816-0	01	1	0709-0812	●	●
81	COVER; CHECK HOLE,PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48629-124-0	01	1	9505-9701	●	●
81	COVER; CHECK HOLE,PARKING BRK MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-48629-124-0	01	1	9702-0203	●	●
81	COVER; CHECK HOLE,PARKING BRK RETARDER BRK<RE2>	1-48629-124-0	01	1	0204-0708	●	●
81	COVER; CHECK HOLE,PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-124-0	01	1	0709-0812	●	●
83	RETARDER ASM; PARKING BRK MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48610-246-3	01	1	9505-0203	●	●
83	RETARDER ASM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48610-246-3	01	1	0204-0708	●	●
83	RETARDER ASM; PARKING BRK MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48610-370-7	01	1	0709-	●	●
83	RETARDER ASM; PARKING BRK MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48610-330-3	01	1	9702-0203	●	●
83	RETARDER ASM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-330-3	01	1	0204-0206	●	●
83	RETARDER ASM; PARKING BRK MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48610-482-4	01	1	0207-	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M20 & PT1/4 ELBOW	1-09660-681-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-029-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	8-94454-582-1	02	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C)	1-48629-150-0	02	1	0204-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	06	1	9505-9506	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	9507-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	9-09221-806-1	04	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) M12 & PT1/8	0-92111-806-0	04	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD6 M/T<X9Y> RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	9505-0203	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	9-09224-306-2	02	1	0204-0607	●	●
85	CONNECTOR; RETARDER MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (E) M12 & PT1/8	0-92124-306-0	02	1	0608-0708	●	●
85	CONNECTOR; RETARDER MLD7 M/T<X9Z> RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	9702-0203	●	●
85	CONNECTOR; RETARDER MLD7Q M/T(X5K) RETARDER BRK<RE2> (F)	1-48629-224-0	02	1	0204-	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (A)	1-48629-038-0	01	1	9505-0203	●	●
98	CLIP; AIR PIPE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A)	1-48629-038-0	01	1	0204-0708	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-055-0	01	1	9505-0203	●	●
98	CLIP; AIR PIPE MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-055-0	01	1	0204-0708	●	●
98	CLIP; AIR PIPE RETARDER BRK<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9505-9701	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9702-0708	●	●
98	CLIP; AIR PIPE MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) ID=13X2 L=16	0-95325-225-0	01	1	0709-	●	●
117	CYLINDER ASM; AIR MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-033-1	03	1	9505-0203	●	●
117	CYLINDER ASM; AIR MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-033-1	03	1	0204-0708	●	●
117	CYLINDER ASM; AIR MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-220-0	01	1	9702-0203	●	●
117	CYLINDER ASM; AIR MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-220-0	01	1	0204-0708	●	●
117	CYLINDER ASM; AIR RETARDER BRK<RE2>	1-48629-220-0	01	1	0709-	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) LOWER FRT	1-47493-115-0	01	1	9505-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) LOWER FRT	1-47493-115-0	01	1	0204-0708	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) LOWER RR	1-47493-116-0	01	1	9505-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) LOWER RR	1-47493-116-0	01	1	0204-0708	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) UPPER FRT	1-49111-770-0	01	1	9505-9506	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (C) UPPER FRT	1-49115-743-0	01	1	9507-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (C) UPPER FRT	1-49115-743-0	01	1	0204-0708	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) UPPER RR	1-49111-771-0	01	1	9505-9506	●	●
118	PIPE ASM; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2> (D) UPPER RR	1-49115-744-0	01	1	9507-0203	●	●
118	PIPE ASM; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (D) UPPER RR	1-49115-744-0	01	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-044-0	03	1	9505-0203	●	●
134	REPAIR KIT; AIR CYL MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-48629-044-0	03	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-230-0	01	1	9702-0203	●	●
134	REPAIR KIT; AIR CYL MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-230-0	01	1	0204-0708	●	●
134	REPAIR KIT; AIR CYL RETARDER BRK<RE2>	1-48629-230-0	01	1	0709-	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A)	1-48629-039-1	03	1	9505-9506	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	9507-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28791-030-0	03	1	0204-0512	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (A) M10X30 FLANGE	0-28761-030-0	03	1	0601-0708	●	●
140	BOLT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	9505-0203	●	●
140	BOLT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B)	1-48629-041-0	06	1	0204-0708	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (B)	1-48629-170-0	02	1	0709-	●	●
140	BOLT MLD7 M/T<X9Z> RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	9702-0203	●	●
140	BOLT MLD7Q M/T(X5K) RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0204-0708	●	●
140	BOLT RETARDER BRK<RE2> (A)	1-48629-182-0	04	1	0709-	●	●
141	BRACKET MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-47476-804-0	01	1	9505-0203	●	●
141	BRACKET MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	1-47476-804-0	01	1	0204-0708	●	●
141	BRACKET MLD7 M/T<X9Z> RETARDER BRK<RE2>	1-48629-227-0	01	1	9702-9901	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	1-48629-058-0	03	1	9505-9506	●	●
142	SCREW MLD6 M/T<X9Y> RETARDER BRK<RE2>	9-06043-810-0	03	1	9507-0203	●	●
142	SCREW MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2>	9-06043-810-0	03	1	0204-0708	●	●
142	SCREW MLD7 M/T<X9Z> RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	9702-0203	●	●
142	SCREW MLD7Q M/T(X5K) RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0204-0708	●	●
142	SCREW RETARDER BRK<RE2> M6X14 HEX SOCKET	1-48629-145-0	06	1	0709-	●	●
144	NUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) WO/PARKING BRAKE M14 FLANGE	1-09440-048-0	04	1	9505-9701	●	●
144	NUT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	9702-0203	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	1-09440-048-0	04	1	0204-0604	●	●
144	NUT RETARDER BRK<RE2> (A) M14 FLANGE	8-97365-444-0	04	1	0605-	●	●
144	NUT MLD6 M/T<X9Y> RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	9505-0203	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) T=7.3	1-48269-025-0	04	1	0204-0708	●	●
144	NUT MLD6Q M/T(X5J),MLD6A M/T(X5N),MLD6F M/T(X7K), MLD6SM/T(X7W) RETARDER BRK<RE2> (B) M12	9-09840-280-0	02	1	0709-	●	●
144	NUT MLD7 M/T<X9Z> RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	9702-0203	●	●
144	NUT MLD7Q M/T(X5K) RETARDER BRK<RE2> (C)	1-48629-244-0	01	1	0204-	●	●
144	NUT RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9707-9712	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91150-108-0	01	1	9801-0602	●	●
144	NUT 6HE1 TC ENG(57L) RETARDER BRK<RE2> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HE1 TC ENG(57L) CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
144	NUT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> OVERHEAD COOLING SYSTEM<YS9> EXC. CENTER SPLIT TYPE FRAME<TLW> (D) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
163	BAR; FLAT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2> WO/PARKING BRAKE	1-48629-125-0	01	1	9505-9701	●	●
163	BAR; FLAT MLD6 M/T<X9Y> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) RETARDER BRK<RE2>	1-48629-125-0	01	1	9702-0203	●	●
163	BAR; FLAT RETARDER BRK<RE2>	1-48629-125-0	01	1	0204-0708	●	●
163	BAR; FLAT MLD7Q M/T(X5K) RETARDER BRK<RE2>	1-48629-125-0	01	1	0709-0812	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
